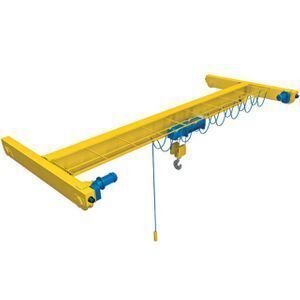

LD 20 ton single girder overhead crane with electric hoist

Product details
Feature:Bridge Crane;Rated Loading Capacity:5T-32t;
Condition:New;Warranty:1 Year;
Port:Shanghai;Polyurethane material buffer:Include;
Color:At Your Request;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Max. Lifting Height:30M;Product Name:LD Single Girder Bridge Cranes;
Standard lifting height:0-40m;Place of Origin:Chongqing China (Mainland);
Weight overload protection device:Include;Emergency stop system:Include;
After-sales Service Provided:Field installation, commissioning and training;Brand Name:JCYC;
Crane traveling limited switch:Include;Max. Lifting Load:20T;
Packaging Detail:1.Inner package: bubble film or stretch film. 2.Outside package: cartons or wooden cases.;Power Source:3Phase;
Supply Ability:1000 Set/Sets per Month Over 20 years experience;Certification:ISO9001,CE;
Keywords:bridge crane 20 ton;
Product Description

 Product Application

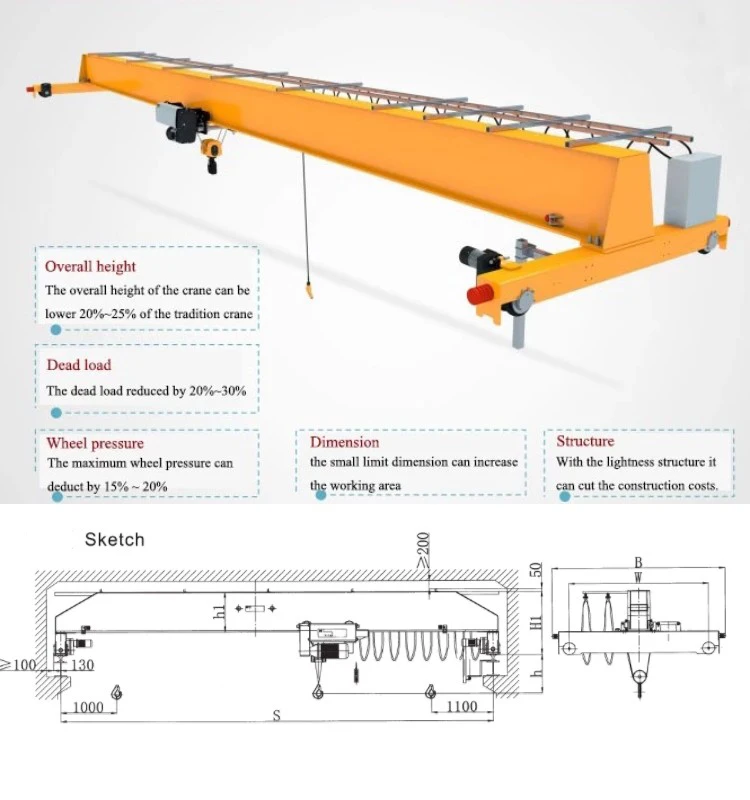

1.The electric single-girder overhead crane has the characteristics of rational construction and high rigidity.

2.The electric single-girder overhead crane is a kind of mini type hoisting machinery and it should proper matching use CD1 and MD1 type electric hoist.

3.The lifting capacity is between 1~20t, span is between 6~28.5m, classification group is between A3~A4 and the operating ambient temperature is between -25ºC ~ 40 ºC.

4.The electric single-girder overhead crane is widely used in factory, warehouse, stock ground and other different occasions to lift cargo. It is forbidden using in flammable, explosive and corrosive medium environment.

5.The products have two operating modes, they are remote control on ground and remote control in operating house.

Capacity
1t~20t
Span
6m~28.5m
Lift height
6m~12m
Lifting Speed
7m/min
Cross Travel Speed
20m/min
Long Travel Speed
20m/min or 30m/min
Work Duty
A3(Equal to m2)
Controlled by
Pendant/Radio
Power Supply
380v/400/415v/460v



Company Information



Our Services



Our Services

Chongqing Shanyan Crane Machinery CO.,LTD Service

All the machines will be full tested before shipment

Technical supports and suggestions before you order a machine according to your work place.

Professional opertion instruction  of the machine.

12 months warranty period and we will provide the consumable parts at cost price after the warranty period.

24-hour technical support by emails, calling or videos.

Packaging & Shipping



FAQ



1. What about the payment term&price term?

As usual, we accept T/T, L/C as the payment term, and the price term, FOB&CIF&CFR etc are ok.



2. What's the delivery time?

Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends.



3. Are we a manufacturer&factory or trading Company?

Chongqing Shanyan Crane Machinery Co.,ltd is a manufacturer in Chongqing, China, we have specialized in crane&hoist over 20 years, our high quality products were welcomed in many countries.
