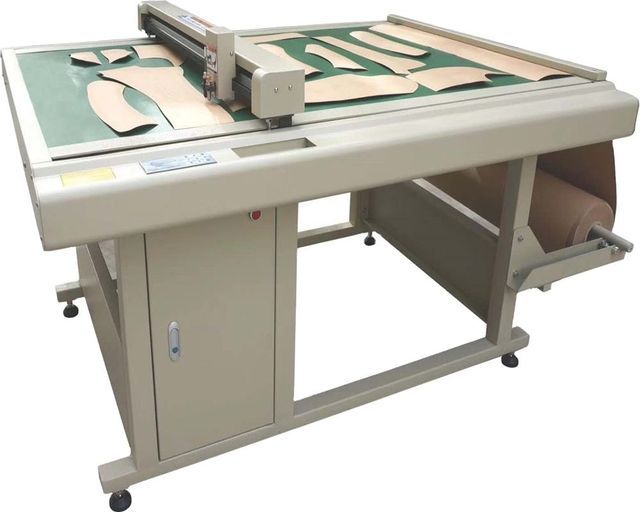

Pen Writing Engraving Tablet Cutting Plotter Die Cutting Plotter Pen Knife Plotter

  • Supplier: Wuhan GEMEI Joint Technology Co., Ltd
  • Region: HUBEI, China
  • Contact: Mr Robin Deng
  • Price: $2715.00 / 1 - 2 sets
    $2615.00 / 3 - 4 sets
    $2515.00 / 5 - 9 sets
    $2315.00 / >=10 sets
  • Min. Order: 1 set
Product details
brand:KAEMI or GMPackage preview:
Origin:Hubei, ChinaWarranty:1 year, whole machine
Machine material:All aluminum countertopMechanical test report:if
Cutting machine size:1900*1280*750mmCutting material:White paper, kraft paper, plastic board, fiberboard, etc.
Core component warranty:2 yearsCutting range:1500*900mm
Cutting thickness:≤3mmpayment terms:L/C, Western Union, T/T, Escrow
Health status:newproduct name:Flatbed Inkjet Cutting Machine Die Cutting Pattern Cutting Machine
Supply capacity:200 sets per monthCutting speed:1200 mm/s
Packaging Details:The wooden box has been specially treated, so there is no problem with import and export.Video shipment inspection:if
Cutting tool:Ballpoint pen, ballpoint pen, gel pen/tungsten steel bladeMarketing Type:New Products 2020
port:Shanghai portApplicable fields or industries:Clothing, bags, handbags, furniture, car accessories, cartons
Applicable industries:Hotels, Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Retail, Printing Shops, Advertising Agencies, Shoes/Hats/Bags/Furniture/Car Interior ProductionWeight (kg):400
Cutter frame and housing:Blue frame + silver shellShowroom location:Vietnam
Core components:Engines, Motors, Drivers and Motherboards
Practical Large Size 1500*1200mm Cutting Inkjet Cutting Machine Pattern Cutting Plotter
Specification
Model
GM-1209B3
GM-1509B3
GM-1510B3
GM-1512B3
Crop window (cloth range)
1200*900mm
1500*900mm
1500*1000mm
1500*1200mm
Dimensions (mm)
1600*1280*750
1900*1280*750
1900*1380*800
1900*1580*800
cutting speed
1200 mm/s


Cutting thickness
2 mm


cutting material
White paper, kraft paper, plastic board, fiberboard, etc.


Repeatability
≤0.01mm


communication port
USB/RJ45 Ethernet; LAN shared folder printing


buffer memory size
1M/8M/32M (more than 1 page can be painted)


file format
HPGL (compatible with domestic and foreign CAD online)


control Panel
9 keys and LED display


motor driver
High-performance three-phase stepper motor


voltage
AC 220V/110V±10%, 50Hz/3.5KW


working environment
Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95%RH


Tie
vacuum adsorption


paper thickness
150g-500g/㎡


Application field
Clothing, shoes, bags, furniture, car decoration, box cutting, etc.


Product Description
main feature
1. New frame design to ensure the stability of the machine at high speed 2. Optimized circuit layout; more compact electrical; better heat dissipation; more reasonable 3. Cutting starting point and cutting sequence display system 4. The system is updated to the latest version. Optimize the dotted line and arc, and the machine runs more smoothly 5. Unique error data identification function
