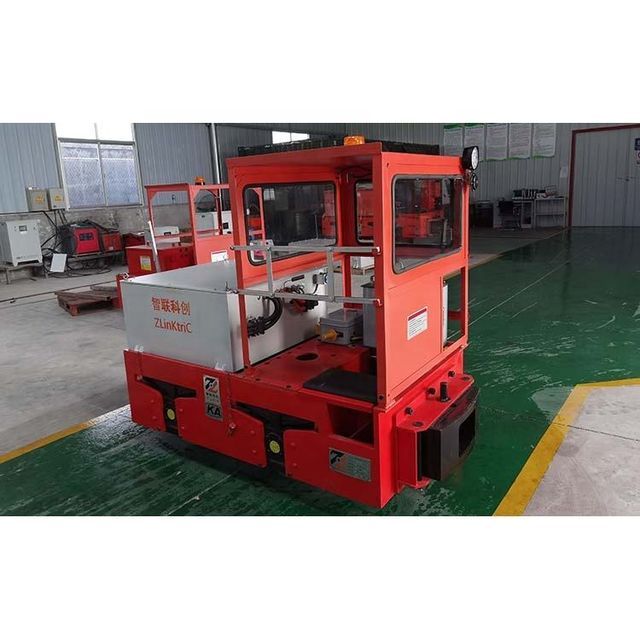

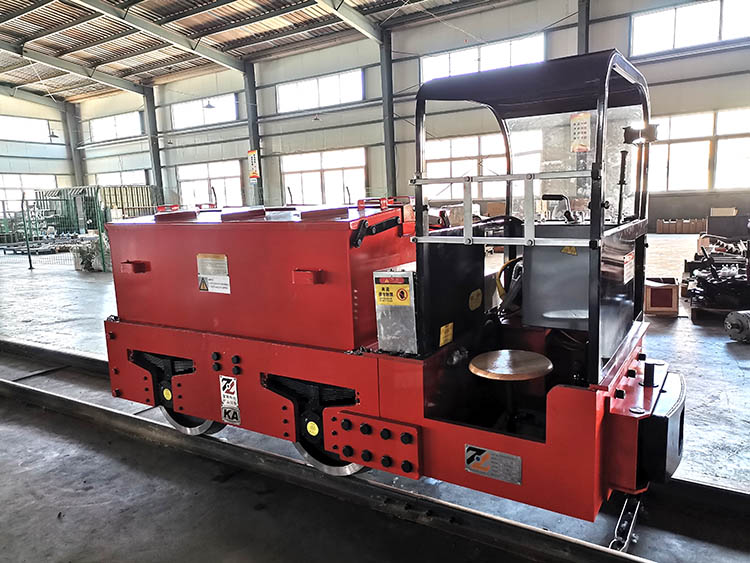

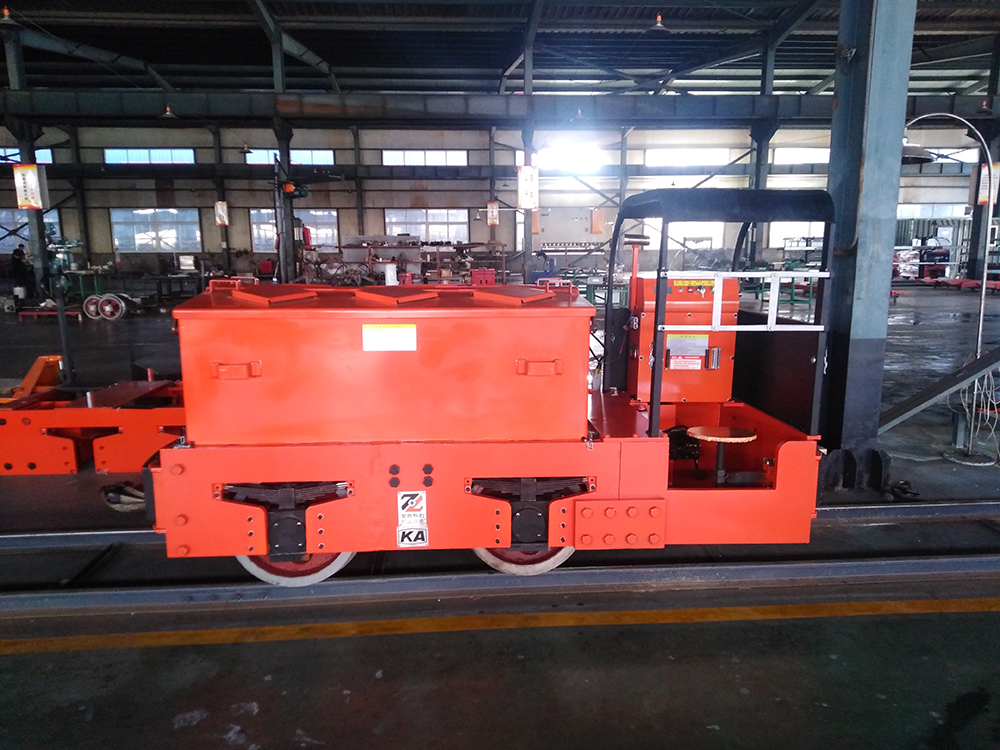

2.5T lithium battery railway narrow gauge mine electric locomotive

Product details
Gasoline type:electricalOrigin:Shandong China
Dimensions (LxWxH) (mm):1660*970*1550payment terms:L/C, Western Union, D/P, D/A, T/T
Packaging Details:standard export packagehorsepower:4 kW
Supply capacity:5000 units per yearproduct name:Battery Powered Electric Locomotive
Package preview:Speed ​​(km/h):5.8 km/h
port:QingdaoRated Towing Weight:18 tons
Traction:4.7KNbattery voltage:48V
application:miningbrand:Zhilian Science and Technology Innovation
Product Description



Product advantages

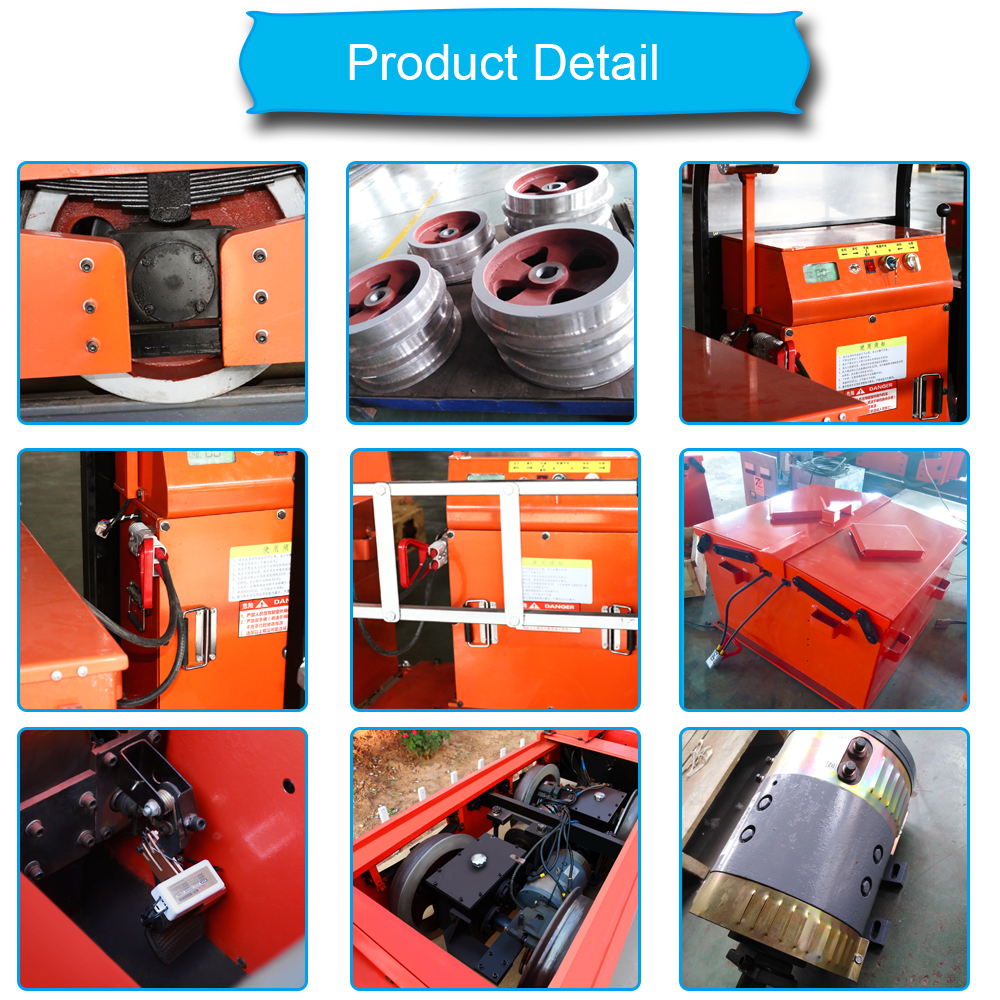

The self-developed three-stage gearbox design has a small size and a large speed ratio, which improves the traction of the vehicle.

All gearbox gears are made of 40CrMnTi material, heat treatment process, high strength and impact resistance.

The engine casing is made of seamless steel pipe, which is specially developed for mine working conditions, moisture-proof and shock-proof.

The steel wheel is made of manganese steel, which is wear-resistant and durable.

The length of the entire locomotive is only a few meters, just below the cage.

The appearance of the whole vehicle is treated with electrostatic spraying, which is more corrosion-resistant.

The external structure of the locomotive is fixed with threads for easy maintenance.

Explosion-proof drive battery prevents equipment downtime caused by the battery.

Regulation cutter speed adjustment, smooth start, effectively protect the engine and transmission gears from impact.

Optional wireless remote control function, 100 meters remote control range, safer and more efficient.



Product parameters



Specifications

value

Adhesive weight

5 tons

Dimensions (LxWxH)

2310*970*1550mm

Traction rated power

15kw(7.5kw*2)

traction

10KN

Rated weight

35t (approximately 23 mine cars of 0.75 cubic meters)

Charger power

5 kW

charging time

4 hours

usage time

10 hours

Electrolyte capacity

210L

Speed ​​(km/h)

5.8 km/h

minute turning radius

4m





Specifications value value value value value
Adhesive weight 1.5 tons 2.5 tons 2.5 tons 5 tons 8 tons
Dimensions (LxWxH) 1660*950*1550mm 1660*970*1550mm 1660*970*1550mm 231*970*1550mm 4580*1095*1550mm
Traction rated power 4 kW 4 kW 8kw(4kw*2) 15kw(7.5kw*2) 22kw(11kw*2)
traction 3.8KN 4.7KN 4.7KN 10KN 17KN
Rated weight 11t (about 7 mine cars of 0.75 cubic meters) 18t (approximately 12 mine cars of 0.75 cubic meters) 18t (approximately 12 mine cars of 0.75 cubic meters) 35t (approximately 23 mine cars of 0.75 cubic meters) 56t (approximately 30 mine cars of 1.05 cubic meters)
Charger power 2.5 kW 2.5 kW 2.5 kW 5 kW 5 kW
charging time 6 hours 8 hours 8 hours 8 hours 8 hours
usage time 10 hours 10 hours 10 hours 10 hours 10 hours
Electrolyte capacity 102L 102L 102L 210L 420L
Speed ​​(km/h) 5.8 km/h 5.8 km/h 5.8 km/h 5.8 km/h 6.8 km/h
minute turning radius 4m 4m 4m 4m 7 meters
gauge 600mm 600mm 600mm 600mm 600mm
