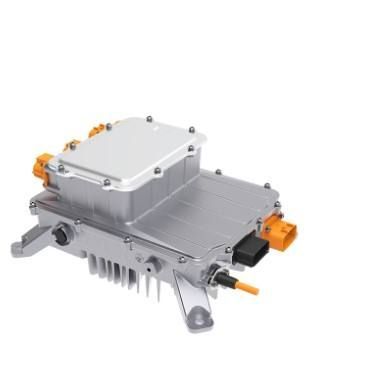

Three-in-one combination 3.3KW 108v OBC+1KW DCDC+PDU

Supplier: Qingdao Greatway Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Angela Zhang
Price: $359.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Environment Shell: I:	IP67	Output Voltage Range (OBC):	65V-144V
Rated output current:	58A	Package preview:
Power (OBC):	3.3kw	port:	Youth Olympics
Origin:	China	Supply capacity:	10000 pieces per month
Rated output voltage (DCDC):	13.8V	Output current (OBC):	0-20A

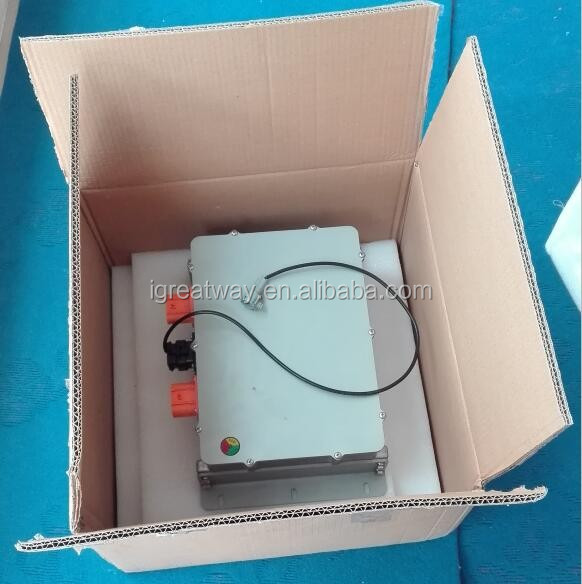

Rated power (DCDC):	800W	Packaging Details:	carton
Charge Control:	Charging control: CAN communication	AC input voltage:	85v-265v
payment terms:	Western Union, T/T, MoneyGram, PayPal	weight:	9.5 kg

Product Description

Three-in-one on-board power supply unit (PSU) consists of on-board charger (OBC), DC/DC/DC converter (DC/DC), high-voltage power distribution unit (PDU) and high-voltage connector

3.1.1OBC Input Characteristics

project	minimum valuevalue	score	maximumvalue	Comment
Working voltage range (Vac)	Post-90s	220	264
Frequency (Hz)	45	50/60	66
Power factor (PF)	/	≥0.98	/	Rated input voltage, more than 50% of rated output power
Input current (A)	-	-	11
communication input system	Single-phase three-wire input			L,N,polyethylene

OBC protection function

Input side protection
project	unit	minimum valuevalue	typical value	maximumvalue	Comment
Input overvoltage protection point	alternating current	268	273	278
Input overvoltage recovery point	alternating current	250	255	260
Input undervoltage protection point	alternating current	80	85	Post-90s
Input brownout recovery point	alternating current	Post-90s	95	100
Input current limit function	AAC	-	-	11

3.2.1DC-DC Input Properties

project

minimum value

score

the peak

Comment

Input voltage range (Vdc)

108

144

108V system

Input current range (A)

15.5A

108V system

3.2.2DC-DC output characteristics

project	minimum value	score	maximum value	Comment
Output voltage range (Vdc)	9	13.8	16
Rated output current (A)	58
Peak output current (A)	72			Not less than 6 minutes in length
Rated output power (KW)	0.8
Peak output power (KW)	1			Not less than 6 minutes in length
Stable pressure accuracy	±2%			Output current＞0.5A
Stable flow accuracy	±2%			Output current＞10A
