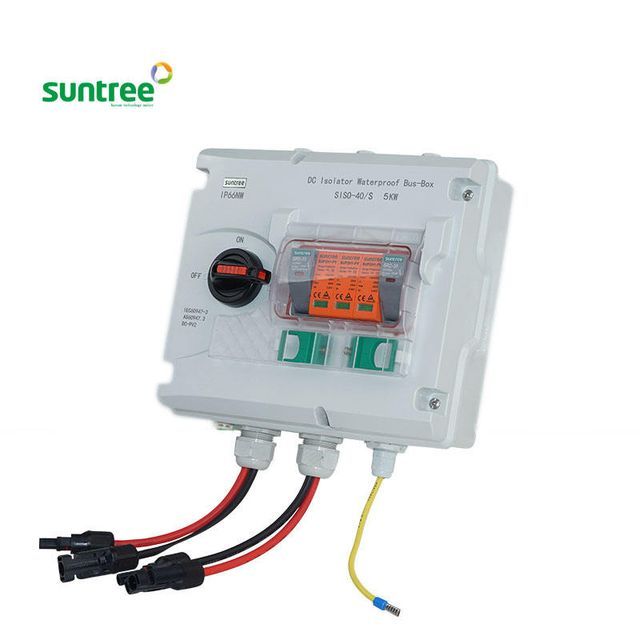

TUV CE Solar Photovoltaic DC Waterproof Combiner Box Junction Box Isolation Switch OEM

Supplier: Wenzhou Xinchi International Trade Co., Ltd.
Region: Zhejiang, China
Contact: Ms June Xie
Price: $37.00 / >=30 pieces
Min. Order: 30 pieces

Click here to contact

Product details

Resistance strength level of waterproof box:	lK10	Protection class:	IP66
model:	SHLX-Photovoltaic	port:	Ningbo/Shanghai
color:	white	product name:	DC isolation switch waterproof busbar box
Certificate:	TUV CE	Packaging Details:	Standard carton packaging.
Mechanical life:	10000 times	Package preview:
brand:	New tree brand	Rated voltage:	Ue=DC1200V
Warranty:	3 months - 1 year	Rated current:	In=16A, In=25A, In=32A, In=40A
Supply capacity:	140000 pieces per month	application:	solar system, power equipment
payment terms:	L/C, T/T, MoneyGram, PayPal	URL:	China business tree network
Origin:	Zhejiang, China	Certification:	CE certification

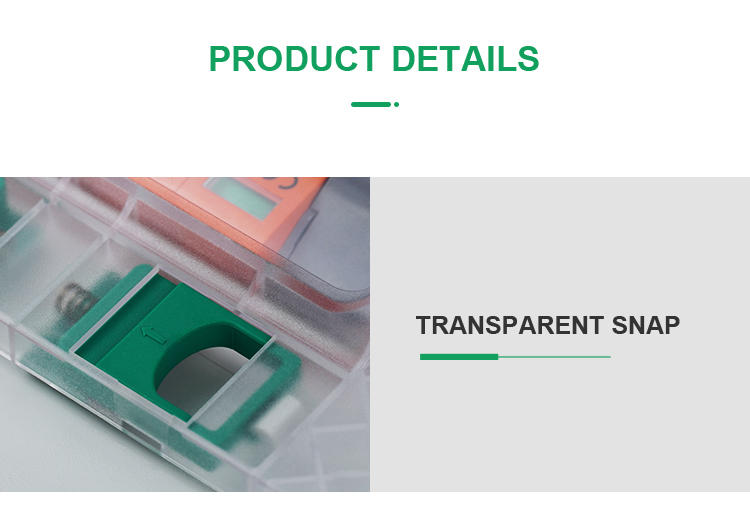

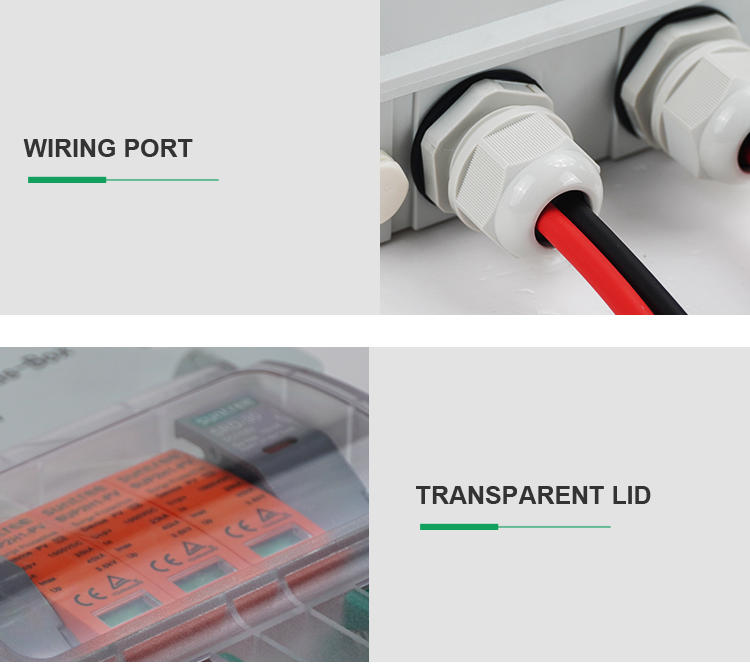

scope of applicationWhen closed, the handle is just placed on the upper end of the transparent cover, which limits the flipping of the transparent cover. A padlock hole is designed on the handle, and a padlock is added to ensure the personal safety of the user (only disconnect the load first, and then separate the switch to "effectively cut off the "The DC isolator can open the transparent cover and the components and switches inside the transparent cover. The opening and closing positions are clearly marked, which is convenient for operation;

▲Rated current: In=16A, In=25A, In=32A, In=40A ▲Overvoltage category: III

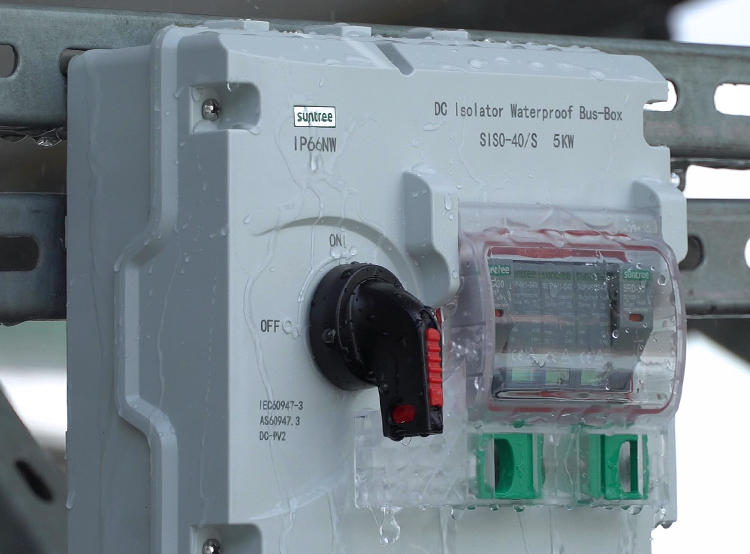

▲IP grade: IP66 ▲Rated short-time withstand current: icw=1.0kA(1s)

▲Waterproof box resistance strength level: lK10 ▲Rated short circuit capacity; lcm=1.7kA

▲Rated voltage: Under Ue=DC1200V ▲Rated short-circuit current: Icn=3kA

▲Rated insulation voltage: Ui=DC1500V ▲Mechanical life: 10000 times

▲Rated operating current: le=6A.....le=55A ▲Usage category: DC-PV1, DC-PV2(DC-21B)

▲Rated impulse withstand voltage: Uimp=8kV

Product Description

DC isolation switch waterproof busbar box type	SISO-40/F	SISO-40/m	SISO-40/S	SISO-40/FM	custom made
Waterproof box material	polycarbonate/polycarbonate

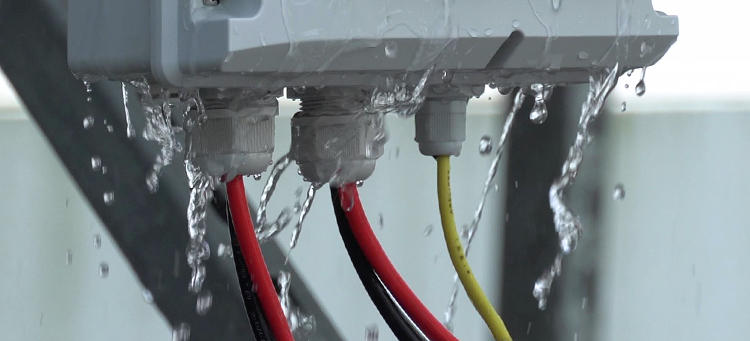

waterproof protection level	IP66
Resistance strength grade of waterproof box	IK10
rod/string	5
Photovoltaic cable connection size	4 square millimeters = 6 square millimeters
Matching power generation system capacity	2
Install	vertical installation
	DC isolating switch / DC isolating switch
Voltage	Ue=DC1200VUe=Dc1000V and below
current	le=6A.....le=55A
pole	4P
string	2	1	1	1	1-2
	DC arrester
Voltage	Ue=DC1500V Ue=DC1200V Ue=DC1000V and below
Maximum instantaneous discharge current	In=20KA/40KA
pole	2P 3P
	DC circuit breaker
Voltage	Ue=DC1200V Ue=DC1000V and below
current	In=6A In=10A In=16A In=20A In=25A in=32A In=40A In=50A In=63A
pole	1P 2P 3P 4P
help us	USA: DC12V DC24V DC48V AC230V/415V 1A-2A MX+OF
	DC fuse
Voltage	Ue=DC1100V
current	Voltage In=1A in=3A In=5A In=6A In=10A in=16A In=20A In=25A In=30A
Specification	10*38mm
