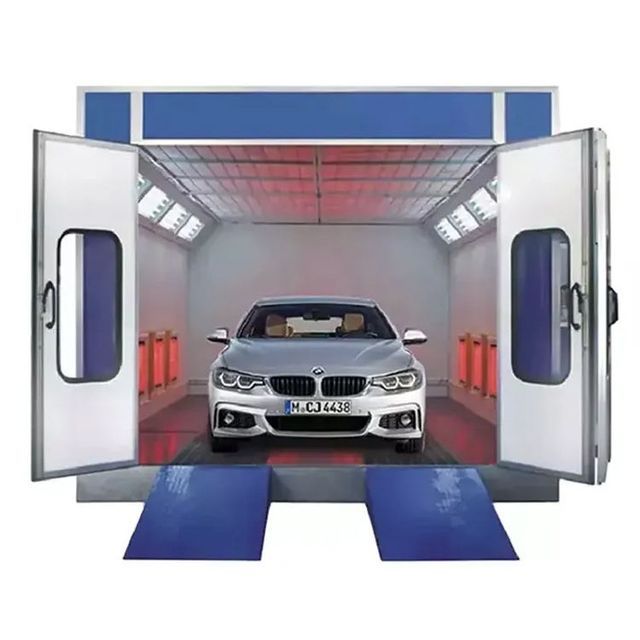

High quality custom paint booth car paint booth oven

Product details
Internal dimensions:6900*3900*2600mmExternal dimensions:7000*4000*3250mm
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramDisk diameter:customer request
basement:Galvanized non-slip floorWarranty:24 months
Environmental certificate:CE/ISO certificationproduct name:Spray booth
type:spray boothcolor:red/blue/white/orange or customized
strength:35KWPackage preview:
Wall panels:50/75mm EPS / rock woolport:Qingdao
No-load speed:0.35m/sfiltering system:Environmental protection 3 filtration process
Heating system:Electric heating / Riello diesel burner or natural gas burnermodel:UM01
Origin:Shandong ChinaVoltage:380v/3phase/50hz, 220v/380v/3phase/50hz
application:car maintenance equipmentbrand:Um
MOQ:1 setLighting system:light up
Supply capacity:100 sets per monthPackaging Details:Standard export packaging, 1 set/20GP; 2 sets/40HQ.

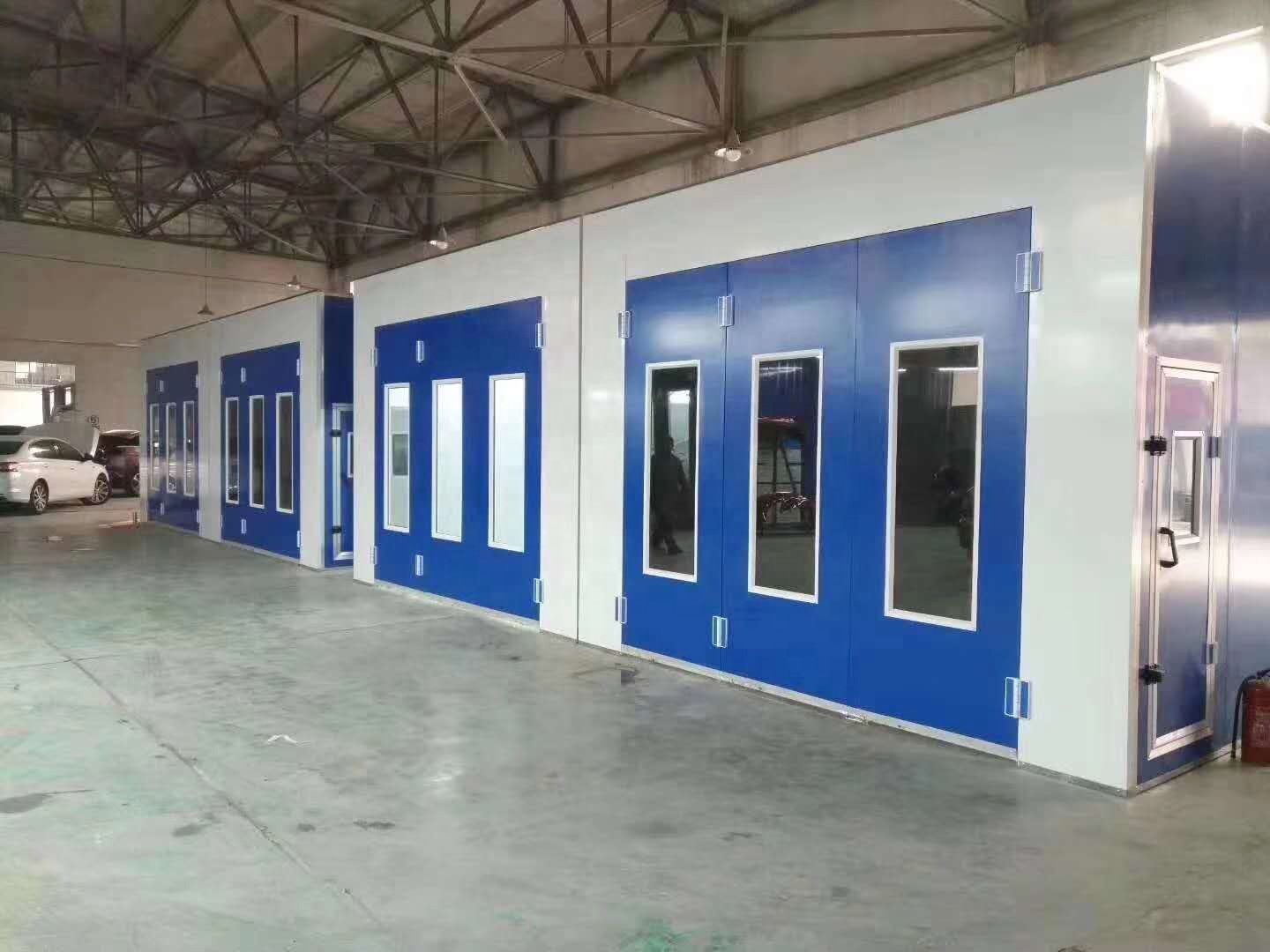

Product Description
Umis a professional manufacturer and supplier of spray booths, our spray booths are running all over the world, creating the ultimate clean air environment for spraying, and ensuring fast drying time for fast, energy-saving production.
usRock wool wall panels, EPS wall panels, electric heating, diesel heating, natural gas heating, and various filtration systems can be provided.We can also design a suitable spray booth for you according to your actual site.

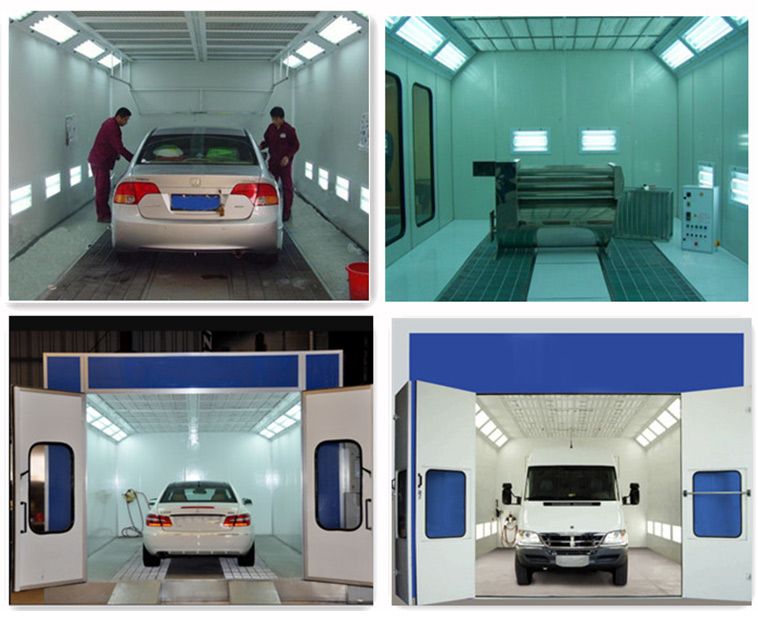

Standard Size Automotive Paint Booth Specifications
Dimensions (mm)
7000*5150*3250mm
Internal Dimensions (mm)
6900*3900*2600mm
Gate (mm)
2900*2570mm (width*height)
Personal door (mm)
700*1800mm
strength
35.5kw/11kw
Voltage
380v/3ph/50hz or customized







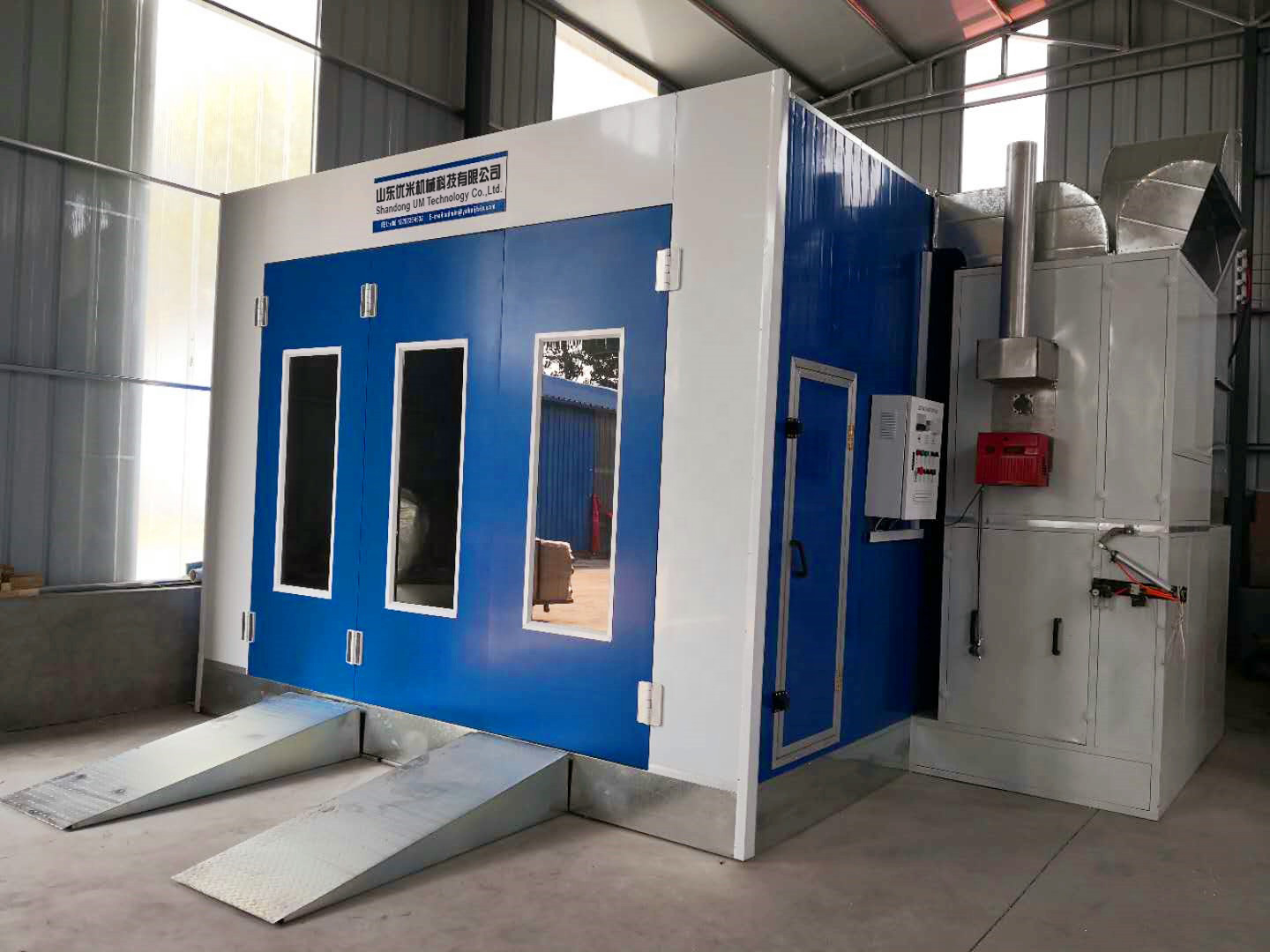

Cabinet system

wall panel
EPS color steel skin panel, 50mm thick, steel plate 0.426mm thick, tongue and groove type, composite structure, galvanized steel roof
control panel.


basement
The basement is designed with high-quality galvanized C-shaped steel and assembled with square pipes.
The 2-row grill is made of flat bar and round steel, 30*4mm.
3 rows of diamond plates, galvanized.
entry door
Folding door, 3pcs, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window.

private door
Size 650mm(W)*1700mm(H), with 5mm thick tempered glass window. (There is a pressure lock on the door, which will automatically open when the indoor air pressure is too high.)
the ramp
A pair of galvanized ramps, size 1800*650mm.



air circulation system
intake fan
Two 3KW double-inlet centrifugal fans with a total air volume of 20,000m³/h.
exhaust fan
A 4KW exhaust fan with a total air volume of 12500m³/h.

fan cabinet
The fan cabinet is made of painted profiles and plastic-sprayed steel plates; the exhaust duct is made of high-quality galvanized steel plates.
Professional flange.


roof system
beam
It is made of 40*60 galvanized square tube with bracket; there are also 40*40mm angle iron connected by rivets.

2-tier structure
Plenum chamber made of galvanized steel, powder-coated surface. Roof filter support frame made of 25*25 and 15*15
Galvanized square tube, powder coated surface.


purification system
intake filter
The intake filter adopts high-quality imported filter, which can capture items larger than 10μm.
cell filter
High efficiency filter made in Italy to capture items larger than 5μm.
floor filter
Bottom plate filter is glass fiber filter, TSP≤14mg/m³.

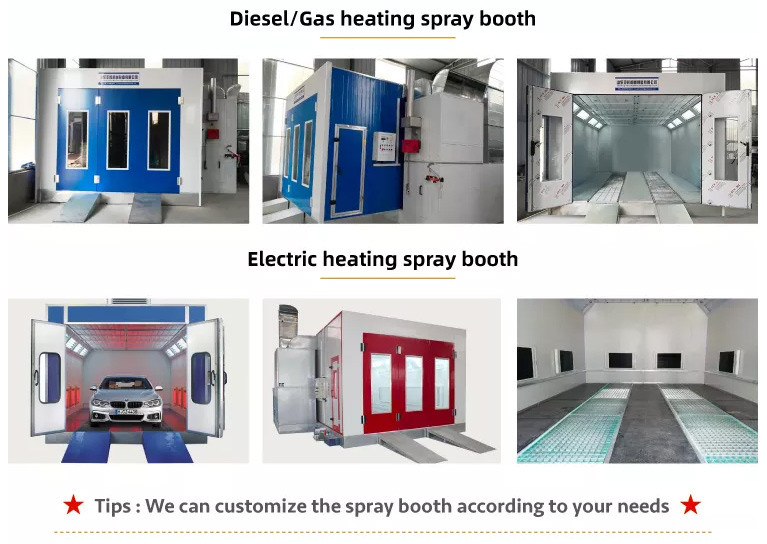

Heating system

electric heating system
8 groups of infrared curing lamps for heating, 3 lamps/piece, 1kw/lamp, each with a lampshade, a total of 24 lamp tubes.
Infrared heat radiation has the characteristics of high penetrating power, high efficiency, no noise and no pollution.
diesel heating system
RIELLO G10 diesel burner with heat exchanger, made of 1.5mm stainless steel SUS304.

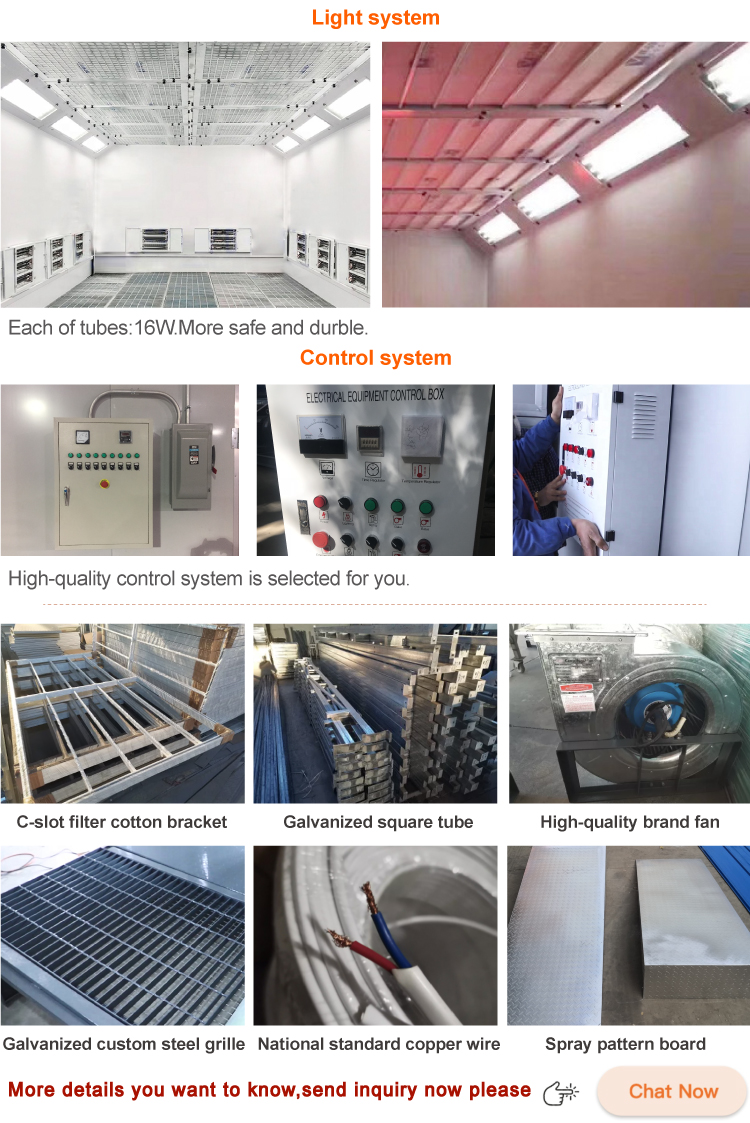

Lighting system
ceiling lamp
8 pcs, 32 pcs in total, 36w LED lights, with lamps.

Control System
switch control panel
Push-button control box with master switch
Spray drying switch, lighting switch, emergency stop, fault alarm, temperature timer, time accumulator, etc.

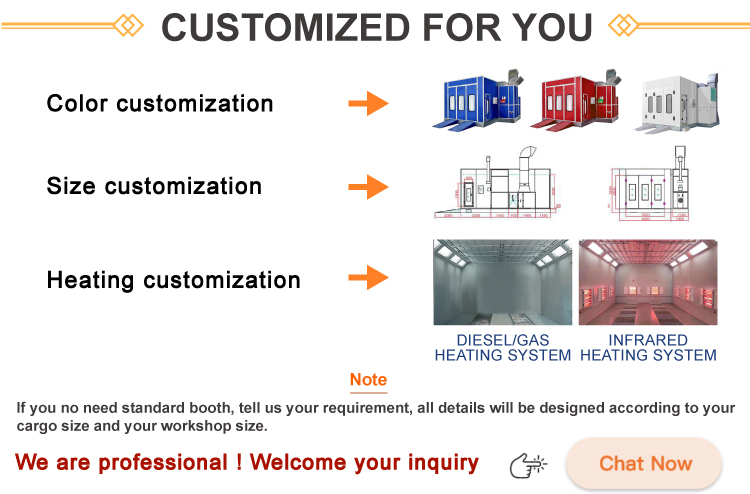

custom items

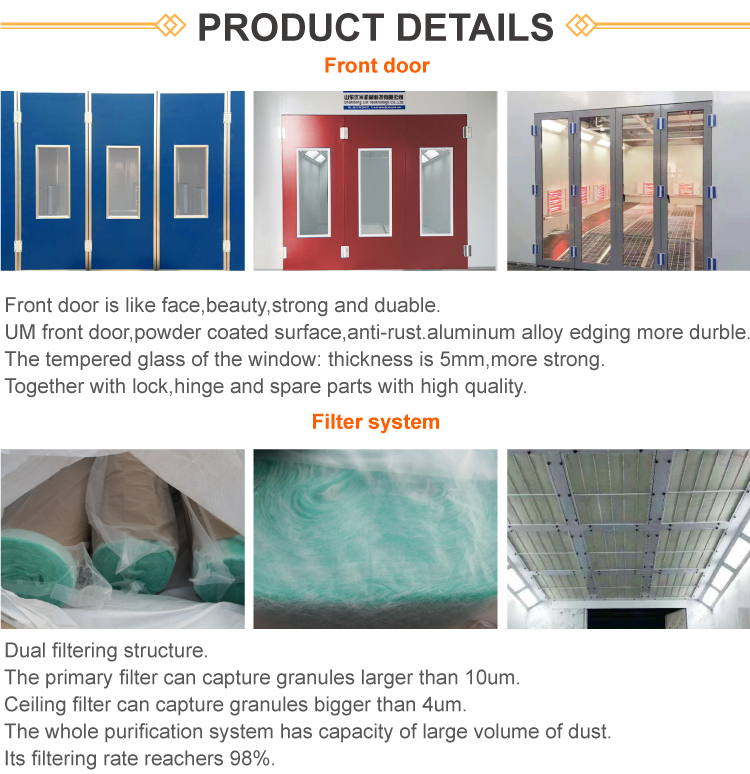

detailed drawing
