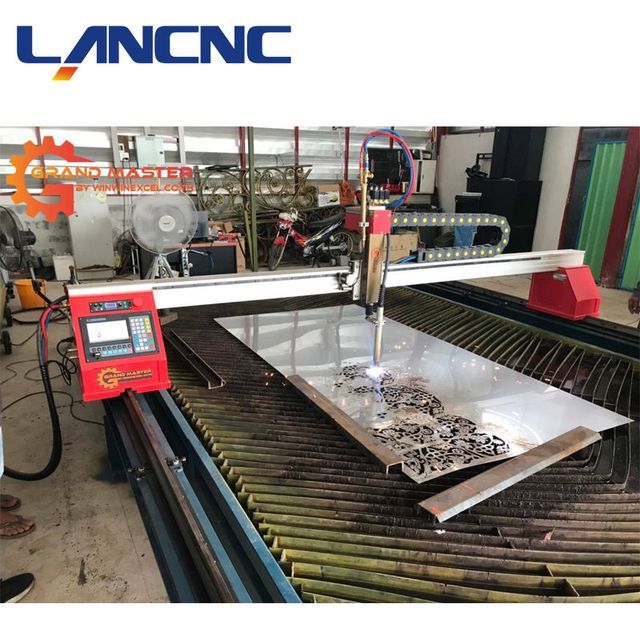

Mini CNC Plasma Gantry CNC Plasma Cutting Machine Optional Worktable Competitive Price 3000*5000 Auto CAD Offer 300

  • Supplier: Wuhan Lansun Technology Co., Ltd.
  • Region: Hubei, China
  • Contact: Ms Fengny Bu
  • Price: $2450.00 / 1 - 1 sets
    $2350.00 / 2 - 2 sets
    $2200.00 / >=3 sets
  • Min. Order: 1 set
Product details
Dimensions (L*W*H):3000*5000Applicable industries:Building material stores, machine repair shops, manufacturing plants, construction works, advertising agencies, energy and mining
After-sales service provided:Engineers available to service machinery overseasOrigin:Hubei, China
brand:Blue MountainShowroom location:Canada, USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria , Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan, Malaysia
CNC system:beijing launchPlasma power:LGK100, LGK120, LGK200
Marketing Type:otherYear:2022
Motor type:stepper motormodel:ZLQ-15B
Weight (kg):300 kgCutting gas:Oxygen, Gas, Oxygen, Air, Acetylene, Propane
Video shipment inspection:ifCore component warranty:1 year
payment terms:L/C, Western Union, T/Tport:Shanghai/Ningbo/Shenzhen
Health status:newDrawing software:car CAD
Drive mode:Unilateral driveCore components:Gears, motors, gearboxes, engines, CNC systems, plasma sources, guide rails
Voltage:220V/380V/415VSupply capacity:300 sets per month
style:Cantilever, Mini, Small, Portable, Micro, LightweightProcessing materials:Stainless steel, carbon steel, aluminum, any sheet metal
Mechanical test report:ifPackaging Details:wooden box
Cutting method:plasma and flame, flame, plasmaWarranty:1 year
Main selling points:competitive price
Product Description

Cutting Method Guidelines:

1,Flame cutting: Suitable for cutting carbon steel with a thickness greater than 10mm;

2,plasma cutting:phosphorusASMA is common in thin metal plates below 50mm (according to the power of the plasma source);

The cost of plasma cutting is 1/3~1/2 of flame cutting
3. Non-ferrous metal materials such as stainless steel, aluminum or copper suitable for plasma cutting
.

Mechanical Parts
describe
Horizontal rail width
3 meters
Effective cutting width
2.5m
Length of longitudinal rail
5m (can be extended as required)
Effective cutting length
4m
CNC cutting torch
Flame, plasma, flame and plasma
CNC flame cutting gun
Wuhan blue business
spontaneous combustion device
Wuhan blue business
Torch height controller
automatic height adjuster
plasma source
Chinese brand LGK100A LGK120A or American brand.
CNC plasma cutting torch
According to the plasma power
plasma cutting speed
50-6500mm/min
flame cutting thickness
5—120mm
flame cutting speed
50-3500mm/min
Torch lifting distance
120mm
driving mode
dual drive
interface
7" true color display with Spanish
CNC system
Beijing launch control system
Programming and nesting software
fast camera
motor
stepper motor

main feature

1. Gantry structure, large cutting width: horizontal width 3m, effective cutting width 2.5m, longitudinal track 5m, effective cutting length 4m.


2. The far end of the diagonal brace supports the beam, which has good rigidity and high precision. The installation method is in-line type, which is light and easy to move.

3. It can be configured with dual functions of flame cutting, plasma cutting or flame plasma.

4. Flame cutting automatically ignites, and plasma cutting automatically adjusts the height by arc voltage.

5. After disassembly, the whole machine has only two packages, which is convenient for transportation and storage.

6. Provide detailed videos of machine installation, operation and maintenance.

Product overview
detailed image
CNC system

> High reliability, preventing the system from strong plasma interference and lightning strikes;

>Chinese, English, Russian, Spanish,More than 10 languagescan be easily switched;
>Using U disk to read and write programs to upgrade software.

main feature

Cutting method: plasma and flame
Flame cutting thickness: 6-120mm
Plasma cutting thickness: according to the plasma generator.



Mechanical Parts: Rails


Steel guide rails, double drives, the machine runs more stably.

Plasma stand and height controller


Plasma with automatic arc voltage height controller.
