AC DC Adapter 5v 7.5v 3a Conversion Adapter EU BS UL Approved Portable 12V 3 Amp 36w Conversion Adapter

Product details
Material:PC (UL94V-0)Key words:12 volt DC power supply
product name:36W series power adapterconnect:insert
output type:direct currentpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
color:White and black customizationbrand:ESUNPOWER,OEM,ODM
Supply capacity:150000 pieces per dayenter:100-240V AC 50-60Hz
Packaging Details:PE bag/color box/customizedmodel:MKE-D
size:71.5*43.3*30.5mmstrength:36W
Warranty:2 yearsOrigin:Guangdong, China
Certificate:UL.KC.FCC.CE.CB.GS.SAA.CCC.ROHSport:Shenzhen
output:12V 3A

AC DC Adapter 5v 7.5v 3a Conversion Adapter EU BS UL Approved Portable 12V 3 Amp 36w Conversion Adapter

Product Description





36W series
enter Input voltage 90-264Vac
frequency

50/60 Hz

Input AC current 0.4A max
output outputVoltage 5.0-48Vdc
outputamplifier 0.1-6.0A
strength Maximum 36.0W

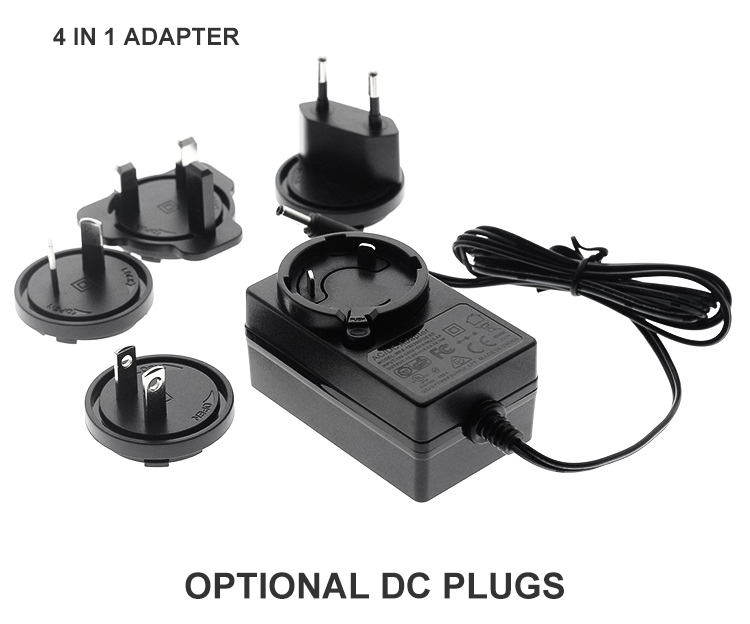

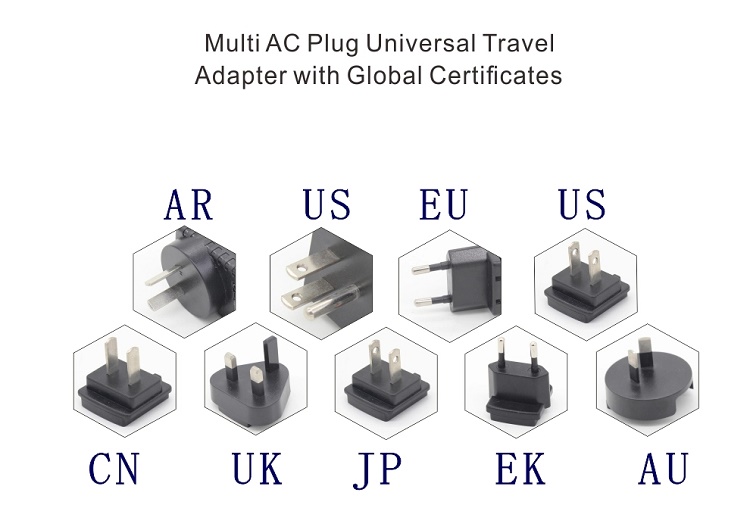

AC plug US/EU/UK/AU/JP/KC/BIS/CCC wall mount (other plugs available)
DC cable 2464/2468/1185 22AWG Cable /L=1.2m/ 1.5M/1.8M (OEM available)

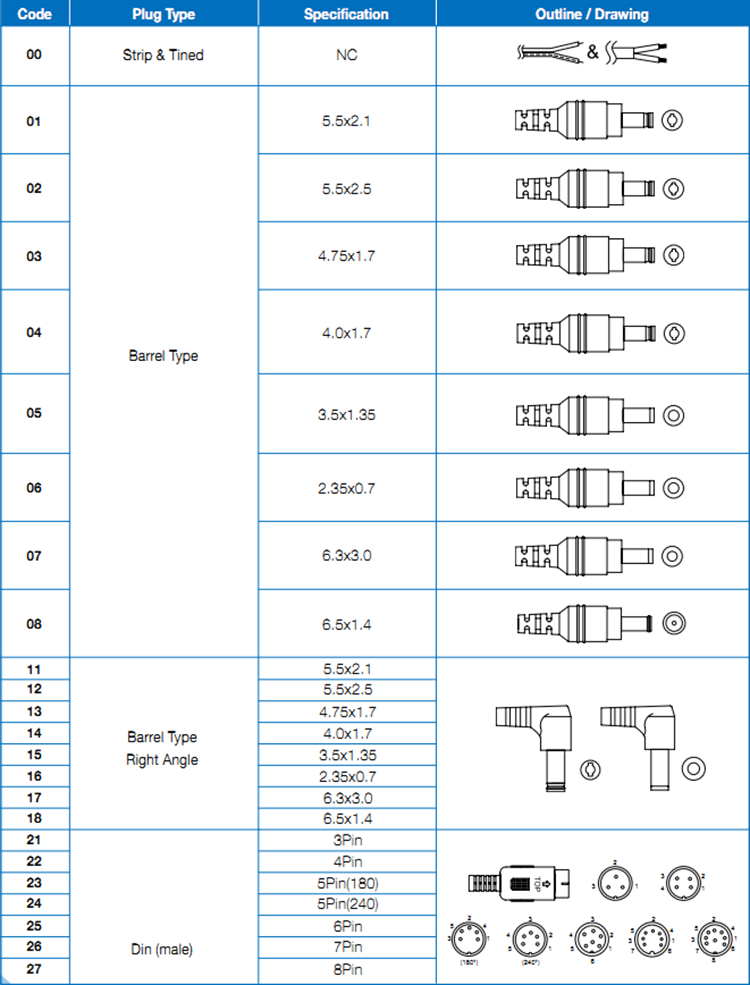

DC plug 6.3*2.5/5.5*2.5/5.5*2.1/4.0*1.7/3.5*1.35/2.5*0.7or custom
color black/white or customized
main feature SCP/OVP/OCP
environmental Operating temperature 0~40℃
Storage temperature -20°C to +80°C
humidity 5% to 95% non-condensing

Safety

UL/CE/GS/FCC/EMC/SAA/CCC/PSE/KC/BIS/ROHS
standard IEC62368/60950/60065/61558/1310/61347/60601
energy efficiency ERP/CEC/DOE/NRcan/GEMS Level 6

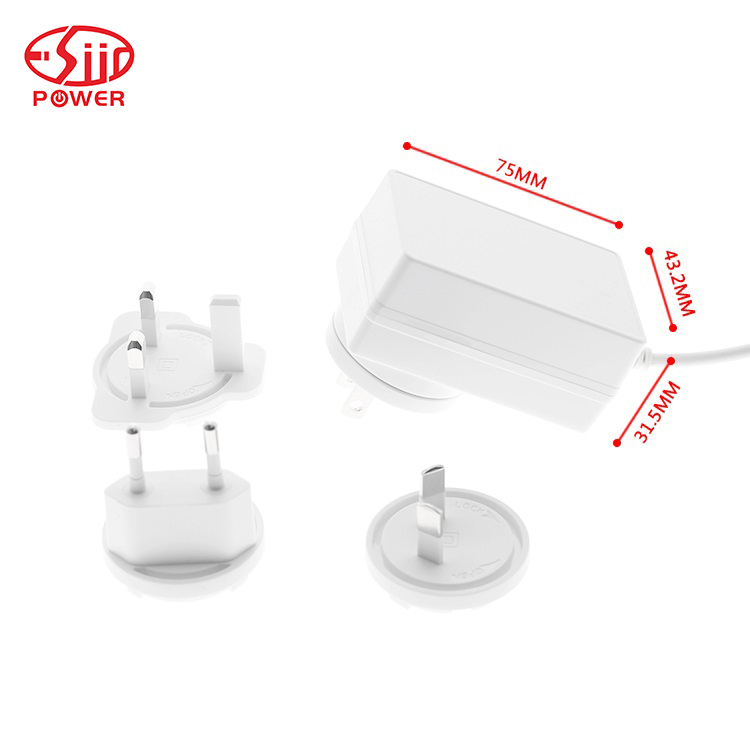

size

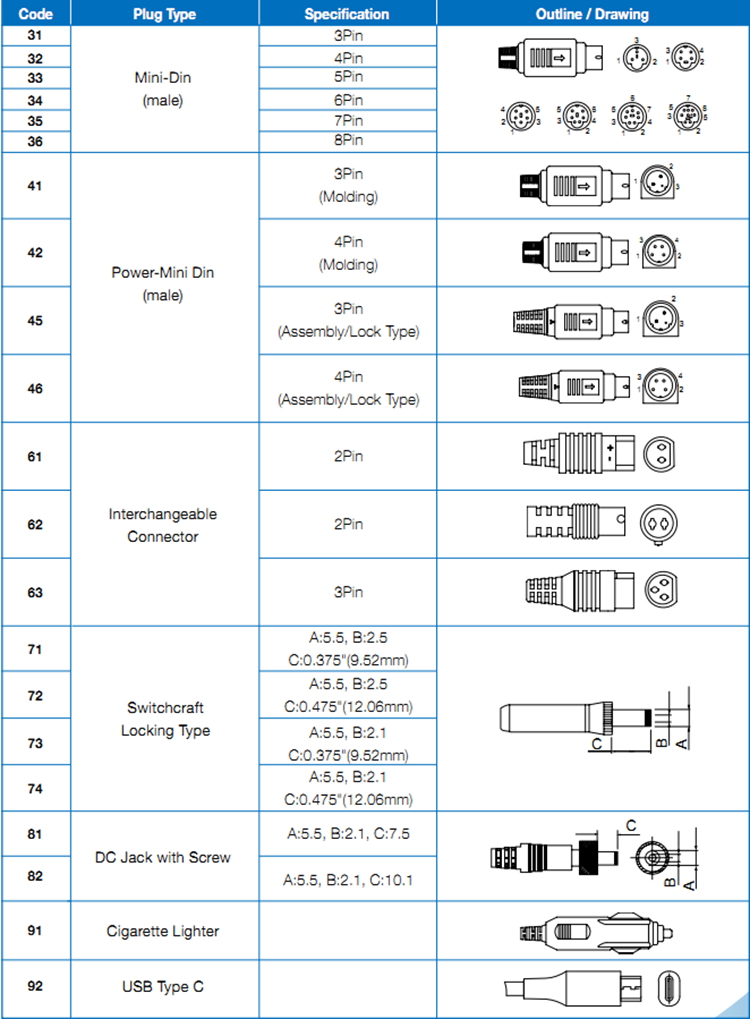

DC plug





Protect





application
