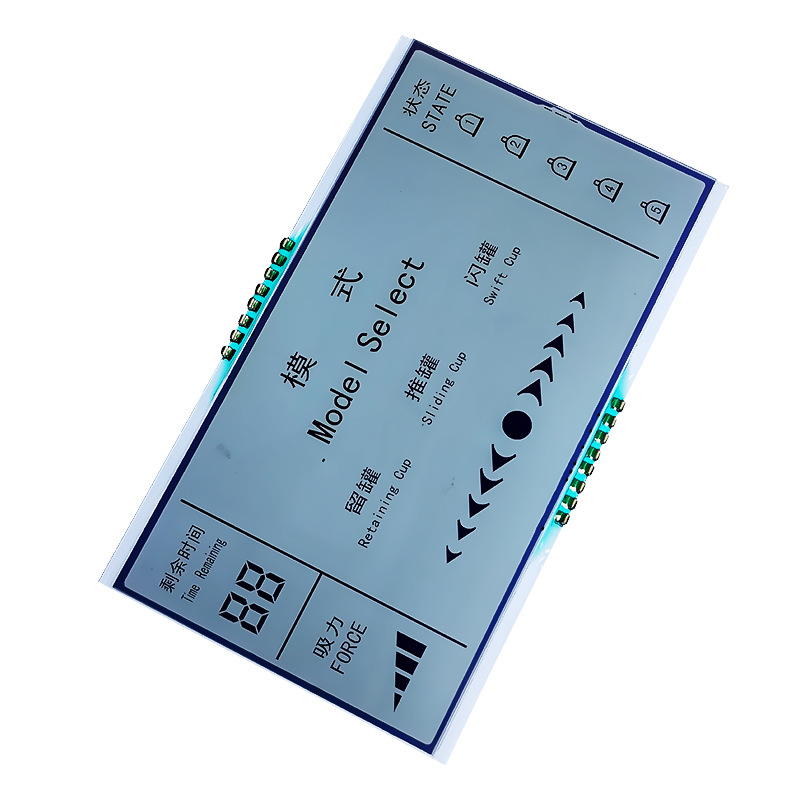

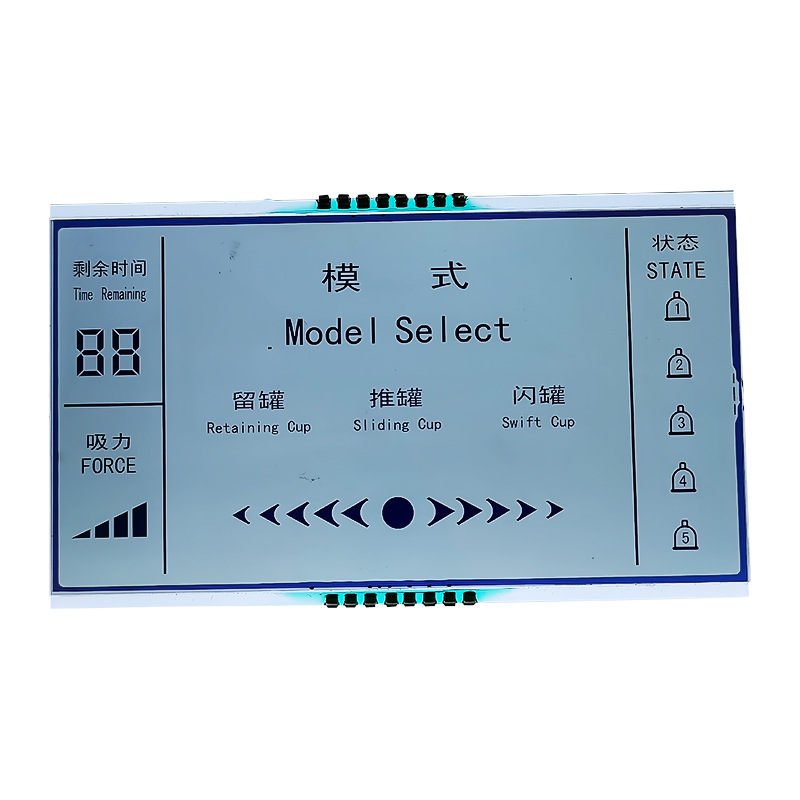

Customized Size 7 Segment LCD Display Shenzhen Smart Dot Matrix LCD Instrument Display

Product details
Backlight current:<20mA(3.0V)Display mode:positive
type:Customized LCD screen FSTN,FSTN/CSTNDisplay size:5.0 inches
Packaging Details:standardport:Shenzhen
size:custom madeSupply capacity:100000 pieces per month
Operating Voltage:custom madeViewing angle:6:00/12.00 Customizable
Origin:Guangdong, Chinabrand:Jade
product name:Custom segment displaypayment terms:L/C, T/T
Operating temperature:20~+70℃color:black and white
Storage temperature:30~+80℃
Product Description
LCD screens include TN, HTN, STN, FSTN, and VA LCD screens.
You can customize products that 100% meet your requirements.
Name
Segment LCD display
glass thickness
0.4mm, 0.55mm, 0.7mm, 1.1mm are available
display type
TN, HTN, STN, FSTN, VA are available
display mode
plus or minus
driving voltage
2.8v, 3.0v, 3.3v, 5.0v
viewing direction
6:00, 12:00, 9:00
Polarizer Type
Reflective, transflective, transmissive
Operating temperature
-30~80℃ (maximum)
Storage temperature
-40~90℃ (maximum)
Connector
Metal pin, rubber zebra, FPC
backlight
LED backlight
Segment code screen customization requirements
The information required by customers to order segment code screens is as follows. 1; LCD display content. 2; LCD size: the maximum external dimension or the size of the visible area, which needs to be specified when providing. 3; LCD thickness: The thickness of conventional monolithic glass is divided into 0.55mm 0.7mm 1.1mm. 4. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. In addition, it is necessary to provide positive display or negative display. Generally, VA screens are negative display. 5; Polarizer type: fully transparent (with backlight), translucent (with or without backlight) reflective (without backlight). 6; Working temperature: 0℃~+50℃, -10℃~+60℃, -20℃~+70℃, -30℃~80℃, -40℃~+90℃. 7; Connection mode: metal pin header, zebra strip, FPC, etc. 8; Working voltage: according to customer requirements 9; Drive mode: commonly used 1/4DUTY 1/3BAIS 10 types according to customer requirements; Driver IC: commonly used ICs for segment code screens are generally 1621 or 1622. 11; viewing direction: 6 o'clock (bottom to top), 12 o'clock (top to bottom), 9 o'clock (left to right), 3 o'clock (right to left view) .

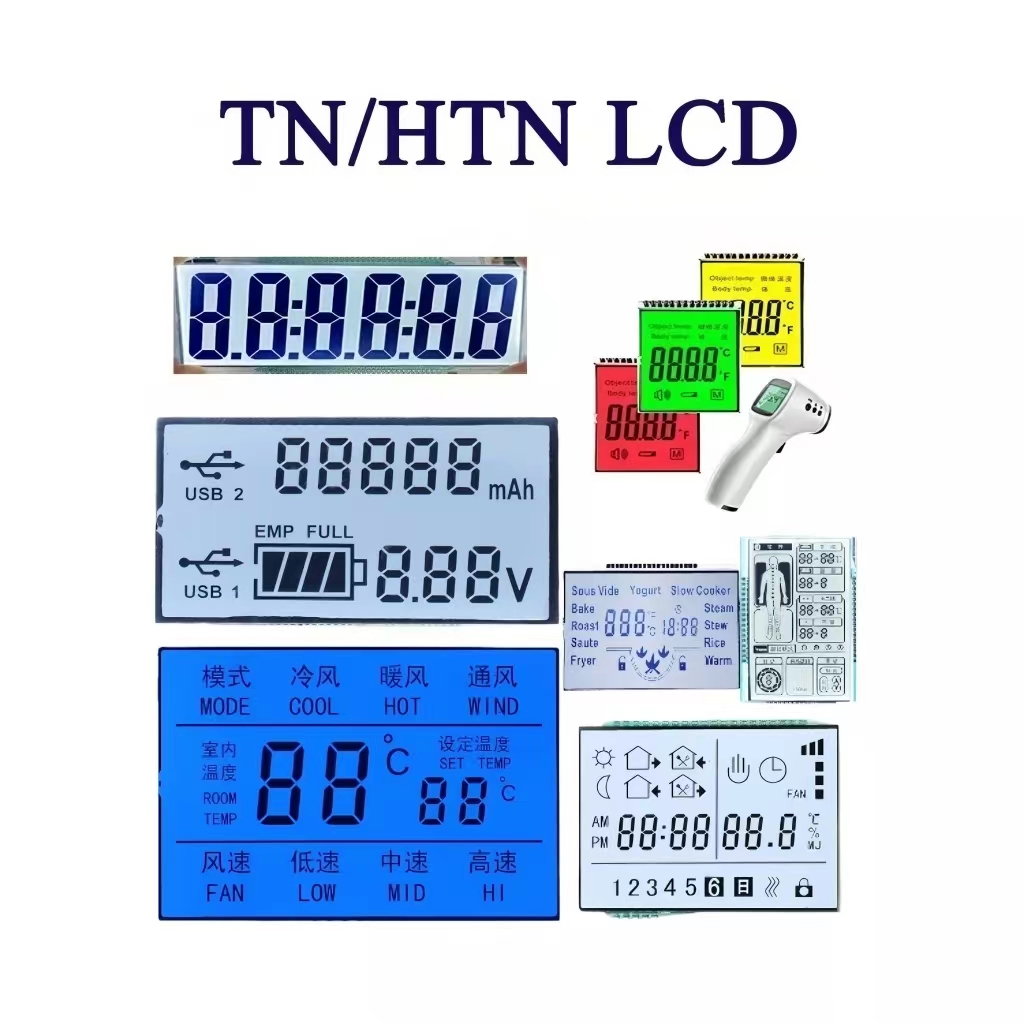

TN network
Low power consumption, rich display data, viewing angle 45-50°

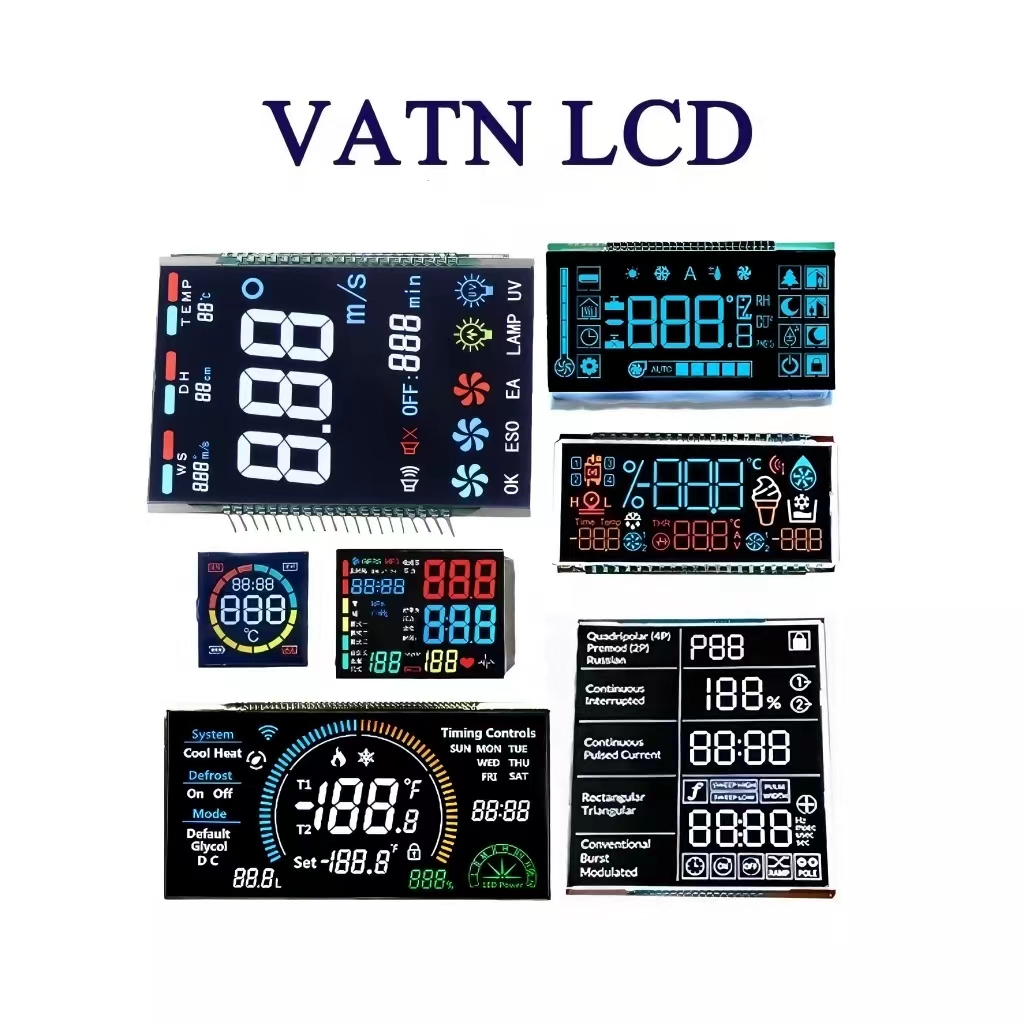

VA screen
High contrast, near full viewing angle, viewing angle 90°
High temperature network
Low power consumption, rich display data, viewing angle 60°

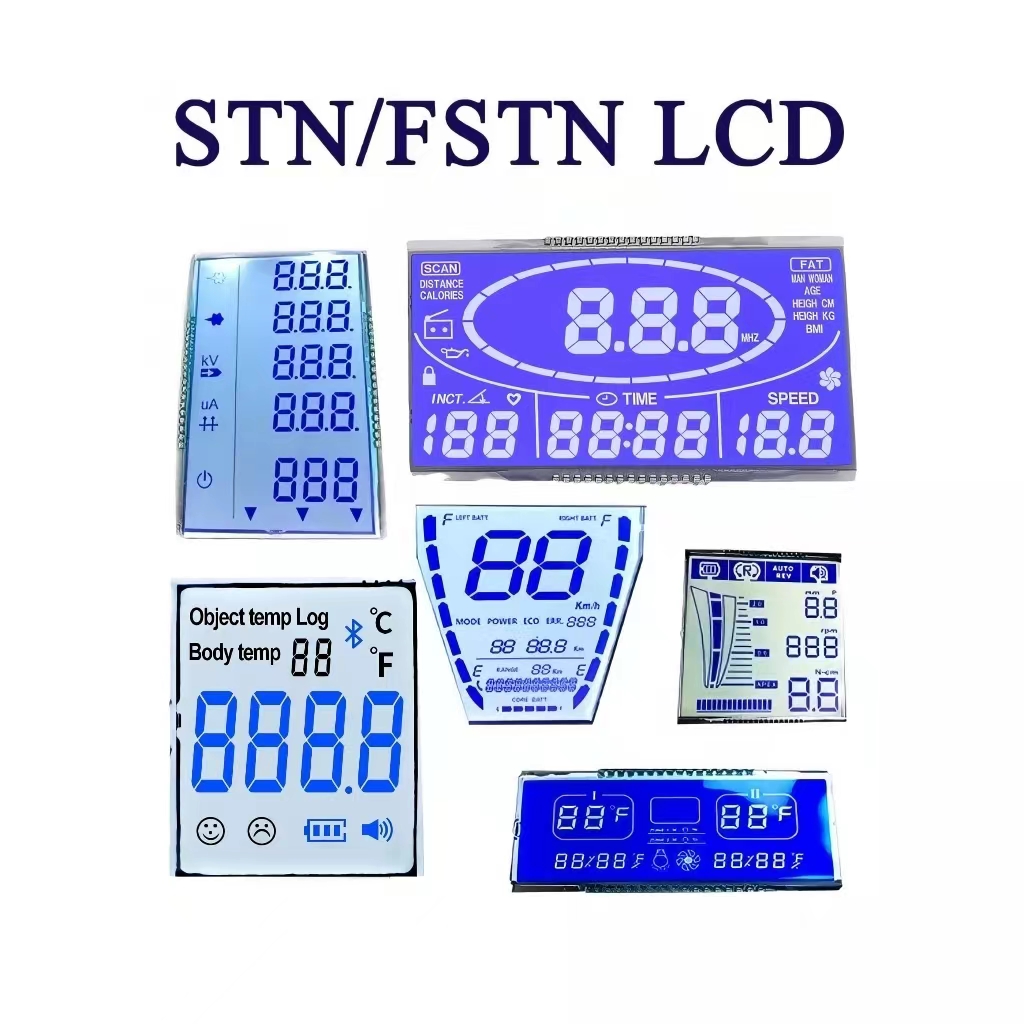

STN screen
Low power consumption, rich display data, viewing angle 90-100°
FSTN screen
Based on the original compensation film, full viewing angle, viewing angle 120°
Productionr Support customization
➯ Monochrome LCD/LCD Module
➯ VA, TN, HTN, STN, FSTN, DFSTN LCD panel and its accessories
➯ Graphics, characters, alphanumeric and In cell touch modules
➯ COB, COG, TAB package
➯ Color TFT LCD module
➯ 1.67-inch to 10.4-inch color TFT LCD display
➯ touch screen
➯ Capacitive touch screen
➯ Resistive touch screen
➯ For more details, please visit our website http://en.hrlcd.com/
Telecommunications equipment
Phones, walkie-talkies, watches, tablets, radios, etc.
consumer products
Cameras, DVD players, toys, mobile phones, game consoles, etc.
technical equipment
Elevator controller, industrial machinery, etc.
office automation
Printers, scanners, attendance machines, fax machines, etc.
household appliances
Air-conditioning monitors, refrigerators, rice cookers, video doorbells, etc.
car
GPS, video player, speedometer, audio broadcast, etc.
information technology products
Cameras, handheld digital video cameras, projectors, media players, tablets, etc.
medical equipment
Ultrasound machines, therapeutic equipment, blood pressure monitors, etc.
Manufacturing Technology
