Medium base bar spot welding 3D panel production line | PU sandwich panel production line

Supplier: Shanghai Zhongji Machinery Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Sunny Wang
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Shanghai	model:	Layout 3D panel production line
payment terms:	L/C, T/T	weight:	10000 kg
Automatic level:	automatic	Origin:	China Shanghai
3D panel production line:	3D panel production line	Packaging Details:	Standard export packaging 3D panel production line
Mechanical Capabilities:	800 square meters 8 hours a day	Supply capacity:	5 sets of 3D panel production lines per month
brand:	ZJM 3D panel production line	After-sales service provided:	Engineers available to repair machinery overseas
color:	blue	Key machines:	3D assembly machine
Health status:	new

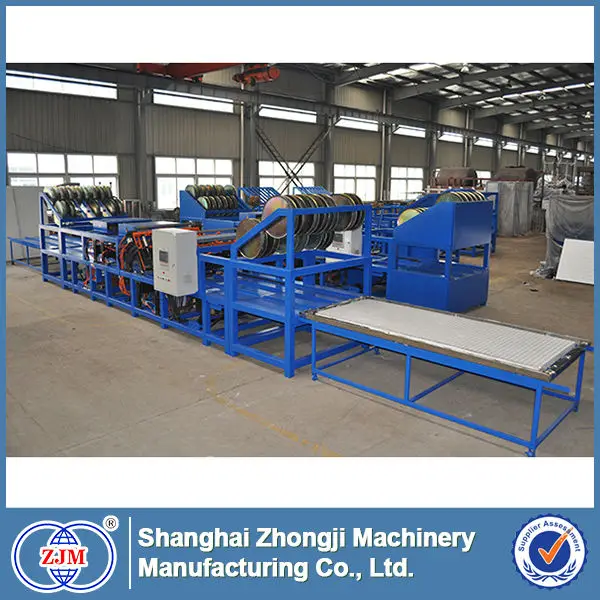

Inclined rod spot welding machine

Inclined rod spot welding machine features:
1 This equipment is used to weld the 3D structural mesh panels with inclined steel wires when the EPS upper panel, lower panel and middle panel pass through the equipment. This equipment can also be used for welding single-sided steel wire mesh external wall insulation panels.
2. It adopts full pneumatic operation mode, stable operation, good reliability and long service life of equipment.
3. An integrated pneumatic clamping device is used to complete the previous process.
4. The welding process is completed with an integrated self-adaptive welding wire device.
5. With self-inspection function and automatic fault alarm function, easy to operate and maintain.
6. Using PLC and touch screen control, it can automatically complete the straightening, welding and cutting of steel wires.
7. It can produce two types of boards: close-fitting and sparse-fitting.
Main technical data of inclined rod spot welding machine:

No.	project	type\unit	Specification
1	Main equipment size	mm	(lengthmheight) 4200X1850X2600
2	weight	Kilogram	6000
3	power supply		380V 50HZ 75KVA
4	Wire diameter	mm	1.8-2.8
5	3D board defect welding rate	hand over	<=1% (for a single swface 30 panel) <=3%(EPS <=80mm) <=3% (for 3D board surface and EPS thickness <=80mm) <=5%(EPS <=100mm) <=5% (for 3D board surface and EPS thickness <=100mm)
6	GL plate diagonal error	mm	<=5
7	Productivity	seconds/step or square meter/hour	0.5 seconds/step or 78 square meters/hour 4.5 seconds/step 48 square meters/hour
8	Forming machine bracket	stand up	No. 19
9	material size	mm	(600~1000)×(0.4~0.8)×length
10	Material		EPS, PU, mineral wool
11	Applicable material		Color galvanized steel sheet
12	Control System		PLC
