High Speed ​​Food Paper Bag Making Machine Price List

Product details
Core components:Motors, pressure vessels, pumps, PLCs, gears, bearings, engines, gearboxesspeed:50-260 pcs/min
Material:PaperPLC:French
Key words:Paper Bag Making MachineVoltage:50/60 Hz
Main selling points:easy to operateMechanical test report:if
port:Ningbo/ShanghaiProcessing type:computer control
application:Make a paper bag with a plastic windowComputerized:Yes
weight:4500 kgBag Type:Food bags, damaged bags
servo motor:(JapanType of machine:Making Machine
Bag material:PaperPackaging Details:Paper bag bag making machine fully automatic use wooden box packaging
payment terms:L/C, Western Union, T/T, MoneyGramMarketing Type:One of the most popular products
Maximum speed:260 pieces/minWarranty:1 year
model:KTPM-AW250product name:High Speed ​​Food Paper Bag Making Machine Price List
Health status:newautomatic:fully automatic
After-sales service provided:Service overseas machineryDimensions (L*W*H):7100×3100×2200mm
brand:KurtCore component warranty:1 year
Video outbound inspection:ifOrigin:Zhejiang, China
Supply capacity:10 sets per monthApplicable industries:Hotel, clothing store, manufacturing plant, food and beverage factory, farm, restaurant, household, retail, food store, print shop, food and beverage store
Showroom location:not any
describe
feature:

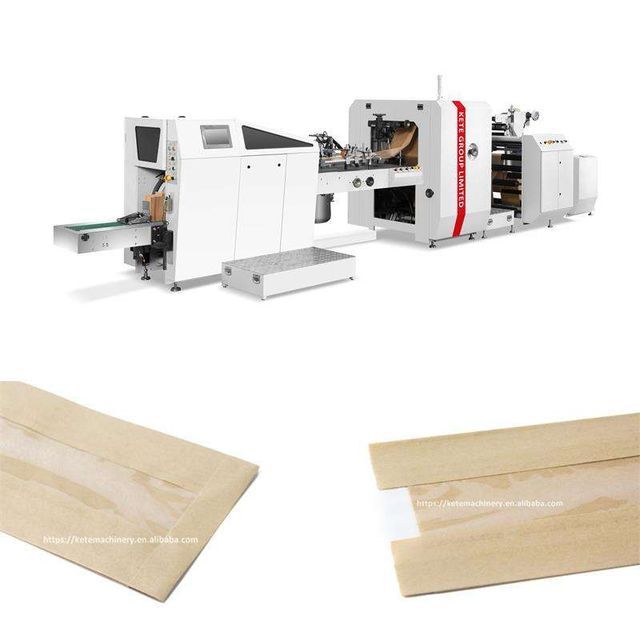

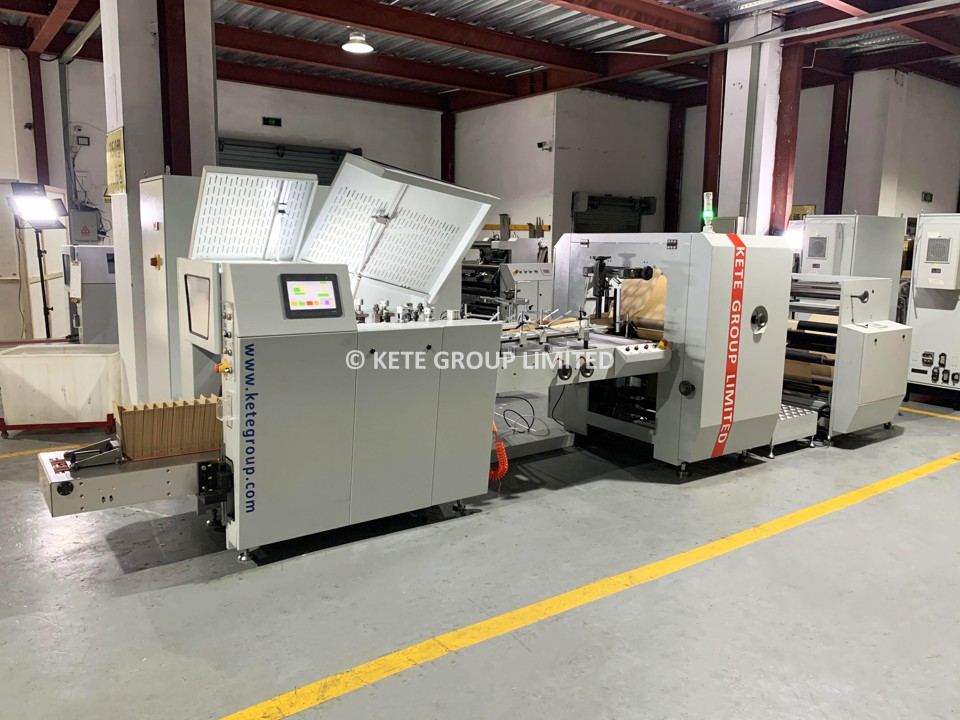

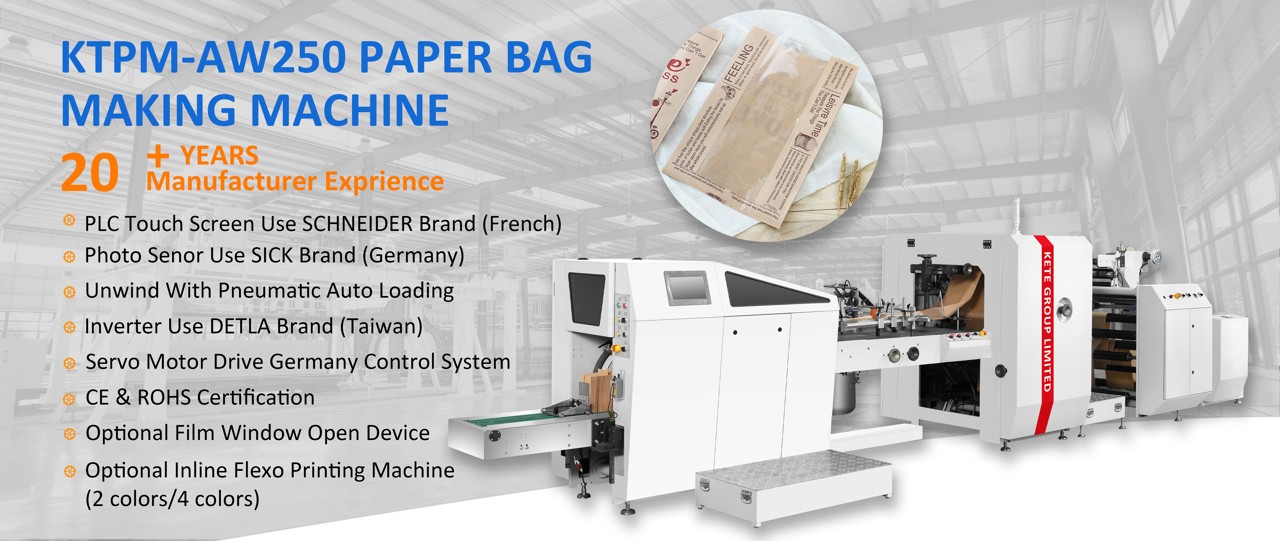

This high speed food paper bag making machine adopts paper rolls to make various sizes of V-bottom paper bags with/without plastic window.itCan handle very thin paper. This machine is especially suitable forUsed in the food industry.And optional functions can be added, such as in-line printing, punching, sticking double-sided tape, etc.
● PLC touch screen adopts SCHNEIDER brand (France)

● PC motion controller adopts TRIO brand (UK)

● Servo motor adopts Japanese YASKAWA brand

● The inverter adopts ABB brand (Switzerland)

● Photoelectric sensor adopts SICK brand (Germany)
● Relax EPC use (SELETRA brand, Italy)

Electrical control box with air conditioner

● The machine has CE certification

● The machine has passed ROHS certification.

● Optional in-line flexo printing machine (2-color/4-color)
Model
KTPM-AW250
Bag width
70-250 mm
Bag length
105-455 mm
cutting length range
110-460 mm
Corner size
20-120 mm
Bag T mouth height
15/20 mm
Paper thickness
35-80gsm
Maximum paper width
160-780 mm
Maximum paper roll diameter
1000
Plastic film thickness
0.015-0.05mm
Plastic film width
50-200 mm
Maximum diameter of film roll
500 mm
Bag making speed
50-320pcs/min
maximum. Feed rate
Maximum 70m/min
working air
More than 0.12 cubic meters per minute, 0.5-0.8MPa
total power
380V, three-phase, 4-wire, 22kw
machine weight
4500

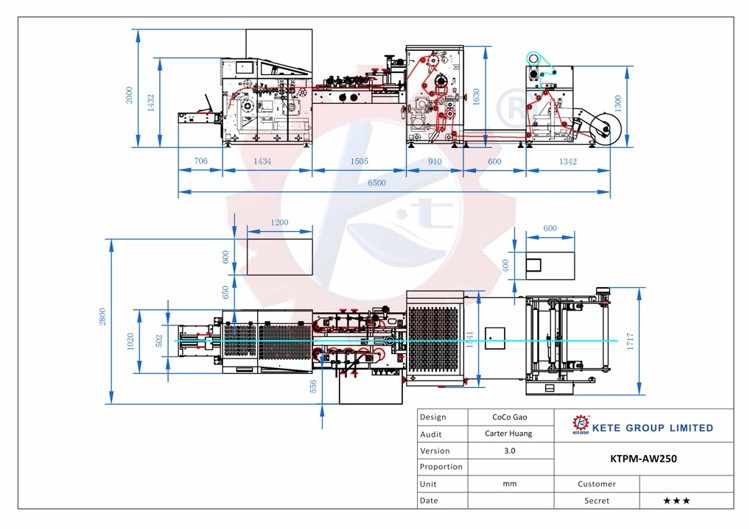

Machine size (mm)
7100*3000*2200 (length*width*height)
optional features
Online 1-4 color printing function
Elective
Add double-sided tape
Elective
who are we
Zhejiang Kete Machinery Co., Ltd., a comprehensive company and a professional manufacturer of flexible printing and packaging machinery, was established in 2011 and consists of several printing and packaging machinery factories,
mutual shareholding. We take "KETE" as the leading brand in foreign market business. We can provide sustainable vertical
Integrated machinery solutions for printing and packaging converting machinery. Quality first, customer first
As a core value,KETE always does its best to provide customers with the most considerate service.in the past
For decades, we have continuously upgraded and optimized machine functions to better serve the printing and packaging market.
