P6100 Oscilloscope Cost 1x 10x 100mhz Oscilloscope Digital Oscilloscope Portable 10:1 Switchable Oscilloscope Probe with Accessories

  • Supplier: Changzhou Globaltone Int'l Trade Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Samuel Chee
  • Price: $3.50 / 5 - 99 pieces
    $3.20 / 100 - 999 pieces
    $2.90 / 1000 - 9999 pieces
    $2.50 / >=10000 pieces
  • Min. Order: 5 pieces
Product details
Package preview:Measuring range:600V
weight:64 gramscable length:120cm
Packaging details:Packaging Details Unit Type: Piece Packing Weight: 0.15 kg Packing Dimensions: 25 cm x 15 cm x 2 cmPlace of origin:Jiangsu, China
Customization support:Processingaspect:1.2m
frequency:100 MHzDisplay type:analog and digital
payment terms:L/C, Western Union, T/T, MoneyGrambrand:Global Connect
Supply capacity:100,000 sets per monthport:Shanghai
type:oscilloscope probecolor:Black
model:P6100,P6100-1Warranty:1 year
level of accuracy:1x, 10x

P6100 Oscilloscope Cost 1x 10x 100mhz Oscilloscope Digital Oscilloscope Portable 10:1 Switchable Oscilloscope Probe



product name
Oscilloscope probe 100 MHz with accessory kit P6100 High sensitivity oscilloscope clip-on probe 10x switchable with mini alligator clip and ground lead 600V DC laboratory oscilloscope 1 probe

Product Description
The high-sensitivity, high-frequency, high-performance 100MHz oscilloscope probe P6100 is an electronic component that connects the circuit under test and the oscilloscope input.

Specification:
Model: P6100

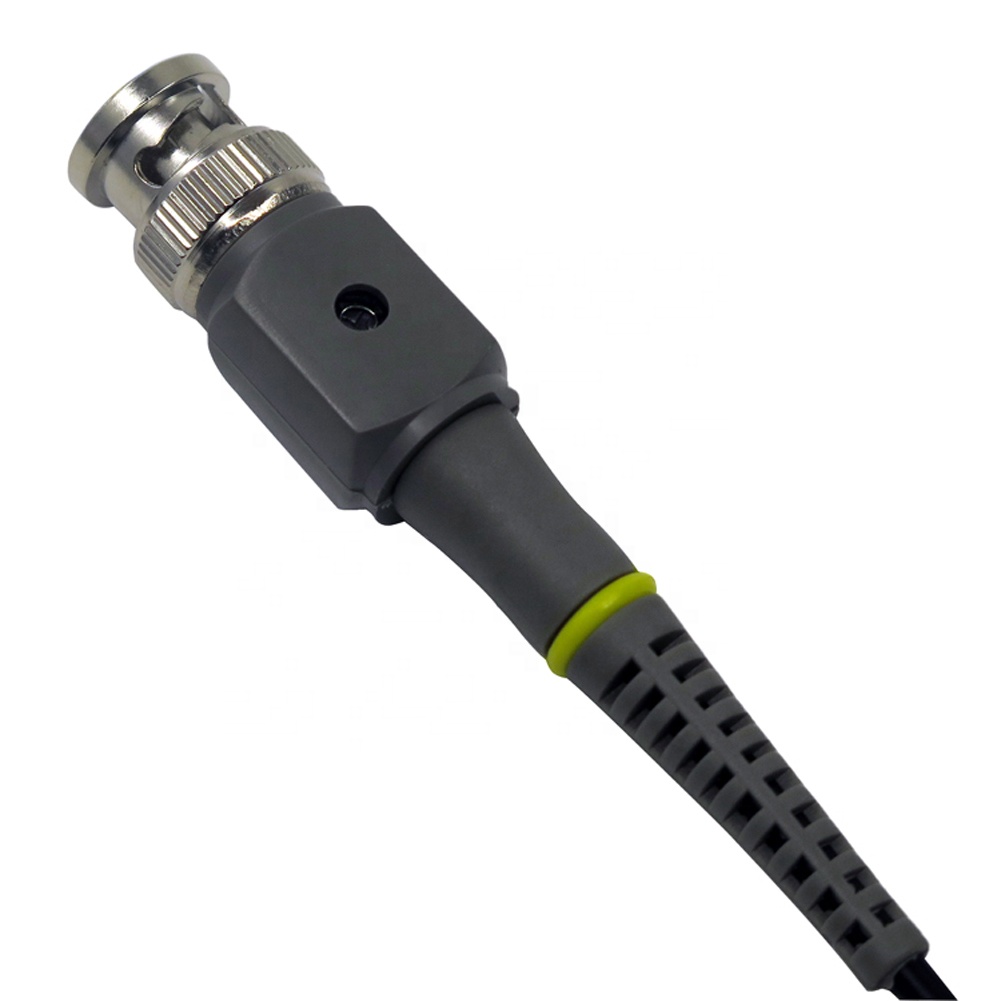

Bandwidth: 100MHz Oscilloscope Probe P6100 with universal standard BNC connector
Attenuation: 10:1 and 1:1 switchable (sliding switch on handle, rise time: 3.5ns, tip/head style: 5mm,
Since the grounding distance is the shortest, the grounding spring can ensure that the signal does not oscillate when measuring high-frequency signals.
maximum. Voltage: x1: <300V DC + peak AC, x10: <600V DC + peak AC,
System input resistance: x1: 1MΩ, x10: 10MΩ,
Working temperature: -10℃ - +50℃,
Typical input capacity: x1: 85-120PF, x10: 18.5-22.5PF
Compensation range: 15-45 PF

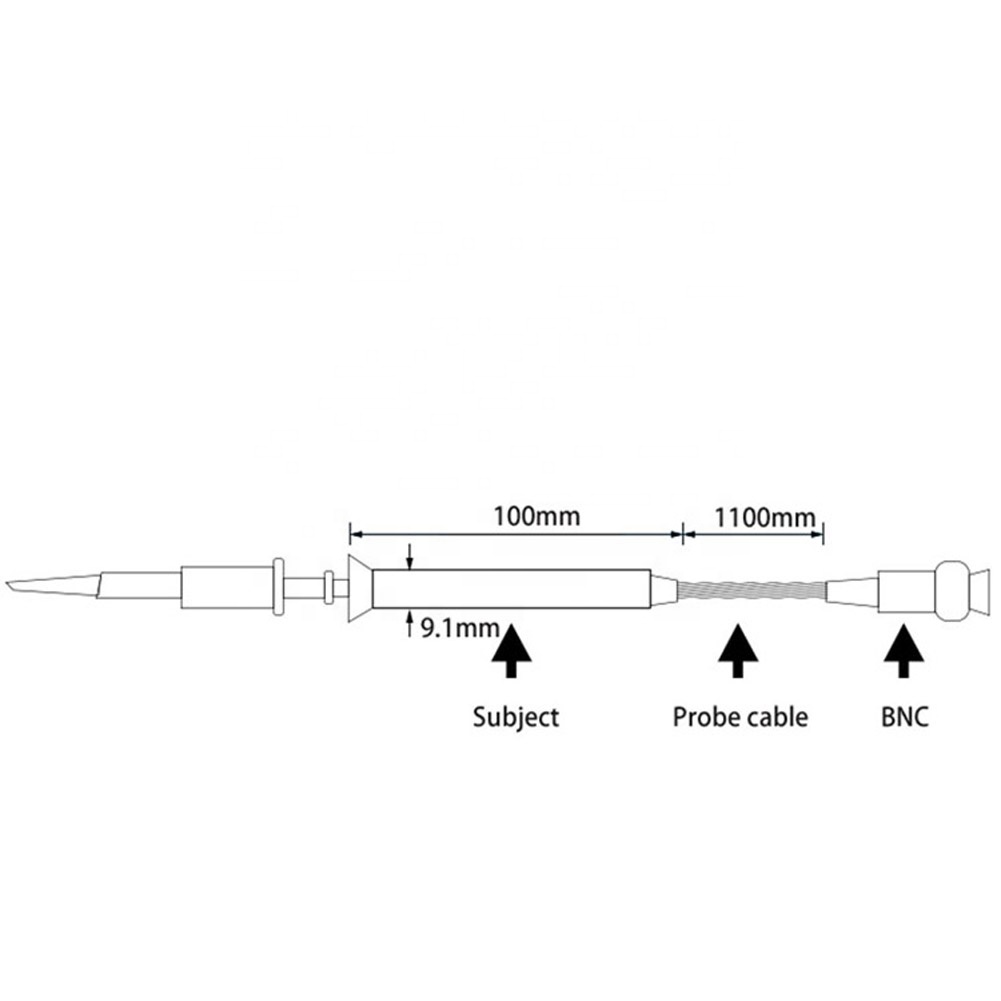

Cord length 120cm
Weight: 48g
color: gray

Operation Manual:
Adjustment tool: adjust the compensation capacitor to ensure that the rapier matches the oscilloscope

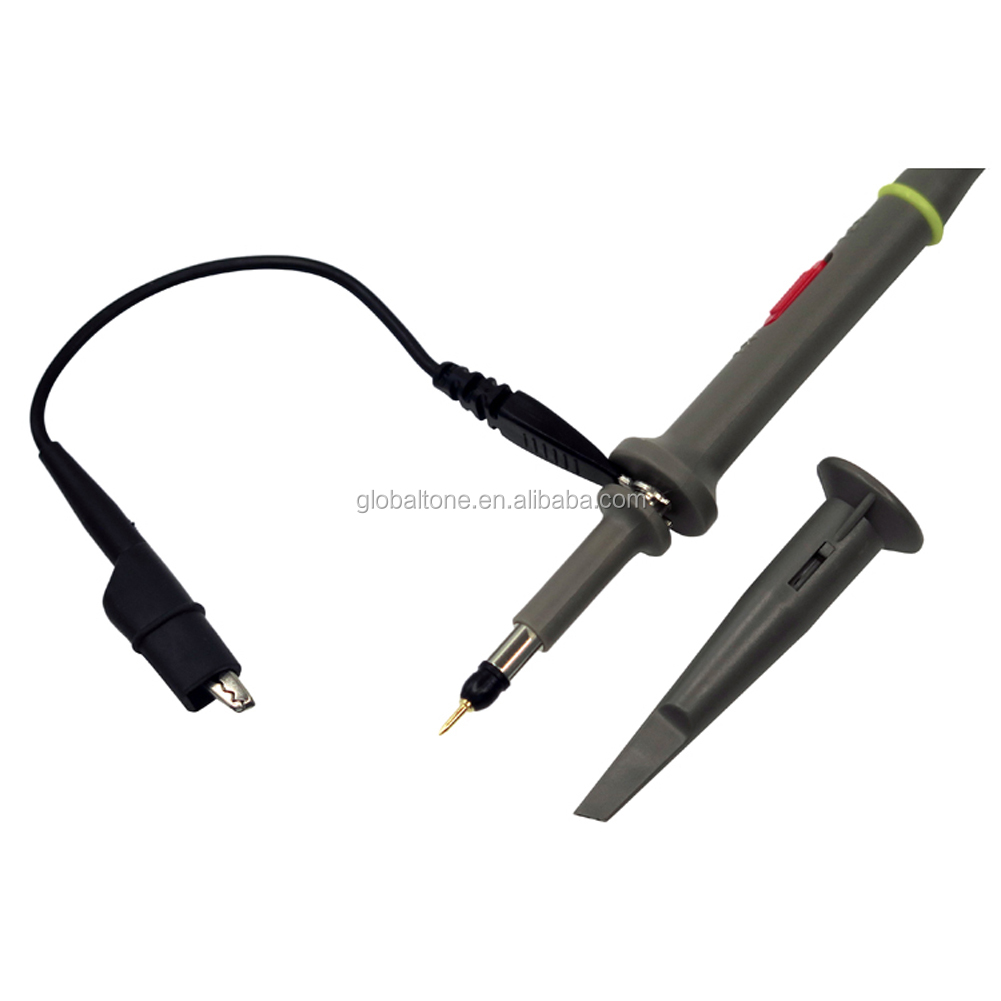

Retractable sharp hook
12cm ground wire with alligator clip
Positioning sleeve suitable for IC testing
4 pairs of colored cable markers

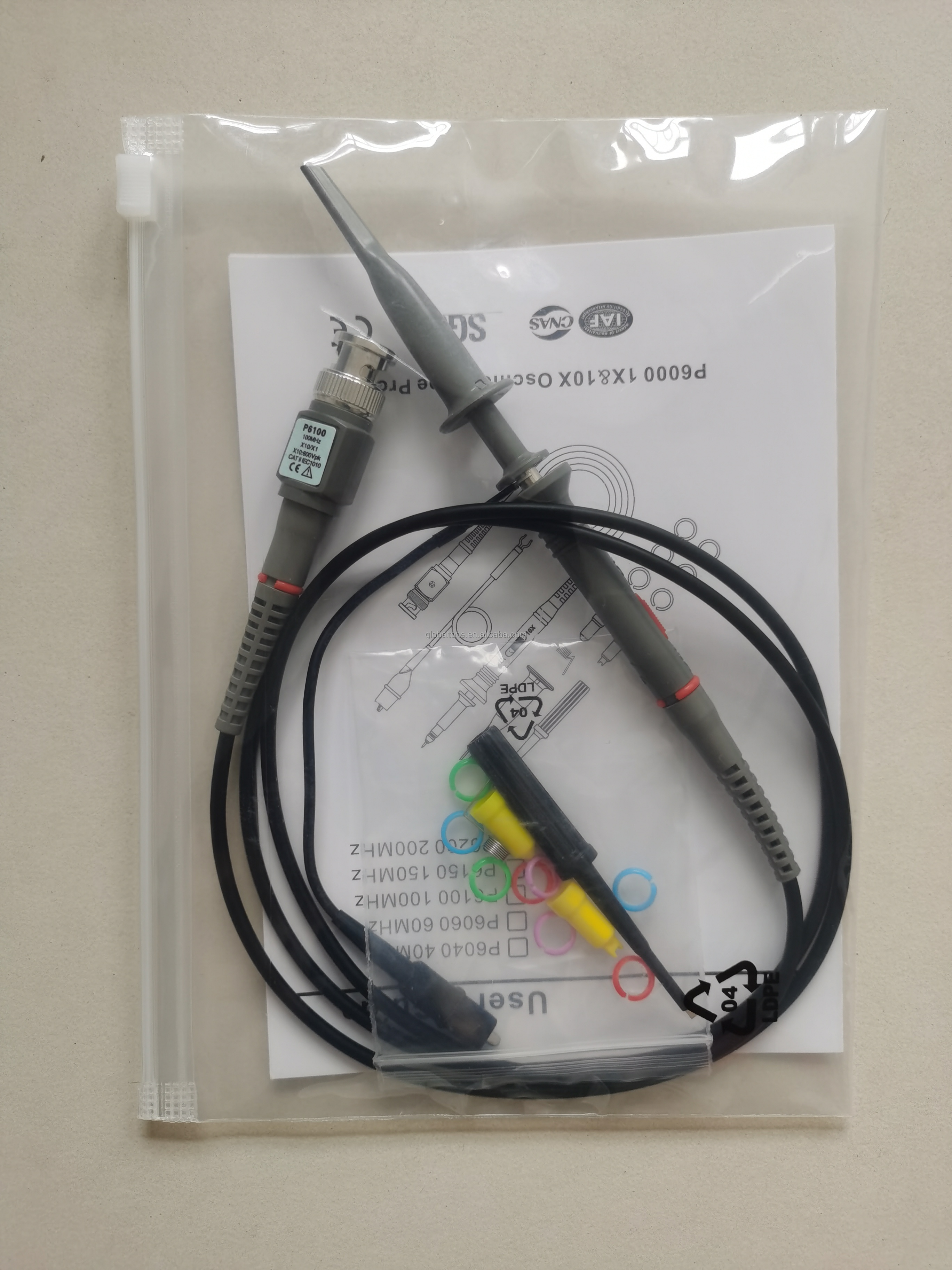

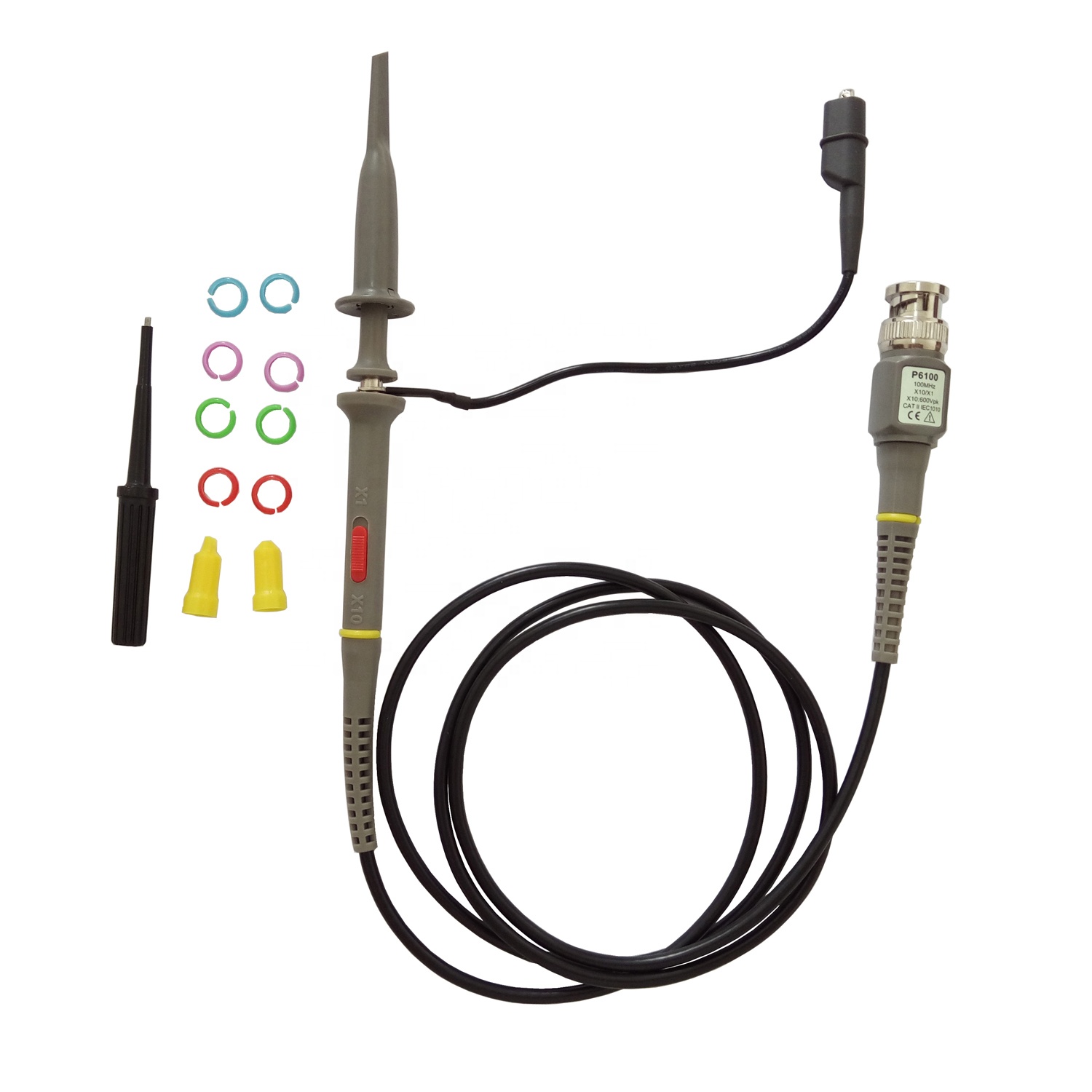

Package Contents:
1 x adjustment tool,
1 probe,
1 x interchangeable probe clip tip,
1 x mini alligator clip and ground wire,
1 x ground spring,
8 marking rings,
1 user manual
