Circular Slitting Machine Metal Steel Slitting Blades for Rotary Metal Slitting Lines Rotary Slitting Machine for Metal Coil Production Industry

  • Supplier: Jiangsu Xinmechan Technology Co., Ltd.
  • Region: Jiangsu, China
  • Price: $38.00 / 1 - 9 pieces
    $30.00 / 10 - 49 pieces
    $20.00 / 50 - 9999 pieces
    $6.00 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Mechanical test report:ifapplication:Rotating roller shear slitting and trimming machine
Warranty:6 monthsApplicable industries:Manufacturing plants, machine repair shops, construction projects, metal processing lines
Application materials:Metal Stainless Steel Carbon Steel Aluminum Rod CoilHealth status:new
Core components:blade knifeCore component warranty:6 months
Surface treatment:Fine milling and polishingShowroom location:not any
Material:H13 H13K HMB 9CrSi SKD11 LD D2 alloy, etc.type:Rolling shear slitting blades for metal processing
Package preview:Supply capacity:50,000 blades per month
Drawing format:dwg, dxf, pdf, jepg, ps, ai, etc.Video outbound inspection:if
payment terms:Western Union, wire transferMarketing type:normal product
port:NingboProcess type:Cold working or hot working
Packaging details:wooden box
Product Description

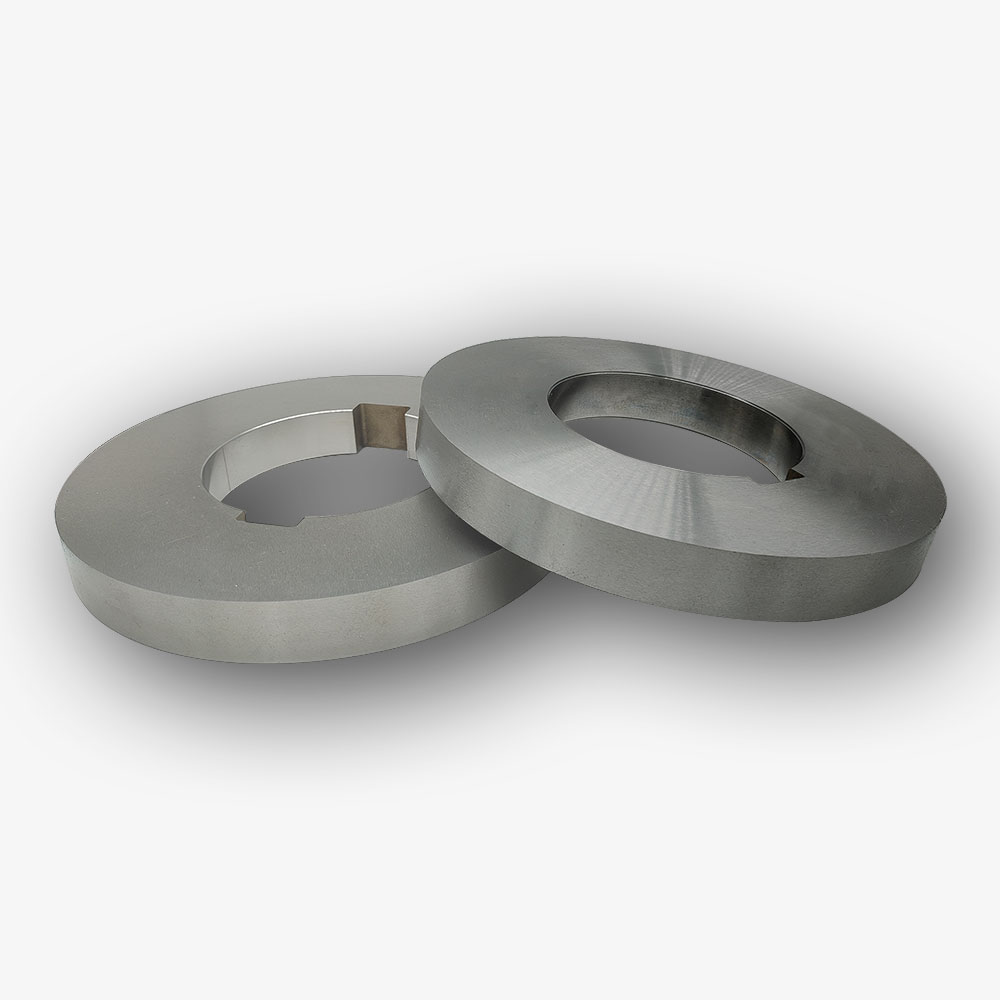

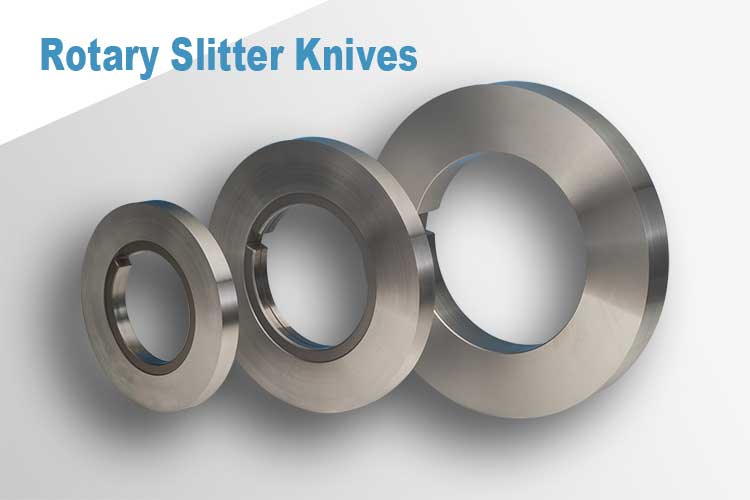

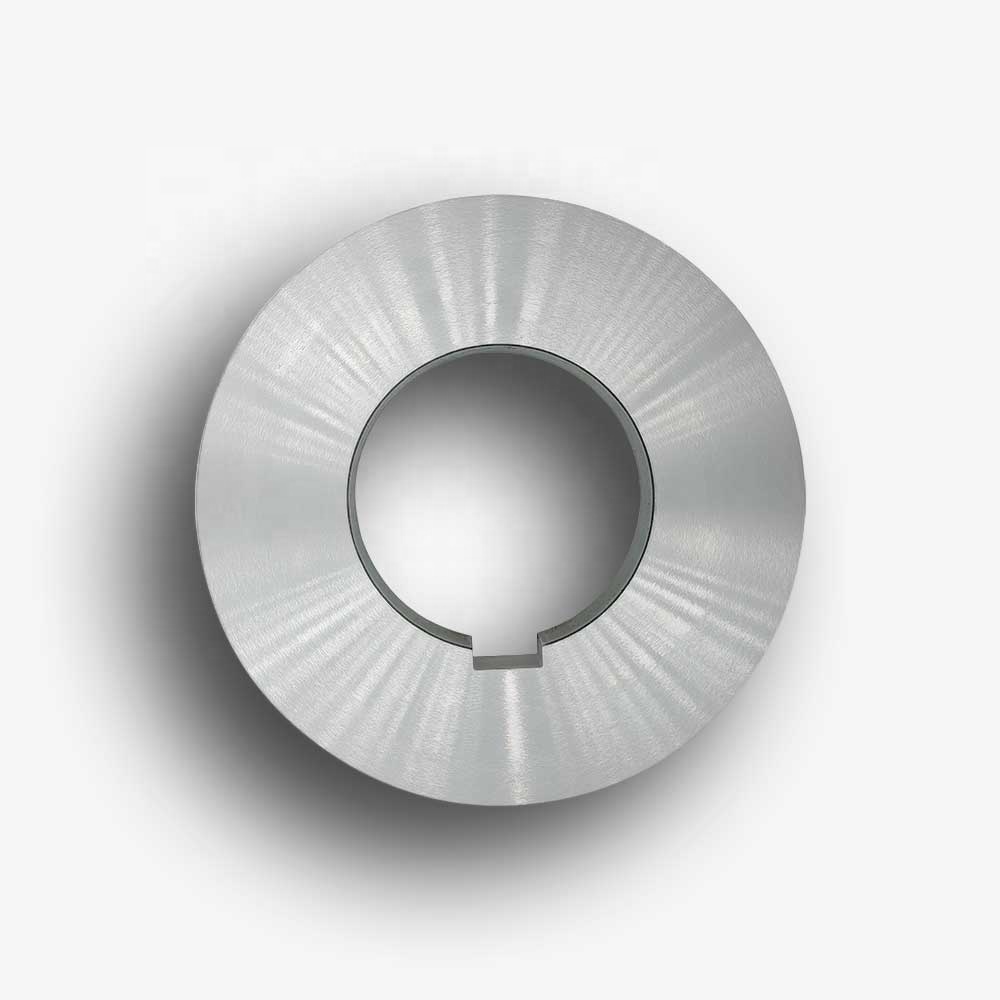

Rotary slitting knife
Xinmeichuang rotary slitting knives are available in a variety of grades of proprietary steel to meet a variety of needs. In order to adapt to a variety of target materials from ordinary steel plates to high-strength steel, SUS steel, electromagnetic steel, non-ferrous metals, etc., we consider specifications and select blade materials with appropriate hardness, precision and surface roughness, and surface treatment to meet customer expectations. In order to improve the lubricity of the slitting knife, we developed a mirror slitting knife with a surface roughness of Rmax 0.2.
Advantages of the new mechanical rotary slitting knife:
◎ Excellent dimensional accuracy ◎ Can withstand high shear forces ◎ Excellent surface roughness ◎ Higher productivity ◎ Longer service life
Material:
9CrSi, SKD11, LD, H13, H13K, HMB, alloy, etc.
hardness:
52-65HRC
Dimensional tolerance:
Outer diameter ±0.03mm, usually IDH7-H8, thickness ±0.002mm

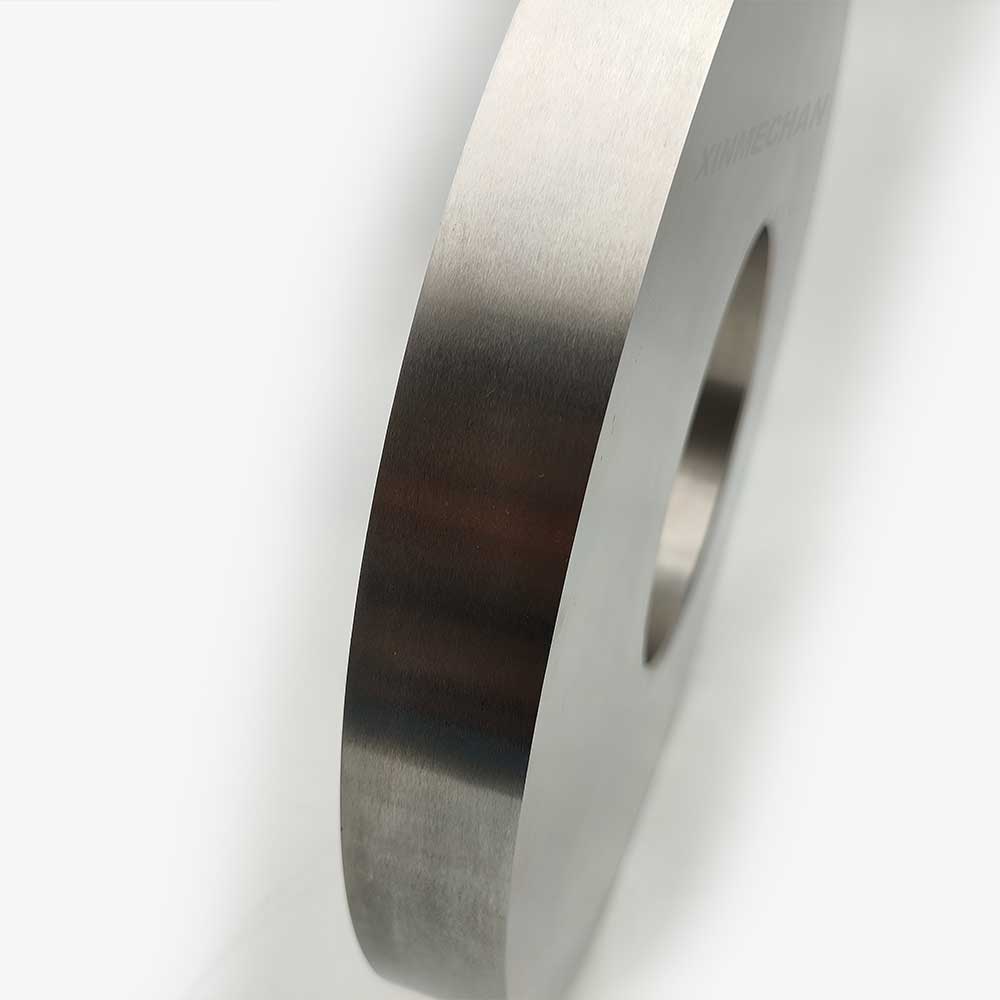

Surface roughness:
Ra is usually 0.2-Ra0.4
Processing services:
usable

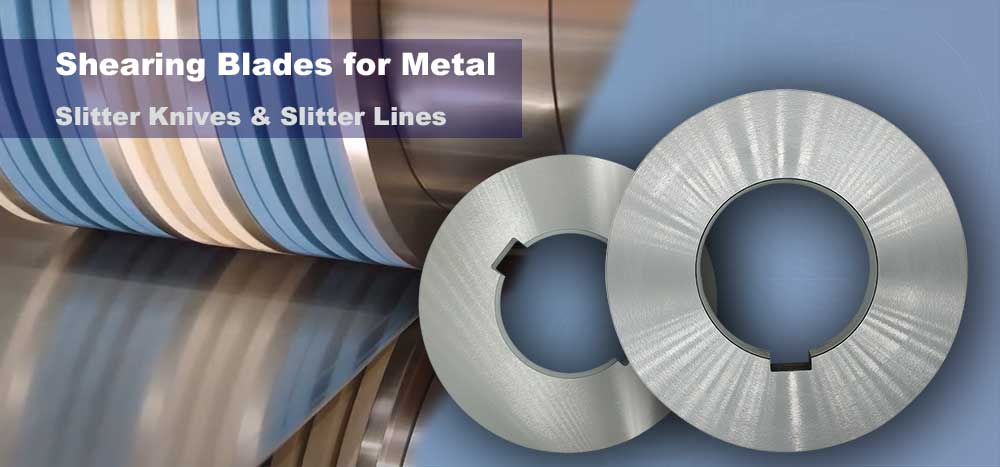

Application scope: used for slitting or cutting stainless steel, aluminum, cobalt, galvanized sheets, silicon steel sheets, cold and hot rolled sheets, etc.
Used for slitting or cutting cold-rolled or hot-rolled stainless steel, aluminum, cobalt, galvanized sheets, silicon steel sheets
Sheets, etc.

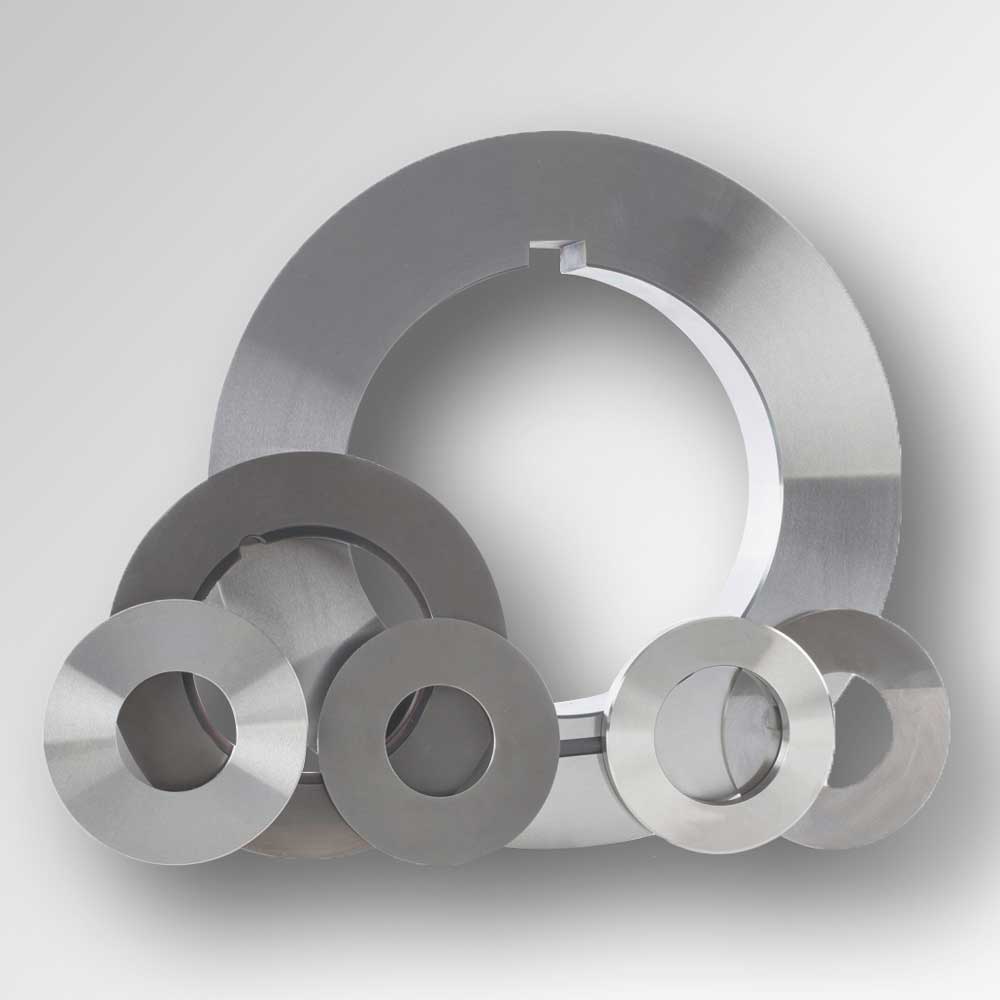

General size
Φ240×Φ120×10
Φ260×Φ140×10
Φ280×Φ160×10
Φ304×Φ203×6
Φ304×Φ203×12
Φ340×Φ230×10
Φ360×Φ220×10
Φ380×Φ240×10
Φ400×Φ260×10
Φ440×Φ280×30
Φ500×Φ300×40
Φ550×Φ380×40
Φ600×Φ400×50
Φ600×Φ500×50
Φ650×Φ420×50
Φ650×Φ500×500
Φ800×Φ500×60
Φ1200×Φ600×7
These are just some typical sizes. There are many more available. Please contact us for more information.
OEM services are also provided. Just send us the drawing or basic information of the blade. Our skilled engineers will take care of the rest.
