3V 6V 12V 18W 5050 LED emitter XHP50.3 XHP50D high brightness 5700K CRI70 XHP50D-H0-0000-0A00J40E2

Supplier: Shenzhen TongRui Photoelectric Co., Ltd.
Region: Guangdong, China
Contact: Ms Eiffel Chen
Price: $3.25 / 1000 - 4999 pieces
$3.22 / 5000 - 9999 pieces
$3.18 / 10000 - 29999 pieces
$3.11 / >=30000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

maximum. Reverse voltage:	1V	Installation type:	Installation and welding
Color rendering index:	70 80 90	Gross weight of single piece:	0.180kg
size:	5.005.001.00mm	series:	High Power 5050 White LED Emitter
application:	Flashlights, spotlights, stadium lighting	Packaging details:	Standard packaging, 1000 pieces/roll
type:	lead	Viewing angle:	120°
Packing/box:	SMD type	type of packaging:	surface mount
Available media:	Data sheets, photos, other	Color/color temperature:	White/2700-7000K
Power - Max:	18.60W	pack:	1000 pieces/roll
Package preview:		brand:	Invalid
Diode type:	surface mount technology	technology:	surface mount technology
Forward current range:	700-6000mA	Power consumption (maximum):	18.60W
Operating temperature:	-40-85℃	Voltage:	3V (2.8-3.1V); 6V (5.6-6.2V); 12V (11.2-12.4V)
maximum. Forward Voltage:	12.40V@700mA@85℃	describe:	lead
Place of origin:	Guangdong, China	maximum. Forward current:	6000mA (3V); 3000mA (6V); 1500mA (12V)
Single piece packaging size:	25X20X7cm	Sales unit:	Single product
model:	XHP50.3 high strength	Luminous flux:	635-1200lm@700mA@85℃@12V
product name:	High Power 5050 White LED Emitter	Supplier type:	Original factory, other
strength:	18.60W

Product Description

5050 3V 6V 12V 1500-6000mA 18W white LED

XHP50.3 high brightness LED

Offers the best lumen density, reliability and optical control in its size.

Optimized for outdoor and advanced indoor lighting applications that require large light output from small fixtures, such as stadiums, outdoor areas and architectural spotlights.

feature

(1)Binned @85°C

(2)Available in white and configurable to 3V, 6V or 12V via PCB layout

(3)Maximum drive current:6000mA(3V), 3000mA(6V), 1500mA(12V)

(4)Wide viewing angle: 120°

(5)Low thermal resistance: 0.4℃/watt

(6)electrically neutral thermal path

(7)Available in standard, 70, 80, 90 and 95 minimum CRI options

Application areas

—outdoor lighting

- IIndoor lighting

— stadiumLighting

—portableLighting

—spotlight.

—architecturelight

- Torch

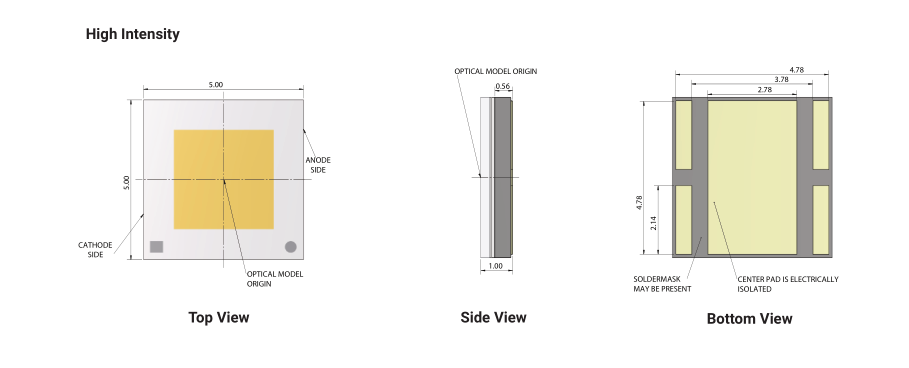

1. All dimensions are in millimeters.

2. Unless otherwise stated, all dimensional tolerances are ±0.13mm.
3. Scale: None

Specification

Model	XHP50.3 high strength
Viewing angle	120°
maximum. forward current	6000mA(3V) 3000mA(6V) 1500mA (12V)
Operating Voltage	2.80-3.10V 5.60-6.20V 11.20-12.40V
color/color temperature	White/2700-7000K
color rendering index	70 80 90
Luminous flux	635-1200lm@700mA@85℃@12V
strength	18.60W
Minimum packaging quantity	1000 pieces/roll
