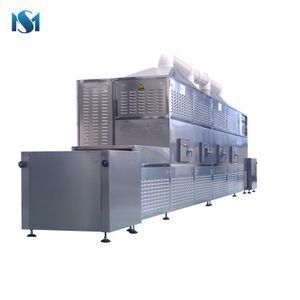

Super quality tunnel Microwave drying and sterilization machine for sale

Product details
Temperature range:60-200℃;Installation:Oversea Engineer Team;
Type:Microwave;Voltage:380v;
Supply Ability:50 Set/Sets per Month;Applicable Industries:Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Retail;
Product name:microwave drying machine;Heating source:Microwave Heating;
Brand Name:HNMS;Packaging Detail:Wooden case packing for microwave drying machine ,suitable for ocean shipping.;
Dimension(L*W*H):8640*1200*2200mm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:Any port in China;Weight:1t;
Capacity:180-240kg/h;Power(W):25kw;
Feature:Environment Friendly;Warranty:1 Year;
Material:304 Stainless Steel;Place of Origin:Henan China (Mainland);
Model:MS-20HMV;Application:Medicine Processing,Chemicals Processing,Food Processing;
Key Selling Points:Multifunctional;MOQ:1 Set;
Usage:Dry Heat Sterilization;After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Condition:New;Certification:CE;
Product Description

Product Application for microwave drying machine

Microwave drying sterilization and fixation machine is a new type of high-efficiency drying equipment.It uses microwave equipment to dry materials, to sterilize materials,to do fixation for the materials.

Microwave drying sterilization and fixation equipment uses the material's own moisture to form a steam environment. In addition to the high-frequency microwave oscillation effect, the greening effect is good, the material color is bright,at the same time,part of the water is lost in the fixation process, which saves the drying cost. The nutrients of the materials dried by the equipment will not changed or be destroyed at all, and at the same time have the sterilization function, which can fully meet the hygienic standard of QS food certification requirements.

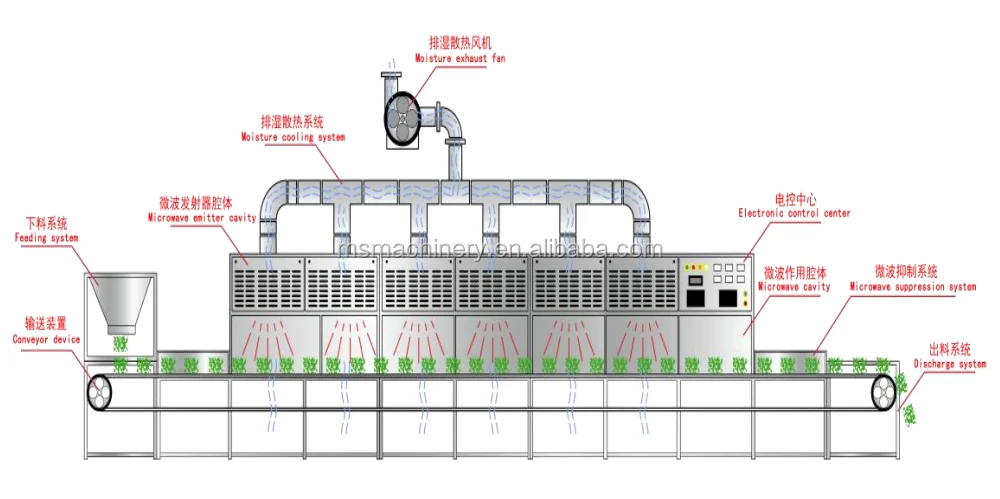

Working principle for microwave drying machine:

Microwaves are electromagnetic waves at a frequency of 300 MHz to 300 GHz. The material in the heating medium in the molecules of water is a polar molecule. It in the rapidly changing under high frequency magnetic field, its polarity orientation will be with the change of external electric field changes, resulting in molecular motion and friction between the effect, this field of the microwave field can transformed into thermal energy within the medium, the temperature of the material increased,

heating and puffing a series of physical and chemical processes, so as to achieve the purpose of microwave heating and drying.

Application for microwave drying machine:


Pasta classes :non-fried fast noodles,fine dried noodles ,stewed noodles


Dates :dried dates,date paste,slice dates


Dehydrated Vegetables :all kinds of vegetables

Meat :Beef ,pork ,chicken ,fish ,duck

Condiment :sauce ,dosing etc

Flowers :Rose ,honeysuckle ,chrysanthemum,peony

Grain and nuts:Filbert ,Chinese chestnut ,peanut ,nut,almond ,pine nut ,pistachio nut ,melon seeds,grain

Bean products :bean ,mung bean ,tofu ,dried tofu.

Features for microwave drying machine:


1. Fast seed inactivation rate

Microwave directly heats the seeds without heat conduction, and the seeds are heated to about 80

degrees by microwave for 5 to 6 minutes, which can quickly end the activity of life germ embryo gene

and completely inactivate it.

2. Complete inactivation effect of microwave:

Because of the penetration effect of microwave, both the surface and the inside of the seed are affected when the seed is treated as a whole, so the inactivation is uniform and complete.

3.Energy saving:

The general thermal inactivation sterilization will be in the environment and equipment loss should not

lose heat, and microwave inactivation sterilization machine microwave is directly on the seed, so there isno additional heat loss.In comparison, microwave inactivation can save 30%-50% of electricity.

4. Simple operation:

Tunnel structure, conveyor belt assembly line production, flexible and convenient operation.


Technical parameter for microwave drying machine:

Model
MS-20HMV
Voltage
380v/50hz
Power
25kw
Microwave output power
20kw
(Microwave power is adjustable in sections)
Control method
Fully automatic PLC touch screen control and liquid crystal imaging display
Temperature control
60-200℃
Capacity
180-240kg/h
Microwave feed site
Top site
Cooling method
Air-cooling/Water-cooling
Conveyor belt speed
0-10m/min (adjustable)
Conveyor belt material
PTFE/TEFLON
Conveyor belt width
500mm
Height of inlet and outlet opening
40-100mm
Dimension
8640*1200*2200mm
Weight
1000kg
Cooling system

There are two ways to cool down the machine,one is air-cooling system,the other is water-cooling system.If the customer wants the machine to work continuously for 24 hours, then the water-cooling system can only be selected.

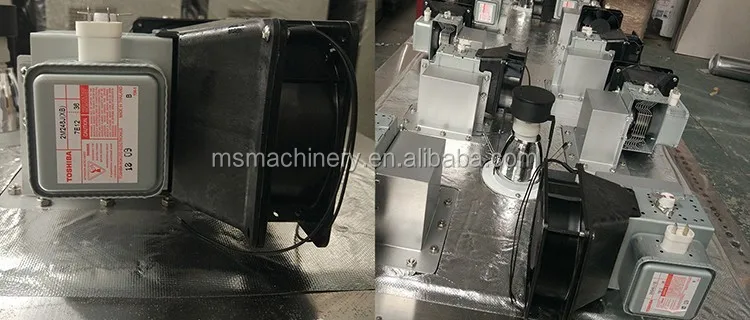

1.Air-cooling system

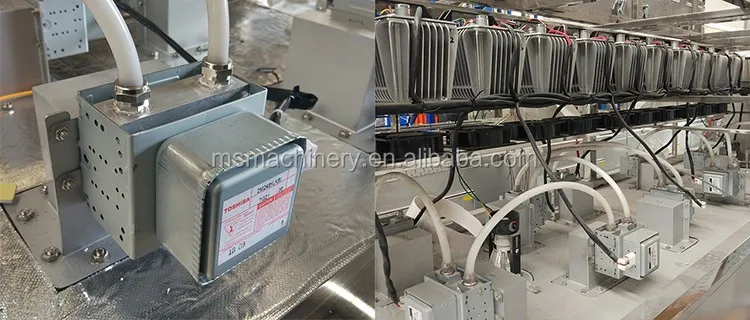

2.Water-cooling system

Detailed Images

Machine Parts

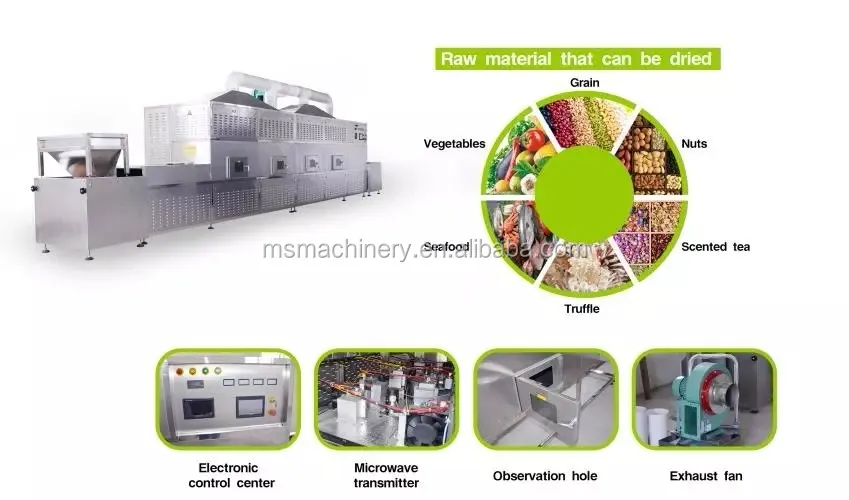

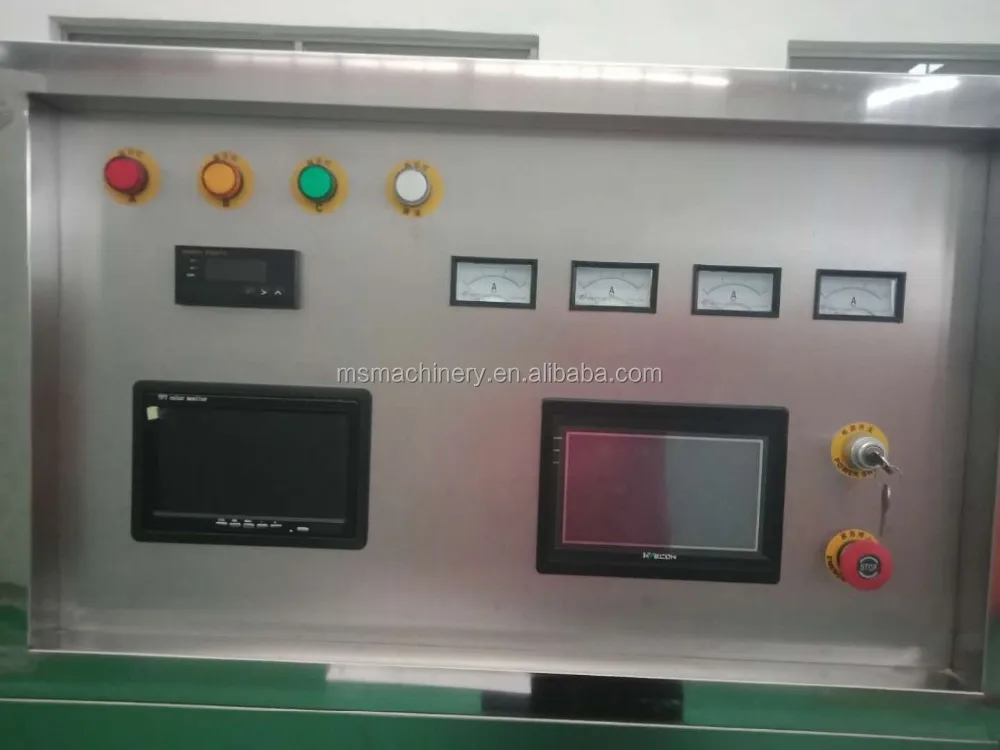

Name: Electronic control center

Brand: HNMS

Original: Mainland


Make operation easier by using the PLC system and real time monitoring system.

Machine parts

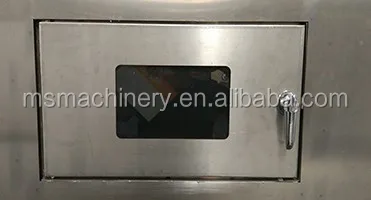

Name: Observation hole
Brand: HNMS
Original: Mainland

The observation window design makes it easier to observe internal situation.

Machine Parts

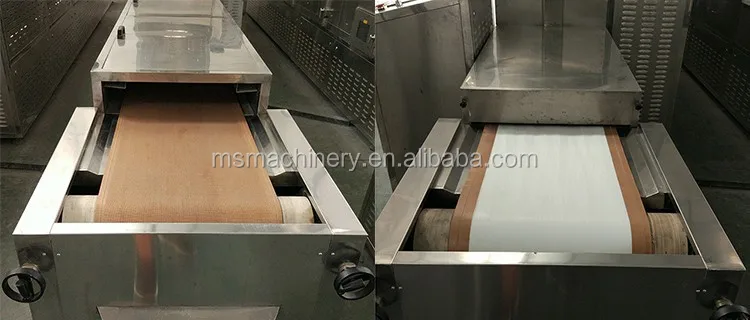

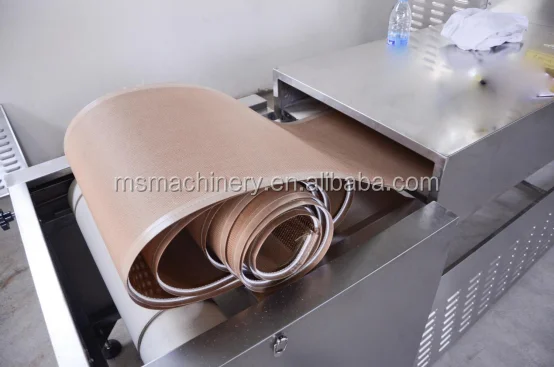

Name: Conveyor mesh belt
Brand: HNMS
Original: Mainland
The converyor mesh belt could be PTFE or Teflon mesh blet,both these belts could resist high temperature up to 350 degrees.

Machine parts

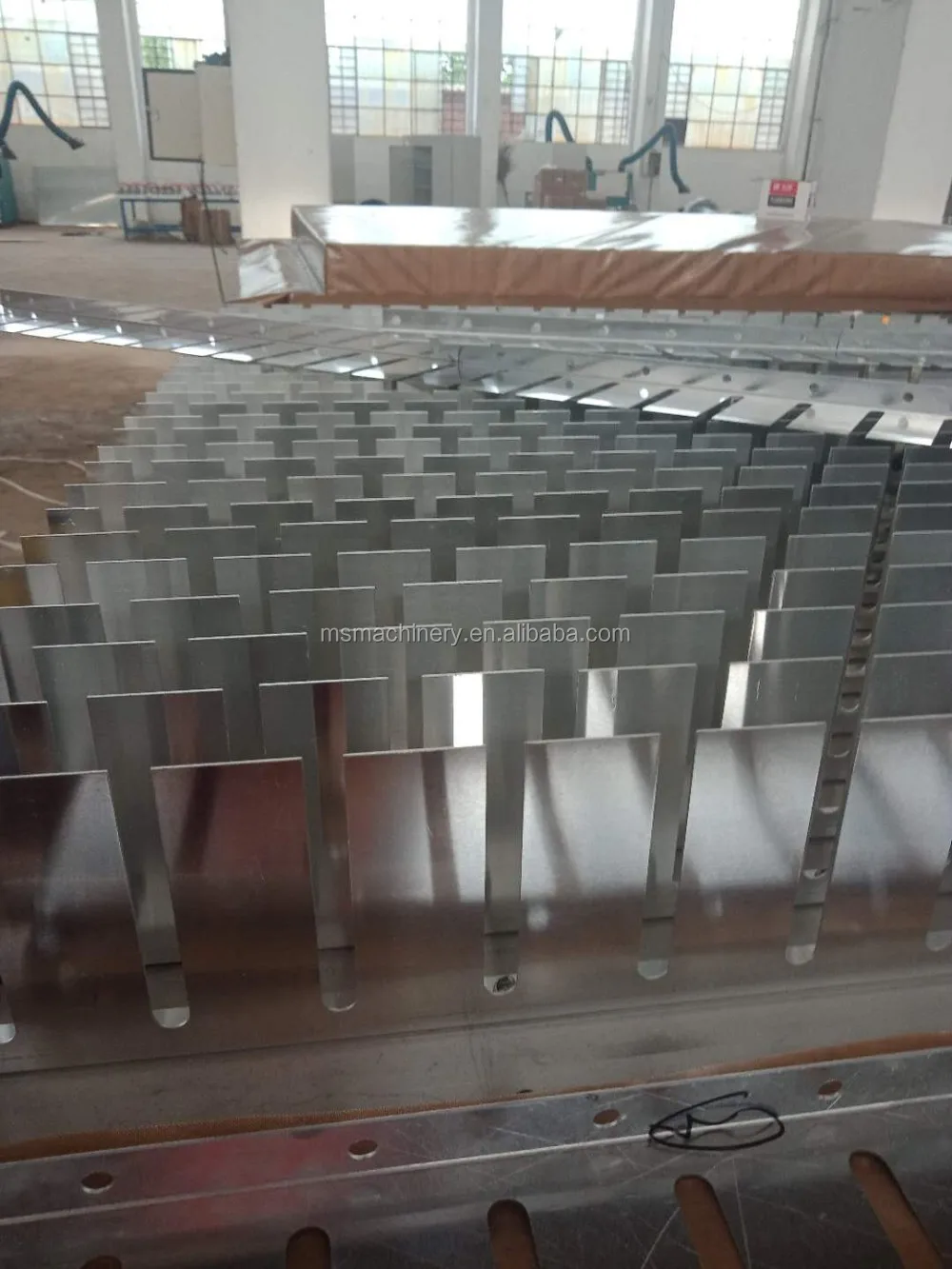

Name: Microwave suppression system
Brand: HNMS
Original: Mainland

Suppressor material: 3mm thick high purity aluminum, 1.0mm suppression sheet
● Suppressor anti-leakage guide piece: about 1600 pieces
● Suppressor length: 1250mm, opening height: 60mm
● Anti-leakage method: Inductive comb piece + absorbing material
● Microwave leakage: Microwave measurement with a leakage of 5cm at a pitch of <5mw/cm2

Machine parts

Name:Conveyor adjustment knob
Brand:HNMS
Orginal:Mainland

The conveyor belt and opening can be adjusted according to your needs.

Our Service
1.Assist clients to prepare for the first construction scheme and supply foundation drawing

2.Install and debug the equipment

3.Training workers

4.Take initiative to eliminate the troubles rapidly

5.Provide technical exchanging

6.Provide maintenance.
Packing & Delivery
Packaging
Size
20'GP;40'GP;40'HC
Weight
4t



Packaging Details
The machine will be packed by different container by FCL depends on the models.

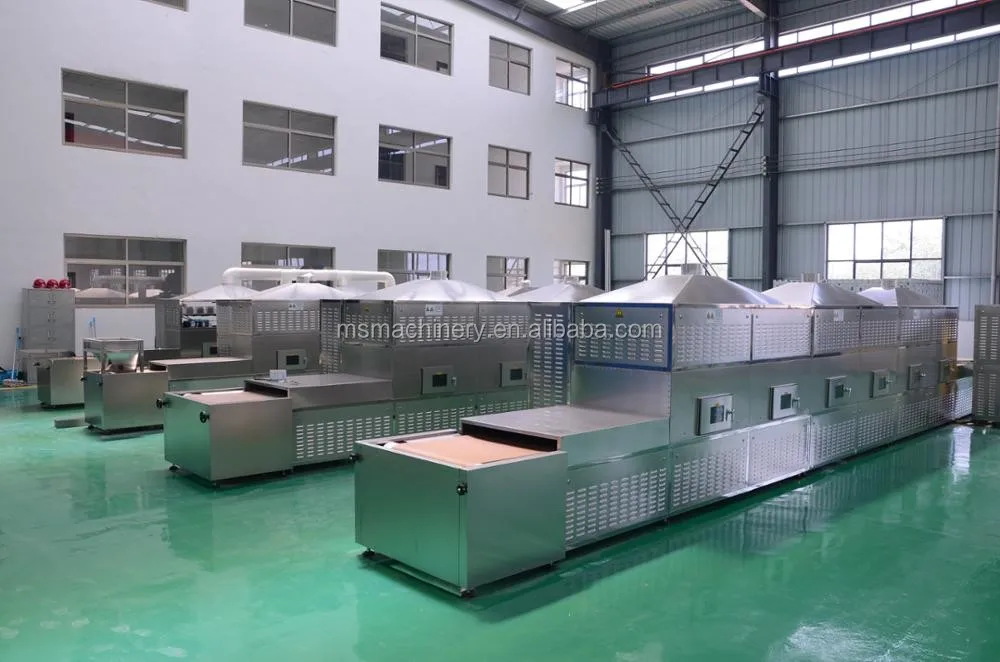

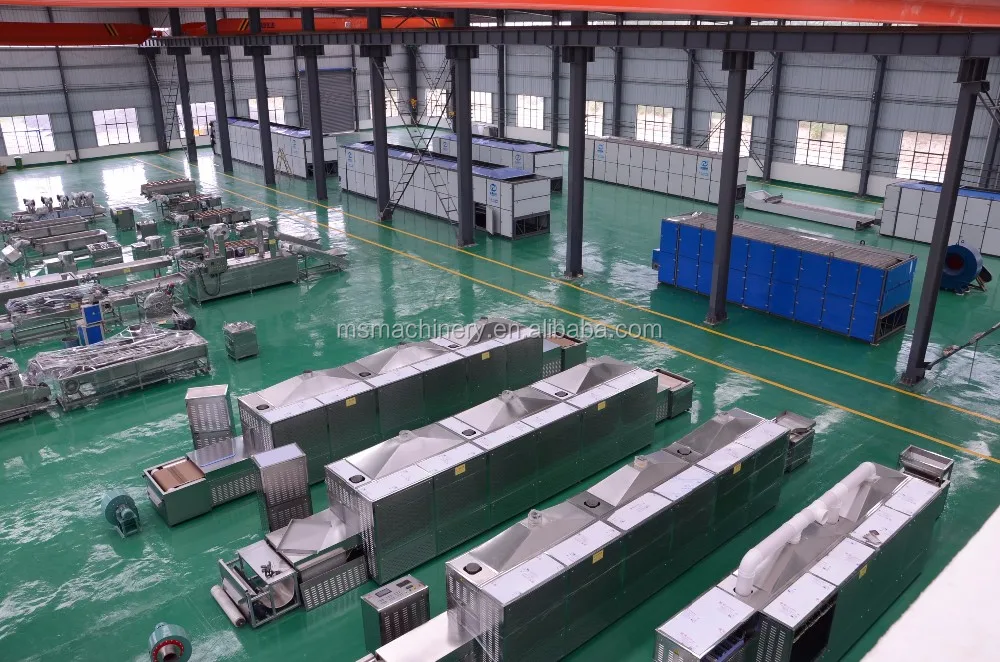

Factory

Henan Machinery&Equipment Company Limited is located in Zhengzhou City,Henan Province, our company is an independent state import and export enterpeises,which focus on drying equipment research, development and production.

The main products includes Chia seeds Microwave drying sterilization equipment,UV sterilization machine,Mesh-belt drying equipment,Heat pump drying unit,fruit and vegetable cleaning(peeling) and cutting machinery,processing equipment,etc.

Our Drying Equipment is widely used in traditional Chinese medicine, fruits, vegetables, food and other agricultural product's drying and processing.Various models of drying machine can deal with different materials and different production scale. Welcome to visit our factory.

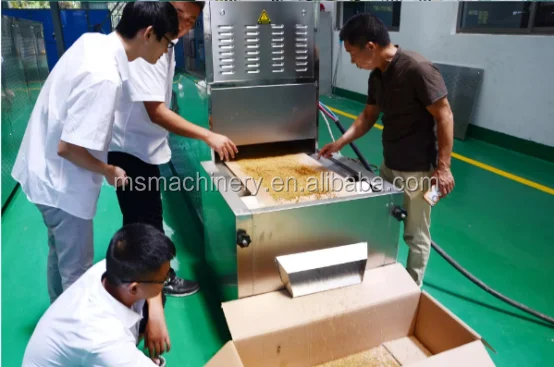

Welcome bring the material to our factory make a test,you will see the good effect of our machine!

If you have any doubts about our microwave drying machine,please feel free to contact me.
