MS Rivets, Open Type Aluminum Steel Blind Rivets

Product details
Length:4-60mm;Supply Ability:400 Ton/Tons per Month MS Rivets, Open Type Aluminum Steel Blind Rivets;
NAME:MS Rivets, Open Type Aluminum Steel Blind Rivets;MOQ:5CTN;
Standard:DIN;End:Open;
Brand Name:BOUNTY;OEM:Accept;
Head:Dome;Port:Shanghai;
Body Material:Aluminum alloy 5050;Diameter:2.4mm/3.0mm/3.2mm/4.0mm/4.8mm/5.0mm/6.0mm/6.4mm;
Model Number:DIN7337;Mandrel Material:Steel;
Place of Origin:Jiangsu China;Packaging Detail:MS Rivets, Open Type Aluminum Steel Blind Rivets will be packed BOX+CARTON+PALLET AS YOUR REQUEST;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;Samples:Free;
Product Description

MS Rivets, Open Type Aluminum Steel Blind Rivets


provide a way to join parts together when you don't have access to both sides. They are a low-cost, durable option you can use in place of spot welds, screws, or bolts.

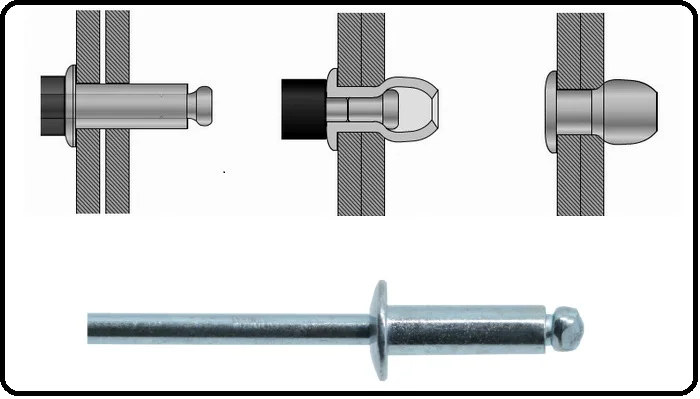

Blind Rivets are available in various combinations of aluminum, stainless steel and steel. Offered in standard dome, large flange, countersunk and closed end head styles, blind rivets feature a mandrel which is pulled through the body. This action expands the blind end of the rivet shank, creating a permanent hold. Required grip range is based on the thickness of the materials that are being joined together.


Blind Rivets are high strength one piece break-stem fastener that require access from one side only. They are available in various materials such as Aluminum alloy, Steel and Stainless Steel in a variety of lengths & diameters. Also they are available in various head forms - Dome Head, Countersunk and Large flange to suite applications where wide load spread or flush surface is required.

SIZE
D
L
GRIP
HOLE
Dk
K
dm
2.4MM
2.25-2.48
4-16
0.5-12
2.5-2.6
4.2-5.0
0.7
1.45
3.0MM
2.9-3.08
4-20
0.5-15
3.1-3.2
5.4-6.8
0.8
1.75
3.2MM
3.1-3.28
6-25
0.5-20
3.3-3.4
5.8-6.7
0.8
1.75
4.0MM
3.9-4.08
6-40
1.5-35
4.1-4.2
6.9-8.4
1.0
2.1
4.8MM
4.7-4.88
6-65
1.5-60
4.9-5.0
8.3-9.5
1.1
2.7
5.0MM
4.9-5.08
6-65
1.5-60
5.1-5.2
8.7-9.5
1.1
2.7
6.0MM
5.9-6.08
10-60
4.0-53
6.1-6.2
10.5-12
1.5
3.6
6.4MM
6.3-6.48
10-60
4.0-53
6.5-6.6
11.5-13
1.8
3.85
