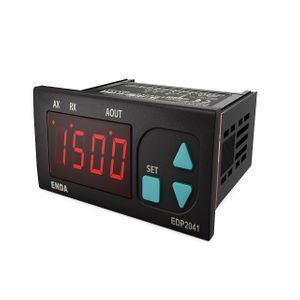

ENDA EDP2041 - Digital Potentiometer

Product details
Brand Name:ENDA;Place of Origin:Istanbul Turkey;
Measuring Range:0-10V & 0-20mA & 4-20mA;Accuracy Class:Accuracy :%0.1;
Dimensions:W77xH35xD71mm;Payment Terms:T/T;
Model Number:EDP2041-230VAC;
Product Description

4 digits display

Easy to use by front panel keypad

Communication via RS-485 Modbus protocol or synchronous running between two or more potentiometers

Preset value can be adjusted from external buttons

Display scale can be adjusted between -1999 and 9999

Decimal point can be adjusted between 1. and 3. digits

0-10V, 0-20 mA and 4-20mA output with adjustable min. and max. values

Soft on and soft off properties can be selected

Parameter access protection on 3 levels

CE marked according to European Norms

Environmental Conditions

Ambient/Storage Temperature    0 ...50 ºC / -25...70 ºC

Relative Humidity                           80% Relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C

Protection Degree                          According to EN 60529 Front panel: IP65, Rear panel: IP20

Height                                              Max. 2000m

Electrical Characteristics

Supply                                             230V AC +10% -20% or 24V AC ±10%, 50/60Hz or 9-30V DC / 7-24V AC ±10% SMPS

Power Consumption                    5VA

External Connections                  Screw-terminals

Input

Upwards Input(UP)                       Contact input or max. 24VDC logic input (active low)

Downwards Input(DOWN)           Contact input or max. 24VDC logic input (active low)

Output

0-10V                                               Output Digitally adjusted max. 10mA, max. 10V potentiometer output
                                                          Accuracy: 0.1% Resolution: 1mV
                                                          Fluctuation: Max. 30mV
                                                          Rise time from 0 to 10V is max. 300ms

0-20mA                                            Output Digitally adjusted max. 12V, max.20 mA potentiometer output
                                                          Accuracy: 0.1% Resolution: 2µA"
                                                          Fluctuation: Max. 60µA
                                                          Rise time from 0 to 20mA is max. 300ms

4-20mA                                            Output Digitally adjusted max. 12V, max.20 mA potentiometer output
                                                          Accuracy: 0.1% Resolution: 2µA
                                                          Fluctuation: Max. 60µA
                                                          Rise time from 4 to 20mA is max. 300ms"

Housing

Mounting Method                         Panel mounting

Dimensions                                    W77xH35xD61 mm

Weight                                            Approx. 350g (after packaging)

Enclosure Material                       Self extinguishing plastics
