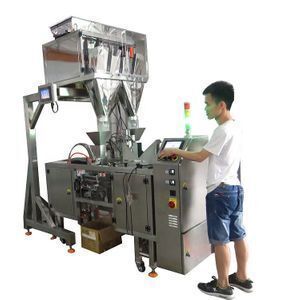

Newest CE Approved High Quality Premade Zipper Bag Packing Machine

  • Supplier: Top Y Machinery Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Sophia Gong
  • Price: $7500.00 /piece
  • Min. Order: 1 piece
Product details
Packaging Detail:plywood cases;Payment Terms:L/C,T/T,paypal, cash, e-checking;
Function:Packing Filling vacuum;Name:Low Cost Automatic Mini Doypack Packing Machine for Premade Pouch;
Packing speed:12-15 Bags/Min;keyword:doypack packing machine;
Warranty:2 Years;Dimension(L*W*H):L)1870X(W)650X(H)1650mm;
Packing material:PE, Laminated film , paper bag;Driven Type:Pneumatic;
Automatic Grade:Automatic;Machine name:automatic vacuum 1kg rice packaging machine for pre-made bags;
Condition:New;Certification:CE Certification;
Voltage:220V/380V/110V;Function:Filling,Sealing;
Application:Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles;Product name:Low Cost Automatic Mini Doypack Packing Machine for Premade Pouch;
Packaging Material:Paper,Plastic,Wood;Port:Shunde Port;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Food Shop,Food & Beverage Shops,Advertising Company;Packaging Type:Bags,Pouch,Stand-up Pouch;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Online support;Brand Name:TOP Y MACHINERY;
Supply Ability:5 Piece/Pieces per Month;Type:Multi-Function Packaging Machine;
Usage:food and non food;Material:Stainless Steel 304/316;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Guangdong China;

 Newest CE Approved High Quality Premade Zipper Bag Packing Machine

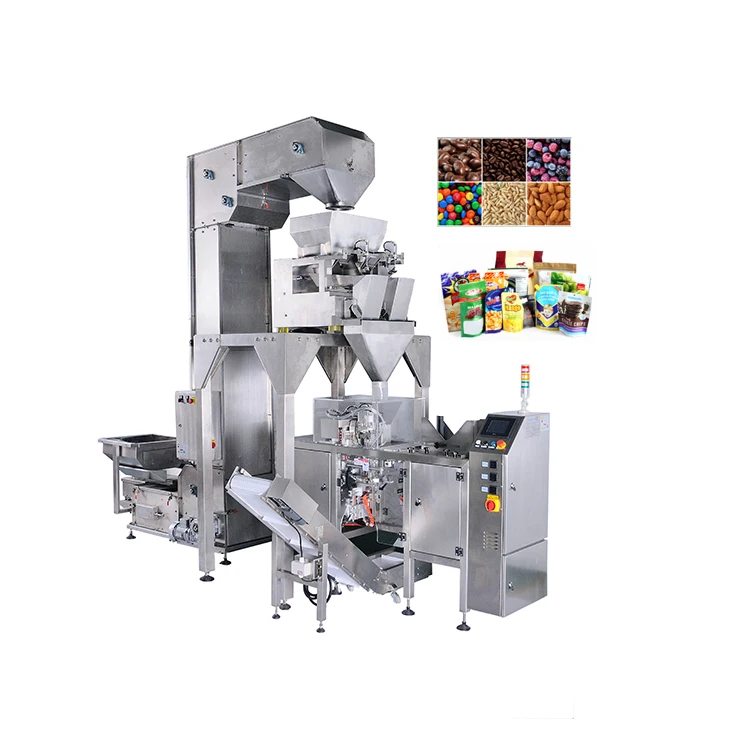

Combinated Machine Contains:

  • MDP Doypack Machine
  • Linear Weigher/Multihead Weigher
  • Z type Bucket Elevator
  • Takeaway Conveyor



Doypack Machine Technical Specification:

Model No.

TOPY-MDP1

TOPY-MDP2

Bag Width

85-280mm

120-300mm

Bag Length

130-300mm

130-400mm

Bag Type

Stand-up bag, pillow bag

Stand-up bag, pillow bag

Power Supply



220V, 50HZ

220V, 50HZ

Air Consumption



7.0 CFM@80 PSI

7.0 CFM@80 PSI

Pneumatic Parts

PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan

PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan



Advantage of TOPY Premade Bags Doypack Machine:

***304# Stainless Steel Material,Anti-Corrosion,Anti-Rust.

***AirTAC Cylinders and Solenoid Valves from Taiwan.

***MITSUBISHI PLC Control from Janpan.

***Delta Touch Screen from Taiwan.

***PIAB Vacuum Generator from Swedan.

***Warranty:24 months.

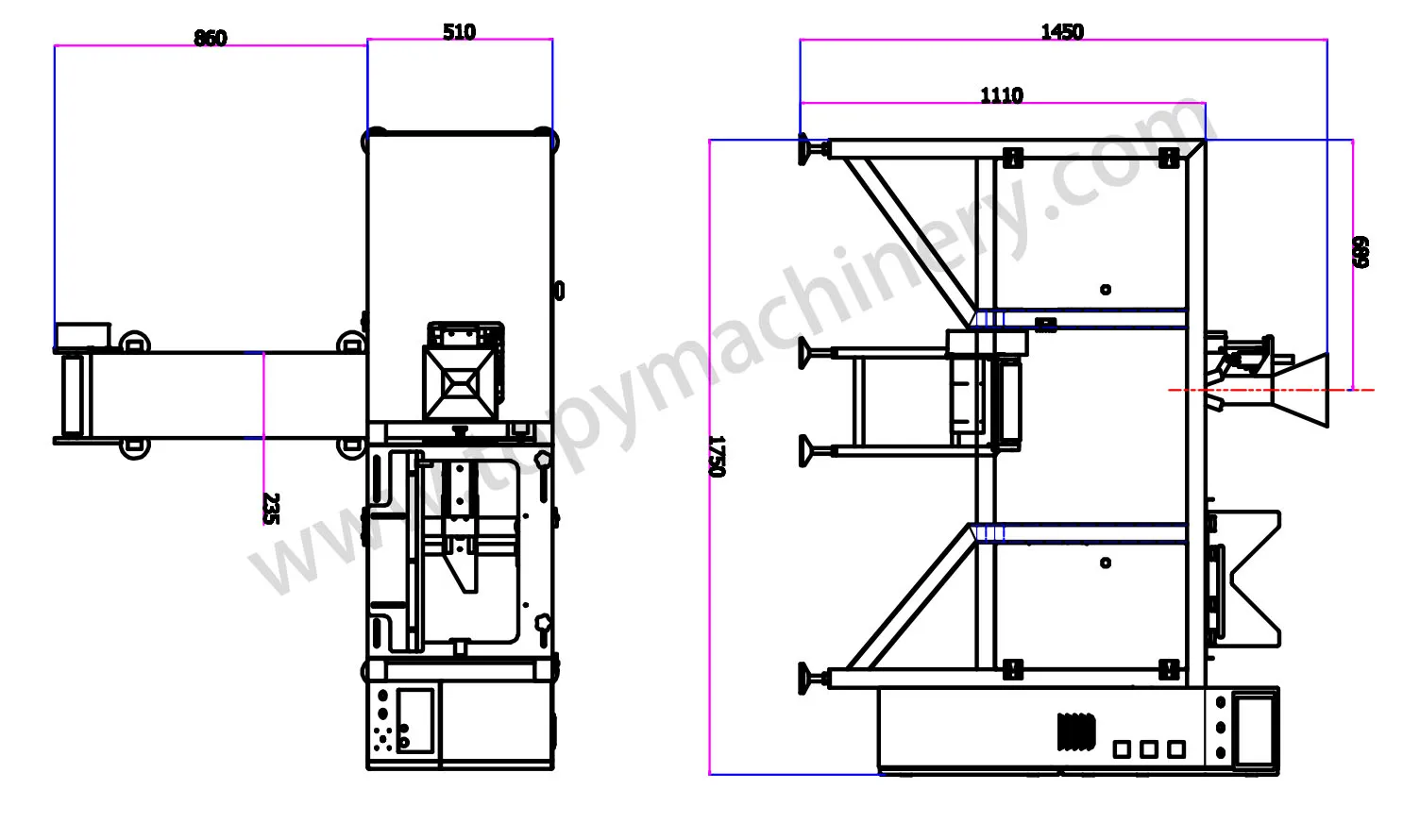

MDP1 Drawing:



Recommend Machine:Vertical Packing Machine For bag making while packing.

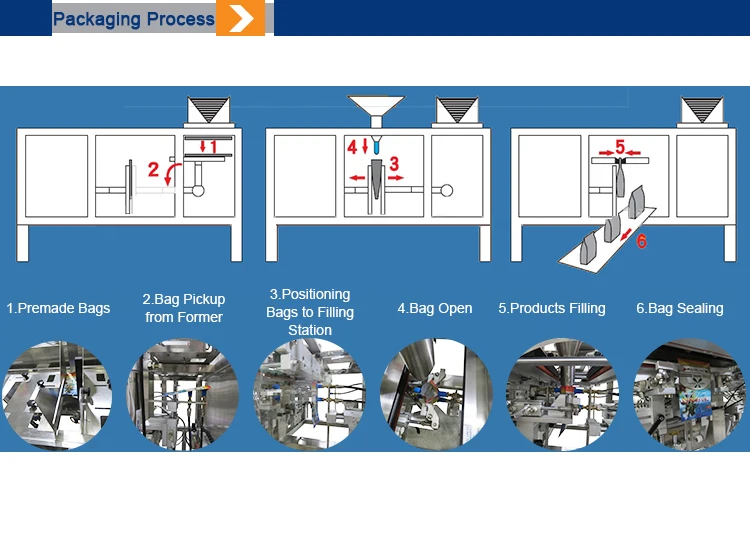

BAG OPENINHG
Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated to the fill area and opened.

TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute enters the bag and opens its gate. Product is dispensed immediately, without spillage and protecting the seal from contamination. Difficult product that easily bridges is dispensed into the pouch directly from the filler, through the "open-gate''

FILLING
During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position

SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles, folded corners and non aligned seals

MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal all cycle processes for easy monitoring.

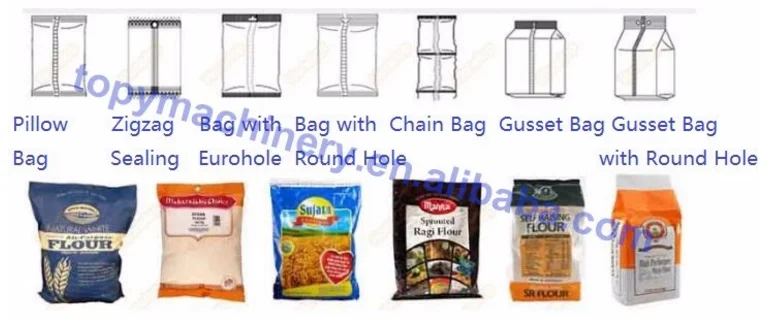

MDP doypack machine is very flexible for various bags:









If want more details pls click here to contact Tiffany for further communication.



The various packaging applications of TOPY Doypack Machine:

***Free Flow Powders: Sugar, Salt, Pepper, Spices, Flour, Semolina, Milk Powder, Various Sorts Of Powders, Etc.(non-food: Detergents, Plaster, Talc, Chemical Additives).

***Granules & Seeds: Coffee Beans, Cocoa, Rice, Sesame, Seeds, Small Granules Etc.

***Dry, Frozen & Processed Foods: Snack Foods [popcorn/chips], Cereal & Health Foods.

***Confectionary, Biscuits & Bakery, Pasta, Grated Cheese, Nuts, Dried Fruits And Vegetables, Frozen Vegetables,Dried Mushrooms, Pet Food.

***Non Food: Medium- Nuts, Small Metal/plastic Items, Bolts, Washers, Auto, Electrical And Plumbing Parts Etc.
