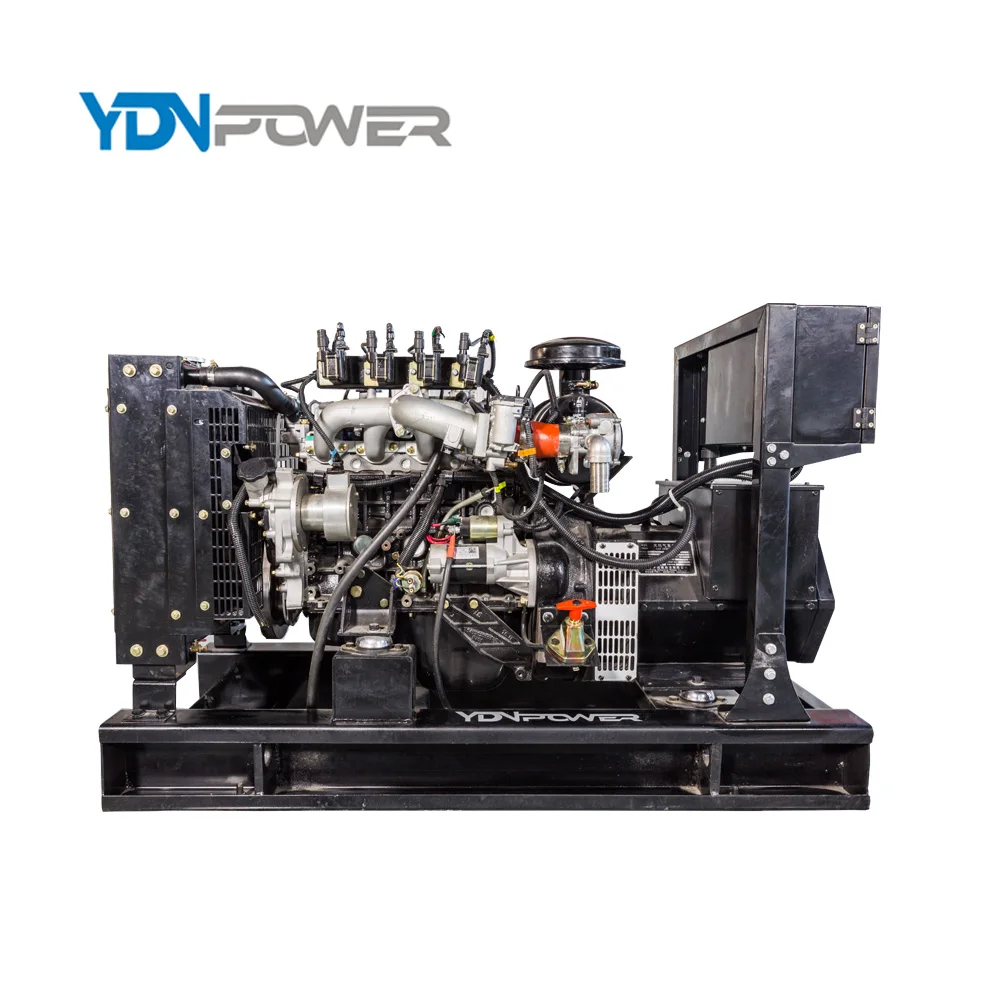

20kw 25kva natural gas generator

Product details
Packaging Detail:For open type, packing with plywood case; For silent type, packing with bubble and stretch film;Brand Name:YDN;
Gas Mixer Brand:IMPCO;Payment Terms:L/C,D/A,D/P,T/T,MoneyGram;
E-Throttle Brand:BOSCH;Rated Power:50kw/62.5kva;
Warranty:One Year Or 1500 Running Hours;Regulator Brand:MADAS;
Certificate:CE ISO SASO;Water Temperature brand:BOSCH;
Speed:1500rpm;Rated Current:36A;
Model Number:YDNF-20;Delivery Detail:Within 25 days after deposit received;
Fuel:Natutal Gas;Rated Voltage:220/380V;
Place of Origin:Shandong China;Supply Ability:600 Set/Sets per Month 20kw 25kva natural gas generator;
Port:Qingdao Port or Other China Port;Spark Plug Brand:TORCH;
Output Type:AC Three Phase;Product name:20kw 25kva natural gas generator;
Frequency:50HZ;Alternator:100% copper wire brushless;
Product Description
20kw 25kva natural gas generator


Engine
Engine model : 4JB1
Kw/rpm
24/1500
No. of cylinders : L.4
Kw/rpm
27/1800
Bore*Stroke(mm) : 93×102
Oil Capacity(L)
18

Gas control system
E-Throttle(Control supply of gas flow)
BOSCH
German Brand
MIXER(Mix gas and air for combustion)
IMPCO
USA Brand
Regulator (Regulate the pressure of gas supply)
MADAS
Italian Brand

Alternator
Brand:Farrand (Copy Stamford)
Rated power(Kw/Kva)
20/25
Model : FLD20
Voltage Regulation
AVR
Efficiency : 92.50%
Insulation Class
H

Requirments for natural gas

1.Methane should be at least 95%

2.The natural gas temperature should be between 0-60 ℃
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Certifications
Detailed Images

Control System

Name: Electronic throttle

Brand: BOSCH

Original: Germany

Control the supply of gas flow


Mixed system

Name: MIXER
Brand: IMPCO
Original: USA
Mix gas and air for combustion

Regulator System

Name: Regulator
Brand: MADAS
Original: Italian
Regulate the pressure of gas supply


Central control system

Name: ECU
Brand: YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.

Our Factory
Case show
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1950(L) * 1800 (W) * 1430 (D)
Weight
0.9 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
