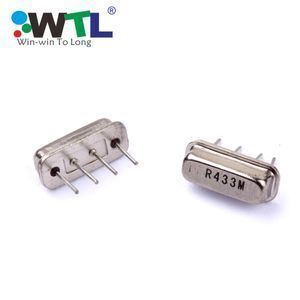

F11 Saw Resonator 433.92MHz DIP China Electronic Components

  • Supplier: WTL International Limited
  • Region: Guangdong, China
  • Contact: Ms. Pearl Zhu
  • Price: $0.089 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Payment Terms:L/C,T/T,Western Union,PAYPAL,Credit Card;Place of Origin:Guangdong China;
Insertion Loss:1.5 dB;Factory Manufacturer:Yes;
Packaging Detail:plastic bag(F11 Saw Resonator 433.92MHz DIP China Electronic Components);Brand Name:WTL;
Bandwidth:+/-75KHz;About Us:19 Years Experience;
Frequency:433.920MHz;Warranty:Global 180 Days Return;
OEM/ODM:Welcome;Package:F11;
Operating Temperature Range:-40+85℃;Supply Ability:1000000 Piece/Pieces per Month Saw Resonator 433.92MHz;
Model Number:WTL2.01153ZX;Port:Shenzhen;
Sample:Accept;

F11 Saw Resonator 433.92MHz DIP China Electronic Components

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



1. ELECTRICAL SPECIFICATION

DC Voltage VDC

10V

AC Voltage Vpp

10V50Hz/60Hz

Operation temperature

-40℃ to +85℃

Storage temperature

-45℃ to +85℃

RF Power Dissipation

0dBm



2.ELECTRONICS CHARACTERISTICS

+

Item

Unites

Minimum

Typical

Maximum

Center Frequency

MHz

433.845

433.920

433.995

Insertion Loss

dB



1.5

2.5

Quality Factor Unload Q



8000

12800



50Ω Loaded Q



1000

2000



Temperature

Stability

Turnover Temperature

10

25

40

Freq.temp.Coefficient

ppm/℃2



0.032



Frequency Aging

ppm/yr



<±10



DC. Insulation Resistance

1.0





RF Equivalent RLC Model

Motional Resistance R1

Ω



18

26

Motional Inductance L1

μH



74.627



Motional Capacitance C1

fF



1.8024



Transducer Static Capacitance

pF



2.3

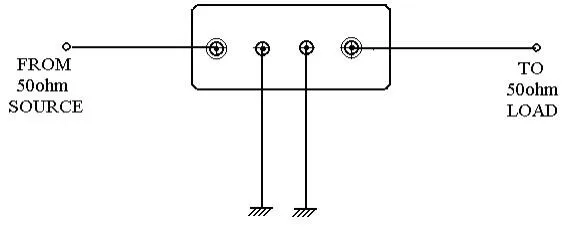

3. TEST CIRCUIT

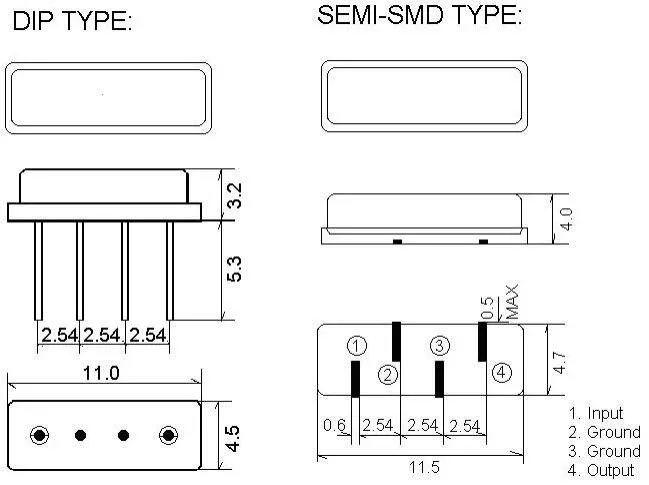

  4. DIMENSION



F11 Saw Resonator 433.92MHz DIP China Electronic Components

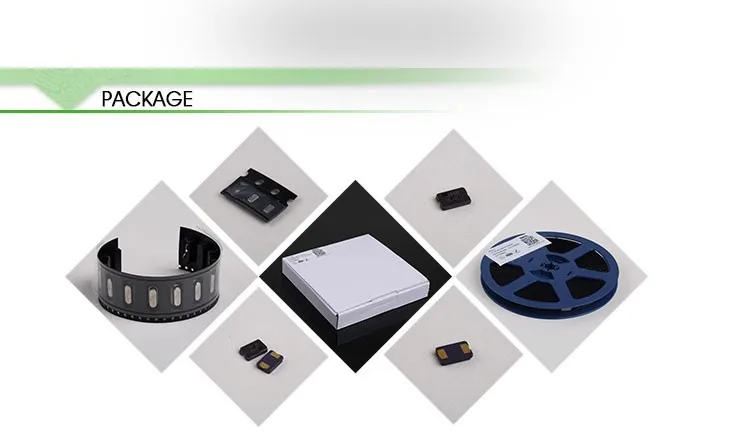

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

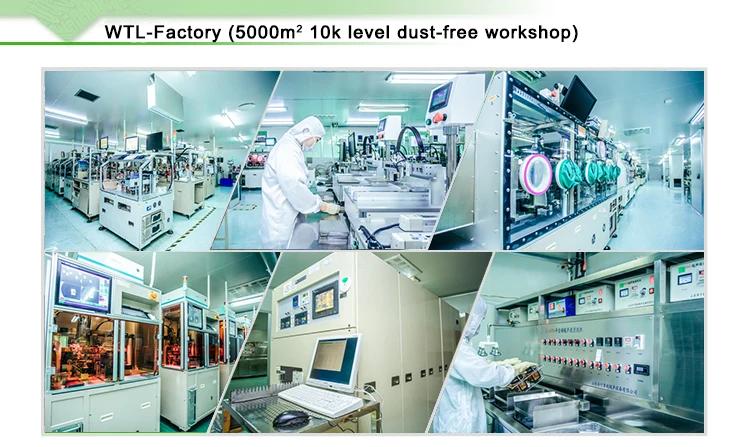

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!
