China Manufacturer Wholesale Electric 1200W Vacuum Cleaner Motor

Supplier: Suzhou Shouxin Motor Co., Ltd.
Region: Jiangsu, China
Contact: Ms Hu Luna
Price: $2.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	CCC,CE,ROHS;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
AC Voltage:	100V-240V;	Phase:	Single-phase;
Model Number:	V1J-P130A;	Usage:	Dry Vacuum Cleaner;
Protect Feature:	Drip-proof;	Port:	shanghai;
Type:	Vacuum cleaner motor;	Place of Origin:	Jiangsu China;
Efficiency:	IE 1;	Brand Name:	SHOUXIN;
Feature:	Long Lasting;	Frequency:	50/60Hz;
Product Type:	AC DC Vacuum Suction Motor;	Supply Ability:	1000000 Piece/Pieces per Month;
Suitable for:	Ash Vacuum Cleaner;	Customization:	Accepted;
Packaging Detail:	One box 12pcs, One pallet 72box, 20 feet container 13824pcs, 40 feet container 29376pcs.....;	Size:	80mm*65mm;

Product Description

Rated Voltage(V)	100/110/120/127/220/230/240
Rated input power(W)	1200
Max vacuum Degree(Kpa)	≥22
Max Airflow(m³/min)	≥2.8
Max Suction Power(W)	≥340
Max Efficiency(%)	≥34
Vibration(mm/s)	≤15
Noise(dB A)	≤98
Life(H)	≥500
Spark	≤2
Class	E/B/F

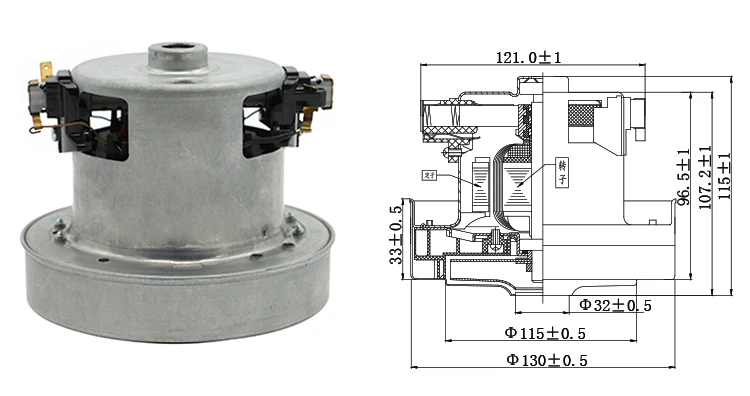

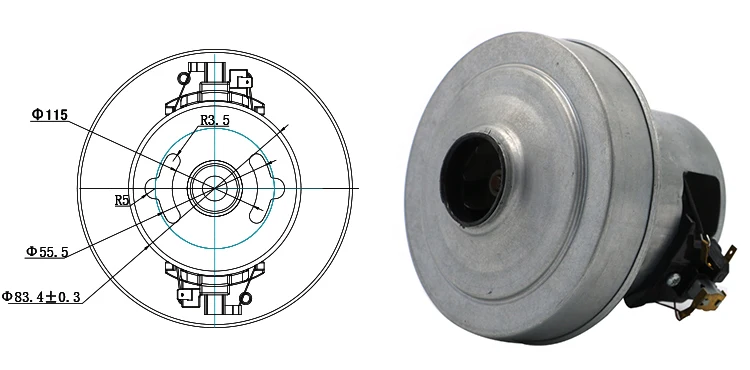

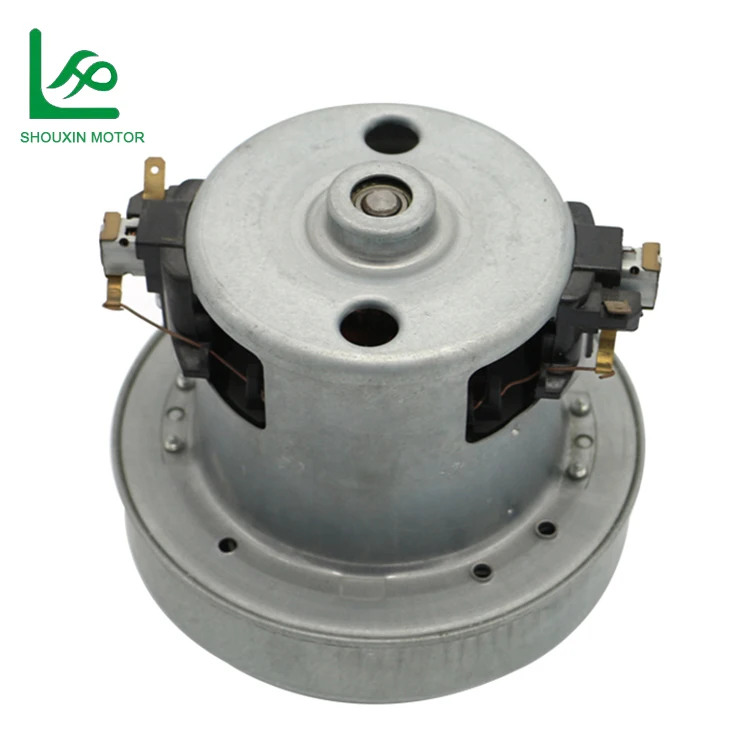

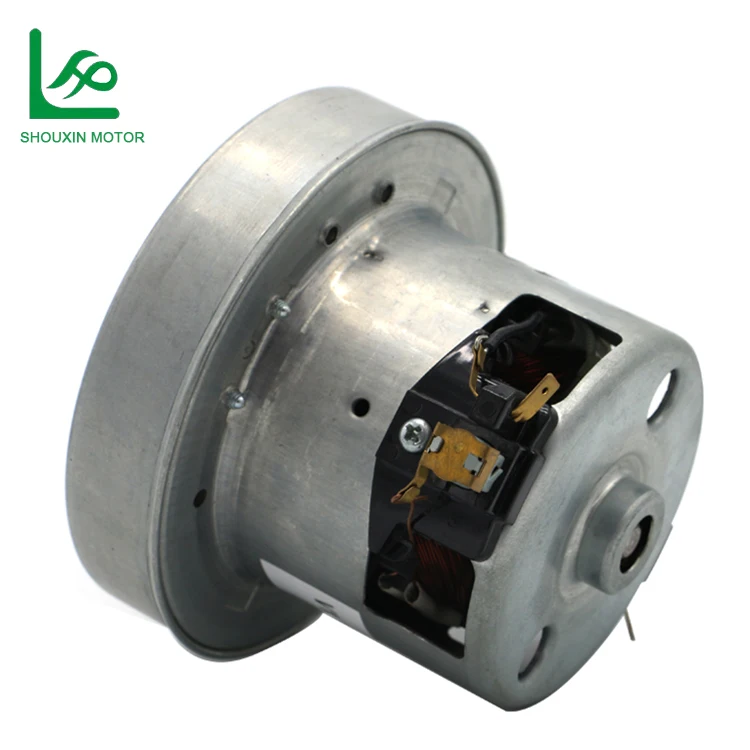

Vacuum Cleaner Motor:
Vacuum cleaner motor is the heart of the vacuum cleaner . Main types of the vacuum cleaner are: dry vacuum cleaner motor, wet and dry vacuum cleaner motor. Vacuum cleaner motor consists of two parts: part of the motor and fan, due to the vacuum cleaner motor speed requirements is very high, general in 20000-30000 turn per minute, so the motor is mainly used is the series excited motor, also known as series excited motor.
The motor is also known as the "motor" the color line is an insulating layer A machine that converts electrical energy into mechanical energy. A large amount of electric energy produced by the generator can be used in the production process by using the electric motor. The structure and the generator are basically the same, but the principle is just the opposite, the motor is energized to the rotor coil to cause movement, and the generator is the use of the rotor in the magnetic field of motion generated current. In order to obtain a strong magnetic field, regardless of motor or generator, to use the electromagnet is appropriate.

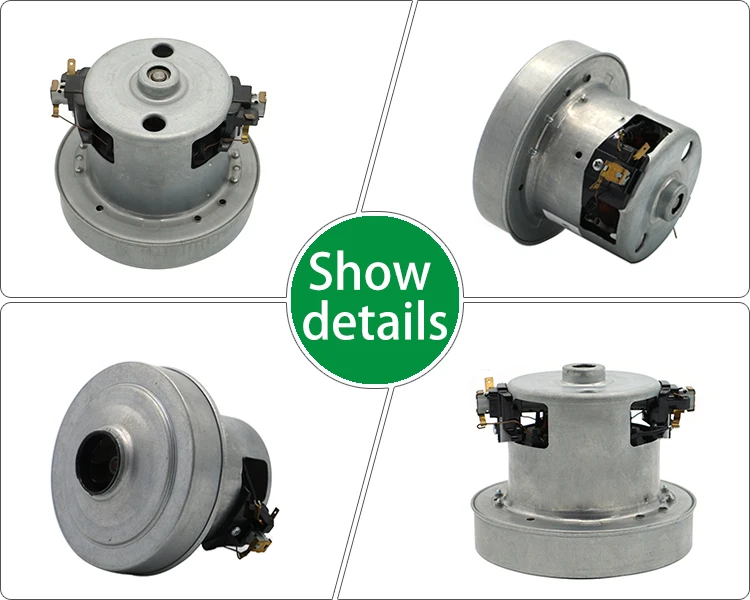

Product Details
