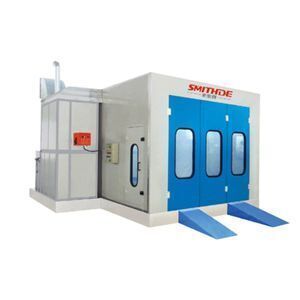

S-68 Smithde CE Approved Electric Spray Painting Booth / Car Spray Baking Oven
-
Supplier: Yantai Smithde Electromechanical Equipment Manufacturing Co., Ltd. -
Region: Shandong, China -
Contact: Ms Annie wang -
Price: $5850.00 /set -
Min. Order: 1 set
| Voltage: | 380V /50H; | Internal Size: | 6900*3900*2650mm; |
| Supply Ability: | 40 Set/Sets per Month; | Heating System: | Diesel Burner; |
| Color: | blue,orange,red,grey white; | Certification: | CE; |
| Warranty: | 3 Years; | Lighting System: | LED 8 groups*3 pcs; |
| OEM: | available; | Port: | Qingdao or Yantai; |
| Place of Origin: | Shandong China; | Brand Name: | Smithde; |
| Model Number: | S-68; | External Size: | 7000x5200x3370mm; |
| Power: | 9.5kw; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| No Load Speed: | 0.35m/s; | Type: | Spray Booths; |
| Disc Dia.: | Auto Spray Paint Booth; | Filters: | High Efficiency Filter; |
| Packaging Detail: | Wooden box packaging or as cuatomer's request.; | Wall Material: | flame retardant 50mmEPS composite steel plare; |
Outer dimension:(mm) | Inner dimension:(mm) | Front door size | Total power |
7000×5200×3250 | 6900×3900×2650 | 3000(w)*2600(h) | 8kw |

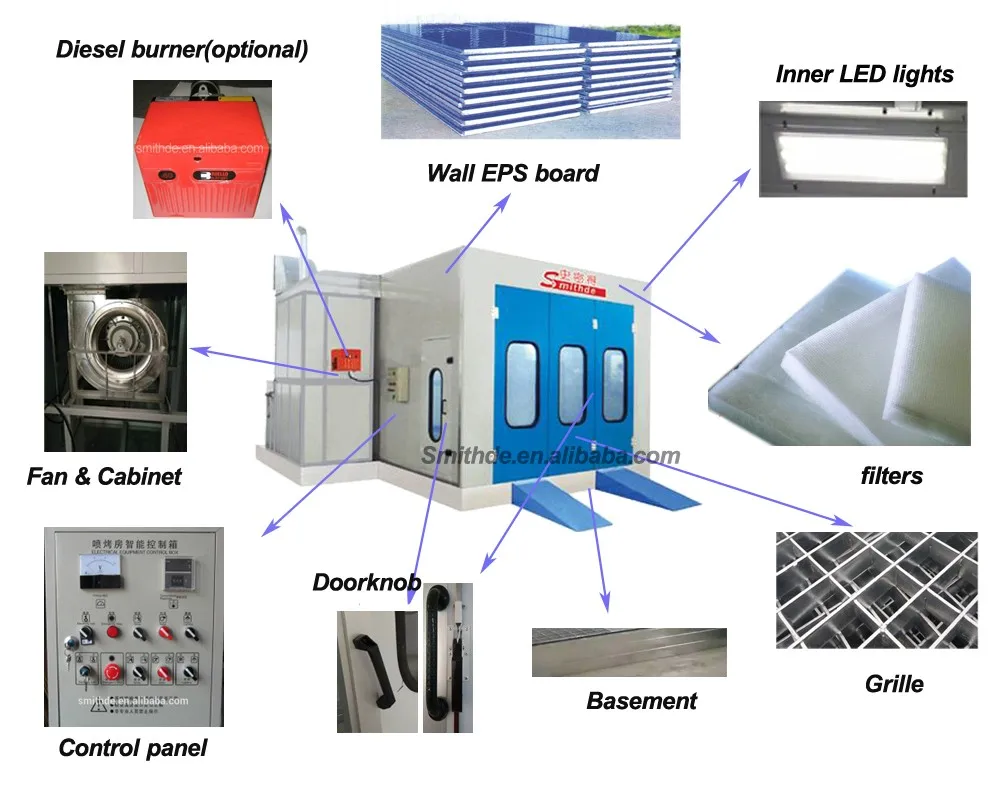

The room body system
| Wallboard: EPS insulation board, wall thickness of 50 mm, choi steel thickness of 0.376 mm, using bending galvanized steel roof assembly; Platform: is made of galvanized steel plate, rust prevention processing steel structure assembled, room body frames: fixed spray door frame adopts steel structure, building frame is made of galvanized steel plate fixation; Get on slope: the configuration of two gratings, three pattern plate and two 600 mm wide on slope.
| ||
Air circulation system | Two double inlet air centrifugal blower rotor, total air output: 10000 m3 / h; Supply air tank by spraying material, made of galvanized steel plate; Lateral aspirant wind, exhaust duct by high quality galvanized steel, with wind speed: 0.3 m/s; Ventilation rate: 260 time/h. | ||
Purification system
| At the top of the high efficiency imported three-dimensional spraying collodion (VF - 600), effective dust filter is more than 10 microns. | ||
Heating system | Burner: BT14 type, the maximum heat of 140000 kcal. Each vehicle fuel consumption for 5-7 kg/services cancelled, heating speed: 5-8 min (20 to 60 ℃); | ||
Heat exchange
| Use 1.5 mm thick high-quality stainless steel SUS304 argon arc welding, rational structure, safe and reliable, large heat transfer area, high heat utilization efficiency. Spray paint status to manually switch | ||
Lighting system | Side at the top of the building to install lighting chy-tech, top side chy-tech 45 ° Angle of installation, is composed of 24 36 watts Philip lamp, indoor light more than 800 lux.
| ||
Electric control system
| The main loop of the electric control is made of high quality electronic components assembly, is equipped with multiple protection. Is equipped with lighting switch, temperature, time setting, spray paint, spray paint of constant temperature, normal temperature switch of the lacquer that bake, fault alarm, etc.
| ||
Waste gas treatment | Straight line: green ark is optional | ||
1.Are you Trade Company or manufacturer?
We are manufacturer and we have our own trade factory. You can visit the factory at any time.
2.What is the main product?
Auto body collision system, car repair machine, spray booth, car lift and etc.
3.How to install your auto body frame machine?
The complex installation is already finished before delivery, what you need to do is finishing the simple procedures according to the manual.
4. Which yard specified or recommended your products?
Volkswagen, Hyundai, Citroen, KIA, NISSAN, FORD, HONDA, BJC etc.
5.What's the warranty time?
Three years with good after-sale service.

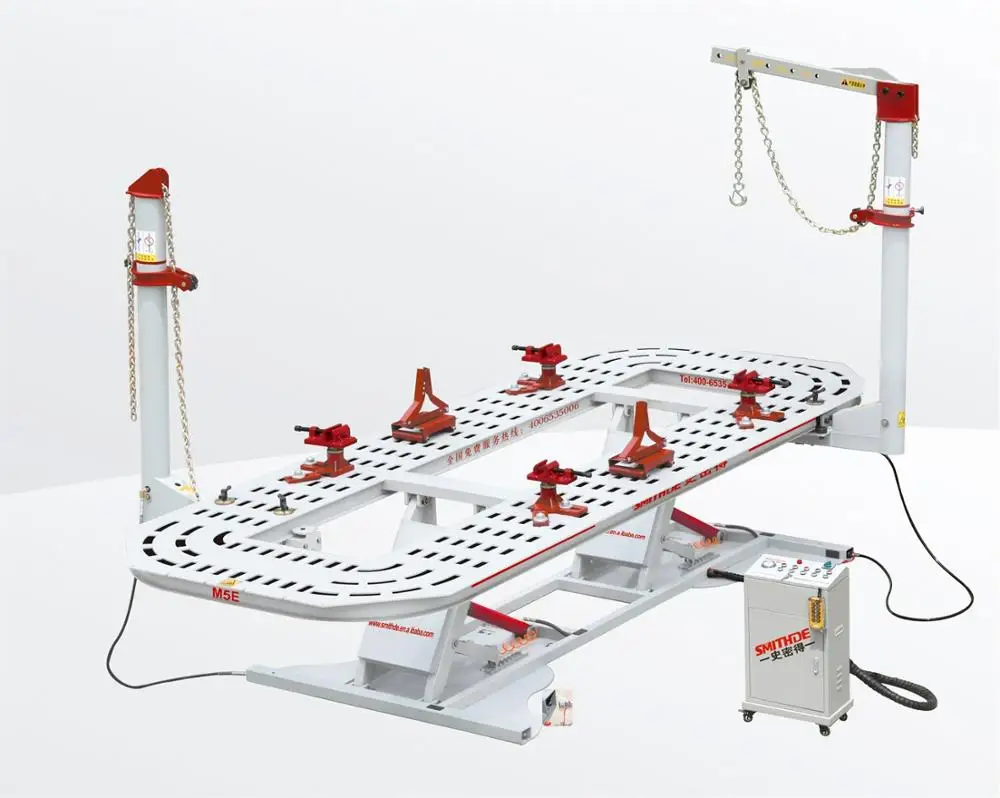

Smithde car frame machine
M5E

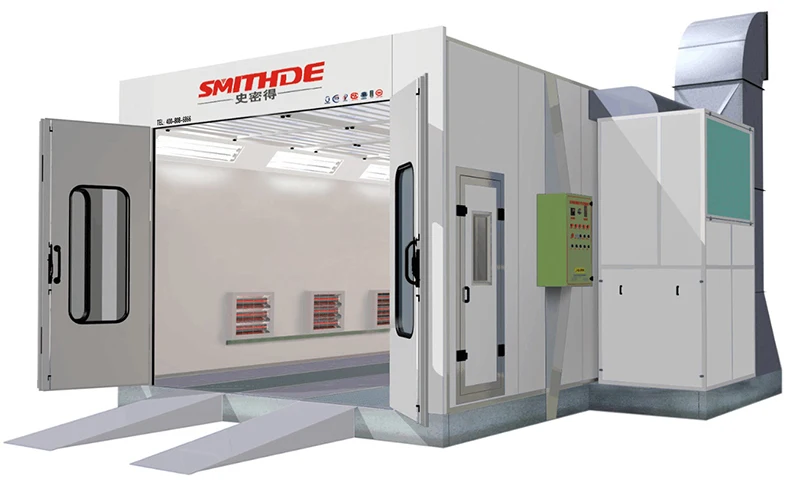

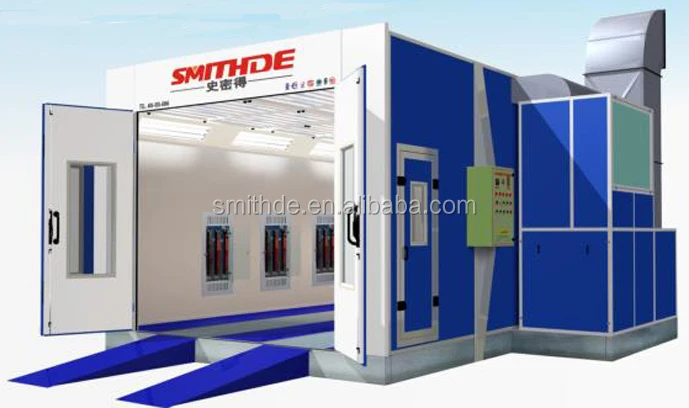

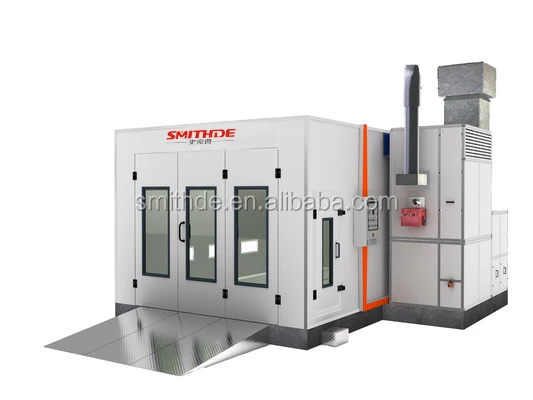

Smithde spray painting booth
S-78
SM-350
SM-400
If you need any additional information about our product, feel free to contact me any time.
You are also warmly welcomed to visit our factory.
Address: No. 98, Tongxing Road, Yongda Street, Fushan District, Yantai, Shandong, China
Phone Number:+0086 535 6946988
Mobile/WhatsApp:+0086 18353533332
Email:sales4(at)smithde.com.cn
-
