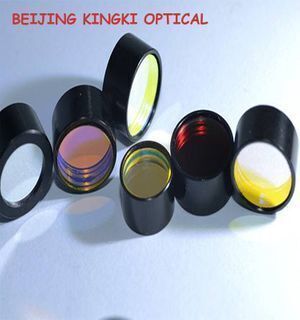

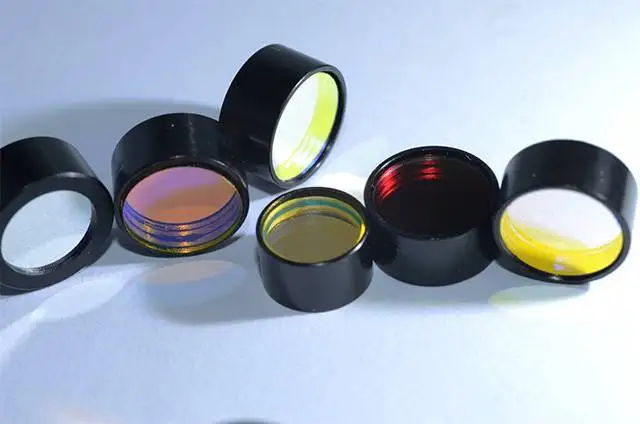

Biochemical Narrow Band Optical Filter

Product details
Place of Origin:Beijing China;Supply Ability:30000 Piece/Pieces per Week;
Brand Name:KINGKI;bandwidth:8-10nm;
Payment Terms:L/C,T/T,Paypal;Model Number:200-1100nm;
Use:Biochemical Analyzer;Packaging Detail:box;
Package Type:Other;Port:Beijing;

Biochemical Filter

FWHM: 8~10nm

Standard Size; 10mm  12mm   25.4mm

Tpek : 15%~85%(depends on wavelength and passband witdth)

Blocking: >=OD5

Diameter tolerance: +0.1/-0.1

Application: Biochemical Analyzer









Center wavelength(nm)

FWHM(nm)

Peak Transmission

Average Blocking

P/N

340±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-340

405±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-405

450±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-450

492±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-492

505±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-505

545±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-545

600±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-600

620±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-620

670±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-670

700±2

8~10nm

45%~60%

OD5@200-1100nm

KK-BF-700



Advantage:  excellent quality and reasonable price  No drift







.
