Single gross weight: | 6 KG; | Laser Beam: | Green; |
Vertical Lines: | Full Direction; | Place of Origin: | Guangdong China (Mainland); |
Precision: | ±1mm/10m; | Laser Diode: | Class II, 635nm; |
Model Number: | 400HVG; | Self Leveling Accuracy: | Horizontal: ±20; |
Setting Slope: | ±10% (Dual Axis:X, Y); | Brand Name: | GEODEX; |
Selling Units: | Single item; | Size: | 160(L)*160(W)*185(H)mm; |
Range: | 30m(Indoor)/500m(with Laser Detector); | Delivery Detail: | 0 days after payment; |
Auto-Leveling Rang: | ± 5 Degree Electronic Self-Leveling; | Display: | LCD Screen Dual Sides; |
Single package size: | 48X38X28 cm; | Horizontal Line: | Full Direction; |
Waterproofing: | IP54; | Wavelength: | 635nm; |
Technical Specifications:
MODEL | 400HV (Red) | 400HVG (Green) |
Work Range (Diameter) | 500m Dia. (with detector) | |
Leveling Accuracy | ±20 | |
Self-Leveling Range | ±5° | |
Setting Slope | ±10% (Dual axis:X,Y) | |
Light Source | Red Beam Laser Diode 635nm(visible) Class II Green Beam Laser Diode 532nm(visible) Class II | |
Display | LCD Screen Dual Sides | |
Spinning Speed | 60, 120, 300, 600 r.p.m. | |
Directional Scanning Angle | 10° , 45° , 90° , 180° | |
Center Down Laser Point | ±1.5mm/1m | |
Waterproof | IP 54 | |
Operating Temperature | -20ºC to+50ºC (-4°F to +122°F) | |
Instrument Size | 160×160×185mm | |
Instrument Net Weight | 2.1kg | |
Power Supply | Four C/LR14 dry-cell battery | |
Rechargeable battery pack(Ni-MH) | ||
Detector | LD-40R(Red Beam) LD-40G(Green Beam) | |
Display | LCD Screen | |
Buzzer | ON/OFF | |
Icons for Warnings | Alert,Low Battery | |
Battery Level Indicator | LCD Icon | |
Power | 9V(PPP3×1)6F22 | |
Remote control | RC-40 | |
Work Range | 20m | |
Power | 2×AAA |

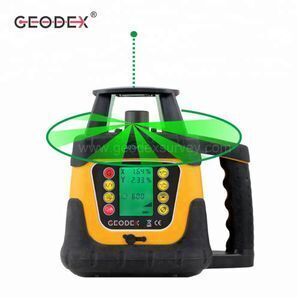

Brief Introduction (400 series)
Dual axis grade one-way (two-way) rotary laser is a digital multi-functional full-automatic rotary laser, which is integrated the most advanced photoelectricity and digital technology, its precise electronic leveling system and digital grade set makes the instrument satisfy all your job requirements. It provides high accuracy and multipurpose construction reference for construction field of large square, farmland leveling, airport construction and speedway project, etc.

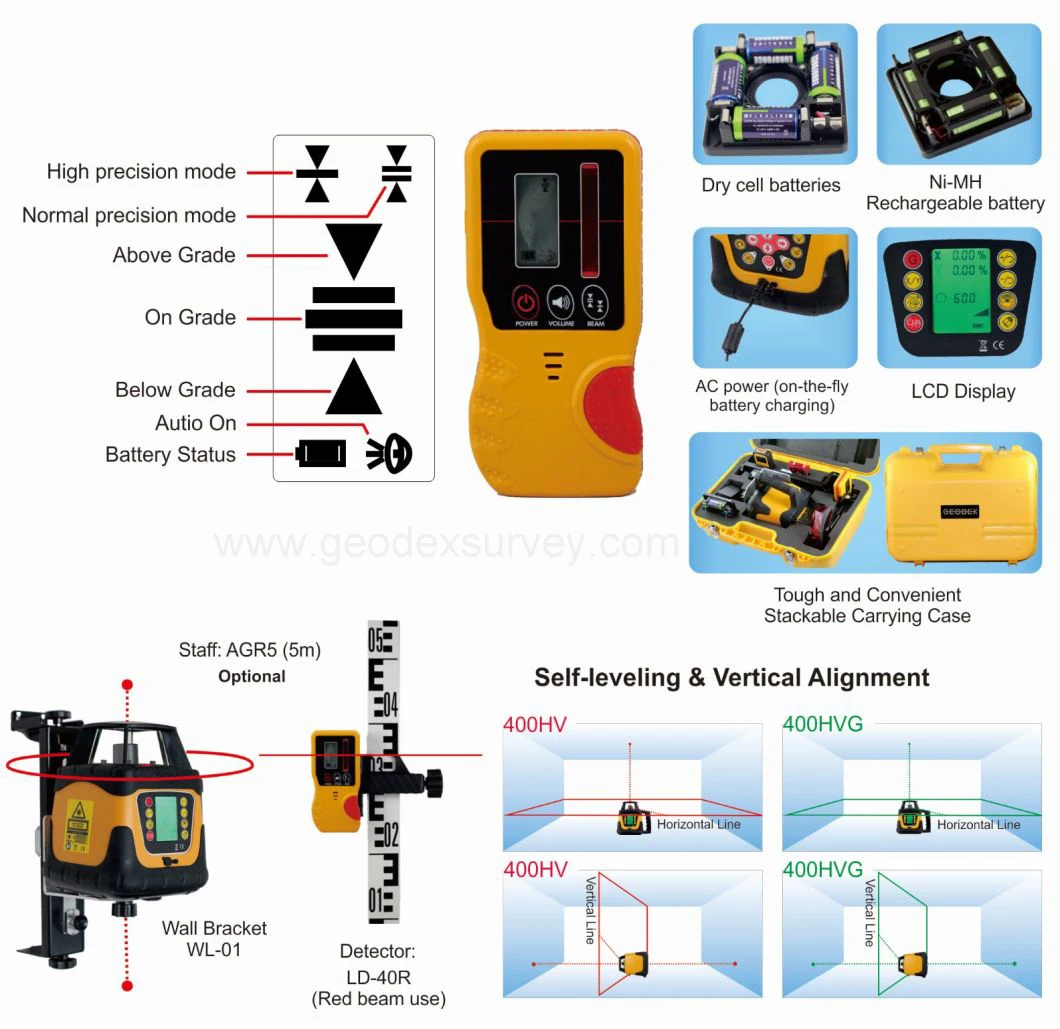

Features:
• 500m Working Diameter
• High Accuracy ± 20
• LCD Display
• Slope Matching Capability
• 3 types of Power Sources
• Automatic Self-leveling
• Vertical Alignment
• Stackable Carrying Case

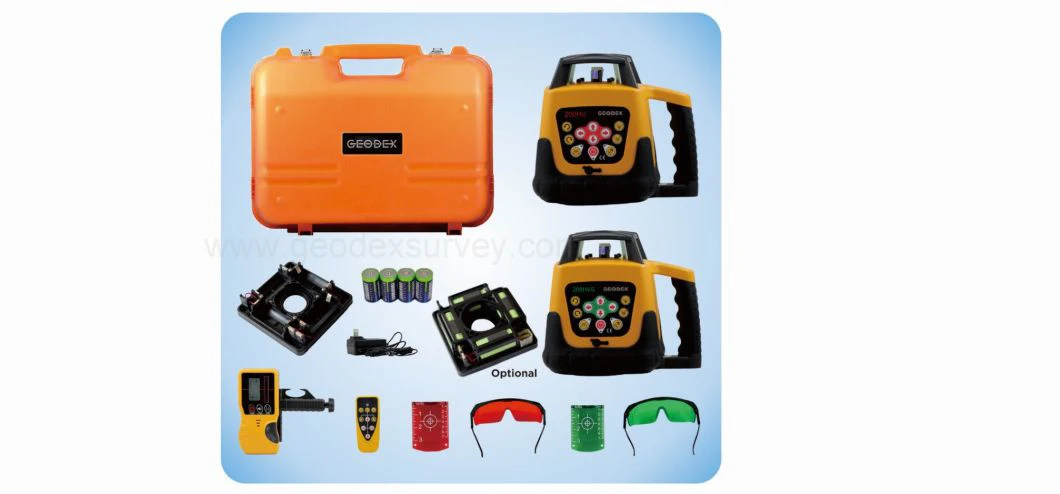

Basic Kit:
• Laser Level (Green/Red) (BT-400 Battery on board) 1x
• LD-40 Detector with Bracket 1x
• RC-40 Remote Controller 1x
• DB-400 AA dry Battery Pack 1x
• BT-400 Ni-MH Rechargeable Battery (Optional) 1x
• Charger 1x
• Glasses(Green/Red) 1x
• Target Plate (Green/Red) 1x
• User Manual 1x
• WL-01 Wall Bracket 1x
• Plastic Carrying Case 1x
FQA on warranty & technical support
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be bored by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement
5. Technical support is offered 24/365
FQA on business trading
1.How can you guarantee the safety of my funds?
Trust is always a big problem for international trade, we believe good business credit and reputation is the most important for businessman. We recommend Trade Assurance service by Alibaba Group. We won't get the fund unless you get the product and confirm the payment.
2.What Countries do you ship to?
We ships goods to almost all countries by express, air or sea. And we will inform you if we can't ship to your country.
3.Are your products in stock?
Most items are usually in stock. It all depends on promotions we run, demand at manufacturers and suppliers, and other parts of the equation. Most delivery will be made within 3 working days after payment confirmed.
4.Does Geoland sell used equipment?
We do not sell any used equipment. Everything we sell is brand new. For some instrument we may need to test or check the language before delivery, but we do it very carefully.
5.Do you have other items that are not displayed on your website?
Yes, we have other items that we do not display on our website. Please contact us and let us know what you are looking for. Chances are we have it, or can find it, as long as its surveying related.
