CO2 Soda Adapter for Filling Soda Water and Soda Club with Thread US CGA-320 or W21.8-14

Product details
Supply Ability:1000 Piece/Pieces per Week;Weight:280g;
Port:Shenzhen;Package:100pcs/carton;
Color:Golden;Connection:Desktop;
Thread to Big Tank:US CGA-320 or W21.8-14;Work Pressure:3000psi;
Thread to Small Bottle:T21*4;Output Type:AC;
Material:Brass;Payment Terms:T/T,Western Union,Paypal;
Packaging Detail:With factory standard.;Brand Name:Spunky;
Model Number:CGA-320 or W21.8-14;

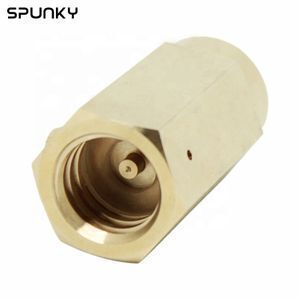

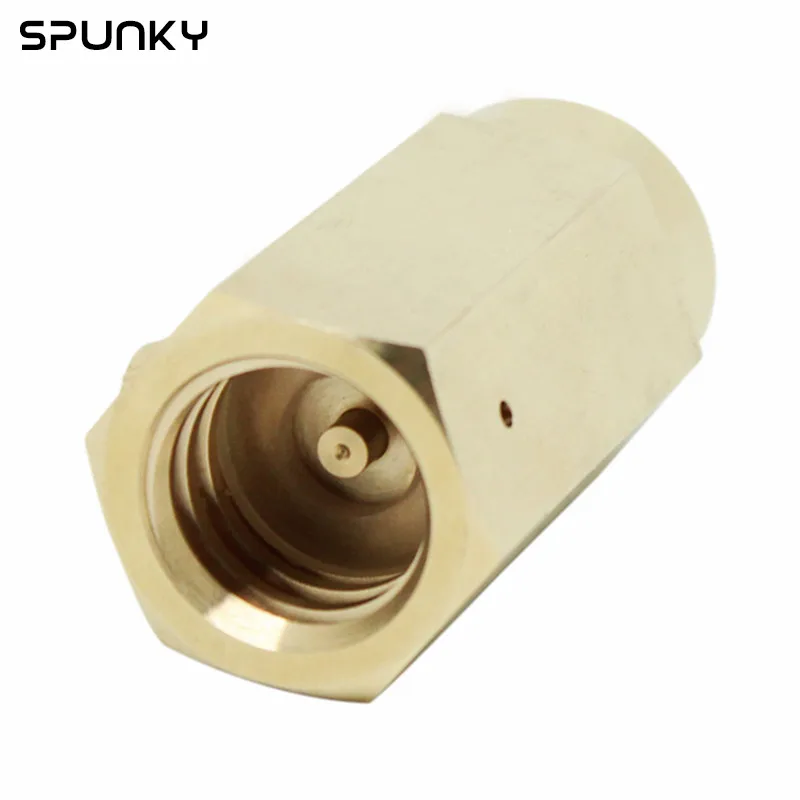

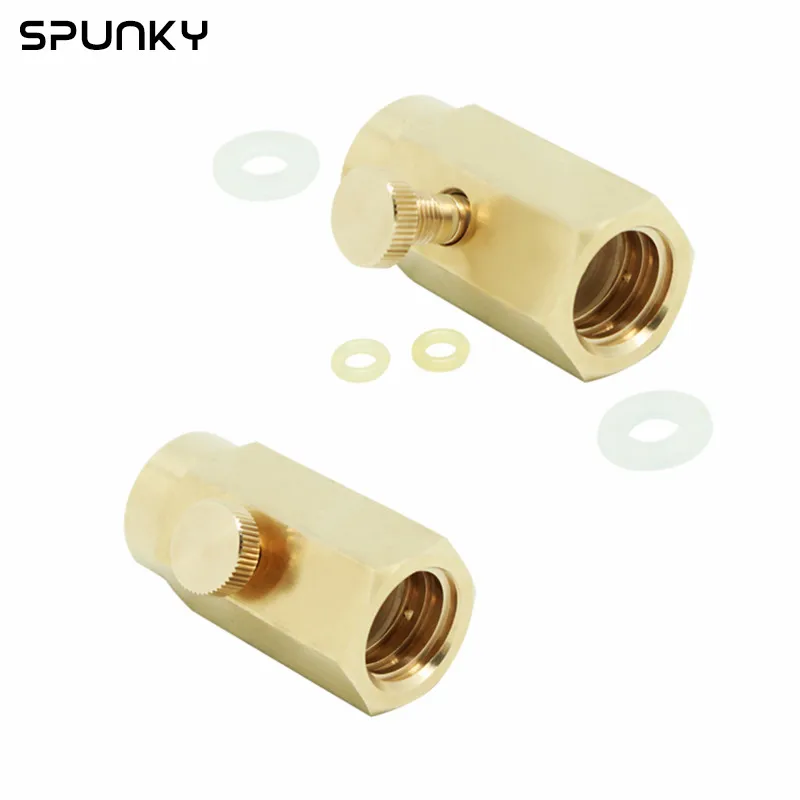

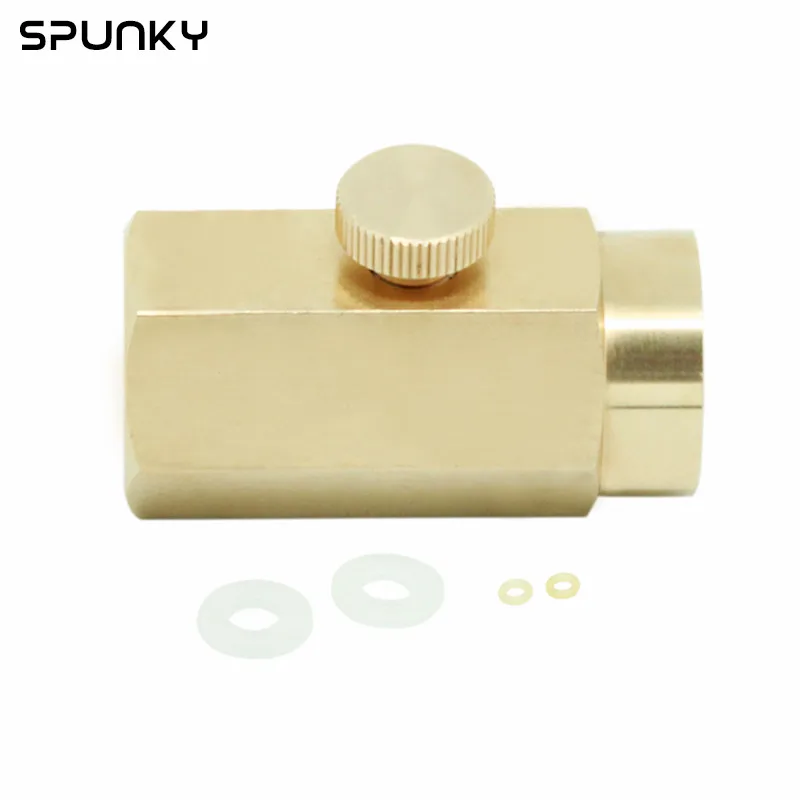

CO2 Adapter for Filling Soda Water and Soda Club with Thread US CGA-320 or W21.8-14



it is better for the Soda Pin Vlave, it is different from the new Model.



Thread for Small bottle : 21*4

Thread for Big bottle: W21.8-14 or US CGA 320

Material: Brass

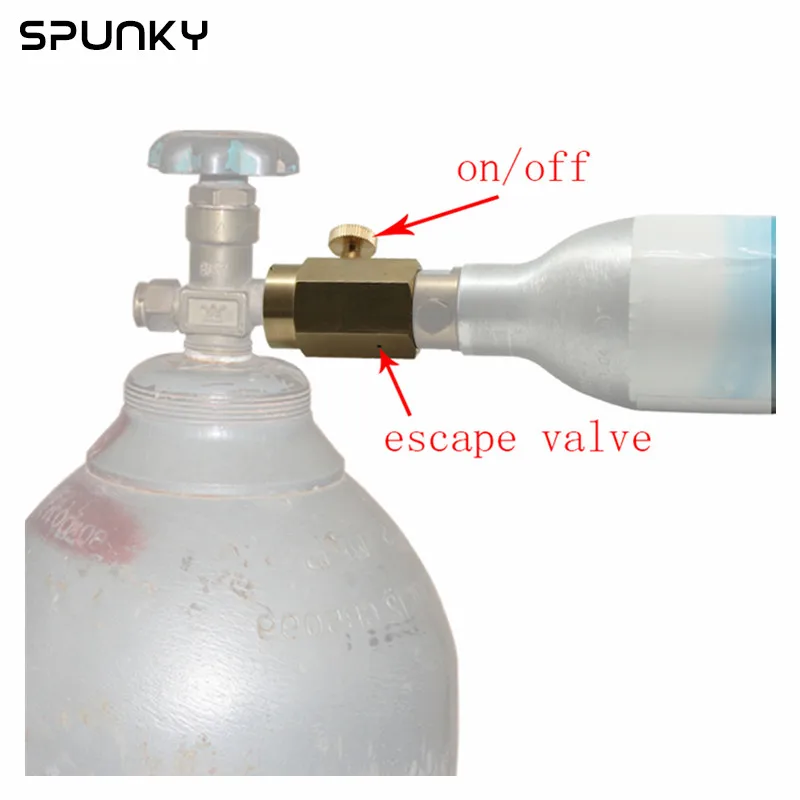

Screw the adapter onto a commercially available CO2 gas bottle

Empty CO2 cylinder is screwed into the adapter

Open the large gas bottle valve

After approximately 15 ... 20 sec the cylinder is completely filled

Close the valve of the large gas bottle

Open the venting valve

Unscrew the CO2 cylinder



Thread Type 1 (Outlet valve diameter 21mm)

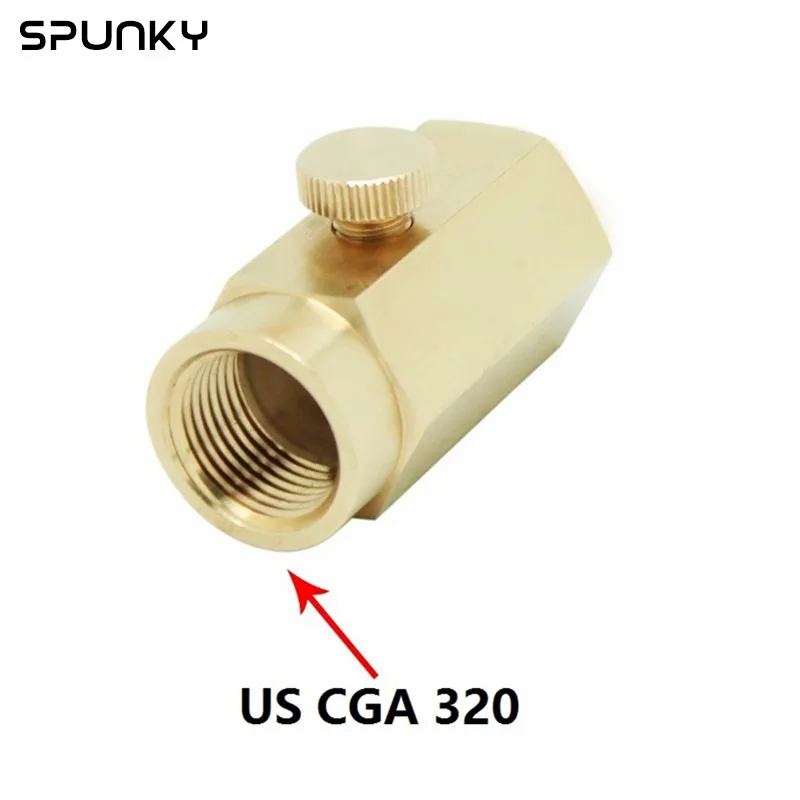

- CGA320 Valve of CO2 Tank (USA, CAN, Brazil, Colombia, Philippines...)



Thread Type 2 (Outlet valve diameter 22mm)


- DIN477 / W21.8-14 / JIS m22-14 Valve of CO2 Tank (KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore,,...)
