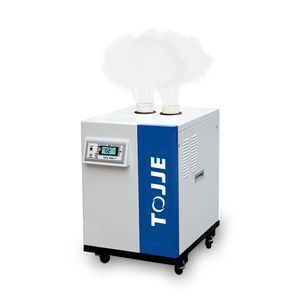

9 kg/h industrial ultrasonic mushroom humidifier mist maker

Supplier: Hangzhou Shuyi Electric Appliance Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jack Yu
Price: $450.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Voltage:	220V 50HZ;	Atomization diameter:	≤10μm;
Fog mode:	2x110mm PVC outlet;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Warranty:	1 Year;	After-sales Service Provided:	Online support;
Air flow:	480 stere/h;	Weight:	42 kg;
Applying space:	100~120 sq.m;	Brand Name:	TOJJE;
Certification:	CCC;	Dimension(LWH):	820x460x730mm;
Place of Origin:	Zhejiang China;	Function:	Automatic control system;
Product name:	Ultrasonic humidifier;	Condition:	New;
Humidifying capacity:	≥9kg/h;	Color:	Same as in picture;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Packaging Detail:	Wooden case 87x51x78 cm 0.35CBM 20' container load 40 pcs 40' container load 104 pcs;
Fusing current:	15A;	Humidifying type:	Ultrasonic;

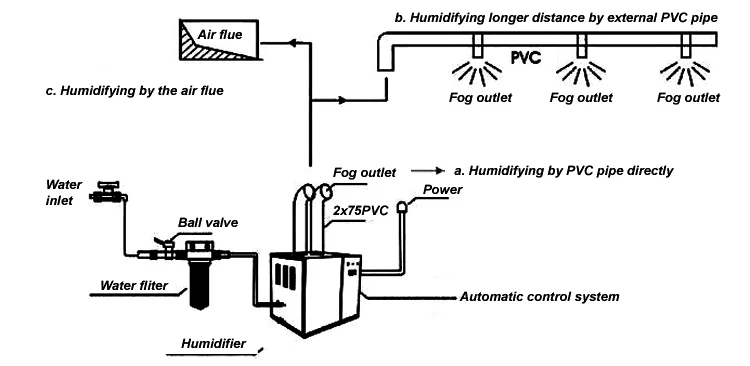

Installation sketch

Ultrasonic humidifier use high frequency oscillation (oscillation frequency is 1.7MHZ, over hearing range of human beings) to atomize water into air by the high-frequency resonate of atomization chip.

Features

√. Ultrasonic humidifier use high frequency oscillation to atomized water

√. Oscillatory frequency 1.7 MHZ, atomization diameter ≤ 10μm

√. Automatic control system, humidity set freely from 1% to 100% RH

√. Standard water inlet, drainage and overflow outlet, automatic water level control

√. Atomization working without mechanical drive, pollution, noise

√. High atomization rate, low malfunction rate

√. High efficiency, energy saving

Technical parameters

TOJJE's Ultrasonic humidifier has different models for different applying space and humidifying requirement. Select from below list or send your requirement to customized your own design

Model no.	DJ-10Z	DJ-20Z	DJ-30Z	DJ-40Z
Humidifying capacity	≥3 kg/h	≥6 kg/h	≥9 kg/h	≥12 kg/h
Air flow	170 m³/h	300 m³/h	480 m³/h	610 m³/h
Applying space	30~50sq.m.	60~80sq.m.	100~120sq.m.	120~150sq.m.
Mist particle diameter	≤10 μm
Power supply	220V 50HZ
Working temperature	5℃~38℃
Mist outlet	1*110 mm PVC pipe		*2110 mm PVC pipe**
Fusing current	5.0 A	10.0 A	15.0 A	20.0 A
Overall size	600x460x730 mm		820x460x730 mm
Weight	30 kg	34 kg	42 kg	46 kg
Packing CBM	0.26m³		0.35m³
20' container loading	56 pcs		40 pcs
40' container loading	144 pcs		104 pcs
Payment	30% deposit, balance paid before delivery
Trade Assurance	Place your order through trade assurance to protect your order from payment to delivery

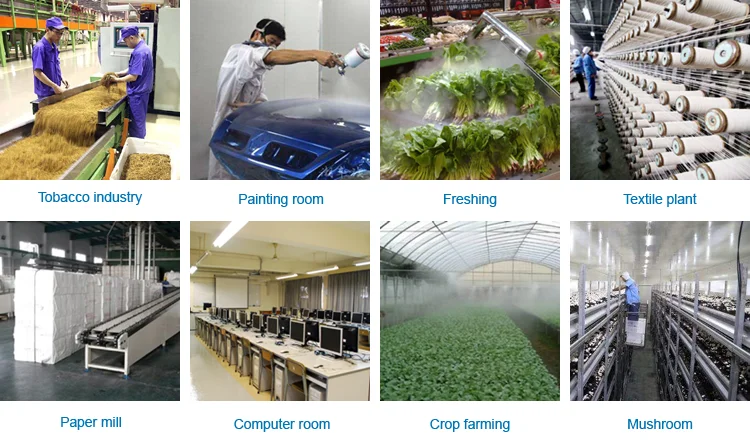

Applying area

Ultrasonic humidifier is suitable for partial humidification with lower humidifying required and good condition place, mainly usage is to reduce dust, remove static electricity and fresh keeping.

FAQ

Are you factory?

Yes, we are factory supplier focus on humidity control for 14 years.

Can you email the catalog?

Yes, we can send you by email with whole catalog.

How to order online?

Confirm product (quantity, price, payment, shipping etc)---waiting for email from Alibaba.com---confirm trade assurance order---make initial payment---production finish---make balance payment---shipping

* click to learn about trade assurance

Can I visit your factory?

Yes sure, welcome to visit our factory to get more profit.

How to contact with your factory?

Send inquiry in below form or scan the QR-code to select your way.

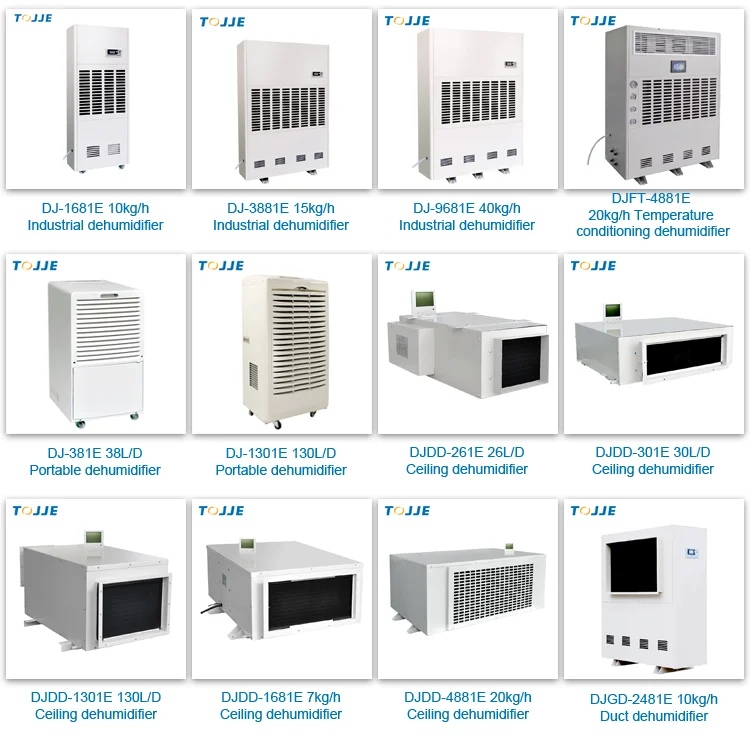

Hot sale product

* Click below model no. to view the details *

Related product categories

Home Dehumidifier Commercial Dehumidifier Industrial Dehumidifier Ceiling Mounted Dehumidifier Duct Dehumidifier

Attemperation Dehumidifier Humidistat Dehumidifier Thermostatic & Humidistat Unit Desiccant Rotary Dehumidifier

Ultrasonic Humidifier Wet Membrane Humidifier

Company Information

The wet air will be trojan horse in everywhere, it makes the metal rusty, electronics short out, household articles mold, machines shut down, even brings the disease to people. So we Shuyi Electric Appliance company have developed various of dehumidifiers by everlasting research and innovation since founded in 2003. We provide thorough solution of humidity controlling for every client. In Shuyi , you can find dehumidifier and humidifier you needed or just customized your own designs. We not only provide excellent home dehumidifier to family, but also provide powerful industrial dehumidifier to different types of company to protect production. Surely we also have the dehumidifiers for the public place like swimming pool, underground parking, metro station etc. And there are humidifiers for fruits and vegetables keeping fresh. Various of models we have, there always a will for you. The advantage of silence, energy saving, precision, efficient is the core value of TOJJE, zero bug is the goal of Shuyi.

The company has a technical team with 8 peoples, and 200 skillful production workers, and 10 sales person, also have a QC department with 3 inspectors. Total annual output 15,000 units with turnover amount of USD 5 million.Welcome to communicate with and start win-win relationship. >>>watch video
