rubber single knife hydraulic press cutting machine

Supplier: Zaozhuang Libang Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr chad sun
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single gross weight:	1,000 KG;	Type:	Rubber Cutting Machine;
Place of Origin:	Shandong China;	Power(W):	5.5KW;
Voltage:	220V/380V;	Single package size:	100X100X100 cm;
Key Selling Points:	This equipment shear force big;	advantage 2:	Large output;
Package Type:	Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport. Delivery Time for rubber single knife hydraulic press cutting machine: Shipped in 30 days after payment;	After-sales Service Provided:	Online support;
After-sales Service Provided:	Engineers available to service machinery overseas;	Selling Units:	Single item;
Warranty:	1 Year;	Type:	Rubber Cutting Machine;
Weight:	1-5 ton;	Dimension(LWH):	customize;
Year:	2019;	advantage 1:	Reasonable structure;
Applicable Industries:	Manufacturing Plant;	Condition:	New;
Brand Name:	ZGLB;	Warranty:	TWO YEARS;
advantage 3:	Easier to operate;	Product name:	rubber single knife hydraulic press cutting machine;
Tire Machine Type:	Other Tire Machine;	Certification:	ce;

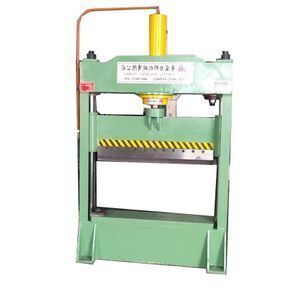

rubber single knife hydraulic press cutting machine

1.Use

Our company's rubber cutting machine is mainly used for cutting natural rubber, rubber, plastic materials, suitable for installing in the mixer side, cutting small pieces of rubber.

2.Structure and principle

This machine is mainly composed of rubber cutting knife, main frame, working cylinder, base, auxiliary worktable, hydraulic system, electrical system, etc. The base under rubber cutting knife is equipped with nylon cushion plate to protect the blade of rubber cutting knife from damage.

When working, put the rubber under the rubber cutting knife manually, then press the start button, and the rubber cutting knife will cut the raw rubber along the slideway on the frame driven by the piston rod. The frame is equipped with upper and lower limit switches to control the reversing valve to change the direction of the rubber cutter movement, and at the same time, to protect the piston cylinder head.

3.Characteristics

This equipment shear force big, the effect is good, low energy consumption, use a fast speed, so convenient operation and safety.

Parameters

Parameters of Rubber Single-blade Hydraulic Press Cutting Machine

Product Model	LBH-10	LBH-16	LBH-30	LBH-40	LBH-63	LBH-100
Shearing force	10T	16T	30T	40T	63T	100T
Motor power	4KW	5.5KW	5.5KW	5.5KW	7.5KW	11KW
Rubber knife width	660	800	800	1000	1000	1200
Work itinerary	550	550	550	600	600	800

Description: Shearing force/knife width/working stroke can be customized.

we weclome your customized ,the price and hydraulic press specification just for your consult .The detail please consult us

Major components of equipment

Serial number	name	manufacturer
1	Electric machinery	Siemens
2	Oil pump	Jiangsu Hengyuan Hydraulic Co., Ltd.
3	Cartridge valve	Shandong Taifeng Hydraulic/Shandong Yicheng Hydraulic
4	Pressure gauge	Wuxi Huihua Instrument Co., Ltd.
5	High pressure tubing	Bridgestone/Manuli/Gates

other products

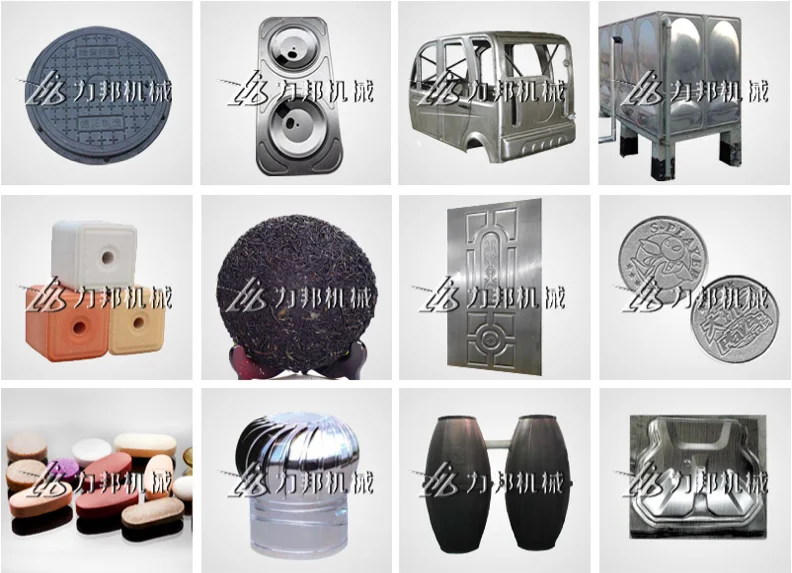

It can also be used to press sawdust products, plastic products and powder products compression molding. It is widely used in automobile maintenance, hardware industry, car parts company, mining, electronic components, watchband, jewelry, lighting, mobile phone casing, pump industry, electrical equipment and other industries.

Our Services

Our services are divided into pre-sale, sales, after-sale three parts.
Pre-sale
to provide detailed advice,the program recommended to the factory inspection,as far as possible to meet your questions and needs.

Sales
can support samples,support diversified payment methods,the solid forklift tire press machine production process transparent,standardized and quickly stocking.
After-sales
support diversification guidance,training,voice and video images,and even solid forklift tire press machine overseas site installation,on-site training,home maintenance,continuous return visit customers concerned about the use

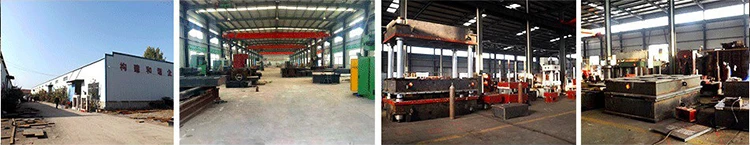

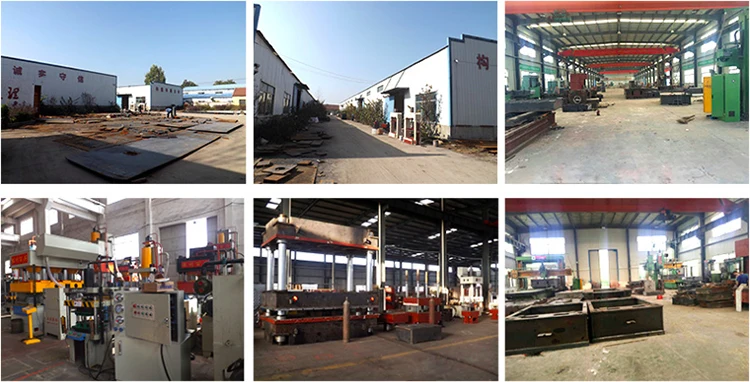

Factory workshop

Welcome to visit our factory

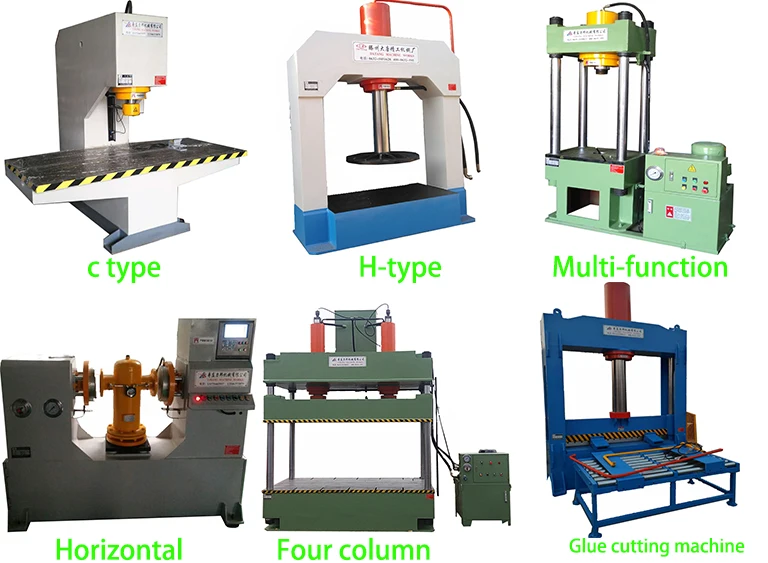

Zaozhuang Libang Machinery Co., Ltd, which is a birth place of creative minds and gifted talents, is located in Shandong Province, the transportation is very convenient. Our factory, specializing in the production of hydraulic press machine, took the lead to have passed the authentication of the ISO9001:2008 quality management system and CE certificate, with 8 series, more than 100 types products mainly from 10 tons to 5000 tons press machine, such as single column, four column, c frame, h frame which is applied in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality , efficient after-sales service and technical support, have received the affirmation of customers at home and abroad and sell well in more than 20 domestic provinces, cities and districts, and are also exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.
