Engine: | Japanese engine ISUZU /Nissan; | Related products: | 3.5 ton /5 ton/7 ton/10 ton forklift; |
Port: | Qingdao or on request; | Warranty: | ONE YEAR; |
Payment Terms: | L/C,T/T; | Tire: | Pneumatic tires (solid/air); |
After-sales Service Provided: | Overseas third-party support available; | Options: | full enclosed Cab with heater/ air conditioning; |
Attachments: | Side-shifter/Rotator/Push / Pull /Paper Roll clamps / fork positioner; | Packaging Detail: | Nude Package loaded and fixed firmly in 20 ft or 40 ft container; |
Supply Ability: | 200 Unit/Units per Month; | Brand Name: | DGM; |
Mast: | Duplex mast or Triplex mast; | Certification: | CE; |
Type: | Sit-Down Counterbalance Forklift Trucks (IC); | lift height: | 2-stage 3.3m/3.5m/4m mast; 3-stage4.5m/5m/5.5m/6m/7.3m mast; |
in spanish: | Accesorios para Nieve; | Loading Capacity: | 3 tonne / 6000 lbs; |

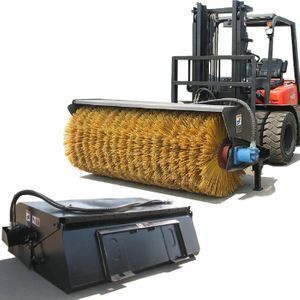

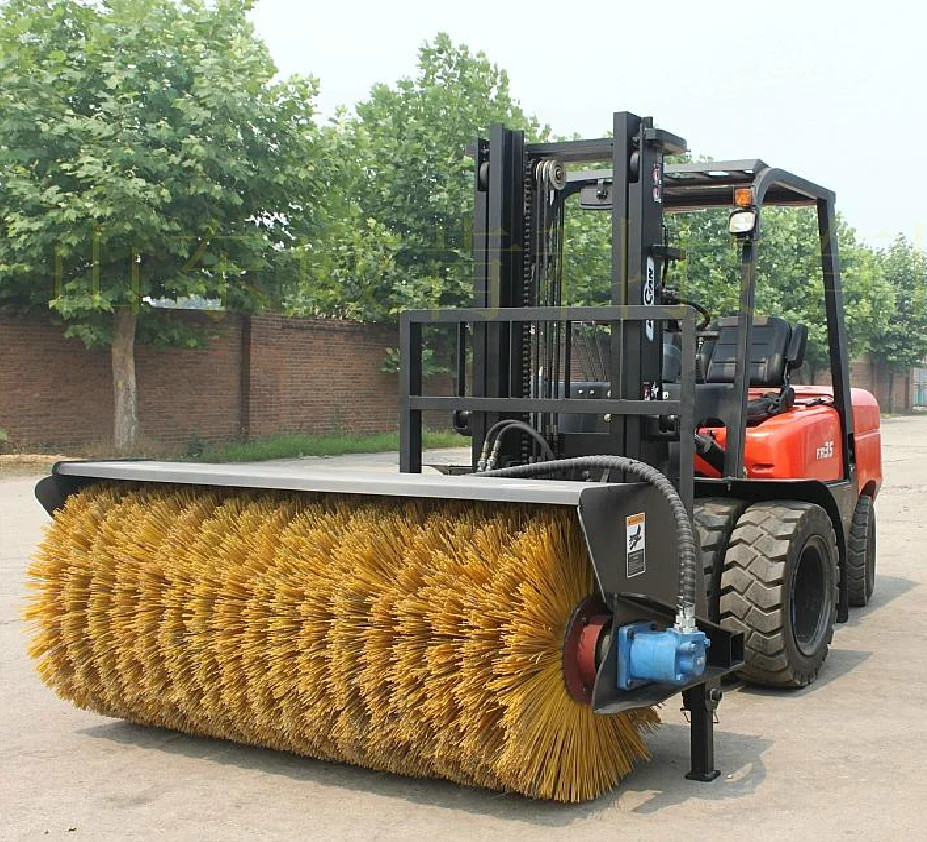

Price forklift snow sweeper
Supply forklifts with various attachments
Feartures
♦ Powerful engine
♦ Low center of gravity, small turning radius, more stable and reliable
♦ Comfortable seat for long-time operation
♦ Safe overhead guard
♦ Rear light for working in the dark
♦ Dual air filter
♦ Streamline balance weight
♦ Side shifter is optional
♦ Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3m mast.
♦ Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;
YANMAR engine.
Technical Parameters
General | Model | CPCD30 | |
Rated capacity | kg | 3000 | |
Load center | mm | 500 | |
Power type | Diesel | ||
Transmission | Hydraulic | ||
Dimensions | Lifting height | mm | 3000 |
Free lifting height | mm | 80 | |
Turning radius | mm | 2500 | |
Overall length | mm | 3800 | |
Overall width | mm | 1230 | |
Overall height (mast lowered) | mm | 2095 | |
Overall height (mast raised) | mm | 4080 | |
Overall height (overhead guard) | mm | 2110 | |
Fork length | mm | 1220 | |
Fork width | mm | 125 | |
Fork thickness | mm | 45 | |
Performance | Max. driving speed (with/without load) | km/h | 18/20 |
Max. lifting speed (with load) | mm/s | 400 | |
Max. traction (with/without load) | kn | 15.5/10.5 | |
Gradeability (with/without load) | % | 15/20 | |
Tilting angles(forward/backward) | ° | 6/12 | |
Service weight | kg | 4320 | |
Engine | Engine model | 490BPG | |
Power | kw | 39 | |
Rated speed | rpm | 2650 | |
Displacement | L | 2.67 | |
No. of cylinder | 4 | ||
Wheel | Front overhang | mm | 465 |
Wheel base | mm | 1700 | |
Front tread | mm | 1000 | |
Rear tread | mm | 970 | |
Front tire | 28x9-15 | ||
Rear tire | 6.50-10 |

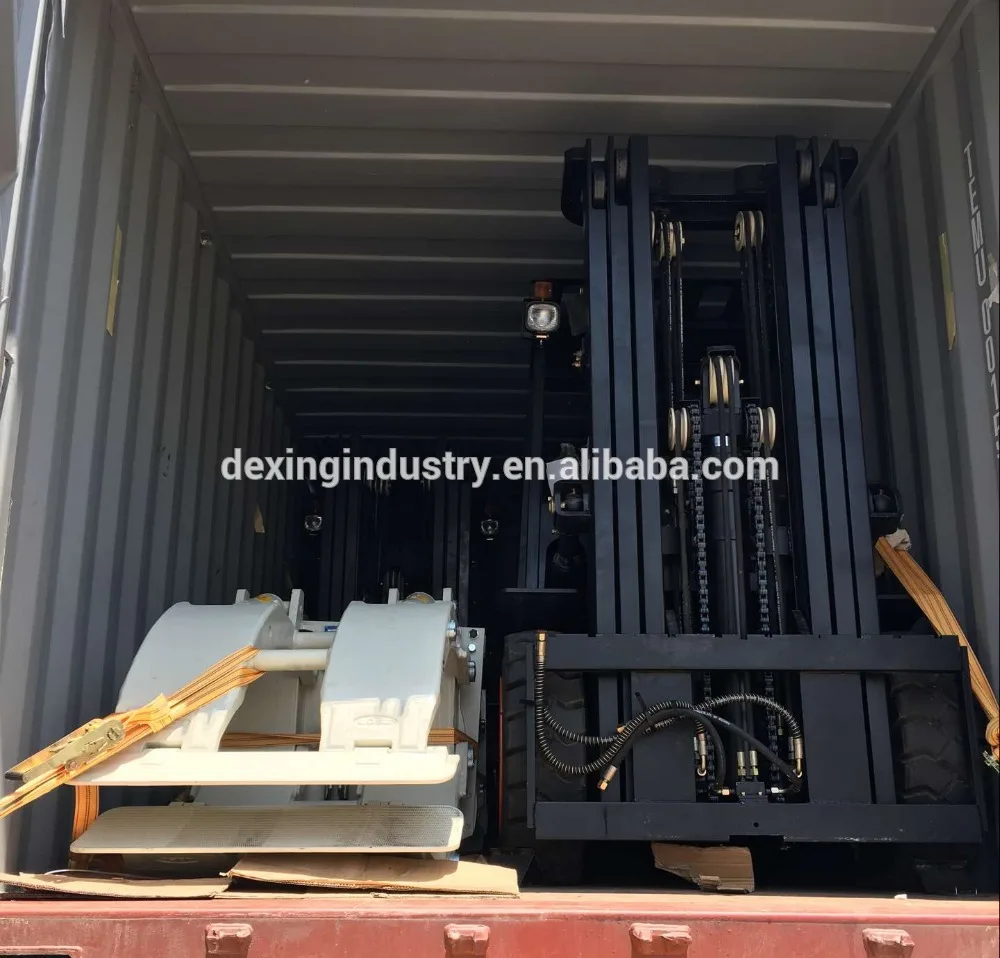

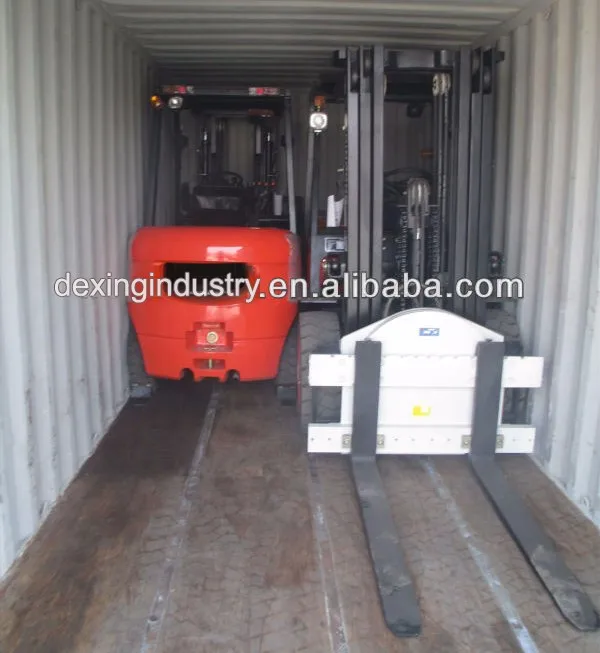

Nude Package loaded and fixed firmly in 20 gp or 40 gp container

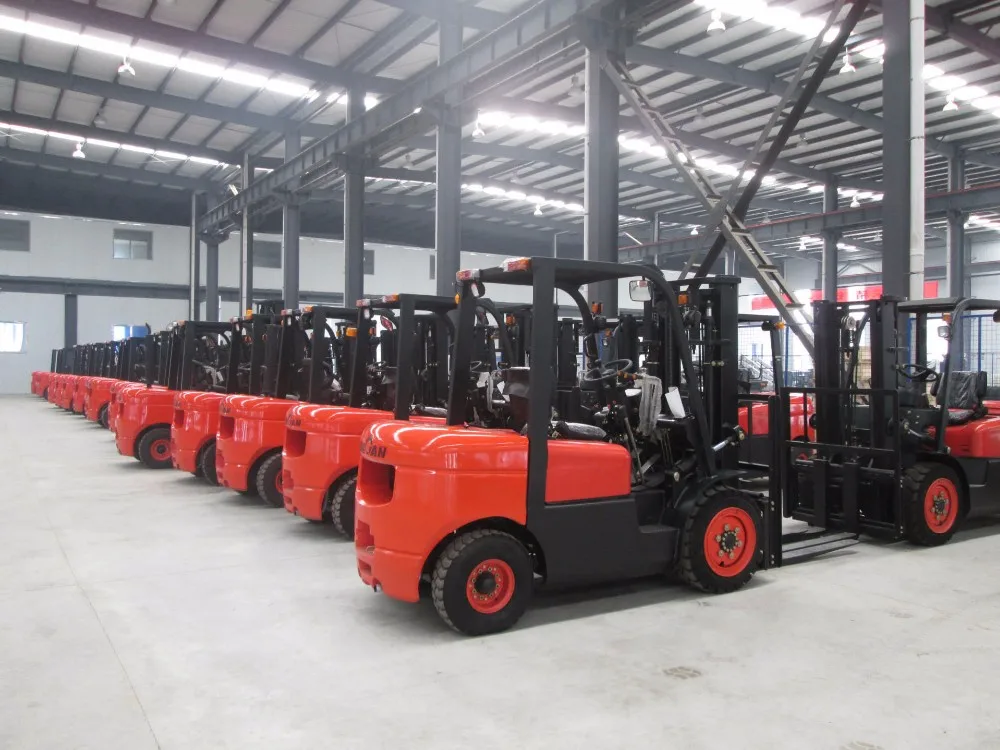

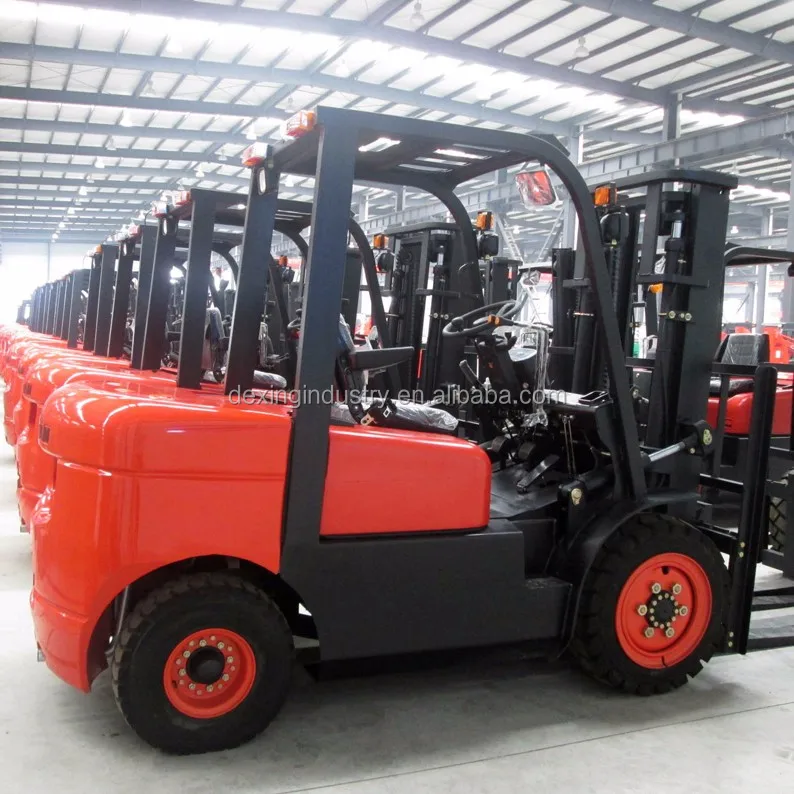

Reference Photos:
Ralated Products
2 tonne 3.5 tonne 5 tonne 7 tonne 10 tonne diesel forklift

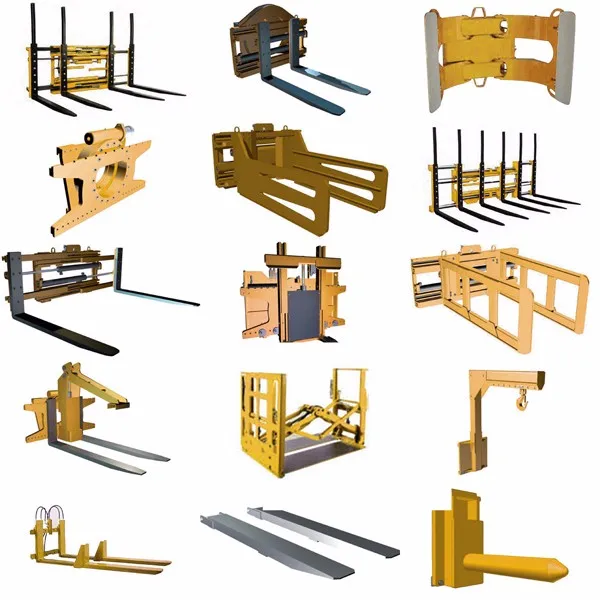

Various Attachments to your needs
