1~20ton LD Model Single Beam Bridge Crane

Product details
Place of Origin:Henan China (Mainland);Brand Name:Pengda;
Overload protection:Includes;Control model:Pendant pushbutton control or remote control;
Supply Ability:9000 Set/Sets per Year;Lifting unit:Wire rope electric hoist;
Packaging Detail:The electric hoist & small parts are packaged in wooden box, the main beam and end carriages are packaged by polyethylene fabric, the shipment by container or bulk ship for single girder overhead crane.;Motors:China top brand motors;
Payment Terms:L/C,T/T,Western Union,MoneyGram;After-sales Service Provided:Engineers available to service machinery overseas;
Certification:CE ISO;Condition:New;
Warranty:14 months;Port:Tianjin Port;
Power Source:3 phase 380V 50hz or accord your requirements;Paint:Yellow/red or according to client's demand;
Spare parts:One year quick-wear parts for free;Application:Warehouse/workshop;
Feature:Bridge Crane;Span:7.5m~35m;
Electrical system:Siemens brand contactors;After-sales Service Provided:Online support;
Duty class:A3/A4;

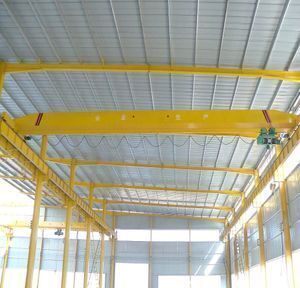

1ton to 20ton LD Model Single Beam Overhead Travelling Bridge Crane:




Product Description



1. LD model single beam overhead travelling bridge crane has one main beam only.



2. This overhead travelling bridge crane is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel plate.



3. This overhead travelling bridge crane is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set, the electric hoist is travelling under crane beam.



4. This overhead travelling bridge crane is medium duty class overhead crane, the capacity from 1ton to 20 tons. The span from 7.5m to 35m, the duty grade is A3-A4. Working temperature within -20 to +42 centigrade.


5. This overhead travelling bridge crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.



 The general technical details of single beam overhead travelling bridge crane:

Capacity (t)

1, 2, 3, 5, 10(8)

16, 20

Span (m)

7.5~35

Crane

travelling

mechanism

Travelling speed

(m/min)

20

30

45

60

20

30

45

60

Speed ratio

58.78

39.38

26.36

19.37

58.78

39.38

26.36

19.37

Motor

Model

ZDY21-4

ZDR100-4

ZDY122-4

ZDY123-4

ZDRII2L1-4

Power

2x0.8kw

2x1.5kw

2x1.5kw

2x2.2kw

2x2.1kw

Turning speed

(r/min)

1380

1380

Lifting

mechanism

(electric hoist)

& Cross

travelling

mechanism

Hoist model

CD1/MD1

CD1/MD1/HC/HM

Lifting speed (m/min)

8, 8/0.8; 7, 7/0.7

3.5, 3.5/0.35

Lifting height (m)

6, 9, 12, 18, 24, 30

9, 12, 18, 24, 30

Travelling speed

(m/min)

10, 20, 30

10, 20, 30

Motor

Cone Squirrel-cage

Cone Squirrel-cage

Duty Class

A3-A4

Power source

380V 50HZ 3 phase (or according to your standard)

Wheel diameter

φ270mm

φ370mm, φ400mm

Width of rail top

37~70mm

37~70mm







































 Ø Upward and downward limit switch for hook

 Ø Low-voltage protection function

 Ø Phase sequence protection function

 Ø Overload protection

 Ø Emergency stop protection

 Ø Hook with latch

 Ø Rubber buffers



FAQ



If you want to order single beam overhead travelling bridge crane, Pls tell me the details as follows:



1. The Max. lifting capacity? (Ton)
2. The span of crane?(m)
3. The Max. lifting height? (m)
4. What type meterial will you to lift?
5. The power source standard?(380V, 50Hz, 3phase or others).









6. The box frame main beam of single beam overhead travelling bridge crane,  the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding:







7. The end carriages of single beam overhead travelling bridge crane, the crane wheels are finished heat treatment for long life, the noise of motors & speed reducers are very small:





8. The lifting mechanism(electric hoist) of single beam overhead travelling bridge crane, the gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability:





9. The main upward/downward limit switch & second upward limit switch of hoist:





10. The electrical control box & control handle, the electrical contactors are Siemens brand, the control handle has on/off & emergency stop buttons:








Packaging & Shipping



 11. The packing, transport & loading of single beam overhead crane:








Company Information













Our Services





After-sale seivice

 u 14 months warranty from the date of B/L



 u One year quick-wear parts for free



 u Professional technicians provide installation, commissioning services.



 u Technical advisory for any time.





Welcome to select Single Girder Overhead Travelling Bridge Crane, and visit our factory. Our professinal engineers and technicians will serve you with all technical support.
