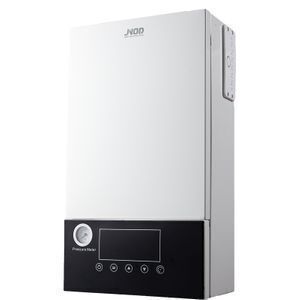

JNOD electric combi boiler for under floor water heating and radiator

Product details
Weight:19.7KG;Type:Electric;
Warranty:1 Year;Application:Single Heating Function;
Certification:CCC;Temp. range:35°C~65°C (in floor heating mode);
Fuel:electric;Working temp. range:35°C~80°C (in radiator mode);
Place of Origin:Guangdong China;Safety Class:Class 1;
Style:Vertical;Inlet & outlet connector:G3/4" G1/2";
Usage:Industrial,home;Max. Water Temperature:85°C;
Frequency:50/60Hz;Output:Hot Water;
Structure:Water Tube;After-sales Service Provided:Engineers available to service machinery overseas;
Pressure:High Pressure;Heating area:140mm2;
Power:18kW;Single gross weight:19.7 KG;
Package Type:Packing Details: Inner Packing: non-woven bag + bubble bags. Gift box: 3 layers corrugated color box (1 unit/Box) Out Carton: 5 layers high strength carton(1 boxes/Carton) Remark: We can customized color gift box/Carton according to your design base on a certain purchase quantity. Loading: 20'GP:300PCS, 40'DP:600PCS 40'HQ;730PCS;Dimension(L*W*H):610*320*180mm;
Single package size:70X43.8X27.8 cm;Brand Name:JNOD;
Condition:New;Voltage:380-400V;
Selling Units:Single item;
Product Description

Main Features


1) LED digital temperature display, toch screen for operation

2) Multi water supply, endless hot water.

3) Easy installation, wall mounted installation mode.

4) Compact design, save space.

Technology Data
Model No.
GFEB209
GFEB209E
Phase
1
1
Voltage
220~240V
380~400V
Power
9kW
                             9kw
Rated current
40.9A
                            40.9A
Connection wire section
6mm2
6mm2
Temp. Setting Range
35-80 oC
Overheat Protetion
65 oC
Thermal Cut-out
90 oC
Safety Class
IPx4
Working Preasure
0.02-0.6MPa
Inlet & Outlet section
G1/2" / G3/4"
Product Size
610*320*180mm

  Product Specification



* Metal out case with white paint. Convenient installation structure.

* Unique patent Heating Element, high heating efficiency,

* Touch operation panel, blue LED display

* Infrared remote control & the remote control distance can be 10 meters.

* The boiler is equipped with optional control unit interface. It can connect an external controller.

* Built-in expansion tank & pump to avoid complicated system installation.

* Timing start up and shutdown function. Weekly cycle set the program.

* Double dry-heating protection function.

* Automatic anti-freezing function to ensure the continuous heating in whole winter.

* Fault auto-detection technique, the fault code will be displayed automatically while failure.

* Ultra low noise working, no effect on environment.


Detailed Images



Patent Heating Technology

Heating Material: nickel-chromium

Material of Heating Tube: SS316L
Material of Water flow channel: SS304

Length of Water flow channel: 5.5m

Surface Thermal Load: 13.5w/cm2

 Material of Out Case: Die-cast Alumium




_____________________________________________________



Control System

Control Mode: Electronic Control
Working Mode: Automatic Thermostat
Power Supply Mode: Transformer







_____________________________________________________







          Out Case & Display

             Front Case:  In-Mode Decoration for Transparent ABS

             Operation Model: Touch Screen

             Display Screen: LED digital display

             Temp. Display: Celsuis (°C)
             Optional Color for LED: RED/BLUE





_____________________________________________________






Water Connectors


Material of Connector: Leed free cooper
Size of Connector: G 1/2"




_____________________________________________________

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Serivce & Maintenaince Manual

* Service & Mantenaince vedio

* Full set of Mantenaince tool

* Certain rate of spare parts free of charge

Our Company
Equitments
Packing & Delivery
Inner Packaging
Product Size
610(L) * 320 (W) * 180 (D)mm
Inner Box Size
700(L) * 420 (W) * 258 (D)mm
Product Portect Packing
Foam
Gift Box Material
5 layer corrugated paper
Remark
Color Packing will be free of charge base on 500pcs for each series.
Out Carton
Carton Size
720(L) * 438 (W) * 278 (D)mm
Units in CTN
1 units/CTN
Package Material
3 layer corrugated carton
Loading Quantity
20 'GP: 300pcs
40 'GP: 600pcs
40' HQ: 730pcs
Product Line



Open Type

Voltage / Power: 7/8/9/12kw @ 220V

                                    12/15/18/21/24KW @ 380V

Heating Material: nickel-chromium







Single Heating

Voltage / Power: 7/8/9/12kw @ 220V
                                   12/15/18/21/24KW @ 380V
Heating Material: nickel-chromium













Dural Purpose

Voltage / Power: 7/8/9/12kw @ 220V

                                    12/15/18/21/24KW @ 380V
Heating Material: nickel-chromium










Floor Stand Type


Voltage / Power: 40/60/96kw @ 380V
Heating Material: nickel-chromium
