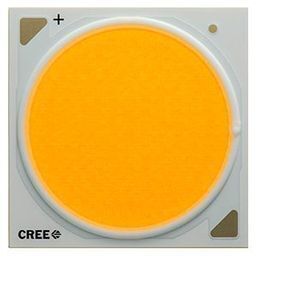

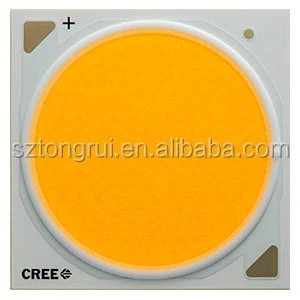

Cree COB 3590 LED Chip CXB3590 CXA3590

Click here to contact
Product details
Typical Forward Voltage:36V@2400mA; 72V@1200mA;Certifications:RoHS REACh UL;
Supply Ability:5000 Piece/Pieces per Week;Model Number:CXA3590 CXB3590;
Viewing Angle:115 °;Operating Temperature:-40~85°C;
Brand Name:Cree;Packaging Detail:Cree Standard Packing, 100pieces/Tape/Package;
Port:Hong Kong/Shenzhen;Payment Terms:L/C,T/T,Western Union,PayPal;
Color Temperature:2700-6500K;Light Emitting Surface (LES):30 mm;
Max Power (W):137W;Place of Origin:Guangdong China (Mainland);
Led Size:34.85 x 34.85 mm;Emitting Color:White(Warm/Natural/Cool White);
Voltage Options:36V 72V;





XLamp CXB3590











Second Generation of CXA LED Arrays

The XLamp CXB3070 LED Array is the brightest member of the second generation of the CXA family that delivers up to 33% higher efficacy than the first generation in the same LES. The higher performance CXA2 LED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. CXA2 LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost.









 SPECIFICATIONS:



Size34.85 x 34.85 mm
Product Options36 V
72 V
High-CRI
Maximum Drive Current3.6 A (36 V)
1.8 A (72 V)
Maximum Power137 W
Light Output Range6550 - 18000 lm
Light Emitting Surface (LES)30 mm
Typical Forward Voltage36 V @ 2400 mA (36 V) (85°C)
72 V @ 1200 mA (72 V) (85°C)
Viewing Angle115 °
Binning85°C
2- 3- and 5-Step Easy White®
RoHS CompliantYes
REACH compliantYes
UL recognizedYes - Level 4 Enclosure Consideration







MORE DETAILS:























































Notes:

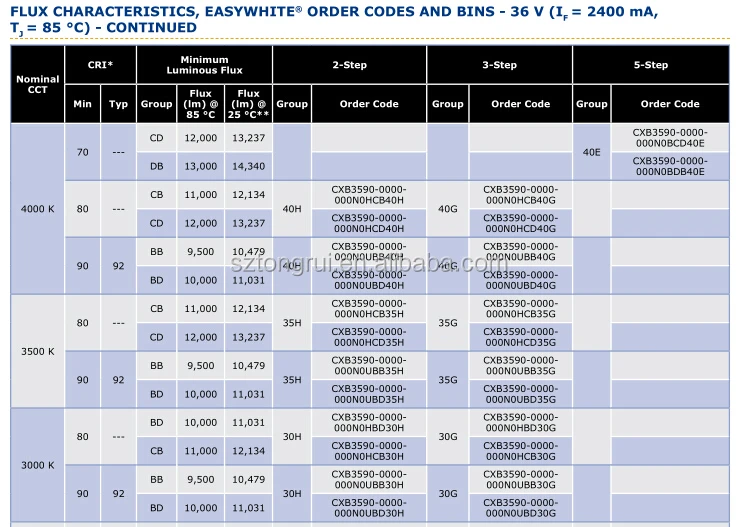

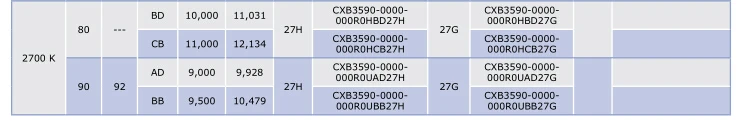

• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and a tolerance of ±2 on CRI measurements. See the Measurements section (page 21).

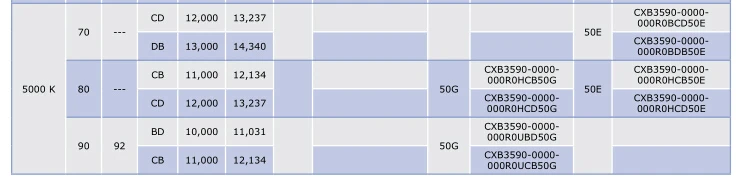

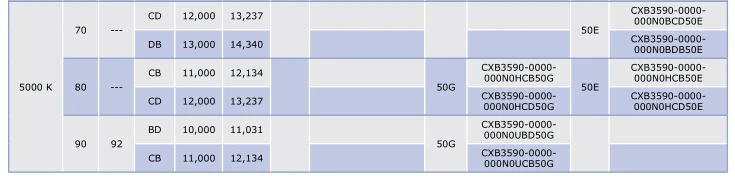

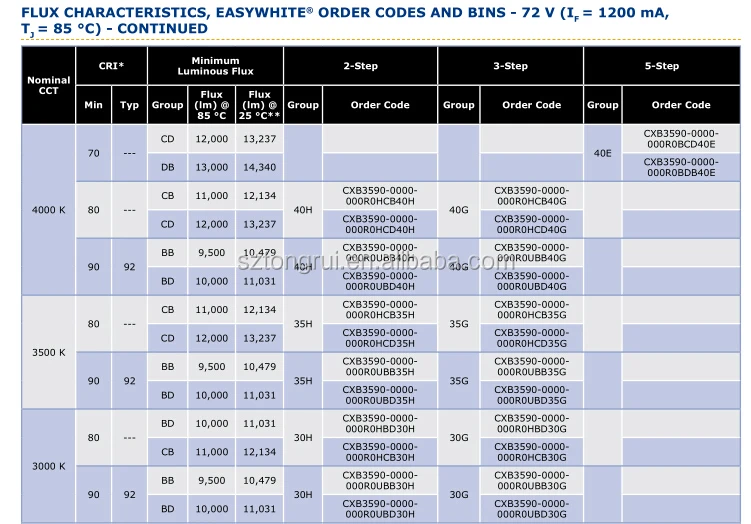

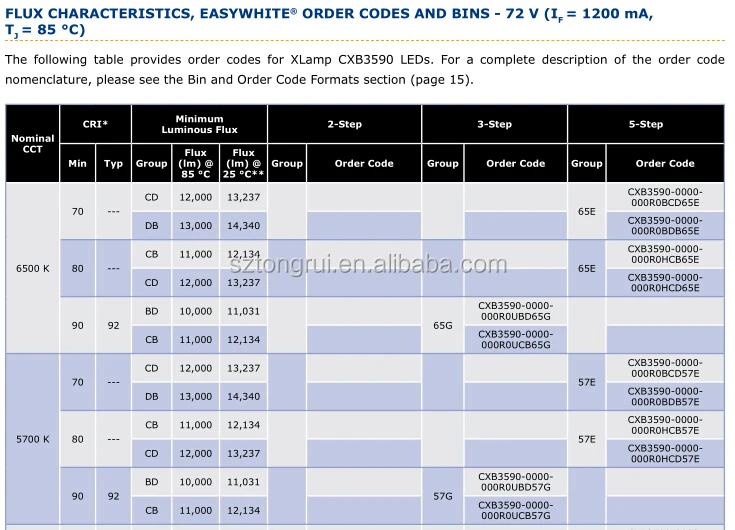

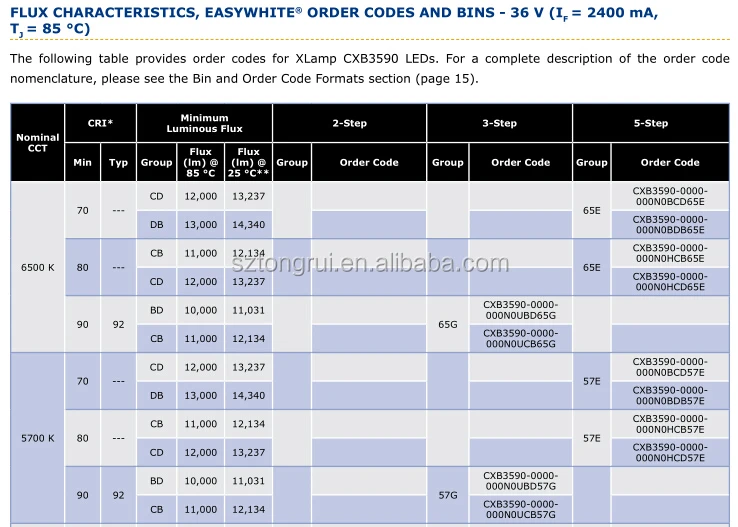

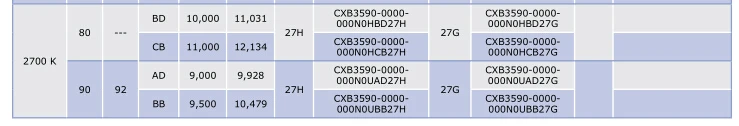

• Cree XLamp CXB3590 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
* For 80 CRI minimum LEDs, CRI R9 minimum is 0 with a ±2 tolerance. For 90 CRI minimum LEDs, CRI R9 typical is 60.
** Flux values @ 25 °C are calculated and for reference only.



Applications

  • Non-Directional
  • Directional
  • Downlights
