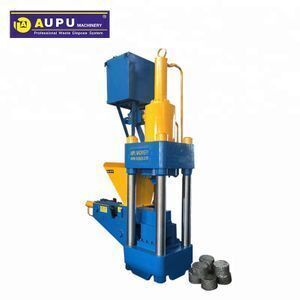

Y83 vertical hydraulic press for metal copper chips briquetting machine

Supplier: Jiangyin Aupu Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Aaron Zhang
Price: $26500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO 9001,CE;	Condition:	New;
Dimension(LWH):	/;	Certification:	Yes;
factory:	Yes;	Production efficiency:	1800~2600kg/h;
Warranty:	1 Year;	Production Capacity:	1800~2600kg/h;
Type:	Briquette Machines;	Port:	Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Mode of operation:	PLC automatic;
Applicable Industries:	Energy & Mining;	name:	hydraulic press for metal copper chips briquetting machine;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Motor Type:	AC Motor;
keyword:	copper chips briquetting machine;	Supply Ability:	100 Set/Sets per Year;
Voltage:	220V/380V;	Pressure of hydraulic system:	25MPa;
Packaging Detail:	Wrap film for Y83 vertical hydraulic press for metal copper chips briquetting machine.;	Brand Name:	AUPU;
Type:	iron chips press machine;	Motor capacity:	30KW;
Place of Origin:	Jiangsu China;

Y83 vertical hydraulic press for metal copper chips briquetting machine

Type	Size of briquette	Weight of briquette	Output	Motor capacity
Type	(mm)	kg/lbs	(Tons/8h)	(kw)
Y83-160Z	Φ80*50-80	1.2~2 kg 2.6~4.4lbs	2.3~3.8 T	18.5
Y83-250Z	Φ90*50-80	1.5~2.5 kg 3.3~5.5 lbs	2.8~4.8 T	18.5
Y83-315Z	Φ100*50-100	2~4kg 4.4~8.8 lbs	3.8~7.7 T	22
Y83-400Z	Φ120*50-100	2.8~5.6 kg 6.16~12.3lbs	5.3~11 T	30/37
Y83-500Z	Φ140*50-100	3.5~7.6 kg 7.7~16.7lbs	6.7~14.5 T	45
Y83-630Z	Φ180*80-150	10~19 kg 22~41.8 lbs	19~36 T	60
Y83-800Z	Φ250*100-180	24~44 kg 52.8~96.8 lbs	46~84 T	74
Y83-1000Z	Φ300*150-200	52~70kg 114.4~154 lbs	99~134 T	90
...	...	...	...	...
Different material with deifferent density which will affect weight.
Can be customized for you.

Y83 series briquetting presses are suitable for pressing and/or briquetting of all kinds of swarf resulting from machining of steel, cast iron, stainless steel, aluminium, magnesium, brass, copper, bronze, titanium, a.s.o. Also special alloys in powder form, slag compounds, battery waste and grinding sludge from a wide variety of materials can be processed, as well as tyre wires and mill scale.
