Brand Name: | Dadi; | Place of Origin: | Jiangsu China; |
Port: | Shanghai; | Magnification: | 30x; |
Payment Terms: | L/C,T/T,Western Union,Paypal; | Product Name: | DE2A-L laser electronic theodolite; |
Shortest sighting distance: | 1m; | Field of view: | 1°30'; |
Accuracyfor laser digital theodolite: | 2"; | Weight for laser digital theodolite: | 5KG; |
Model Number: | DE2A-L; | Minimum reading: | 1"/5"; |
Supply Ability: | 100 Piece/Pieces per Month Shipment for laser digital theodolite; | Delivery Detail: | 3days after payment; |
Compensator Accuracy: | 3'; | Packaging Detail: | Standar package including carrying case and carton; |
Product Deacription:

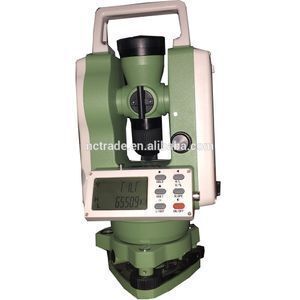

DE2A-L is the most cost-effective China made electronic theodolite, high performance ability and cheap cost make it very popular on survey field and eductaion practice.
Specification:
Laser Digital Theodolite | |
Dadi DE 2A-L | |
Model | DE |
Telescope | |
Length | 165mm |
Objective lens aperture | φ45mm |
Magnification | 30X |
Image | Erect |
Field of view | 1°30’ |
Resolving power | 3.3" |
Shortest sighting distance | 1m |
Additive constant | 0 |
Stadia proportion constant | 100 |
Angle Measurement | |
Minimum reading | 1"/5" |
Accuracy | 2" |
Display | |
Display | Graphic lattice LCD on both sides |
Illumination | Provided |
Compensator | |
Tilt sensor | A Provide / B unprovided |
Accuracy | 3" |
Compensating range | ±3' |
Laser plummet | |
Level sensitivity | |
Plate level | 30"/2mm |
Circular level | 8'/2mm |
Data output | |
Output interface | RS232C |
Power supply | |
Rechargeable battery | 1800mAh Ni-MH |
Battery working time | 10-20h |
Others | |
Waterproof class | IP45 |
Tribrach type | Detachable |
Working temperature range | -20℃~+50℃ |
Dimension | 150X165X335mm |
Weight | 5kg |
Laser Plummet |

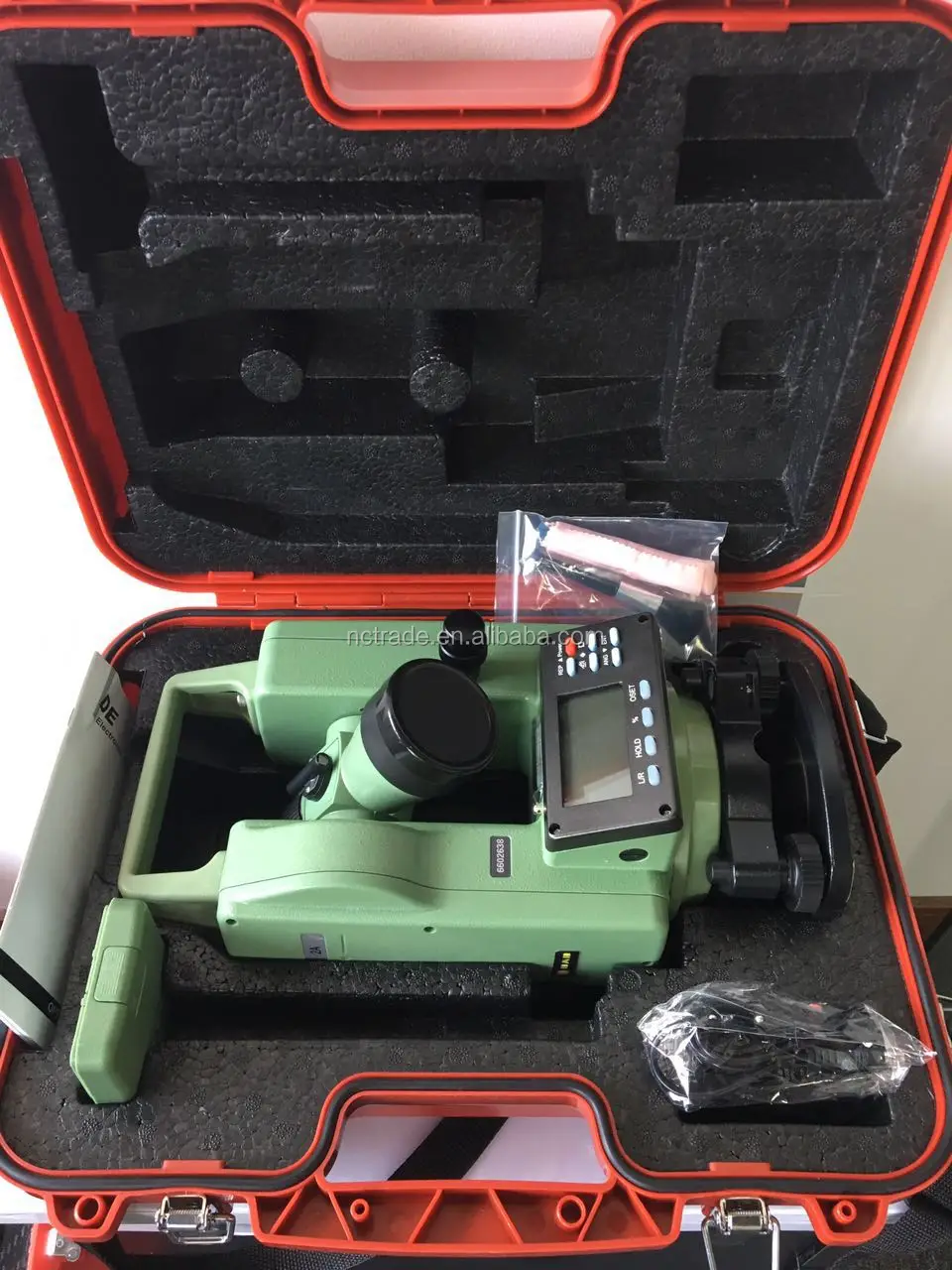

Product Show:
Our warranty policy:
1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.
2.Product in warranty please send us photos to show the problem . And then we will decide to send you parts or you send the instrument back to us to repair.We are responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts directly to us.
3.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
4.For all instrument we provide life-long technical support.
Remark: Improper use of the instrument and man-made damage of the instrument is not covered in warranty liability.Warranty only aimed at the problem caused by the product quality.
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.
We offer GNSS raw data process and CAD drawing for survey field end users.
If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.
1.Whats your payment method ?
We accept T/T in advance,L/C at sight,Western Union,Paypal ,Secure Payment(Alibaba) and Credit Card.For L/C payment ,some countries and some models are not available,for PayPal payment,you need to pay additional charge by Ebay company about 4% of the total Amount.
2.How can you guarantee the safety of my funds?
Trust is always a big problem for international trade,we believe good business credit and reputation is the most important for businessman.We recommend Trade Assurance service by Alibaba Group.We wont get the fund unless you get the product and confirm the payment.
3.What Countries do you ship to?
We ships goods to almost all countries by express ,air or sea. And we will inform you if we cant ship to your country.
4.Does NCT sell second hand renewed instruments?
We do not sell any second hand or renewed equipment. Everything we sell is brand new.For some instrument we may need to test or check the language before delivery,but we do it very carefully. 1.Whats your payment method ?
