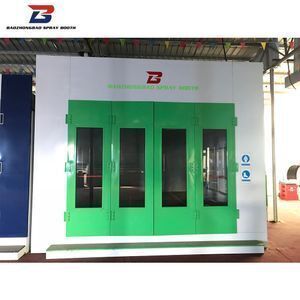

China good quality auto mini mobile customized car spray booth

Product details
Model Number:BZB-FB-8400;Voltage:110V/220V/ 380V;
Packing detail:Standard exportation packing;Port:Guangzhou or Shenzhen;
Place of Origin:Guangdong China;Usage:Car Baking Spray Paint Booth;
Packaging Detail:by polyfoam and cardboard;Brand Name:BZB;
Place of Origin:China;Internal Size:6900*4000*2650mm;
Color:Cutomized;Type:Spray Booths;
External Size:7000*5560*3400mm;MOQ:1;
No Load Speed:900rpm;Supply Ability:500 Set/Sets per Month;
Disc Dia.:Non;Power:17.5KW;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Brand Name:BZB;
Certification:CE;Certification:ISO9001 CE;



Dimensions:

Dimensions:

Length(mm)

Width(mm)

Height(mm)

Outer Size

7,000

5,560

3,400

Inside l Size

6,900

4,000

2,650

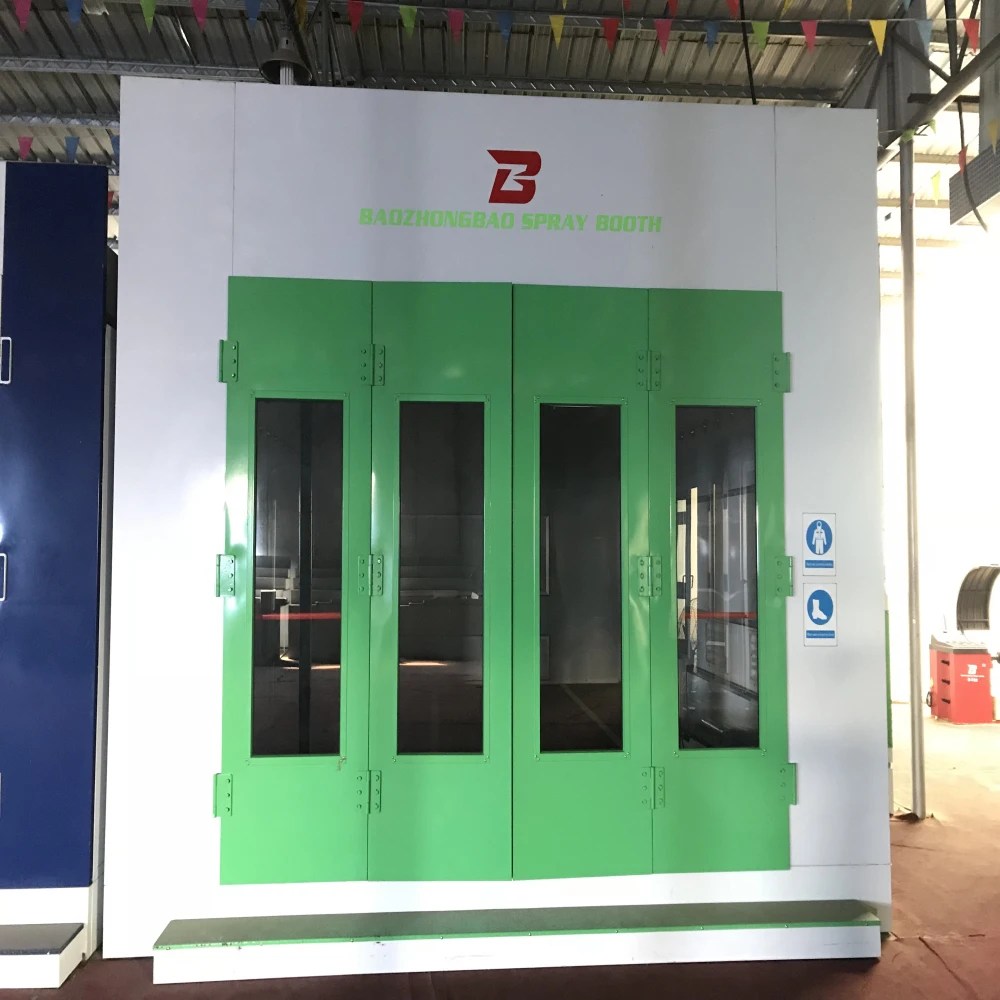

Entrance Door

Adopt with handle and lock

3,000

2,600

Working Door

Adopt with handle and Anti-Explosion

800

2,000

Total Power

17.5KW



 Features:

Cabin System

Wallboard

EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction, Anti-flame and Heat-Insulation Galvanized Roof Panel





Basement

Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate




Ramp

Two Ramps, Embossed Steel Plates.

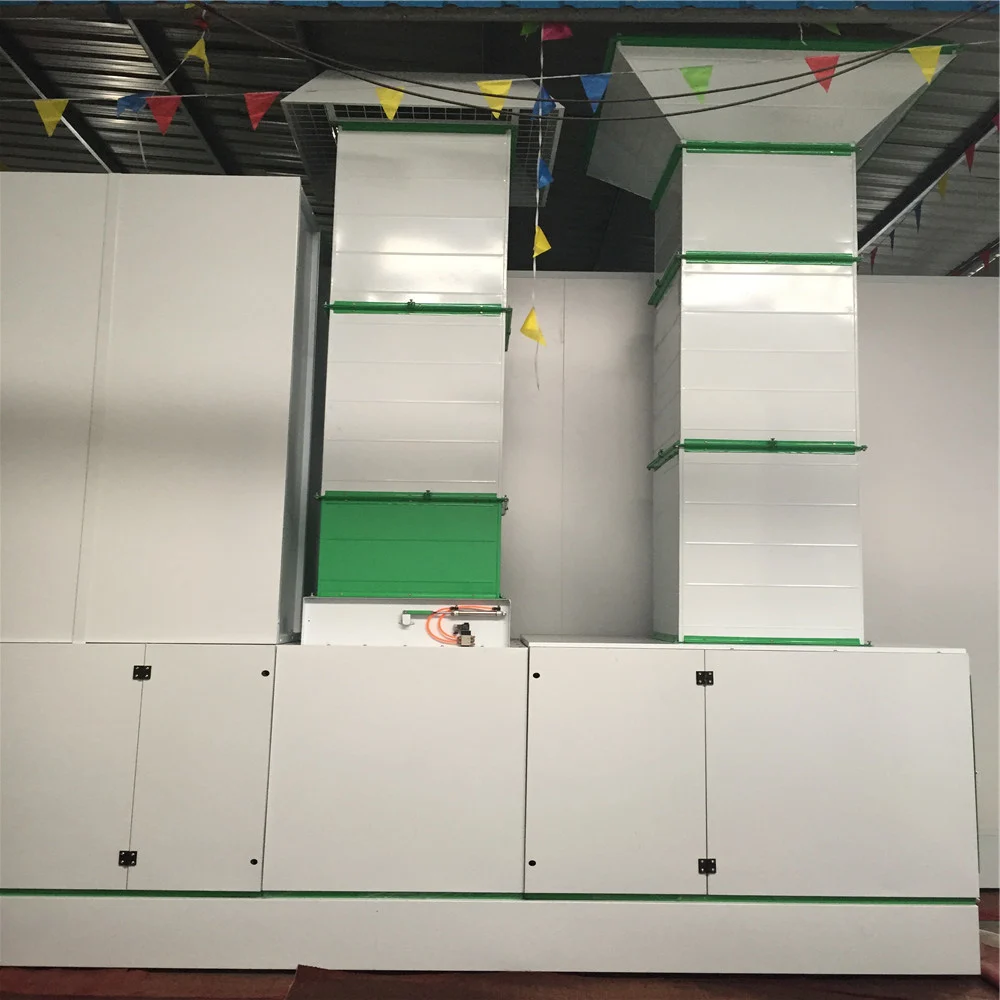

Air Intake and Exhaust System

Inhaling Ventilator

Model:        YDW 4.5L1

Exhaust Ventilator

Model:          YDW 5.6S



Blower capacity:  12500m3/h

Blower capacity:20000m3/h



Pressure:           800Pa

Pressure:            810Pa



Rolling speed:        900rpm

Rolling speed:      900rpm



Power:               4kw

Power:                7.5kw



Quantity:             2 sets

Quantity:              1set



Air Volume: 24000m3/h; Air Speed: 0.35m/s



Air Purification System

Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of  Dust. Its Filtering Rate Reaches 98%.





Heating System

Burner

Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor



Heat Energy Converter

Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%



Max Temp:80.C, Heating Time:5-7min(20-60), Fuel Consumption: 4-5kg/vehicle

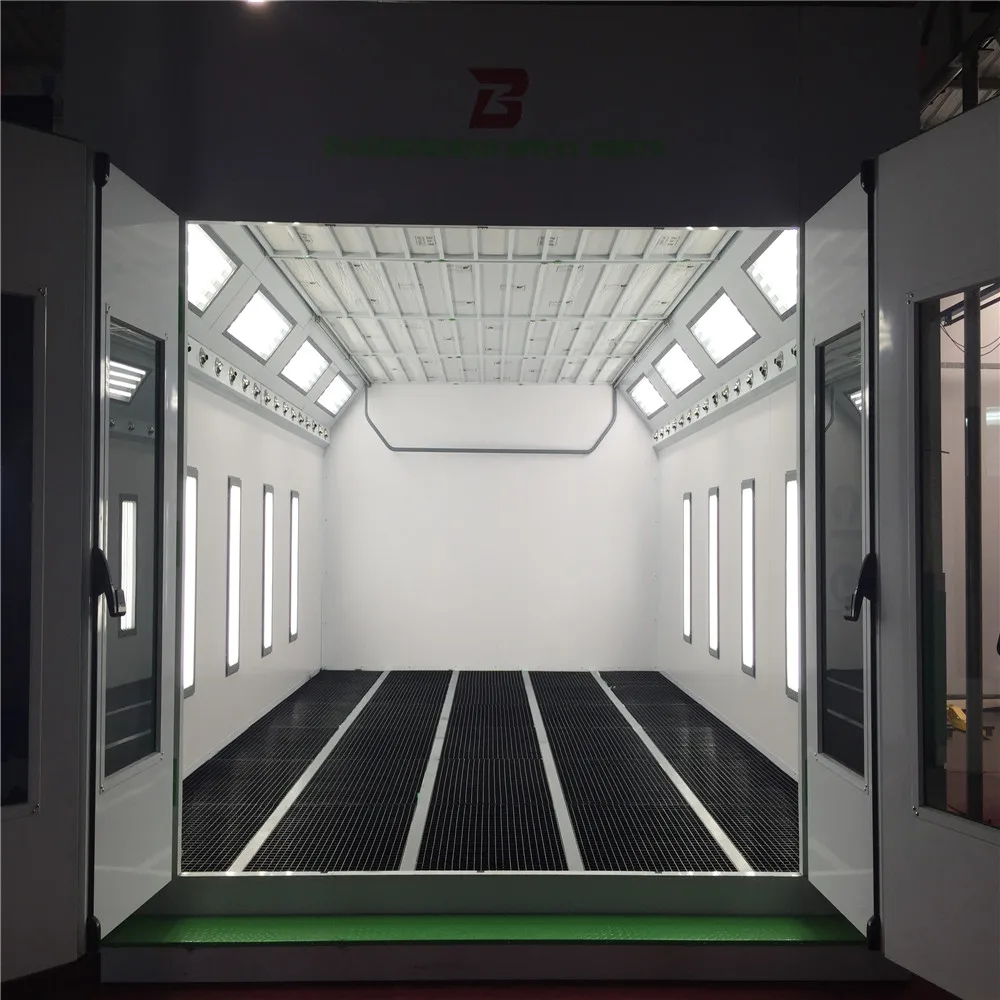

Light System

Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux
