Place of Origin: | Zhejiang China; | Port: | Shanghai or Ningbo; |
Grade: | 4.8, 6.8; | Standard: | DIN, ANSI; |
Packaging Detail: | 25kgs packed in carbon or bag, then within pallets.; | Payment Terms: | T/T; |
Size: | M4~M30, 1/4"~1-1/2"; | Brand Name: | OEM; |
Standard: | DIN, ANSI; | Material: | Carbon Steel; |
Finish: | Zinc Plated; | Supply Ability: | 1000 Ton/Tons per Month; |
Model Number: | M4~M30, 1/4"~1-1/2"; | Product name: | Carbon Steel Stainless Steel 304 316 DIN934 ASTM 18.2.2 Hex Jam Nuts; |

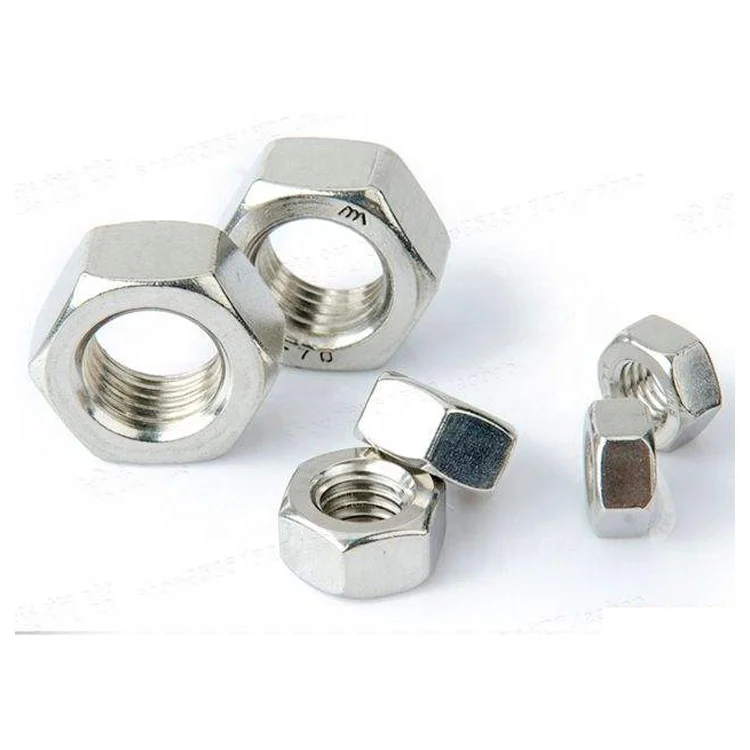

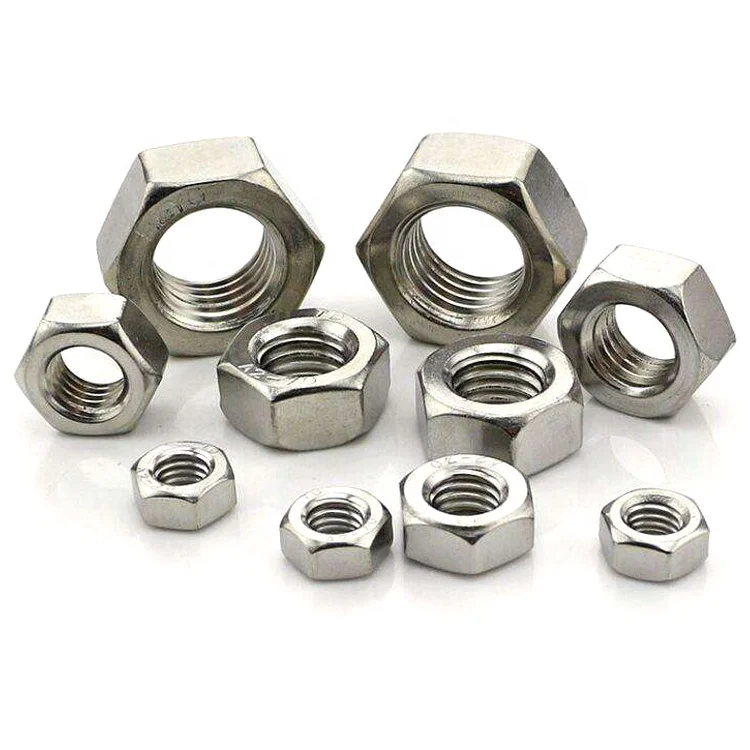

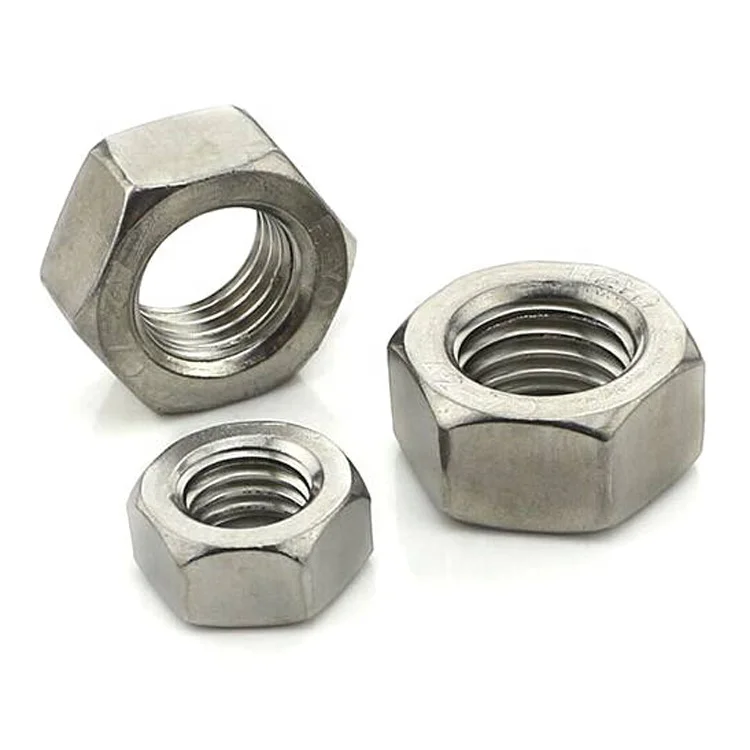

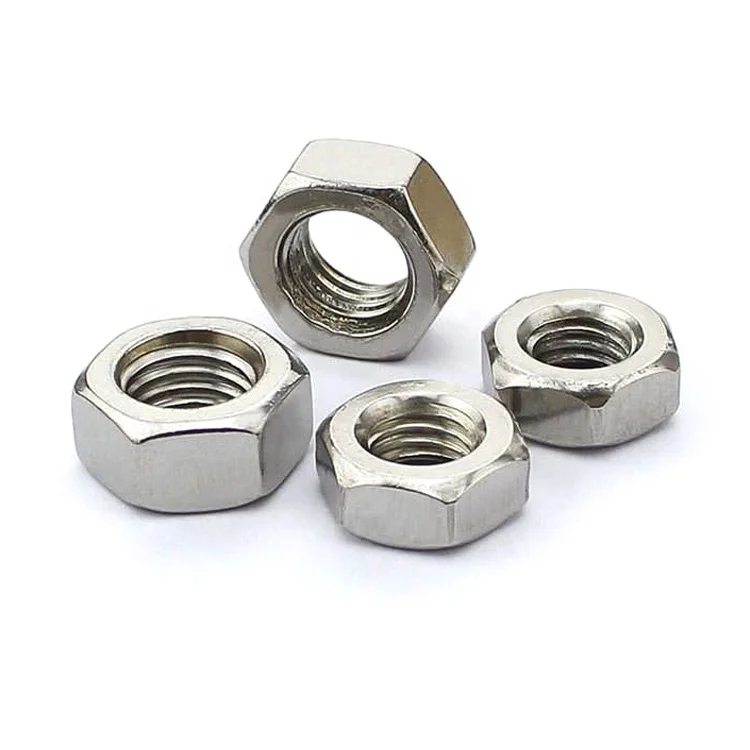

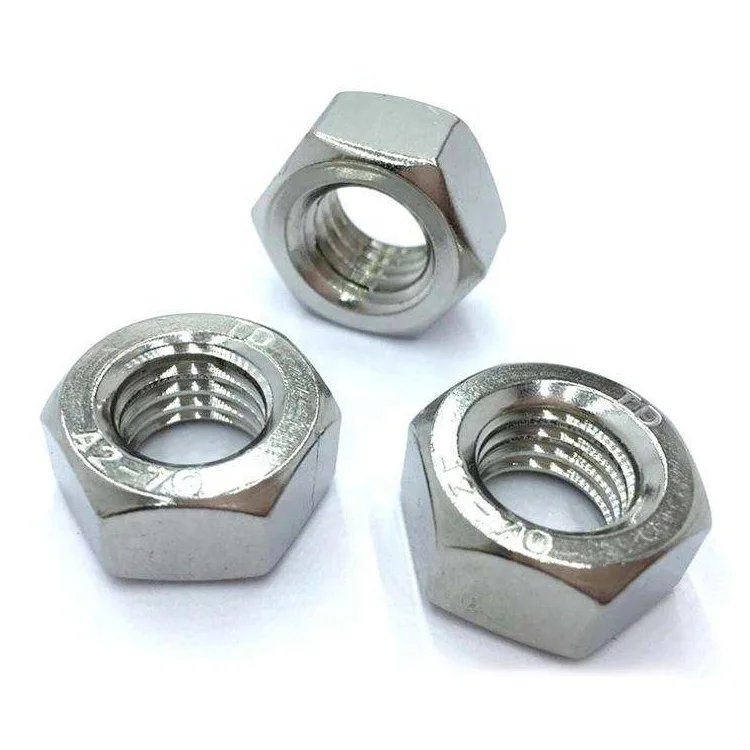

1, Product Name: Carbon Steel Stainless Steel 304 316 DIN934 ASTM 18.2.2 Hex Jam Nuts
2, Material: Carbon Steel
3, Finish: Plain, Zinc Plated, Black, HDG
4, Standard: DIN6334, ANSI B18.2.2
5, Grade: G4.8, G6.8
6, Thread: UNC, UNF
7, Packing: Carton, bag or according to customer's requirement.
8, Small MOQ available, fast lead time.
Standard | Size | Width Across Flats | Length |
DIN6334 | M4 | 7mm | 12mm |
M5 | 8mm | 15mm, 20mm | |
M6 | 8mm, 9mm, 10mm | 10mm, 15mm, 18mm, 20mm, 25mm, 30mm, 40mm | |
M7 | 9mm, 11mm | 15mm, 21mm, 25mm | |
M8 | 11mm, 12mm, 13mm, 14mm | 20mm, 24mm, 25mm, 28mm, 29mm, 30mm, 32mm, 40mm, 50mm | |
M9 | 11mm | 19mm | |
M10 | 13mm, 14mm, 17mm, 19mm | 20mm, 21mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm | |
M11 | 14mm | 24.5mm | |
M12 | 17mm, 19mm, 22mm | 20mm, 25mm, 30mm, 35mm, 36mm, 40mm, 45mm, 48mm, 50mm, 70mm | |
M13 | 17mm | 29mm | |
M14 | 19mm, 21mm, 22mm | 24mm, 25mm, 30mm, 38mm, 40mm, 42mm, 56mm | |
M15 | 19mm | 32mm | |
M16 | 22mm, 24mm | 30mm, 40mm, 48mm, 50mm, 60mm, 70mm | |
M18 | 27mm | 54mm | |
M20 | 30mm | 38mm, 50mm, 60mm, 80mm | |
M22 | 32mm | 66mm | |
M24 | 36mm | 50mm, 72mm, 80mm, 96mm | |
M27 | 41mm | 81mm | |
M30 | 46mm | 60mm, 90mm, 120mm | |
ANSI B18.2.2 | 1/4" | 3/8", 7/16" | 13/32", 3/4", 7/8", 1" |
5/16" | 3/8", 7/16", 15/32", 1/2" | 13/32", 7/8", 1", 1-3/16", 1-9/16", 1-3/4" | |
3/8" | 1/2", 9/16", 5/8" | 1", 1-1/8", 1-3/16", 1-9/16", 1-3/4", 2" | |
7/16" | 5/8", 11/16" | 1-3/4" | |
1/2" | 5/8", 3/4", 11/16", 3/4" | 19/32", 1-1/4", 1-1/2", 1-9/16", 1-3/4", 2" | |
5/8" | 1/2", 3/4", 13/16", 15/16" | 1", 1-3/16", 1-1/2", 1-29/32", 2", 2-1/8" | |
3/4" | 15/16", 1", 1-3/32" | 1-1/4", 2", 2-1/4", 2-1/2", 2-9/16" | |
7/8" | 1-1/8", 1-1/4", 1-5/16" | 1", 1-3/32", 1-1/8", 2-1/4", 2-1/2" | |
1" | 1-1/4" | 2-1/2" | |
1-1/8" | 1-5/8", 1-11/16" | 1-1/2", 3" | |
1-1/4" | 1-5/8" | 3" | |
1-1/2" | 2" | 4" |
