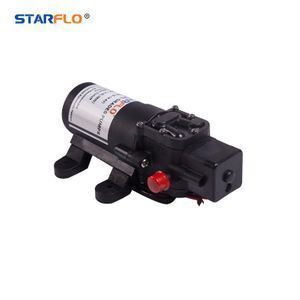

STARFLO FL0-2202 12v dc 3.8LPM 35psi battery operated agricultural chemical sprayer pump

Product details
Model Number:FLO-2202;Duty Cycle:Intermittent;
Brand Name:STARFLO;Usage:Agriculture;
Selling Units:Single item;Single package size:19X11X70 cm;
Diaphragm:Santoprene;Amps:3.0A max;
Material:Metal;Type:Sprayers;
Certification:CE, ISO9001:2008, RoHS;Single gross weight:9 KG;
Valves:EPDM or Viton;Port dimension:3/8" Barb;
Sprayer Type:Pump;Place of Origin:Fujian China;
Protection:ignition protection;Voltage:12v/24v dc;
Package Type:chemical sprayer pump 1/pc a box, 50pcs/carton, carton gross weight :36kgs;Pump Design:2 Chamber Diaphragm;
Product name:chemical sprayer pump;

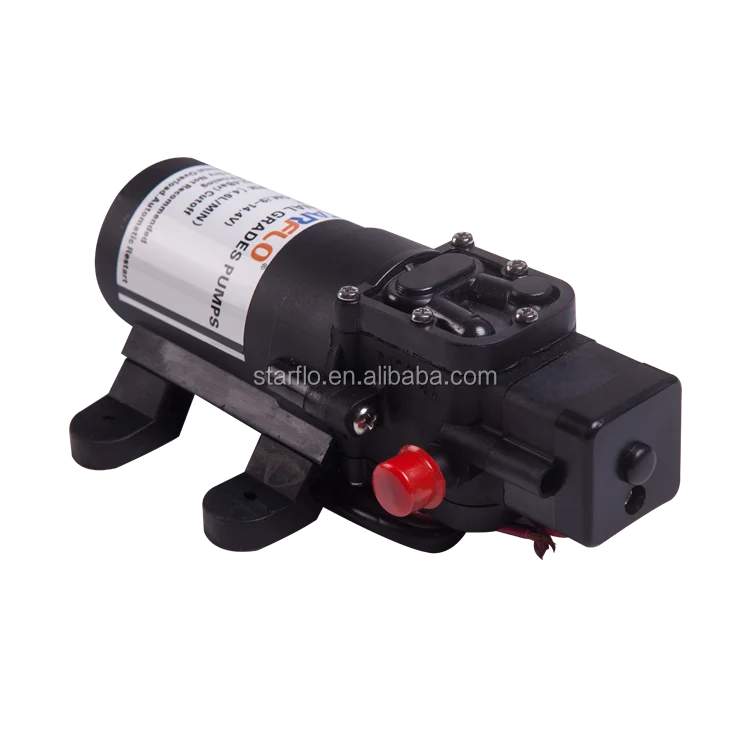

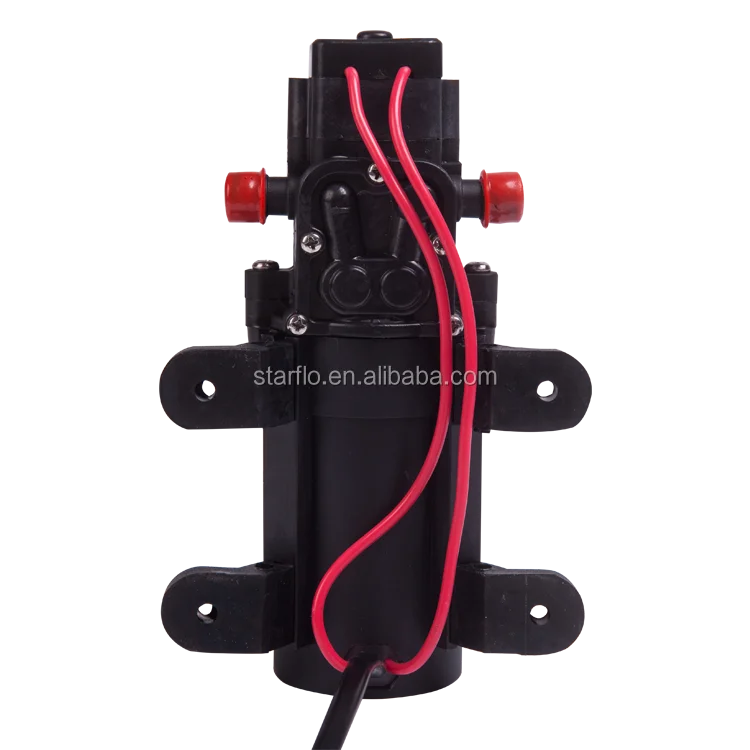

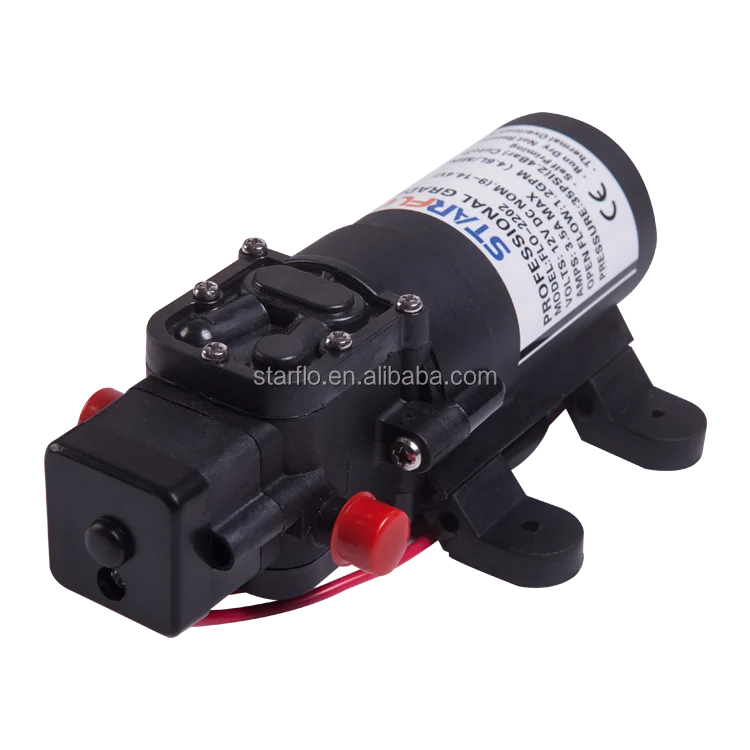

STARFLO FL0-2202 12v dc 3.8LPM 35psi battery operated agricultural chemical sprayer pump



Pump Design2 Chamber Diaphragm
Port Size3/8"(9.5mm) Hose Barb
Voltage12V DC / 24V DC
Check ValveEPDM or Viton
Liquid Temperature60 degree Maximum
Self Priming 4 feet (1.2m) Suction Lift
Duty CycleWork Intermittent





The FLO Series Industrial Pumps are designed for a wide range of application and are constructed from a selection of material suitable for handlinga broad range of chemicals.The FLO Series of diaphragm pumps are self-priming and can be run constinously for short periods of time. The  higher the duty cycle the shorter the expected life of the pump.



Typical pump uses are liquid transfer,spraying, circulation, filtration and dispensing.



   APPLICATION OF AGRICULTURAL SPRAYER PUMP

  • Agriculture/Yacht / RV/Caravan pressurized water system
  • Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
  • Cleaning machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling & liquid transfer
  • Any other pressurization system





DESCRIPTION OF SPRAYER PUMP

A:Stable performance,
B:Self priming,automatic switch,
C:Low noise, corrosion resistant.

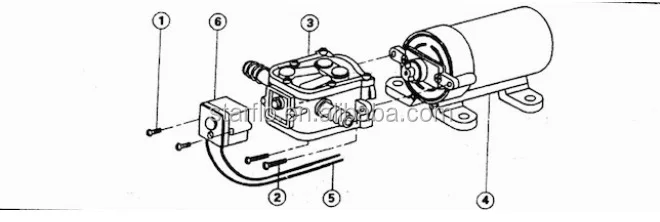

Pump Head 2 chambers
Max Pressure  55psi/35psi/80psi(consult factory for other pressure)

Motor Configuration lead wires 2-pin connector(consult with factory)

2-pin connector with on/off switch

Reciprocating Diaphragm made of Santoprene

Duty cycle:intermittent.

Housing PP

Check valve made of EPDM

Check valve spring: Stainless steel

  FEATURES OF MINI WATER PUMP

  • Small size,Light weight and Stable performance.
  • Special valve for liquid input and outpu.
  • Antivibration pad,easy installation.
  • Self-priming,Automatic Pressure Switch.
  • Automatic Pressure Protection.
  • Low Noise,with excellent resistant to chemical corrosion.

  FUNCTIONS OF DIAPHRAGM WATER PUMP

  • High flow rate and low presurre requirements.
  • Automatic electric water pump,working rate 1.8-2.5meters,max flow rate more than 5 meters.
  • Water purification,filter machine,chemical metering and fluid supply.
  • Food,Beverage filling and transfer.
  • Controled by pressure switch.





  TECHNICAL DATA



ModelVoltageFlow RatePressureAmps
FLO-220112V DC0.5GPM(2.0LPM)55PSI(3.8 Bar)1.8A
FLO-220212V DC1.0GPM(3.8LPM)35PSI(2.4 Bar)3.0A
FLO-2202-112V DC1.1GPM(4.3LPM)55PSI(3.8 Bar)3.5A
FLO-220312V DC0.7GPM(2.6LPM)70PSI(4.8 Bar)2.1A
FLO-2203-112V DC 0.8GPM(3.1LPM)70PSI(4.8 Bar)2.2A
FLO-2202A12V DC1.1GPM(4.0LPM)80PSI(5.5 Bar)2.6A
FLO-240124V DC0.5GPM(2.0LPM)55PSI(3.8 Bar)0.9A
FLO-240224V DC1.0GPM(3.8LPM)35PSI(2.4 Bar)1.5A
FLO-240324V DC0.7GPM(2.6LPM)70PSI(4.8 Bar)1.0A
FLO-2402A24V DC1.1GPM(4.0LPM)80PSI(5.5 Bar)1.3A
Inlet Size3/8" hose barb;thread
Outlet Size3/8" hose barb;thread

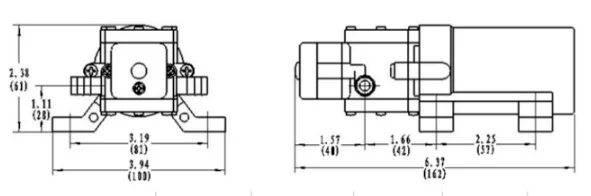

Dimension/pc18.5*11*6.5cm
Net Weight/pc0.64kg
Gross Weight/pc0.72kg
Carton Dimension(50pcs)56.5*38.5*36.5cm






















+







      Q: Are you a manufacturer or trading company?

      A:We are a manufacturer that specialized in diaphragm water pump and bilge pumps,              our products have abtained the SGS-CE and RoHS certificate.



Q: What's your main products of your company?

A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.





Q:How can I choose the most suitable pump?

A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.





Q:What's your product MOQ of it?

 A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more  discount.





Q: What's your payment way?

A: Usually we accept T/T ,Western Union or PayPal.





Q: What's your delivery time?

A. 1.The stock samples can be sent to you within 2-3days by international express after received

   2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)





Q: How long is your pump lifetime?

A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor

For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
