Optical Glass 532nm Narrow Bandpass Filter

Supplier: Kunming Optolong Optics Co., Ltd.
Region: Yunnan, China
Contact: Ms Helen Wen
Price: $25.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	1000 Piece/Pieces per Month optical Glass 532nm narrow bandpass filter;	Thinkness:	2.0-5.0mm;
Transmission:	High;	Tolerance:	±0.2 mm;
AOI:	Can be customized;	Place of Origin:	Yunnan China (Mainland);
Use:	Biomedical Science instrument;	Size:	square,round or OEM;
Payment Terms:	T/T,Western Union,Paypal;	Brand Name:	Optolong;
Product Name:	optical Glass 532nm narrow bandpass filter;	Customized:	Yes;
Packaging Detail:	1,Super clean workshops,protected with PE Film,no need to clean,available at any time,with lowest labor cost; 2,wrapping with vaccum,damp-proof,dust-proof bag; 3,High-density carton,with protective sponge inside;;	Durability:	Good;
Material:	Flat glass and Color glass;	Slope:	Steeper;
Port:	Kunming;	Ion-assisted deposition:	Yes;
Model Number:	BPF-530;

Optical Glass 532nm Narrow Bandpass Filter

Product Description

1. Brief Description:

Infrared Interference Optical Bandpass Filters are used to selectively transmit a portion of the welldefined spectrum while rejecting all unwanted wavelengths. Our IR bandpass filters provide better transmission, steeper cut on and cut off slopes, greater blocking, and increased durability.IR optical thin film coating are ideal for a variety of applications, such as IR Thermal Imaging & Thermal Sensing, IR Thermography, IR light Emitters & Detectors etc, clinical chemistry, or imaging. IR Filter,Shortpass / Longpass Edge Filter Filter,IR Antireflection lens and AR window are typically used in the life science, industrial, or R&D industries.

2. Specifications:

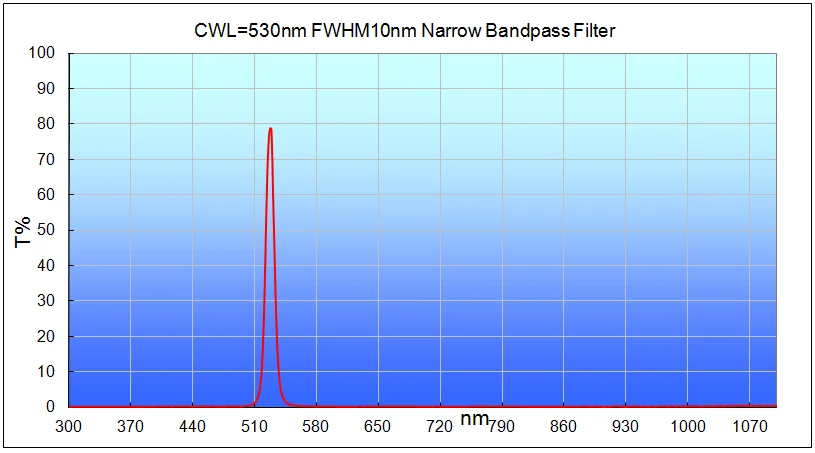

BP530 FWHM=10nm
CWL	530nm±3nm
FWHM	10nm ±3nm
Tpeak	T≥70%
Blocking	OD5@200~1200nm
Surface	80/50
Substrate	Flat glass and Color glass
Circle	φ6.5-φ50mm
Square	3×3-55×55mm
Thickness	3~5mm

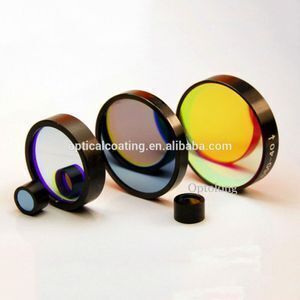

3. Product Display

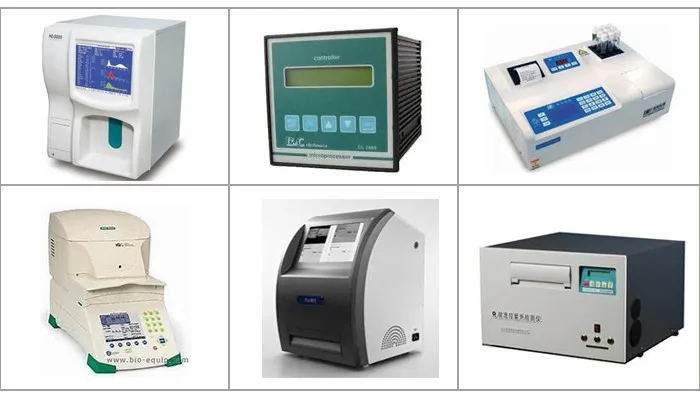

4. Application.

Company Information

Kunming Yulong Optical&Electronics Technology Co., Ltd. is a professional manufactures of optical coatings and optical filters processing in China. Top one Astronomical filters manufacturer in China,Third in the world.Our products include Astronomical Filter,Bandpass Filters,Edge filters, Longpass & Shortpass Filters,Beam spliters,Anti-reflective Coating,Optical Mirrors and so on.Our company were established in 1999,have five precious vacuum coating machines,a set of spectrophotometer (UV-VIS-NIR Shimadzu UV3150) which is imported from Japan.

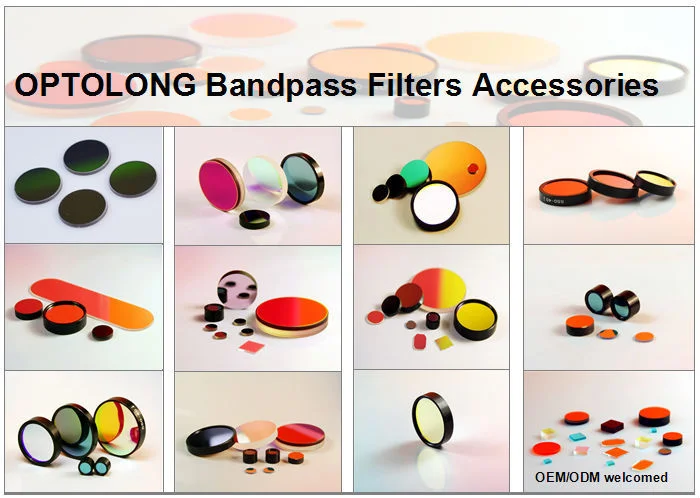

2.Picture Show:
