LCD monitor with VGA/HD/DVI/CVBS(AV)

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram;Supply Ability:50000 Piece/Pieces per Month;
Response Time:5ms;Brightness:300cd/m;
Brand Name:USER(OEM);Resolution:1920 x 1080;
Widescreen:No;Feature:Touch Screen,Speaker;
Panel Type:TFT;Place of Origin:Guangdong China;
Interface Type:D-Sub,DVI,Interface Type;Application:Desktop;
Pixel Pitch:0.294(H)x0.294(V);Port:SHENZHEN;
Products Status:Stock;Contrast Ratio:1000:1;
Packaging Detail:Kraft carton and wooden case FOR LCD monitor with VGAHDDVICVBS(AV);Screen Size:19";

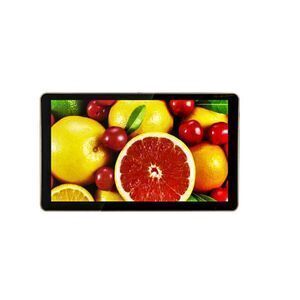

LCD monitor with VGAHDDVICVBS(AV)

Product Description

Product Description for LCD monitor with VGAHDDVICVBS(AV)

Specifications

Model No.

US-M1901P

Panel size

19" TFT-LCD

Display area(mm)/mode

379(W)×304(H)

Maximum resolution

1280×1024

Display color

16.7M

Pixel Pitch(mm)

0.294(H)×0.294(V)

Brightness (nits)

300nits

Contrast

1000:1

Visual angle

176°/176°

Response time

5ms

Horizontal frequency

30-75KHZ

Vertical frequency

56-75KHZ

Life(hrs)

50,000(hrs)

Touch screen

Optional

PC

Optional

Input and Output

Composite video input

2 (BNC×2)

YPbPr input

1 (BNC×3)

VGA

1

HD

1

Composite video output

1 (BNC×1)

Video

Color system

PAL/NTSC/SECAM

OSD display( screen menu display)

Menu language

Chinese/English

Power

Power supply

AC100V~240V,50/60Hz

Maximum power consumption

45W

Standby power consumption

3W

Temperature

Working temperature

0°C~50°C

Storage temperature

-20°C~60°C

Working humidity

10%-90%

Storage humidity

10%-90%

Appearance

Body dimension(Lx W x H)mm

398.8×326.8×66

Panel color/appearance

White,black,customized

Case Material

Steel

Net weight

7.1kg

Installation

Wall-mounted,desktop(optional)

Popular products

Click the next picture to learn USER popular  products.



Why Choose us?

1.Having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 13 years of experience gives us the edge!



2. We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.



3. Here at USER SDT, we understand that our new partners need to order samples, we encourage them to do so, once you have seen the quality of our products you will understand why we are number one in our market.



4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.



5.At USER SDT, we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.



6.Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities, some from foreign markets with years of experience. This gives USER SDT the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.





7.Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $325,000.00 on your orders, take the time to read about this option, secure your orders with Alibaba Trade Assurance today!



8.As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.



Company information

Shenzhen USER Special Display Technologies Co., Ltd. has been established since 2008 as a hightech enterprise. Providing cost effective products and customer oriented services, USER SDT has become the ODM / OEM partner of a number of world-class companies, and you have a high level research and development platform. Our team consists of over twenty (20) CAD designers and structure engineers who will make sure to render your imagination into actual products.
Our factory is under the ISO 9001/ISO14001 certification. Our products have been exported to over eighty (80) worldwide countries, many of our products are also certified from SASO, KC, BIS, PSE and CE, FCC, RoHS to UL. At present, USER SDT can customize displays from 5 to 107 inches.
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!



Packaging & Shipping

1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.

2.Warranty: 12 months warranty .lifetime maintainance.

3.RMA policy: customer  bear all the freight and duty charge to factory,and the factory afford retum freight charge.

4.Remark: ROHS, CE & FCC certificates in e-file format are available.

5.MOQ: 1pc, sample order are welcome for your evaluation.

FAQ

1)  Q: Are you a factory or trading company?

A:We are a OEM/ODM factory.



2) Q:What payment methods your company accept?

A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.



3) Q:How long is the warranty time for your products?

A:Our officially promised warranty time is one whole year after delivery at best.



4) Q:I haven't done business with you guys before,how can i trust your company?

A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $323,000, and it is still going up.



5) Q:what's the shipment terms and delivery time of your company?

A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.



6) Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company USER perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
