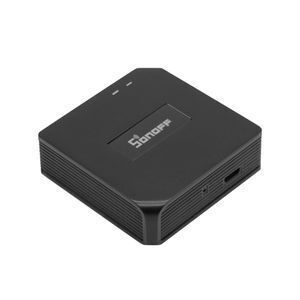

SONOFF RF Bridge Domotica Smart Home Automation Control WiFi Convert 433MHz Wireless Universal Switch RF Remote Controller

Product details
Single gross weight:0.1 KG;Security Mechanism:WPA-PSK/WPA2-PSK;
Operating Current:30mA-200mA;Delivery Detail:0 days after payment;
Wireless Stardard:Wi-Fi 2.4GHz;Key Feature3:Easy Manage;
Model Number:SONOFF RF Bridge;Power Supply:USB 5V;
Single package size:20X20X20 cm;Key Feature2:Wide Control Range;
Brand Name:SONOFF;Wireless Standard:WiFi 802.11b/g/n, 433.92MHz;
Selling Units:Single item;Operating Voltage:3.0 ~ 3.6V;
Supports APP:IOS Android System, Works with Alexa & Google;Key Feature1:Smart Home Assistant;

SONOFF RF Bridge Domotica Smart Home Automation Control WiFi Convert 433MHz Wireless Universal Switch RF Remote Controller

Product Description

Product Overview:

This RF Bridge 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, you can add up to four 1-4 buttons 433.92MHz Wireless RF Remotes or 433.92MHz sensors to the RF Bridge device. After pairing the 433Mhz RF Remote buttons with 433Mhz RF controlled devices, you can directly control maximum 16 RF controlled devices on the App through WiFi/2/3/4G network.
It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.
Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner's account, those users being shared can't view the alarm push.

NOTE 1:

  • The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
  • The product doesn't support to learn rolling code and dynamic code.

NOTE 1:

  • Scheduled/countdown timers are supported.
  • iOS App supports to add this product.
  • 433MHz RF curtain switch and RF alarm are supported.





Product Features:

  • Convert 433MHz RF Remote to App via WiFi
  • Make 433MHz RF devices App remote controllable
  • Support to add max. four 433MHz RF Remote/Curtain Switch/Alarm
  • Support to control up to sixteen 433MHz RF devices
  • Support totally 8 schedule/countdown/loop timers to turn on/off 433MHz RF controlled devices
  • Receive alarm push message from 433MHz PIR sensor, door &window alarm sensor
  • Control 433MHz RF devices over Wi-Fi or mobile network
  • Free iOS and Android mobile app eWeLink
  • Works perfectly with Amazon Alexa, Google Assistant

Product Specification:

  • Power Supply: USB 5V
  • Wireless Standard: WiFi 802.11b/g/n, 433.92MHz
  • Security Mechanism: WPA-PSK/WPA2-PSK
  • Product Dimensions: 62*62*20 (mm)
  • Certificate: CE (download)

Works With Amazon Alexa:

To control Sonoff RF Bridge, you'll need to say RF Remote name and button name together.

Standard voice control commands phrases (if you just say the RF Remote name, Alexa will turn on/off all buttons of that RF Remote immediately):

Alexa, turn on {RF Remote Name}
Alexa, turn off {RF Remote Name}

Alexa, turn on {RF Remote Name} {ButtonName}
Alexa, turn off {RF Remote Name} {ButtonName}

Packaging & Shipping
  • Unit Type: piece
  • Package Weight: 0.1kg
  • Package Size: 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
Our Services



  • Warranty: We promise to replace the broken products for free of charge in 1 year.
  • Dealership: We can provide dealership for high-quality customers.
  • OEM Service: We can customize lables, packages, user manuals for big orders.



Company Information

Founded in 2015, Shenzhen Sonoff Technologies Co., Ltd. is a leading solution provider and manufacturer of smart home devices. Integrated with R & D, production, sales and after-sales service, our products have been exported for over 120 countries and served for over 2 million people. With 44 R & D engineers and over 130 employees, Sonoff is committed to promote the development of smart home industry by providing more easy-to-use, safe, personalized and creative IOT products for end-users. And now, Sonoff is the top 3 smart home brand in the world along with Philips Hue and Samsung Smartthings.
