Place of Origin: | Guangdong China; | Dimensions: | 191(D)x146(W)x12.9(H)mm; |
Model Number: | OCP-806; | Brand Name: | OSCY; |
Resolution: | 576dots/line or 572dots/line; | Paper Width(option): | 48mm/52mm/56mm/64mm/68mm/76mm/80mm; |
WIFI / Bluetooth: | optional; | Style: | Black And White; |
Power supply: | DC 24V-2.5A; | Key Feature3: | USB+LAN; |
Printing Width: | 72mm; | Type: | Thermal; |
Single package size: | 26X21X17 cm; | Command: | Compatible with ESC/POS; |
Key Feature1: | pos printer 80mm thermal receipt printer; | Selling Units: | Single item; |
Single gross weight: | 1.74 KG; | Max Paper Size: | 79.5±0.5mm; |
Products Status: | Stock; | Use: | receipt printer; |
Interface Type: | USB; | Black Print Speed: | 230mm/s; |
Key Feature2: | Direct thermal; | Package Type: | 6PCS/CTN; |
Color Print Speed: | 230mm/s; | Max. Resolution: | 203dpi; |
Welcome to OSCAN Pinter world!
Printing Method | Direct Thermal |
Print Speed | 300mm/s 260mm/s 230mm/s 200mm/s |
Paper Width | 79.5±0.5mm |
Paper area | 72mm ( adjustable by commands) |
Maximum paper diameter | Ø 80mm |
Paper Thickness | 0.06~0.08mm |
Column capacity | 576dots/line or 572dots/line |
Line space | 3.75mm( changeable by commands) |
Commands | Compatible with ESC/POS |

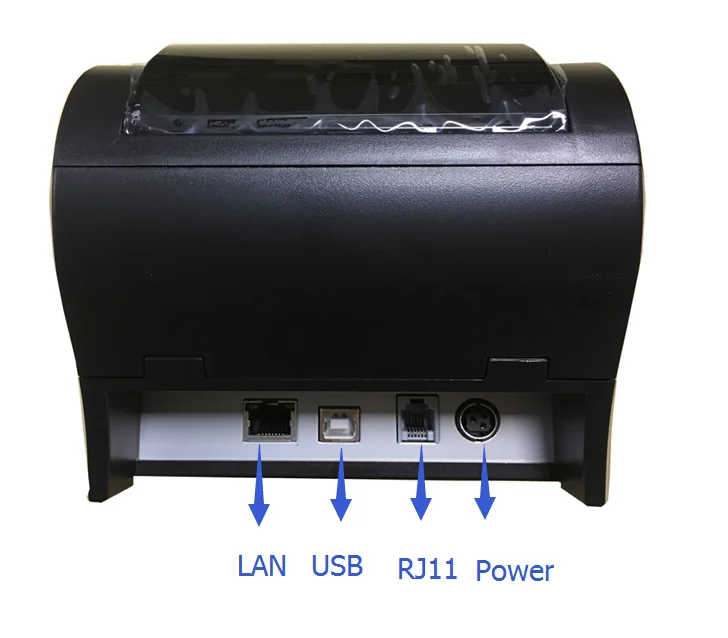

Interface type | Only USB (USB+LAN/USB+Serial/USB+Serial+LAN/USB+WIFI) |
Character size | ANK Front A: 12x24 dots |
Front B: 9x17 dots | |
simplified/traditional Chinese:24x24 dots | |
Dimension | 192x145x143mm (DXWXH) |
Gross Weight | 1.06kg |
Bar code | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
2D dimension code | QR code /PDF417(U+S+L,U+L) |
Code page | PC347(Standard Europe),Katakana, PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),WestEurope Greek,Hebrew,East Europe,Iran, WPC1252,PC866(Cyrillic #2 ),PC852(Latin 2),PC858,Iranll,Latvian,Arabic,PT151(1251) |
Cutter | Partrial |
Cutter life | 1.5 million cuts |
Print head life | 100KM |
Input buffer | 64 Kybtes |
NV Flash | 256 Kybtes |
Power Supply | Input: AC 100V-240V 50/60HZ |
Output: DC 24V/2.5A | |
Cash Drawer output | DC 24V/1A |
Work environment | 0°C~45°C, 10%~80%RH |
Storage environment | -10°C-60°C,10%~90%RH |
Operation System | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
SDK | Android, IOS |
<<<<

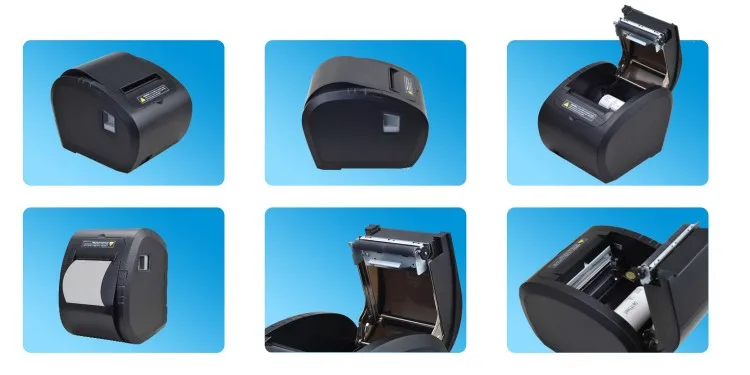

More picture images:
<<<<
Q1:Are you a manufacturer?
A: Yes,we are manufacturer of POS system and touch screen monitor.
Q2. Can you make OEM/ODM/OBM?
A: Of course. We can customize as your requirements. Such as package box design, monitors size, free logo printer, required specification(WIFI/Bluetooth/ Ibutton...etc)
Q3. What about minium order quantity?
A: MOQ=1, since we have all materials in stock.
Q4. Can i test the sample,and how about the lead time?
A: Sure. You can buy the sample to test.
Sample with faster lead time 1-3 days . The bulk production only need 5-7 days according to quantity and color request.
Q5. What’s your payment terms?
A: Bank transfer, Paypal, Western union, Trade assurance order on Alibaba by VISA/master card...ect Credit card .
Q6. How long is the warranty period?
A: 1-2 Years
Q7. What kind of inspection you can provide ?
A: 1. Aging test 24 hours, to guarantee all products are in the perfect condition before shipment .
2. we also accept the inspection by the third part you appointed.
3. All of our products have passed the CE/ROHS/ISO:9001 2015 officially authorized certification.
Q8.How do you make our business long-term and good
relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have any other questions, please write email to us or call us , we will reply you ASAP.
