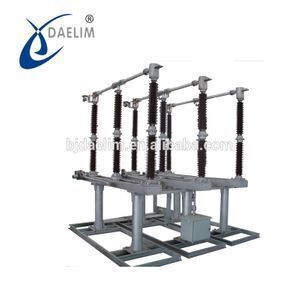

145KV GW4 Outdoor HV Disconnector/Disconnecting Switch

Supplier: Beijing Daelim Green Ep Technology Co., Ltd.
Region: Beijing, China
Contact: Ms ZOE LIANG
Price: $1150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10000 Set/Sets per Year;	Place of Origin:	Beijing China;
Max. Current:	4000A;	Port:	tianjin;
Certificate:	ISO9001;	Model Number:	GW4;
Max. Voltage:	145KV;	standard:	IEC 62271-102;
Function:	Momentary;	Phase:	3;
Rated voltage:	145kv;	Brand Name:	daelim;
Payment Terms:	L/C,T/T,Western Union;	Standard:	IEC60947-3;
Product name:	145KV GW4 Outdoor HV Disconnector/Disconnecting Switch;	Model:	GW4;
Packaging Detail:	one set one case;	Product type:	145kv switch disconnect;
frequency:	50hz;

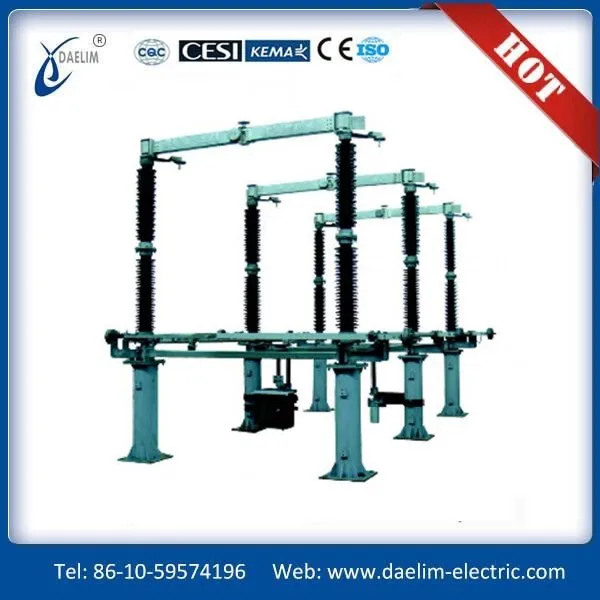

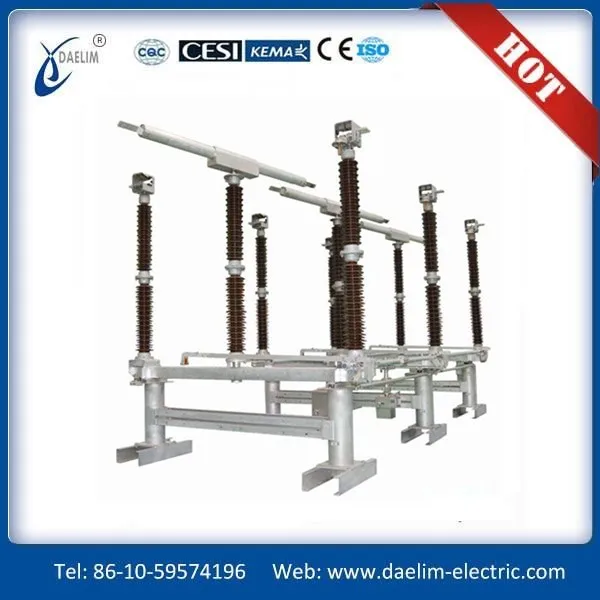

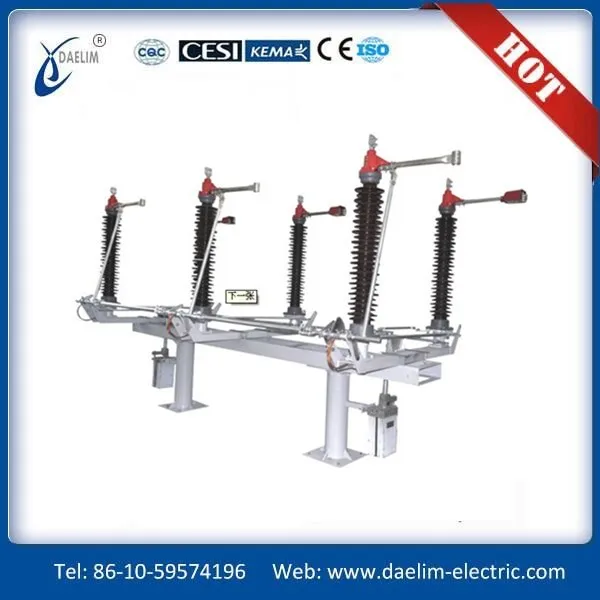

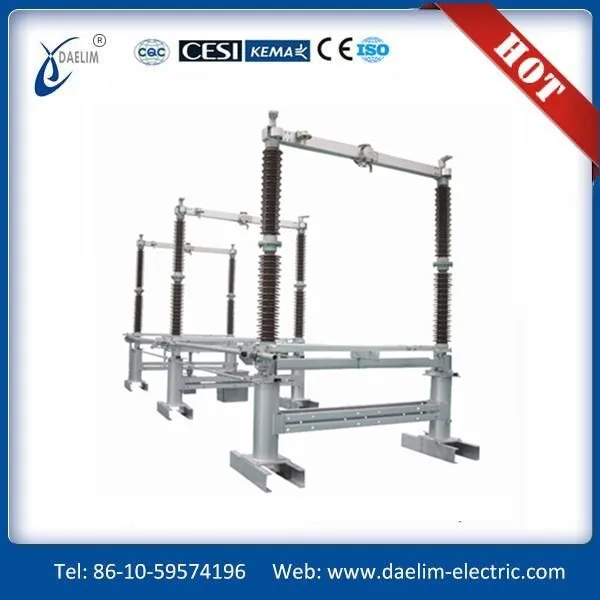

145KV GW4 Outdoor HV Disconnector/Disconnecting Switch

Product Description

1.Altitude above the sea level is not more than 1000m, and not more than 2500m in special condition.

2.Ambient temperature : -40℃~40℃

3.Wind speed is not more than 35m/s (corresponding to wind pressure of 700Pa )

4.Earthquake accelerate: horizontal 3.92m/s2

vertical 1.96m/s2(corresponding to seismic intensity of 9 degree)

5.Pollution class: Ⅲclass (heavy pollution), class (in special circumstances)

6.Icing depth: 20mm

7.Max. radiance from sun: 1000 W/m2 (fine weather,at noon)

Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

Main Technical Data

Item		Unit	GW4-126	GW4-252
Rated voltage		KV	126	252
Rated current		A	1250,2000	2000.2500
Rated frequency		Hz	50	50
Rated short-time withstand current and duration		KA/S	31.5/3,40/3	40/3,50/3
Rated peak withstand current(peak)		KA	80,100	100,125
Rated short-time power frequency withstand voltage(rms)	To earth	KV	185(+70)	395(+145)
Rated short-time power frequency withstand voltage(rms)	Between breaks	KV	230(+70)	460(+145)
Rated lighting impulse withstand voltage	To earth	KV	550	1050
Rated lighting impulse withstand voltage	Between breaks	KV	550(+100)	1050(+200)
Rated busbar transferring current		A	1600	2000

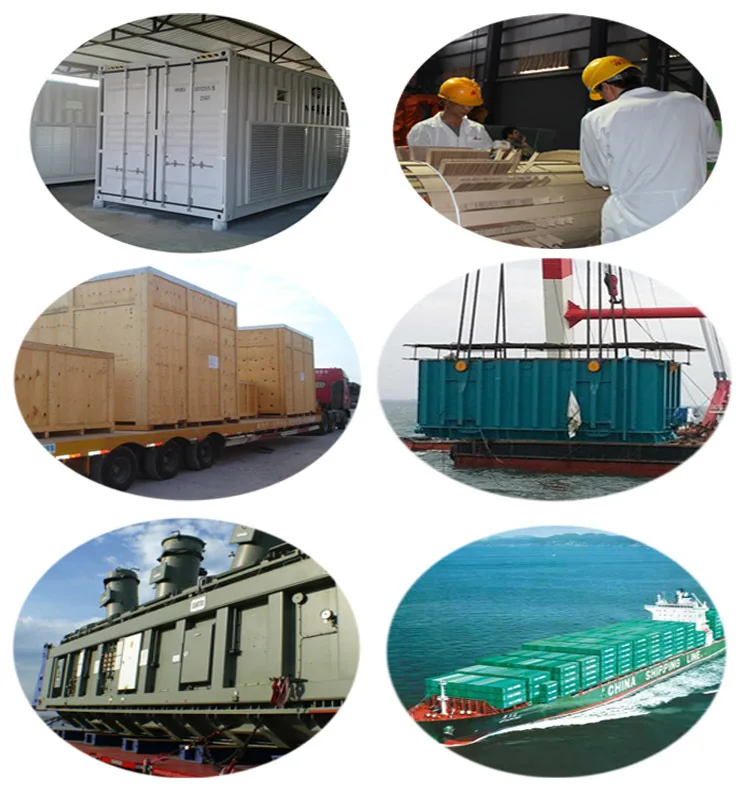

Packaging

Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2, We can arrange technicians to install the equipments and train your staff on site.

3, Anytime, we provide considerate technical consultation.

4, Prompt reply for your inquiry and feedback.
