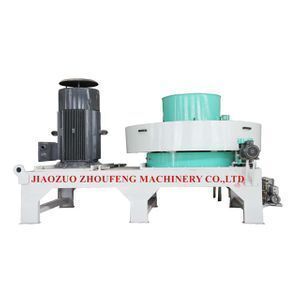

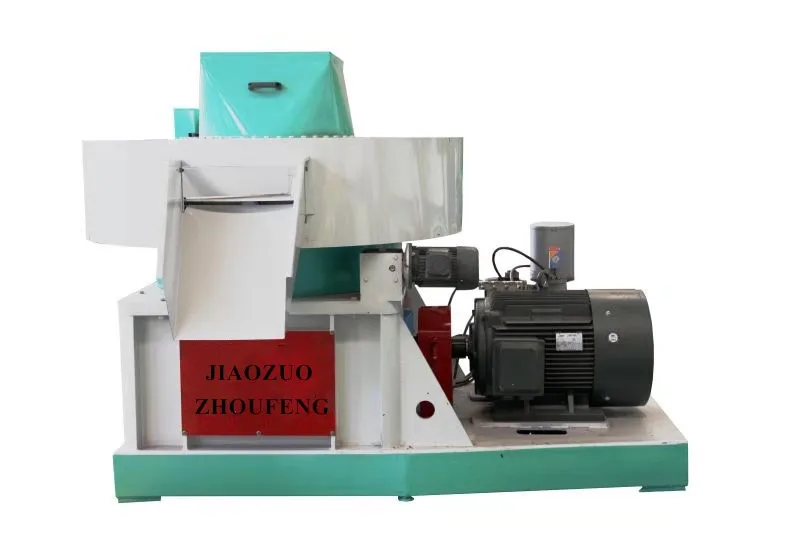

Ring die wheat straw briquette making machine

Supplier: Jiaozuo Zhoufeng Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Kelly Wang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Ring Die;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Raw Material:	Agriculture Wast;	Condition:	New;
Weight:	500kg;	Port:	Qingdao;
After-sales Service Provided:	Free spare parts;	Place of Origin:	China;
Dimension(LWH):	8000 3400 2800mm;	Moisture of raw material:	8%-12%;
Supply Ability:	50 Set/Sets per Month;	Shape of final briquette:	Square;
Production Capacity:	1500-2500KG/H;	Warranty:	1 Year;
Applicable Industries:	Energy & Mining;	Density Of Briquette:	0.7-1g/cm3;
Voltage:	380V-50HZ;	Name:	Biomass Briquette machine;
Packaging Detail:	Wooden case;	Capacity:	1500-2500kg/h;
Brand Name:	ZHOUFENG;

Product Description

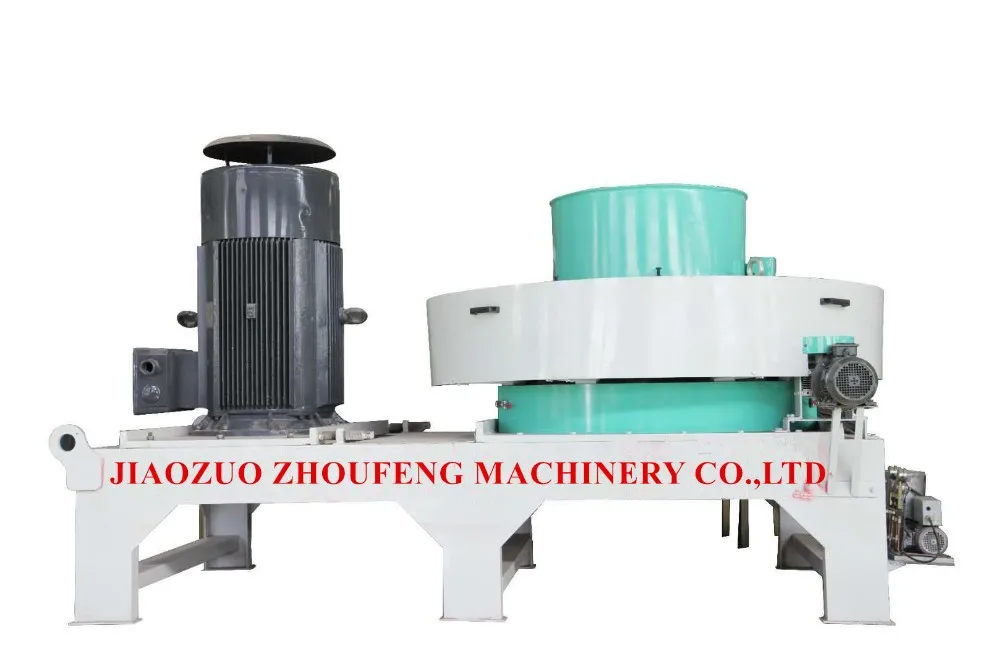

Ring die wheat straw briquette making machine

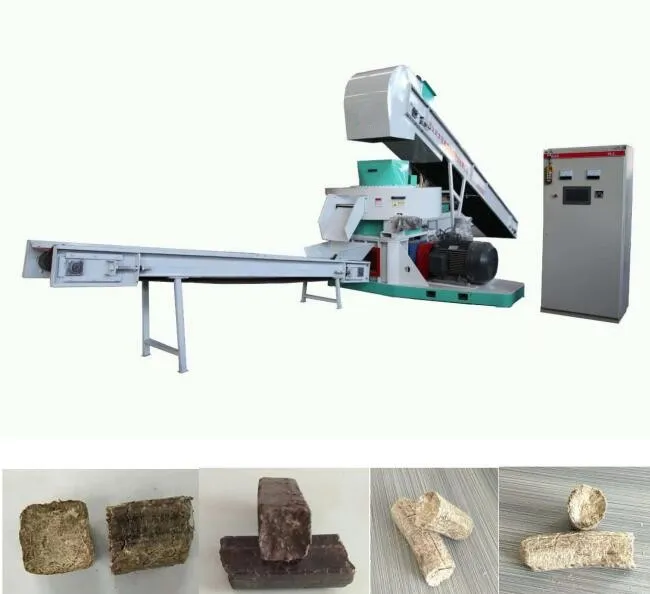

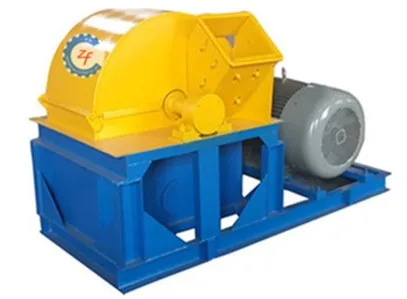

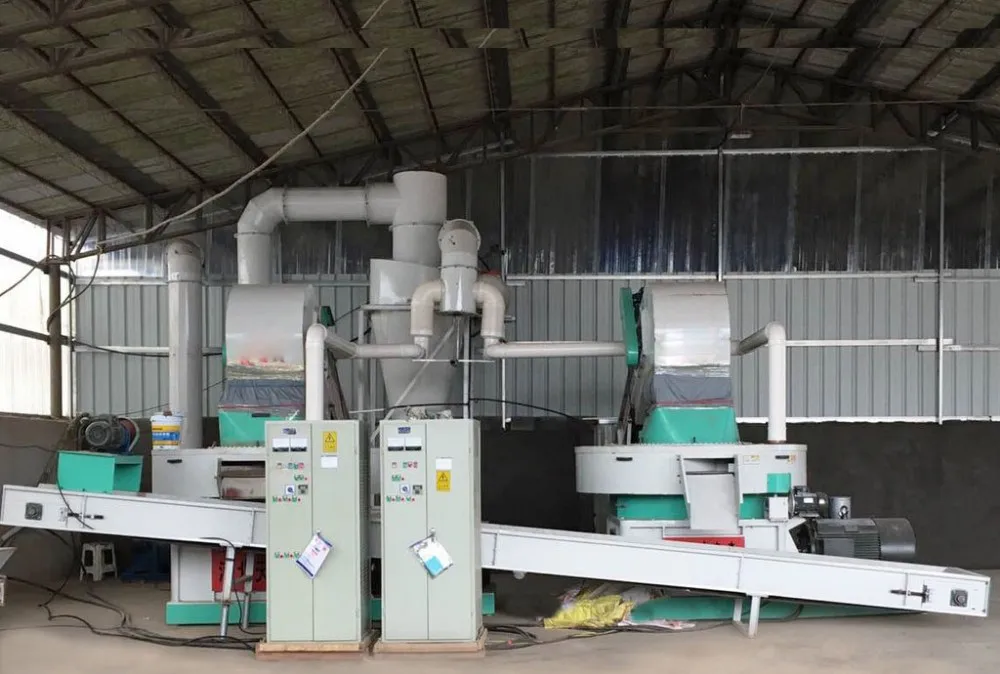

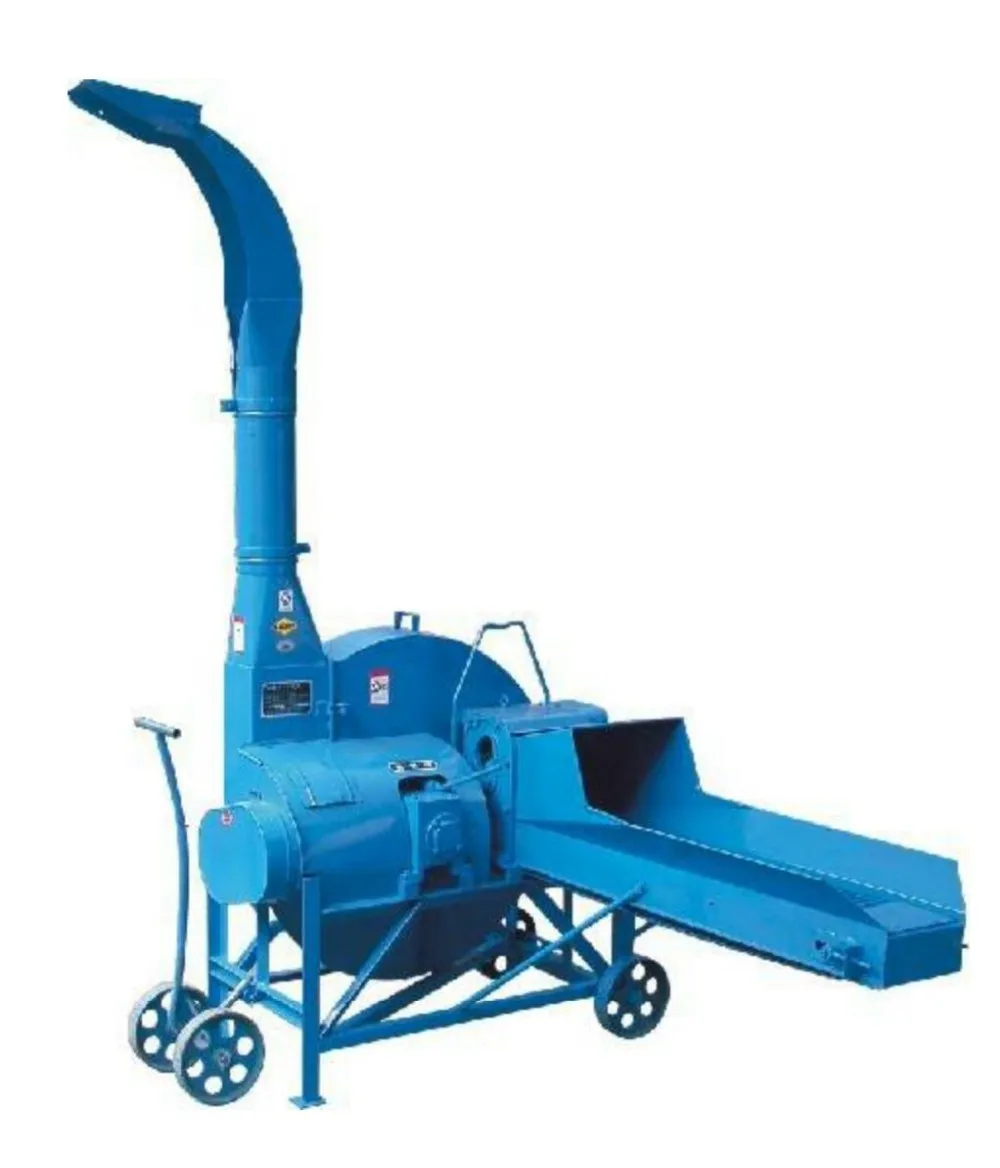

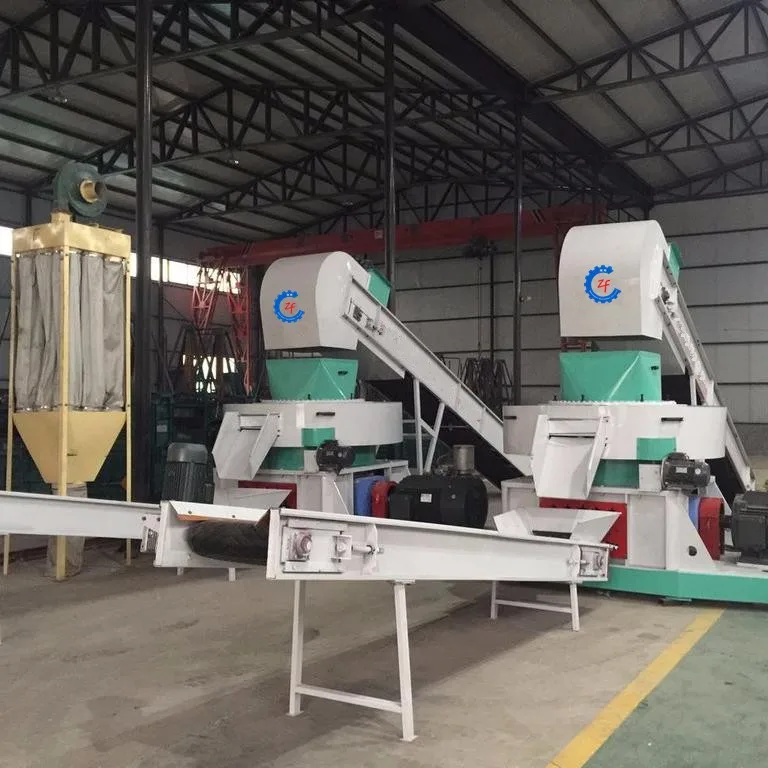

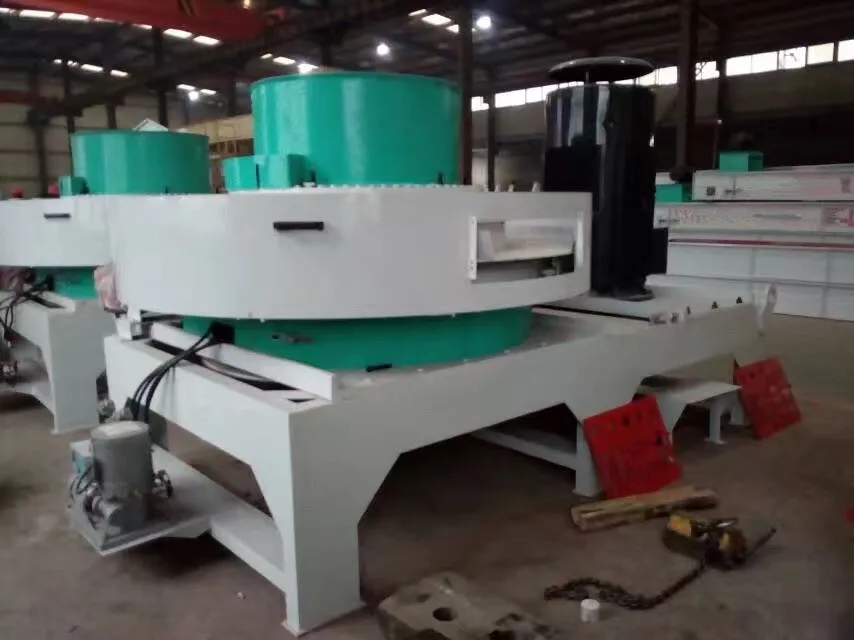

Biomass briquette molding machine, complete sets of units including: main machine, feeding conveyor, discharging conveyor, distribution control cabinet, etc.Before processing equipment can be selected hay cutter or kneading machine.This machine is based on the medium and small size straw forming machine, and considering the rigor of biomass fuel compact forming suitable raw material, the new optimized design.Reasonable structure, simple operation, high production efficiency and reliable use.

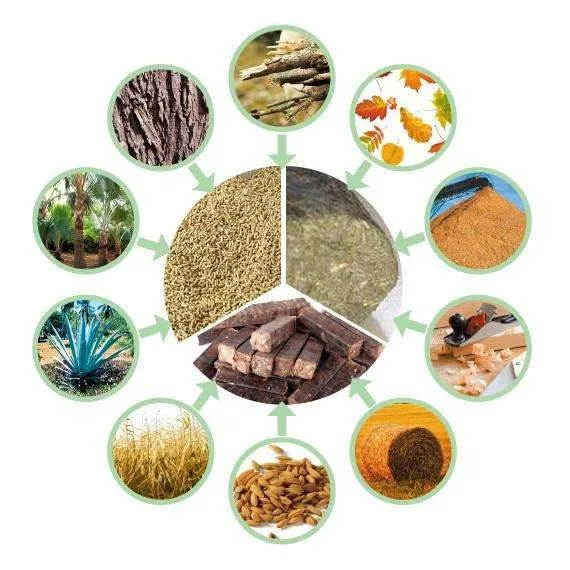

Processing range: All kinds of agricultural and forestry biomass waste.Some industrial products preliminary processing waste.Such as: corn straw, cotton wood, straw, peanut shell, rice shell, tree bark, wood chips, furfural xylitol residue, animal feces, household garbage, palm silk, palm shell.

Model	9K-2600A	9K-3500A	9K-4500A	9K-6000A
Main motor	75kw	110kw	132kw	185kw
Voltage	380v 50hz	380v 50hz	380v 50hz	380v 50hz
Capacity(straw)	1500-2500kg/h	2500-3500kg/h	3000-4500kg/h	4000-6000kg/h
Moisture	14%-25%	14%-25%	14%-25%	14%-25%
Hole quantity	52pcs	72pcs	88pcs	120pcs

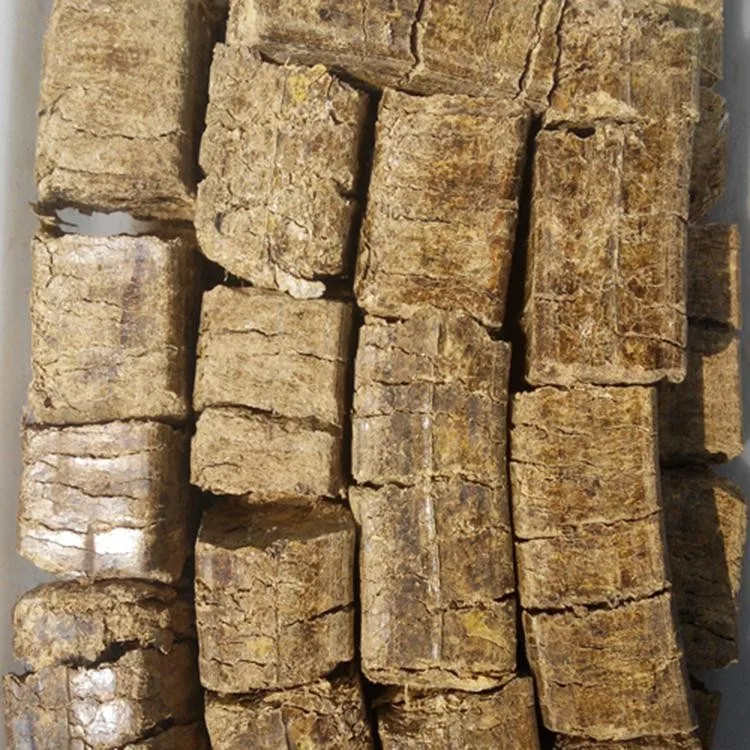

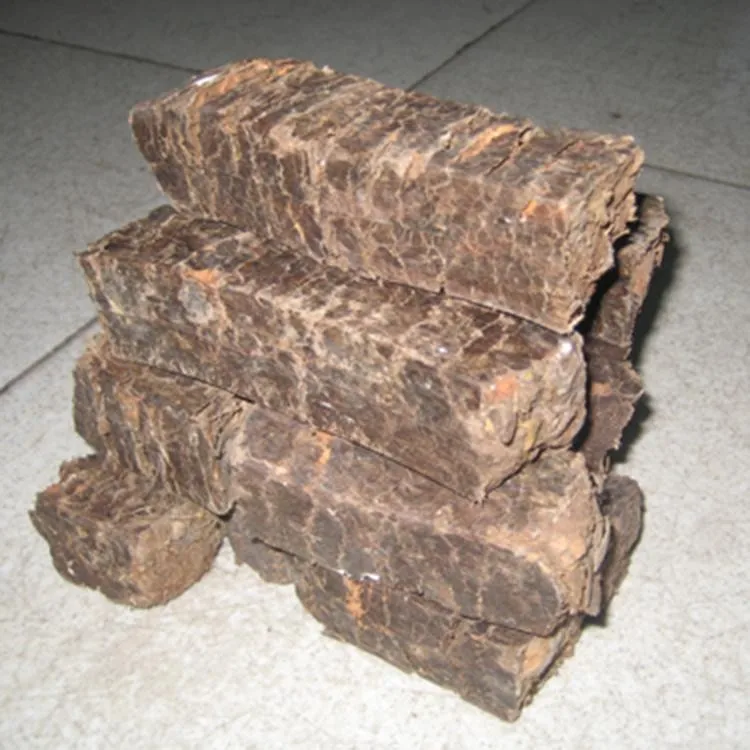

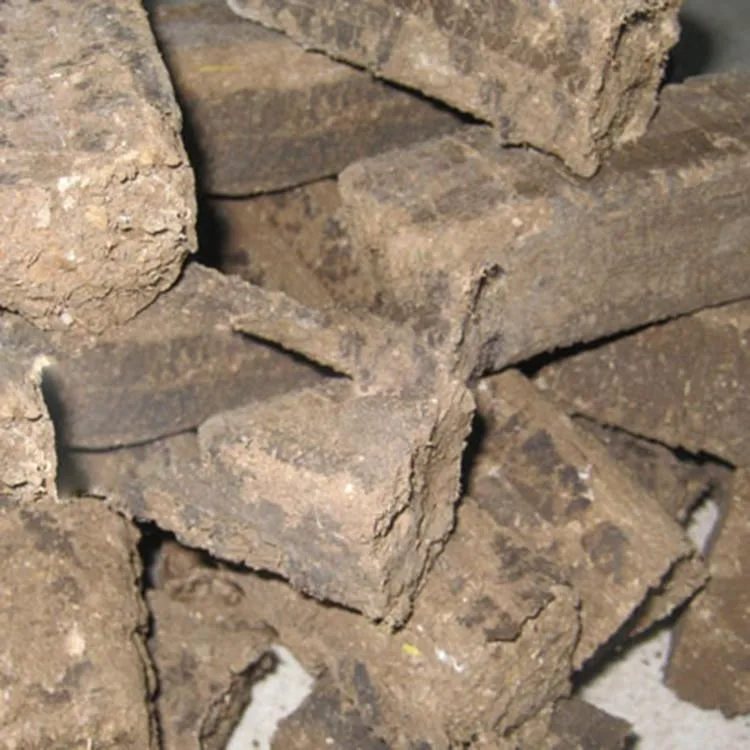

Briquette size	32*32mm	32*32mm	32*32mm	32*32mm
Dimension	8000 3400 2800mm	800035001900mm	350022002280mm	403026802380mm
