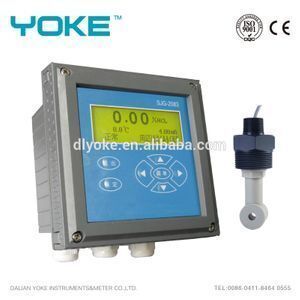

LCD display Intelligent Acid /Alkali concentration Meter

Product details
Model Number:YK-SJG;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Resolution:2%(0.05% with calibration);Alarm Relay:AC220V 3A;
Signal Output:4-20mA;Power supply:AC 220V 10%;
Size:146*146*150mm;Supply Ability:100000 Set/Sets per Month;
Packaging Detail:Protective Filler Inside ,export paper/wood carton Outside;Medium Temperature:0-99.9℃;
Place of Origin:Liaoning China;Brand Name:Yoke;
Product name:LCD display Intelligent Acid /Alkali concentration Meter;Port:Dalian;

LCD display Intelligent Acid /Alkali concentration Meter

Product Description



CodeYK-SJG-3083
Measure Range(0.00-20.00)%HCL
(0.00-30.00)%H2SO4
(0.00-15.00)%HNO3
(0.00-10.00)%NaOH
(0.00-20.00)%NaCl
Temperature0-99.9℃
Resolution±2%(0.05% after calibration);±0.5℃
Communicate JointRS485(Selectable)
Signal Output4-20mA(resistance<750Ω
Alarm RelayAC220V,3A
Power SupplyAC220V±10% 50HZ, 24VDC
Protective LevelIP65
Shell MaterialCast Aluminum
Out Size146*146*150mm
Open Hole Size138*138mm
InstallWall mounted/In tray
Working ConditionAmbient Temperature:0-60℃;
Relative Humidity:<85%
MaterialPOM,Poly Alum,Platinum
Electrode constant30
Rated PressureNormal Pressure
ConnectionAerial plug,Pin joint,"Y" joint





Product Detail

What is the advantage of the concentration Meter?

1)Reliability: All the components are arranged on one circuit board. No complicated functional switch,

adjusting knob or potentiometer is arranged on this instrument.

2)Strong interference immunity: Its current output adopts optoelectronic isolating technology. This meter

has strong interference immunity and the capacity of long-distance transmission as well as excellent

electromagnetic compatibility.
3)Waterproof and dust-proof design: Its protection grade is IP54. It is applicable for outdoor use.
4)Phase sensitive detection: Eliminating the influence of conductors on the measurement of hydrochloric

acid alkali concentration.
5)Automatic measuring frequency switching: This can help prevent electrodes from polarization, so as

to enhance their accuracy.





Application

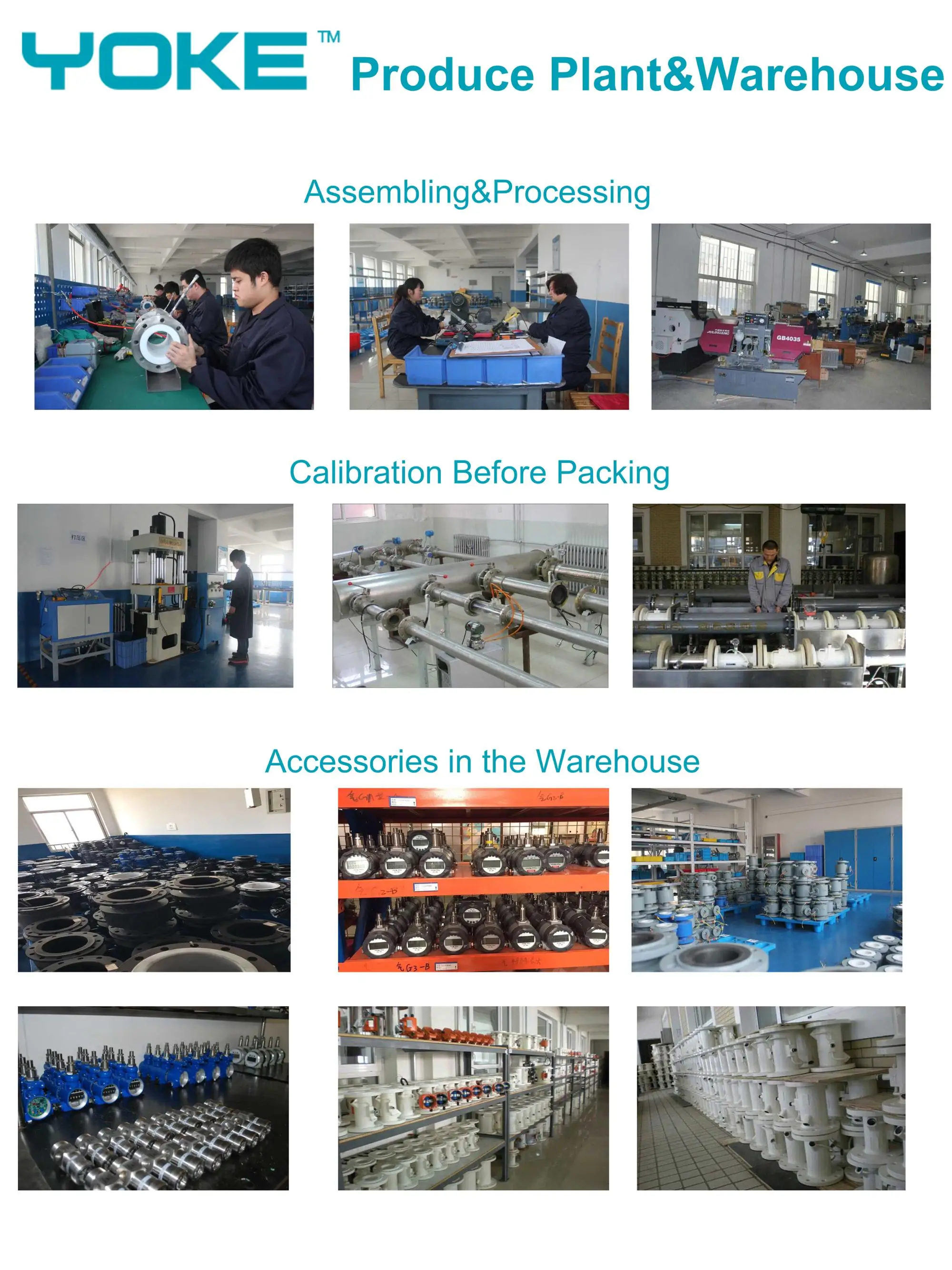

Produce&Warehouse



Certifications



FAQ

Q1:How long is your warranty?
A1:Normally our warranty is 18 months


Q2:How do you support the aftersale service?
A2:By phone call,by video chat,by sending our engineer to your work field


Q3:How do you pack and ship your products?
A3:We pack our product with protective filler inside(such as foam),and packed with stable paper or wood carton outside.
Normally we ship by air,for big quantity we ship by sea.


Q4:Do you provide the free sample?
A4:Normally we do not provide free sample,but we can deduct the sample charge when you put final order.


Q5:Could we buy through Trade assurance?
A5:Absolutely,we highly recommend you to trade through the trade assurance service of Alibaba,if you could trade through it, we can give some discount according to the Amount.


Q6:How is the payment term?
A6:If the product shipped by air or train,it need 100% in advance.If shipped by sea,50% in advance,rest balanced against the copy of B/L


Q7:I saw you established in 2001, why you are just one year on alibaba?
A7:We focus on domestic market before,now we are confident on sharing our best products to the world.
Like the slogan in our main page, we share the accuracy from China.
