low noise 0-10v/pwm control 12v dc solar powered car ventilation fan for air circulation

Supplier: Shanghai Anneng Fan Co., Ltd.
Region: Shanghai, China
Contact: Mr. roland king
Price: $34.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai China;	Single package size:	24X24X16 cm;
Package Preview:	https://sc01.alicdn.com/kf/HLB1LlZfasnrK1RjSspkq6yuvXXa6.jpg_640x640.jpg;	Color:	Black;
Motor:	Brushless External Rotor Motor;	Weight:	2kg;
Package Type:	1 for Sample, packing individually by foam carton 24CM x 24CM x 16CM ; 2 for Mass, pallet package 112x112x120CM.;	Insulation class:	Class "B" or "F";
Cable Length:	450 mm;	Single gross weight:	2 KG;
Brand Name:	Anneng;	Model Number:	R1G133-H045-01F;
Blade Size:	133 mm;	Bearing:	NMB Ball bearing;
Life Time:	40000h+;	Rotor:	Electrophoresis;
Type of Protection:	IP44 or IP55;	Selling Units:	Single item;
Application:	air suction, air ventilation, etc.;

"We promise the products you will get are as true as you can see !"

Type: R1G133-H045-01F

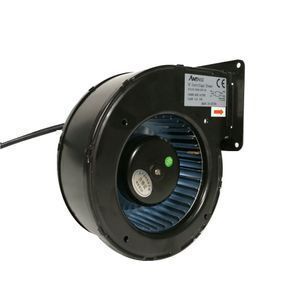

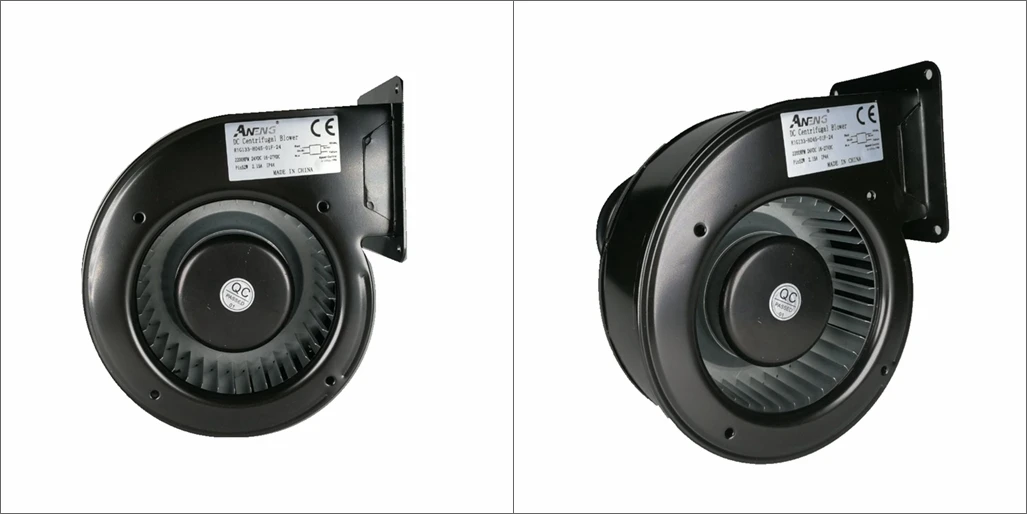

Product Pictures

(PS: ANNENG Reserved, Pirates Must Investigate.)

Product Datasheet

Specification
Model Type: R1G133-H045-01F / Motor Type: 72mm
Rated Voltage	Frequency	Rated Current	Input Power	Speed	Air Flow	Air Flow	Static Pressure
(VDC)	(Hz)	(A)	(W)	(RPM)	(CFM)	(m3/h)	(Pa)
12/24	/	3.6/1	40	1800	150	250	240
Details Description
Current Leakage		<=0.25mA
Operation Mode		continuous operation S1
Direction of Rotation		clockwise, seen on rotor
Mounting Position		at will
Insulation Class		"B" or "F"
Cable Length		450mm
Bearing		ball bearing (NMB)
Net weight		1.4kg
Surface of Rotor		electrophoresis
Number of Blades		/
Type of Protection		IP44 or IP55
Speed control		0-10v / PWM signal
Approval		CE
Operate Life		>=40,000hours
Noise		<64dB(a) 1 meter away
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)

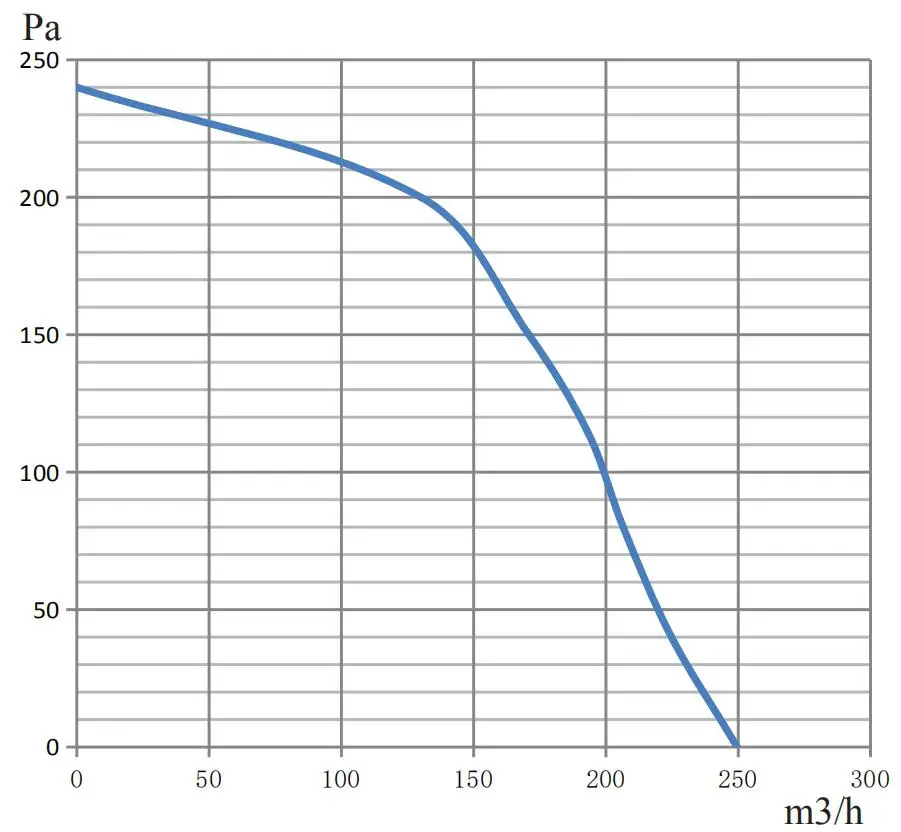

Characteristic Curves

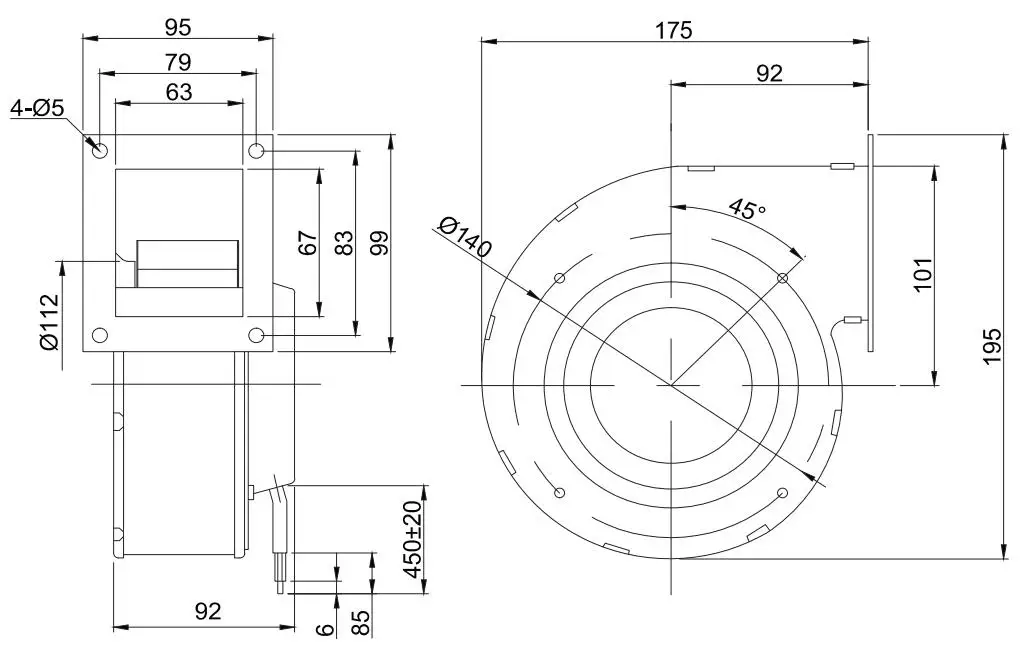

Drawing

Factory Display

Production Line

Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.
