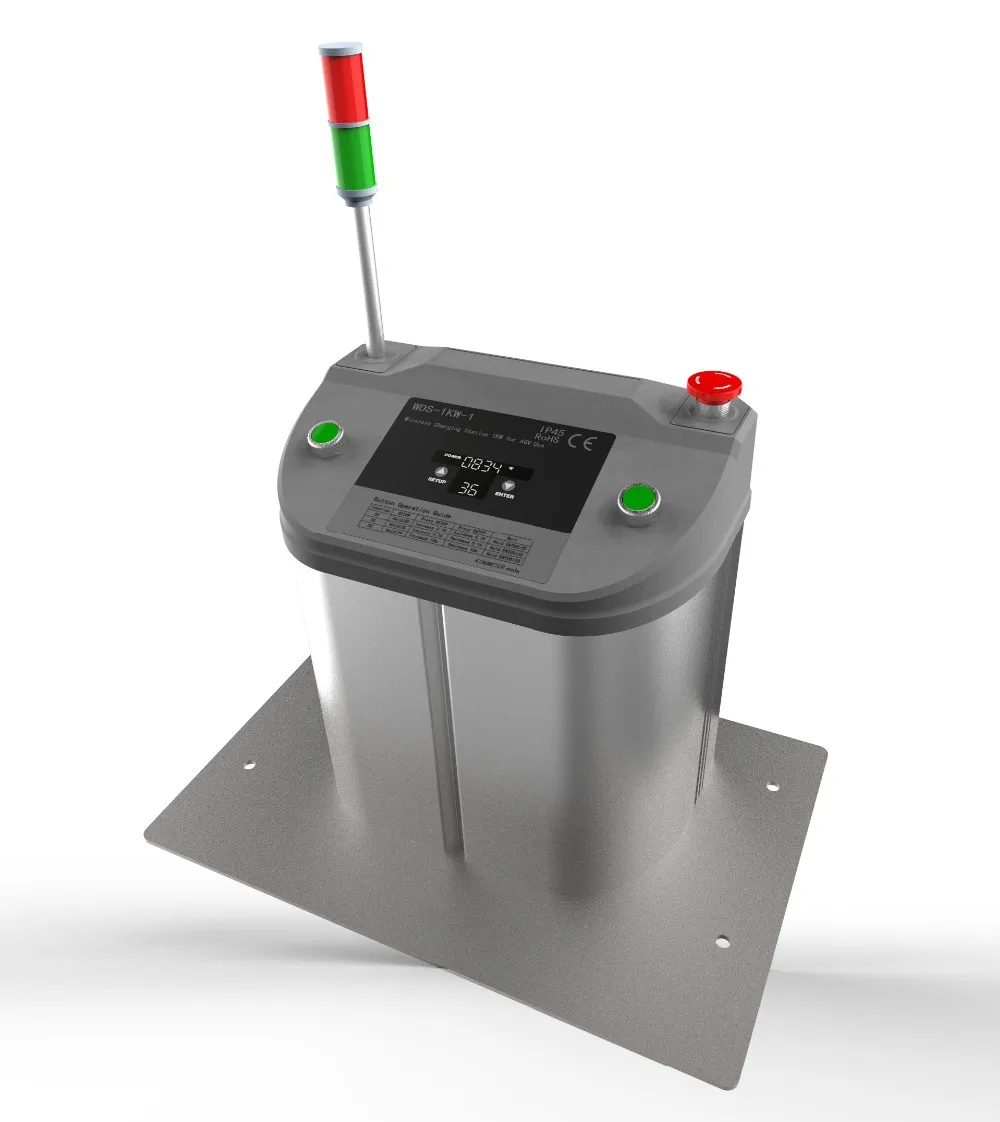

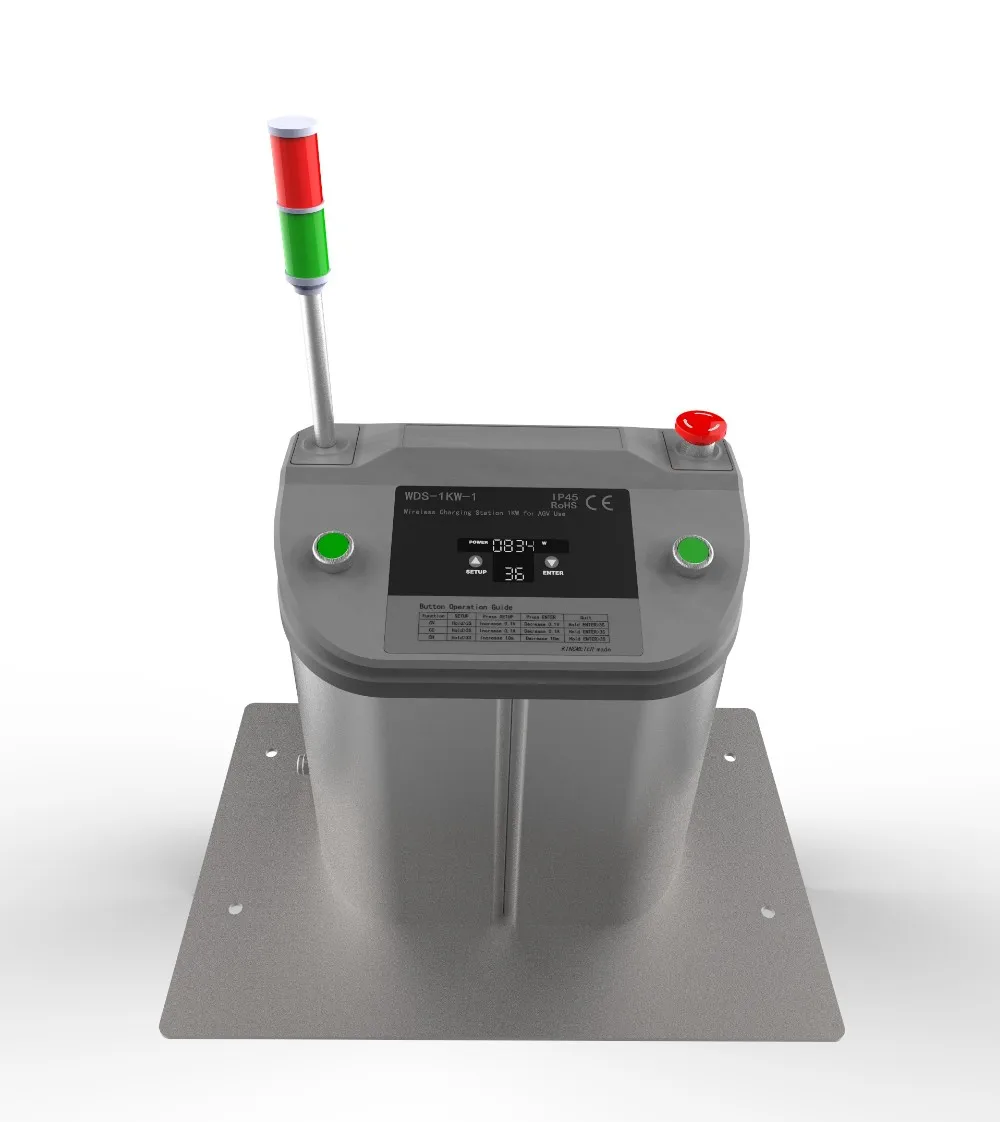

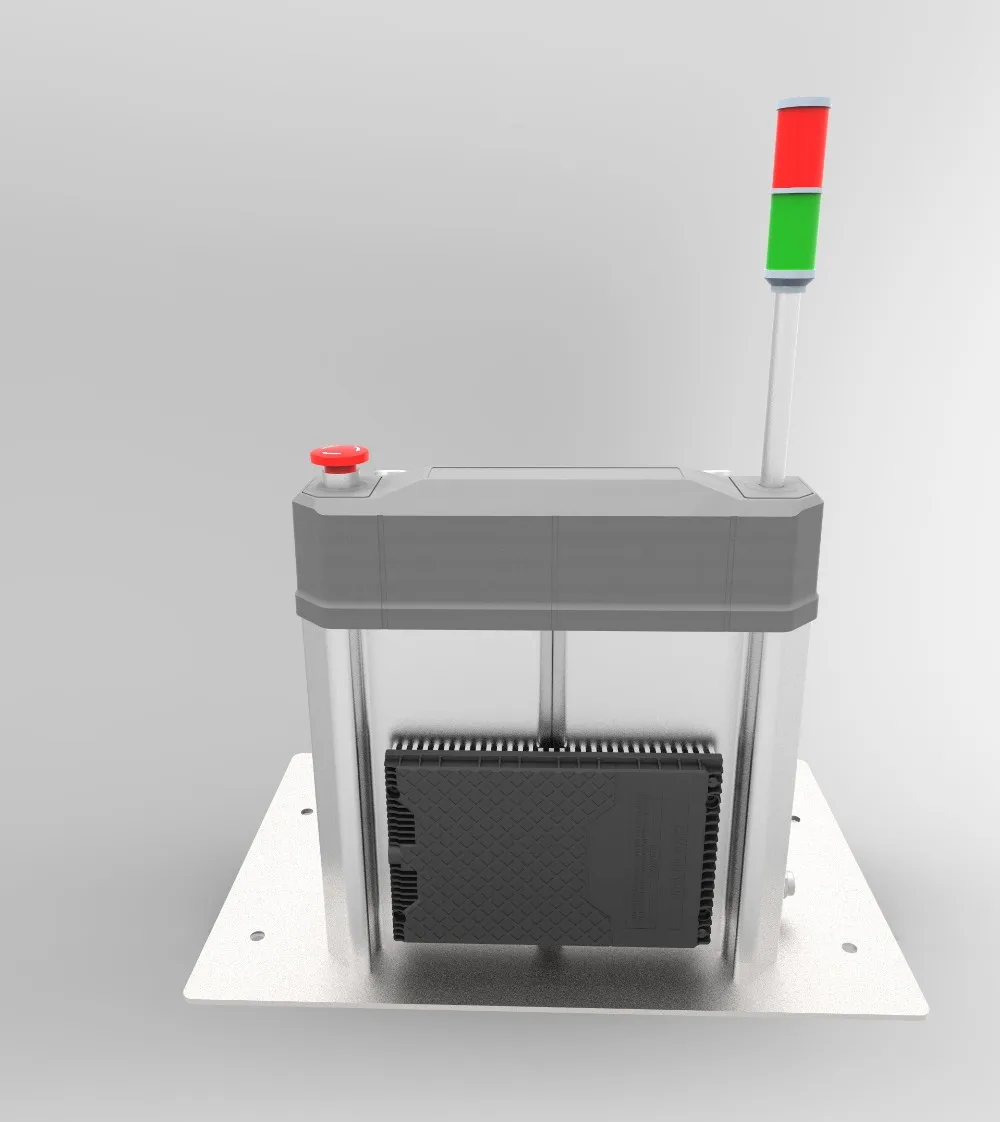

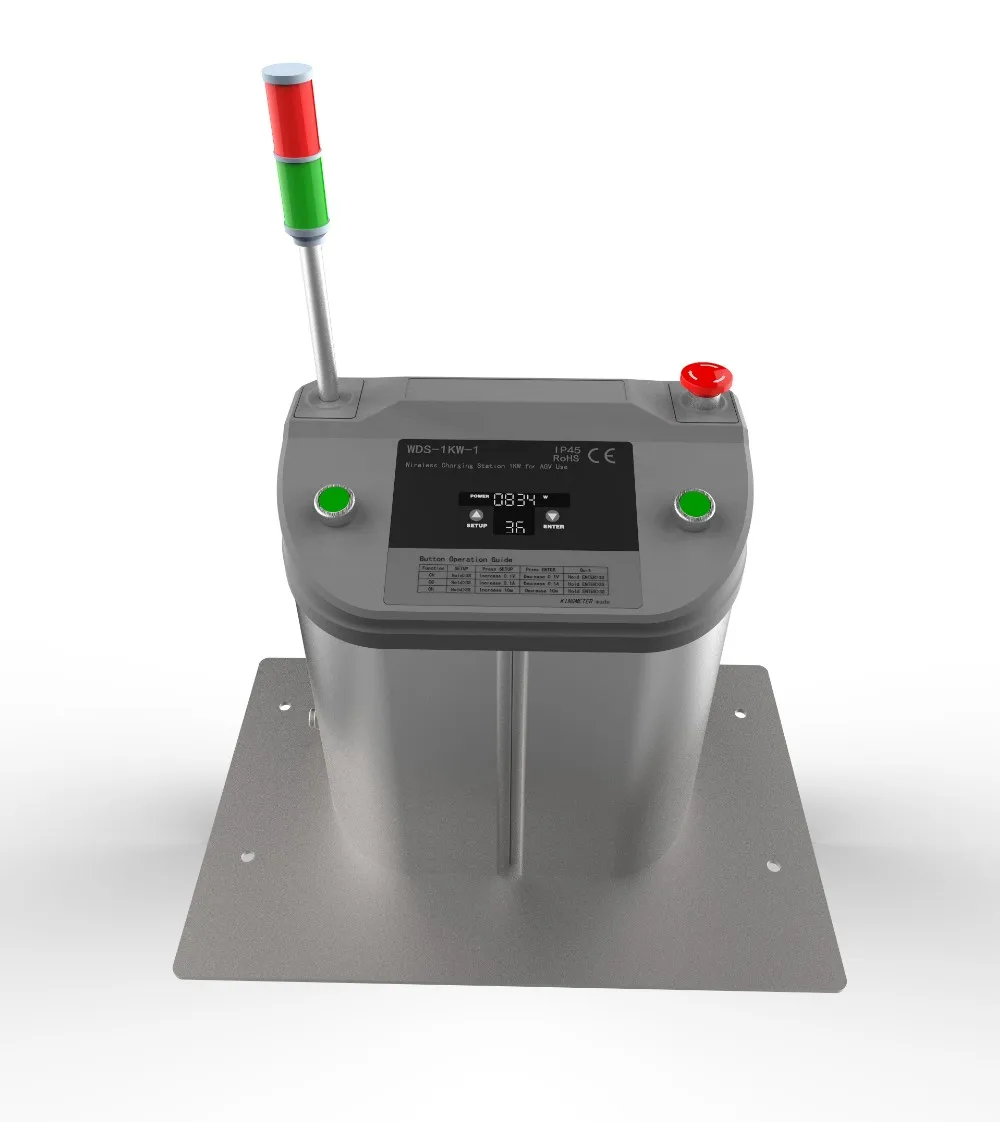

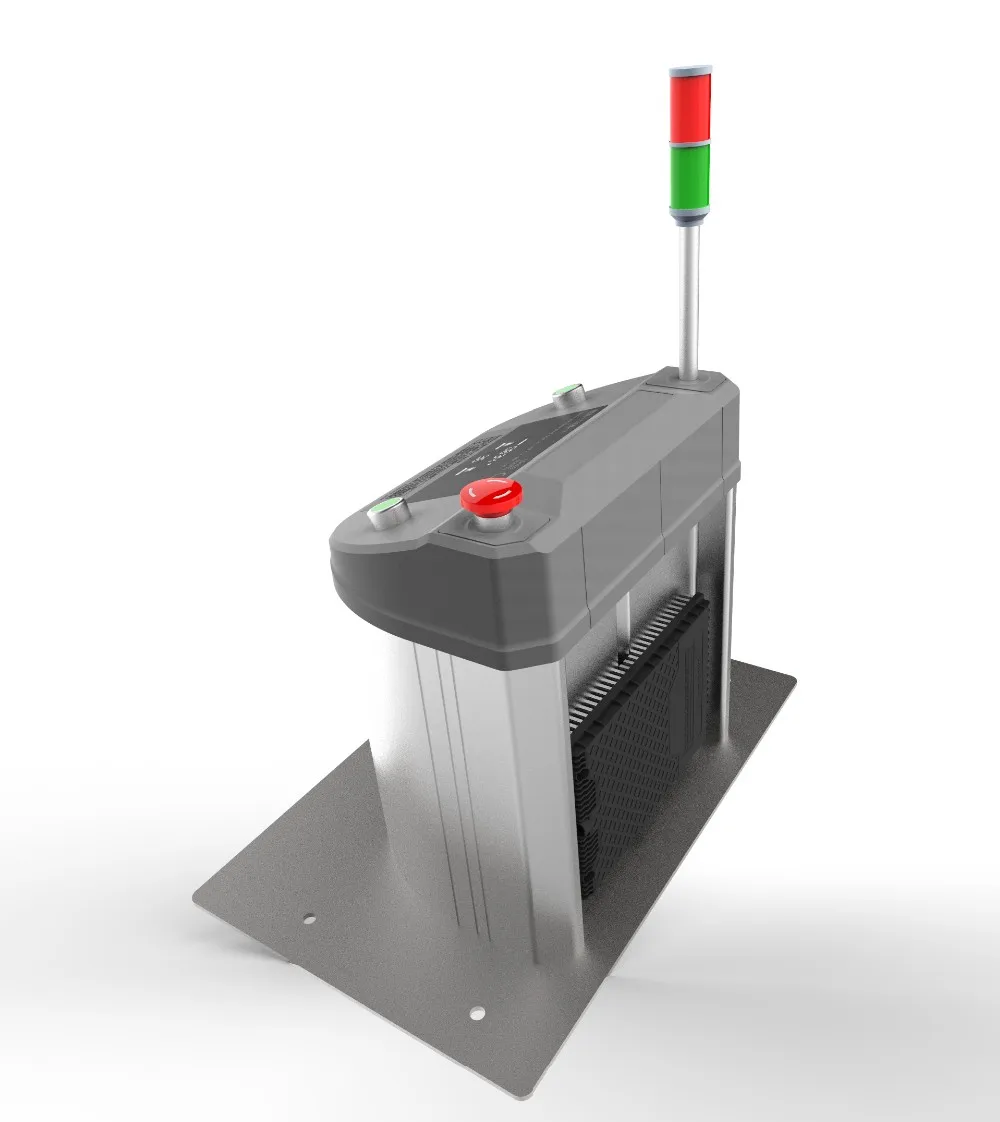

Wireless charging station for AGV/Robots/EVs

Product details
Certificate:CE ROHS REACH;Advantage:Automatic Infrared Sensor Wireless Charge;
Material:Metal;Usage:for AGV & Robot;
Place of Origin:Tianjin China;Supply Ability:1000 Set/Sets per Week;
Port:TIANJIN;Function:Charging;
Payment Terms:L/C,T/T,Western Union;Package:Export Package;
Quality Certification:ISO;Color:Grey;
Brand Name:KING-METER;Product Name:Wirless Chargng Station;
Packaging Detail:wooden box;Compatible Brand:KING-METER;
Product Description

1. Function Overview

WCM-1K(Wireless Charging Module)could output 1KW DC electric power, Mainly used for charging lithium battery pack and lead acid battery pack of mobile automation equipment, Its features are outlined below:

● Charge the battery from 24V to 48V

● Max output power rate 1KW

● Max output current 35A

● Gap of transfer pad and receive pad: 0-40mm

● Max offset of the pad : 25mm

● Charging mode can be settable

● Battery types can be set up: lead-acid or lithium battery

● Over heat protection, short circuit protection, charge timeout protection

● The CAN-BUS interface with the BMS (battery management system) is reserved

● The module ending with W has no function to set voltage or current

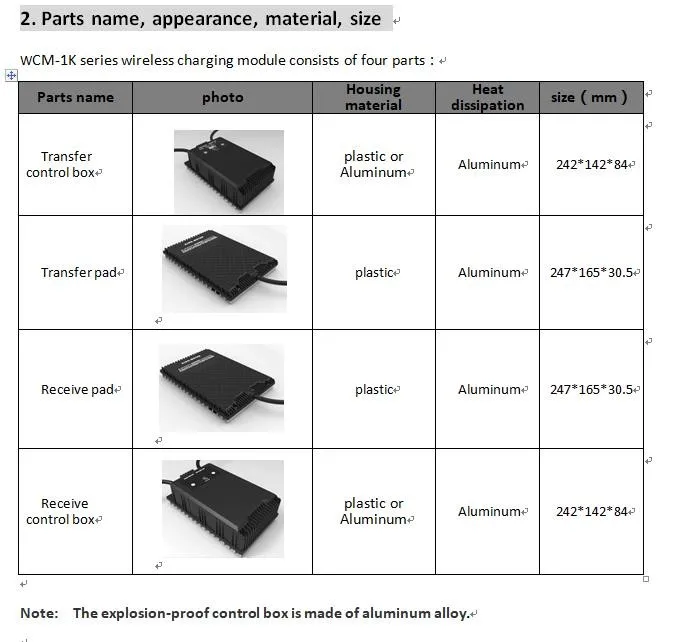

Detailed Images

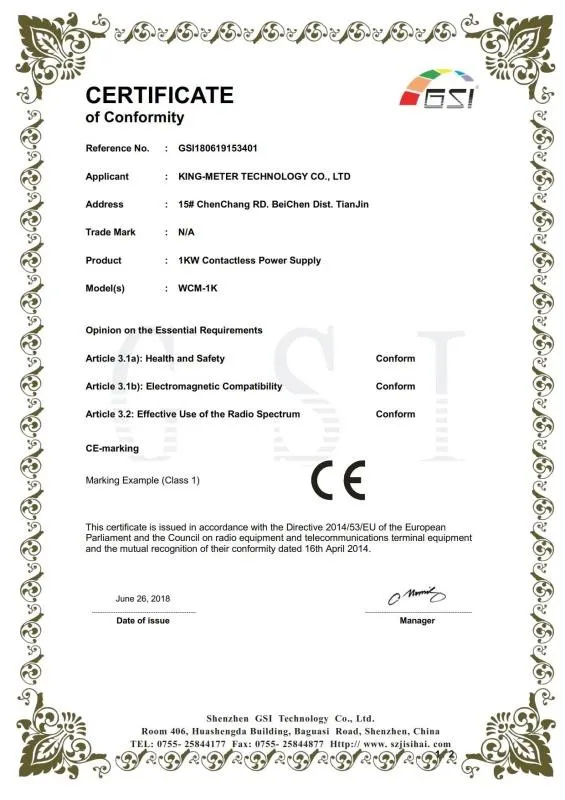

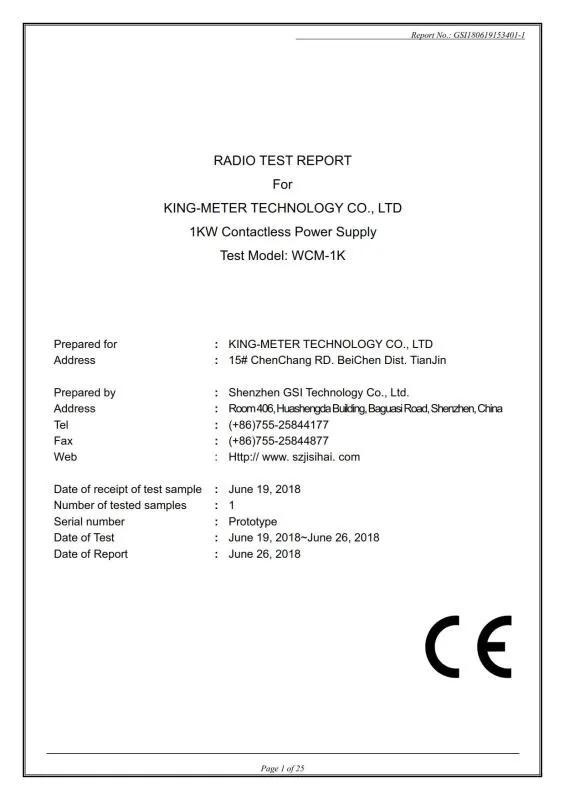

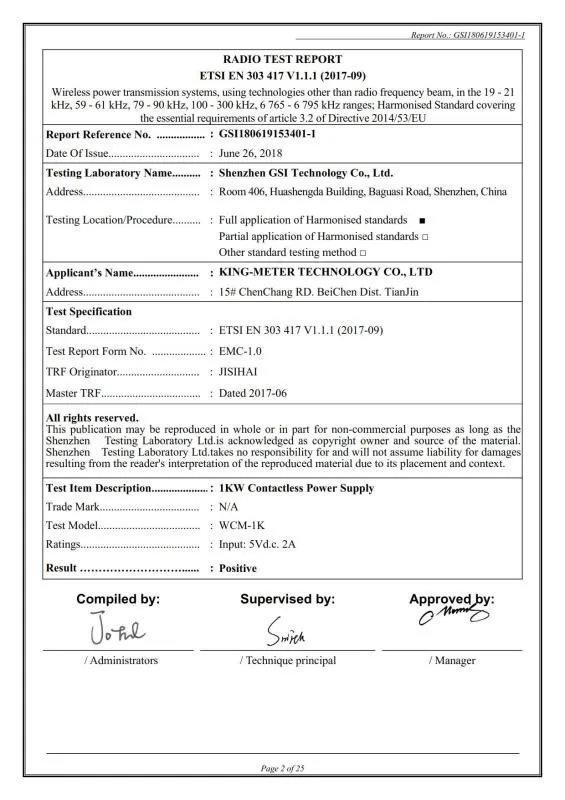

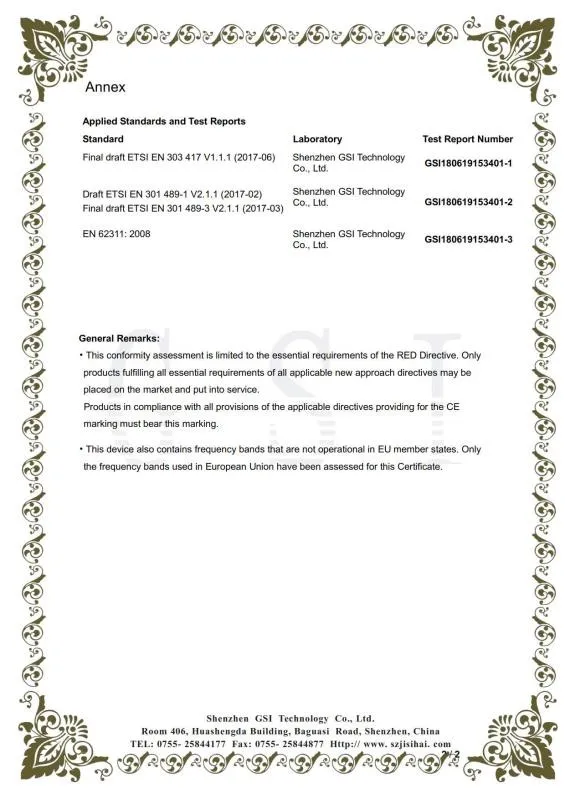

Certifications
Our Company

KING-METER  is a professional enterprise, specialized in R&D, production and sales of displays, sensor and rental system for public E-bikes.


KING-METER is national grade High-tech enterprise. We own 96 patents and get many design awards. All the products are exported to Europe and own35% market share in Europe. All products have passed EN15194, CE, RoHs and REACH.


KING-METER passes ISO9001 and ISO14001 certification. We have introduced a series of testing equipment, including vibration test bench, high low temperature test box, salt spray testing machine, pull out testing bench, key fatigue tester and so on.


We provide ODM service which creates a custom design, built to your specification. We look forward to long and mutually profitable partnership with you.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
