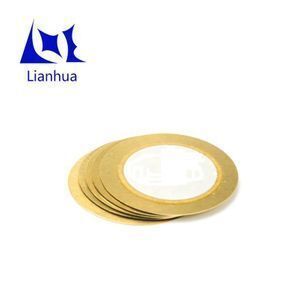

35mm piezo ceramic element 3.5KHz piezo ceramic disc

Click here to contact
Product details
Model Number:FT-35T-3.0A1;Brand Name:Lianhua;
Total thickness (mm) (T):0.56±0.06;Type:Piezo element;
Metal plate thickness (mm) (t):0.29±0.04;Resonant frequency:3.0±0.3;
Capacitance at 1KHz:25000±30%;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Port:Shanghai port or other port in China;Place of Origin:Jiangsu China;
Packaging Detail:export standard packing;Metal plate diameter (mm) (D):35.0±0.2;
Supply Ability:1000000 Piece/Pieces per Month;Material:Metal Boride;
Ceramic plate diameter (mm) (d):25.0±0.5;Type:Piezoelectric Ceramics;
Certification:ISO14001,ISO9001,TS16949;Resonant impedance:≤500;
Metal material:Brass;

1. Piezo Element Description





Resonant frequency

(KHz)

3.0±0.3

Resonant impedance

(Ω)

≤500

Capacitance at 1KHz

(pF)

25000±30%

Metal plate diameter (mm)  (D)

(mm)

φ35.0±0.2

Ceramic plate diameter (mm)  (d)

(mm)

φ25.0±0.5

Total thickness (mm)  (T)

(mm)

0.56±0.06

Metal plate thickness (mm) (t)

(mm)

0.29±0.04

Metal material



Brass

RoHS



Yes

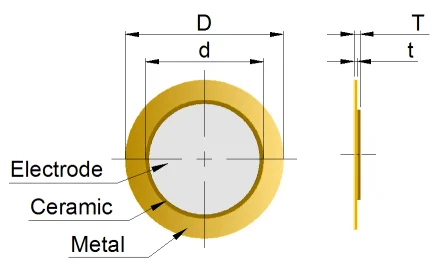

2. Piezo Element Dimensions







3. Piezo Element Packing

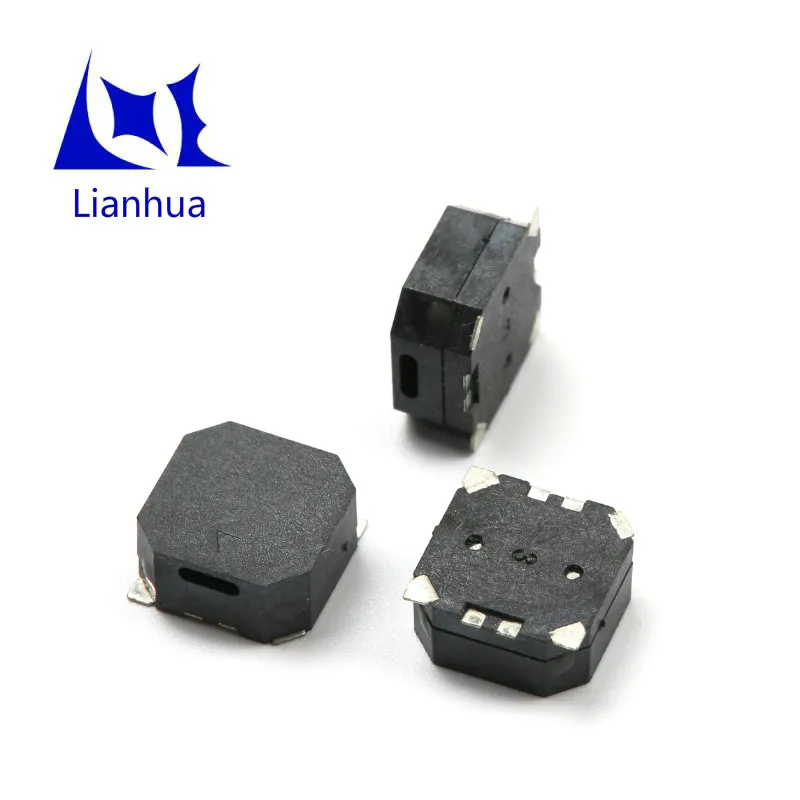

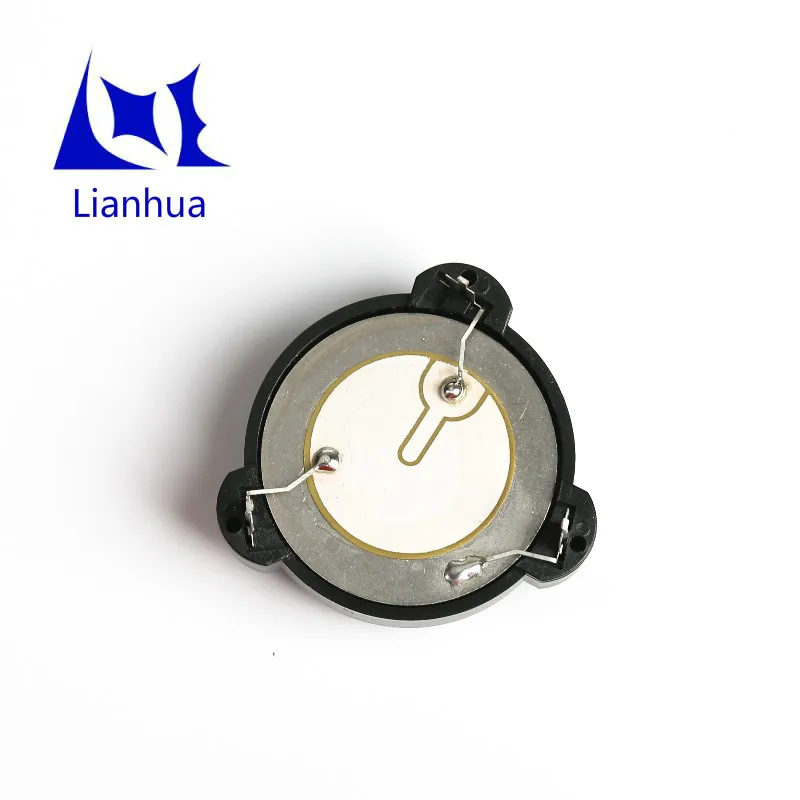

4. Piezo Element Related Products



5. Our Buzzer Factory







One of the Leading Manufacturers in Acoustic Component Industry

      We supply SMD buzzers, automotive buzzers, piezo buzzers, electro-magnetic buzzers and piezo elements.

Capable to Make 5 to 8 Million Products Monthly

       Our factory covers 5000 square meters and our company has more than 250 skillful workers

 and 20 experienced engineers. It is furnished with advanced facilities for production with four

 automatic machines.

Operating According to IOS/TS 16949,IOS 14000 and IOS 9000 Guidelines to

Ensure the Highest Quality All the Time.

6. Our Piezo Element Workshop







7. Certifications







8. SMD Piezo Element FAQ





1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight  fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
      Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are changzhou buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.



9. Contact Us







10. Buzzer Catalogues
