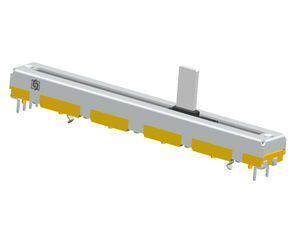

SLIDE POTENTIOMETERS SAXX05 SERIES SPECIFICATION |
1 | ELECTRICAL CHARACTERISTICS |
| ITEMS | SPECIFICATION |
1-1 | Total Resistance And Tolerance | Ω±20% |
1-2 | Resistance Taper | Taper |
1-3 | Power Rating | Taper 0.1W |
1-4 | Power Voltage | B Taper DC 500V |
1-5 | Residual Resistance | R12: 20 Ω; R23: 40 Ω |
1-6 | Rotational Noise | 47mV Less than |
1-7 | Gang Error (Dual Unit) | ≤± 3 dB,- 0 dB~ 3 dB. |
1-8 | Insulation Resistance | More then 100MΩ at DC 250V 1 Minute |
1-9 | Withstand Voltage | 1minute at AC 300V |
1-10 | Working Temperature | -10oC~70oC |
1-11 | Storage Temperature | -25oC~35oC |
2 | MECHANICAL CHARACTERISTICS |
2-1 | Total Travel Slide (±0.5mm) | 100mm |
2-2 | Sliding Torque | 10110gf.cm |
2-3 | Slide Stopper Strength | ≥5Kgf.cm |
2-4 | Lever Wobble | 1.6mm Max |
2-5 | Resistance to soldering heat | Wave soldering:Temperature 300oC±10oC,Time 3±1 seconds. |
2-6 | Rotational Life | 10,000 Cycles min |
