1080p 6ch Mobile DVR JF-S6 Driving Recorder Blackbox combine with BPC automatic passenger counter with 2 cameras WiFi GPS

Supplier: Shenzhen Tensor Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Janet Chan
Price: $500.00 / >=5 units
Min. Order: 5 units

Click here to contact

Product details

Mobile network (optional):	3G, 4G, WIFI;	Video input and output:	4 channel AHD video input, 1 channel CVBS video output; 1.0Vp-p, 75Ω;
Support language:	Chinese, English, (optional), other customizable (optional);	Video compression format:	H.264 compression coding.;
input voltage:	DC:+8V ~ +36V;	OEM No.:	/;
G-senor:	External G-Senor;	storage medium:	Support dual SD card ( 256G largest);
Packaging Detail:	Well packed in gift box.;	Size:	147 (W) x 146(H) x 42(L) mm;
Material:	/;	Supply Ability:	10000 Unit/Units per Month;
Port:	Alibaba.com Ocean Shipping Service from China to U.S;	Location:	Built-in GPS module, external GPS antenna;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Type:	Passenger counter;
operating system:	Linux;	size:	147 (W) x 146(H) x 42(L) mm;

people counter

New Auto Video People Counter with JF-S6 Mobile DVR

Overview

What’s Bus Passenger Counter

Bus Passenger Counter (BPC) is a smart compact device backedby stereoscopic distinguish technology same as KINEC.It is designed for countingpeople cross doors of buses, trains andother entrances.

The video counter works with binocular cameras, which can offer the most accurate counting in the vehicle from morning to evening.

New Counter Specifications

High precision counting accuracy (>97%)

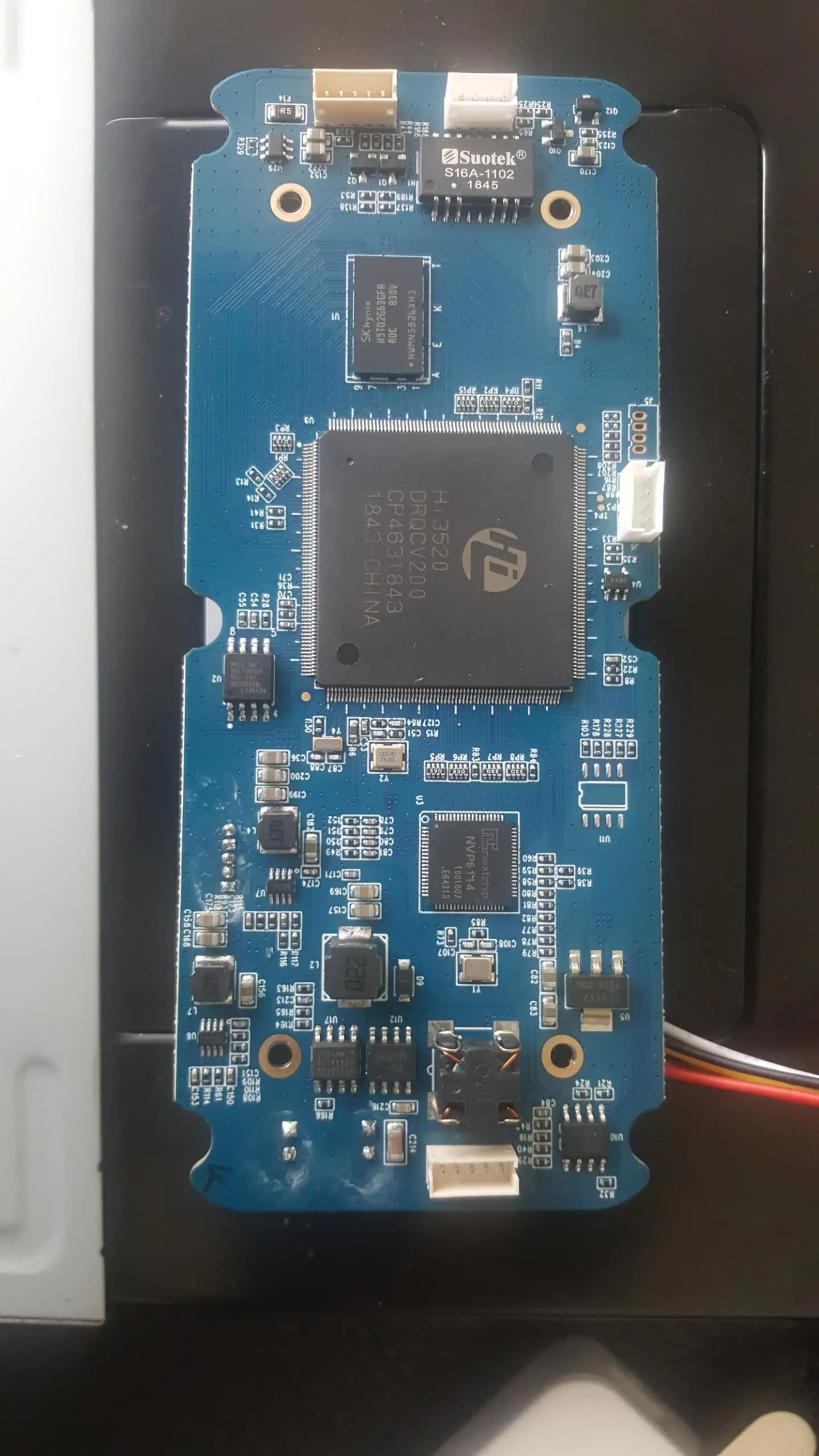

Popular Hi3520D chips solution
Rich RS-232 for external devices
4CH Video Input, 2CH Video Output
Really Vandal-proof & EMC for buses
Excellent power protection 9-36V,10A max
Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc
Well-tested design in thousands of buses over the world
195-300cm (height), 80-300cm(width)
Easy setup and connection to IPAS system
300,000pcs of records saved in memory
Smartly Resent records when network is lost
30-90MB data plans only every month
Used in step environment
Built-in 3G/WIFI/GPS optional
Max 4 bus doors with combination of counters

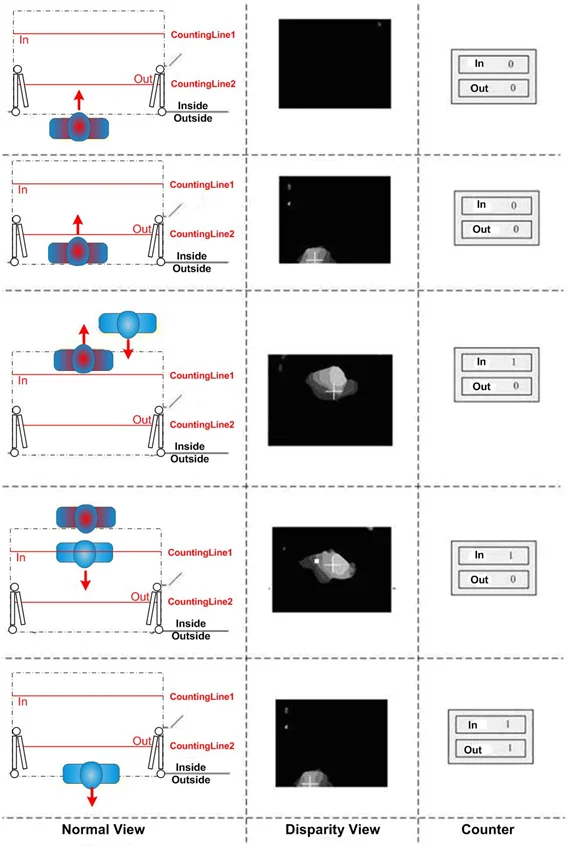

How Counter Works?

BPC will detect and analysis the height, shape, direction of moving objects when somebody crosses the field of surveillance. The counter will generate a piece of record to show IN or OUT result. According to visual parallax theory, counter can compute image position deviationto obtain object 3D geometrical information. To combine two CCD chipsto observe the differences between each other.
