Durable best sell wooden cotton seed hull pellet machine

Supplier: Shandong Hanyu Environmental Protection Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Yan
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	260 Set/Sets per Month;	Power(W):	55KW;
Certification:	CE ISO SGS;	Dimension(LWH):	16508001600mm;
Material moisture:	10%-20%;	Transmission type:	reducer;
Capacity:	0.8-1.2t/h;	Packaging Detail:	wooden cotton seed hull pellet machine packing: standard export wooden cases;
Material of die and rollers:	alloy steel;	Lifetime of die and rollers:	1500-2000 hours;
After-sales Service Provided:	Field maintenance and repair service;	Voltage:	380V;
Color:	as your required;	Quick-wear parts:	die and rollers;
Warranty:	5 Year;	Condition:	New;
Place of Origin:	Shandong China;	Pellet diameter:	1.1-1.4g/cm3;
Port:	Qingdao;	Weight:	2.5T;
Brand Name:	HanYu;	Payment Terms:	L/C,T/T;

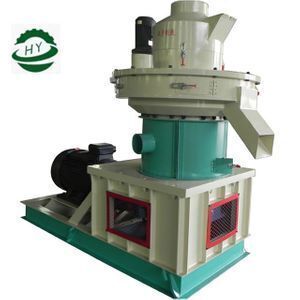

Durable best sell wooden cotton seed hull pellet machine

Wood sawdust pellet machine is the eucalyptus wood, pine, birch, poplar, fruit tree and shattering crops straw, bamboo shavings sawdust bran processing into biomass fuel production machinery.This machine make pellets can be used for fireplace, boiler, gasifier, the use of biomass power plant.
According to the mould is different, divided into the ring die wood sawdust pellets machine and flat die wood sawdust pellet machine.

Advantage 1: transmission efficiency is as high as 98% above.
Advantage 2: the gear is hot processing, improve the tooth surface hardness, tooth surface carburizing treatment, carburizing layer up to 2.4 MM increase abrasion resistance, prolong service life, silent fine grinding tooth surface edge processing, make the operation more quiet, smooth.
Advantage 3: spindle and conjoined hollow shaft connection with alloy structure, fatigue resistance, wear resistance.
Advantages 4: body composed of CNC finishing, zero error.

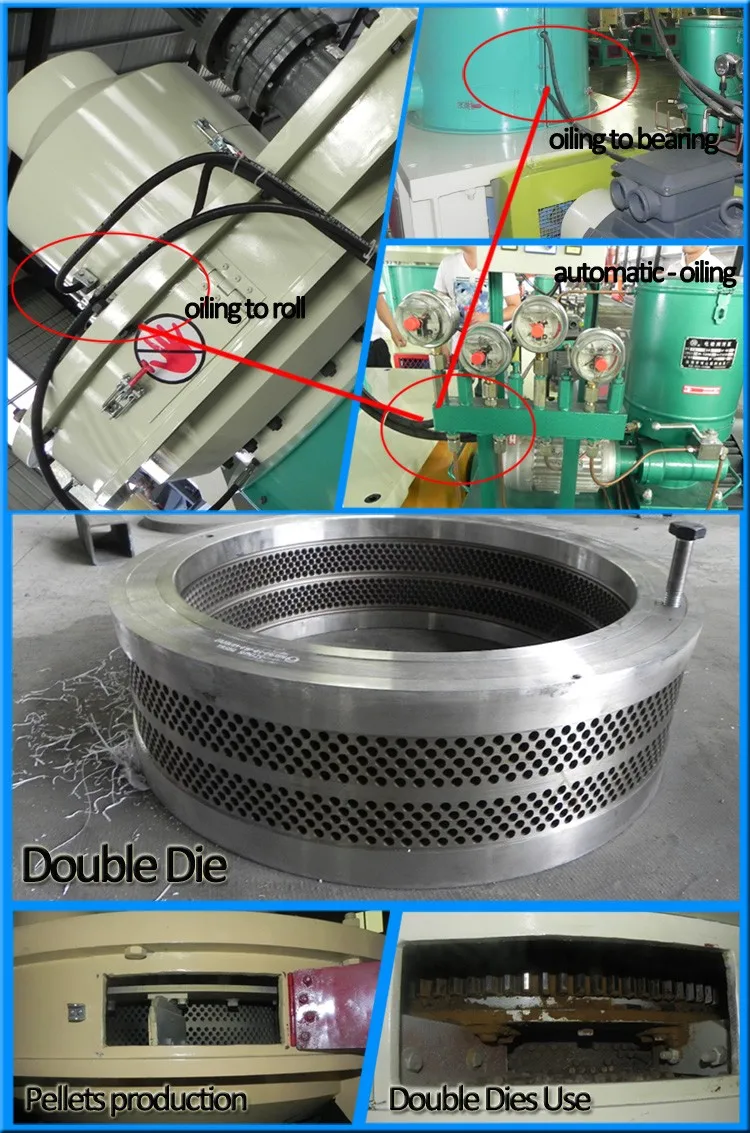

Advantage 5: bearing with wear-resistant and heat-resistant fluoro rubber oil seal, equipped with lubricating oil return system, automatic oil lubrication.
Advantage 6: pellet formation system adopts high quality silent bearing bearing, equipped with thin oil circulation cooling lubrication system.

Advantage 7: ring die mould adopts stainless high nickel aluminium manufactured.

HYHM560 is a ring die wood sawdust pellet machine, its main motor power can reach 6 grade power of 90 kw, capacity per hour in 1000-1500 kg, pellets processing specifications in 6-30 mm, machine appearance size is 2200 mm, wide 1300 mm, height 3200 mm high, weight 6000 kg.
Vertical ring die sawdust pellet machine models and parameters:
Model Capacity Power Pellet diameter
HY450LH 0.6-0.8T 45kw 4-12mm
HY470LH 0.8-1 T 55KW 4-12mm
HY500LH 1-1.2T 75KW 4-12mm
HY560LH 1.2-1.5T 90KW 4-12MM
HY760LH 1.5-2T 132KW 4-12MM
HY50LH 2 -3T 220KW 4-12MM

Wood pellet machine use process if use undeserved, can make wood pellet machine appeared some faults, it will affect the normal production of the wood pellet machine, makes the production capacity decline, so do what work to avoid these problems?Here is Shandong Hanyu for you by us to summarize:

Select suitable models according to their own raw materials, mainly concentrate selected wood pellet machine, crude fibre more than 50% select wood pellet machine, if the crude fiber more than 50% use wood pellet machine has a great influence on the capacity and the machine itself.

Custom-made compression ratio of the mold according to your own raw materials, because of different raw materials suitable for different mold compression ratio, if the compression ratio wrong, the capacity and pellets quality are influenced.

Keep the wood pellet machine clean.Users in use is often do not pay attention to maintain the cleanness of pellet machine, it has accelerated pellet machine service life, so we must keep the pellet machine clean, so that it can improve the service life of the pellet machine.

Regular maintenance inspections pellet machine, found that the problem handled in time, if unchecked, later more is not easy to repair.

Do these aspects will make your sawdust pellet machine with time will be longer, create more economic benefits for you! Shandong Hanyu environmental protection equipment specializing in the production of wood pellet machine, welcome you to come to choose and buy!

Strong after-sales is the guarantee of you choose Han Yu pellet mill.
1.Pre-sale services: to provide you with project design, process design, Set out scheme of choose and buy equipment which suitable for you according to your specific needs, design and manufacture products, training technical and operations personnel for you.
2.Sale of services: to accompany you to complete the equipment acceptance, assist in the development of construction program and detailed process.
3. After-sale Service: The company sent technicians to the scene to guide the equipment installation, commissioning and training of site operators.

1. General questions to design the production line for you?
    A: What is your raw materials? ( help us to confirm which machines will be used and to confirm the mould compression ratio of the pellet machine )
    B. What is the moisture content of your raw material?( If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15% )
    C. How many output capacity do you want per hour / month/ year?( help us to choose the suitable type and models of the machines for you )

2. How long is your guarantee?

5 yeas for the machine body,12 months for the motor and 1000-1500 working hours for the quick waering parts(die and rollers).

3. Will you send engineers to install the machines?
Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory at once. Our engineers will guide you to install the machines and training your workers how to operate the machines and mentain the machine.

4. Voltage requirement ?

Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz or according to your requirements.
