FL aluminium self circulating oil chiller

Supplier: Nantong Tobel Intelligent Controlling Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr DONGHONG WU
Price: $800.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

fan diameter:	250-900mm;	Supply Ability:	1000 Set/Sets per Month;
Port:	shanghai;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,L/C OR T/T;
Name:	FLOS aluminium oil chiller;	Certification:	CE;
Heat dissipating capacity per degree:	0.075-2.6KW/C°;	Model Number:	FLOS2/3/3B/4/4B/5/6/7/8/9/10/11;
motor voltage:	380;	Brand Name:	TOBEL;
Application:	High precision,large flow,oil recovery pulse or oil back cooling;	noise:	75-98dB(A).lm;
working pressure:	16-26Mpa;	motor frequency:	50;
Product name:	FLOS aluminium self circulating oil chiller;	Delivery Detail:	15-25days;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	packing by plywood with pallet;
motor pole number:	4 or 6;	Type:	Cooler;
Place of Origin:	Jiangsu China;

Product Description

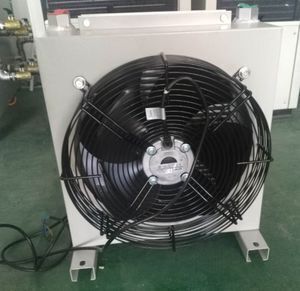

FLOS self circulating oil cooler

field of of application:

High precision,large flow,oil recovery pulse or oil back cooling is difficult to meet the requirement of the situation.such as:hydraulic system,lubrication system,extrusion machinery,forging equipment,shearing machine,gear box,large bearing,etc.

Characteristics

design of patent profile

high quality sheet metal parts,all produced by CNC machining.

imported motor,the quality of the wind blade is reliable and the outer shape is beautiful.

surface phosphating and electrostatic spraying treatment,excellent anticorrosion performance.

the motor adpots the B3 installation way,which avoids the hidden danger of the cantilever beam structure,reduces the vibration and the structure is strong.

high quality precision filter(optional).

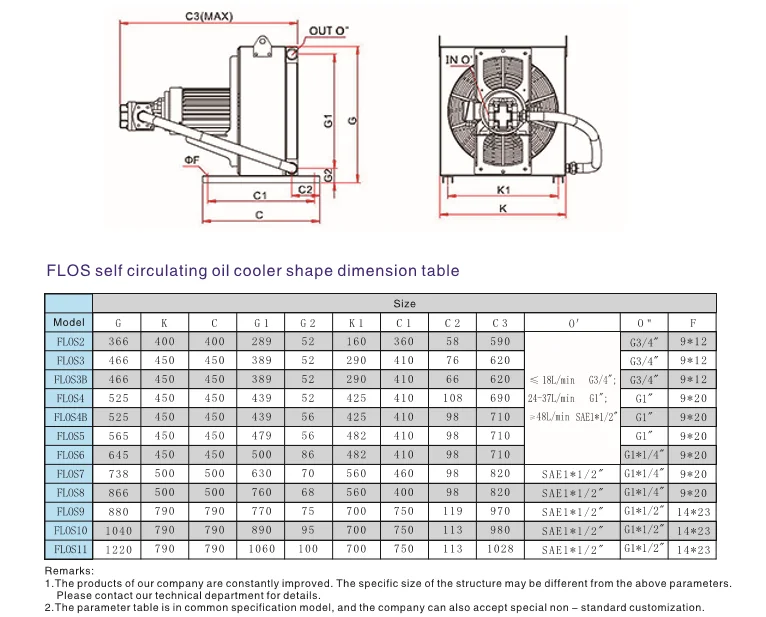

FLOS self circulating oil chiller shape dimension table

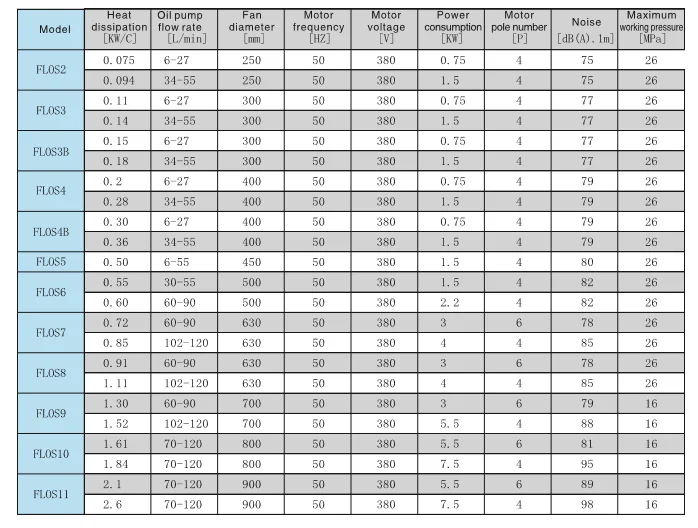

FLOS series specification parameter table

Packaging & Shipping

packing by plywood with pallet.

shipping by LCL OR FCL by sea or by air.

Our Services

24hours quick resonse,service by internet.

Company Information

nantong tobel intelligent controlling equipment co.,ltd(formerly jiangsu top refrigeration technology co.,ltd) is located in Haian county,jiangsu province.it is a modern enterprise of R & D,production and sales.the company has brought together the advanced refrigeration technology talents in the field of central air conditioning industry,which has unique resource advantages,which makes the performance of the product always in the leading position in the same industry.

the company's leading industrial refrigeration series is divided into three categories:industrial oil cooling,industrial chiller and hermatic cooling tower.more than ten series and hundreds of specifications,which have successfully solved the heating problems of many large and msdium domestic enterprise in the process of production.at present,products are widely used in many industries such as machine processing,textile processing,communication and electtronics,automation control system and so on.

our products sell well not only in China,but also in the international market with high cost-efficient.at present,the products have been exported to the United States,Britain,Finland,Australia,Russia and Saudi Arabia and other middle east coountries.our company will create a brand that belongs to you in a new starting point and new height.sincerely invite friends from home and abroad to continue to cooperate and create greater achievements.

contact with us by email sales/@/tobel.com.cn.

FAQ

1.TOTAL POWER OF HYDRAULIC STATION

2.PRESSURE OF THE HYDRAULIC STATION

3.OIL TANK CAPACITY

4.FLOW OF HYDRAULIC SYSTEM
